Model Whirlpool KEBI141DWH8 – Common Parts & Diagrams
01 - OVEN
05 - TOP VENTING, OPTIONAL

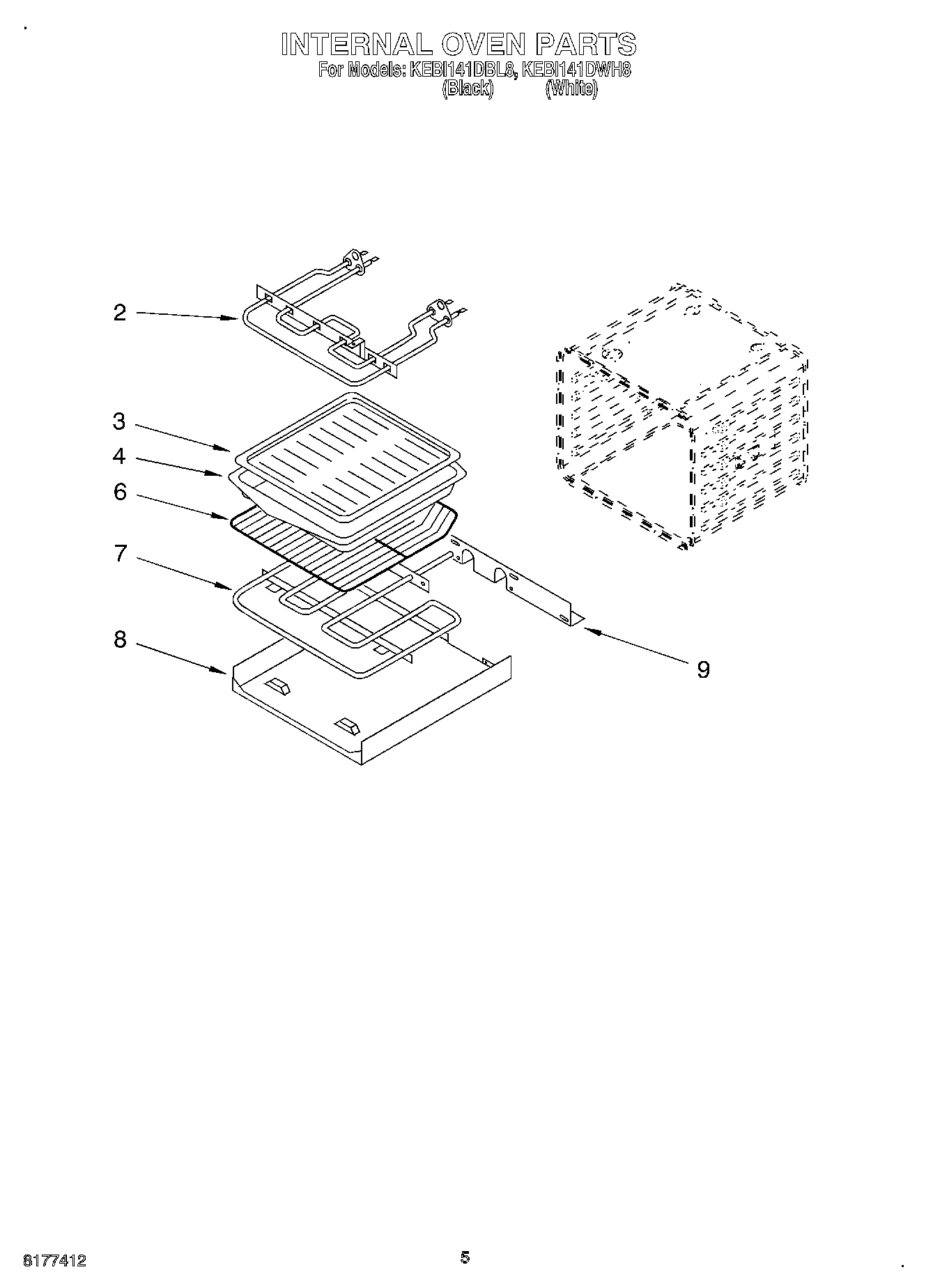

04 - INTERNAL OVEN

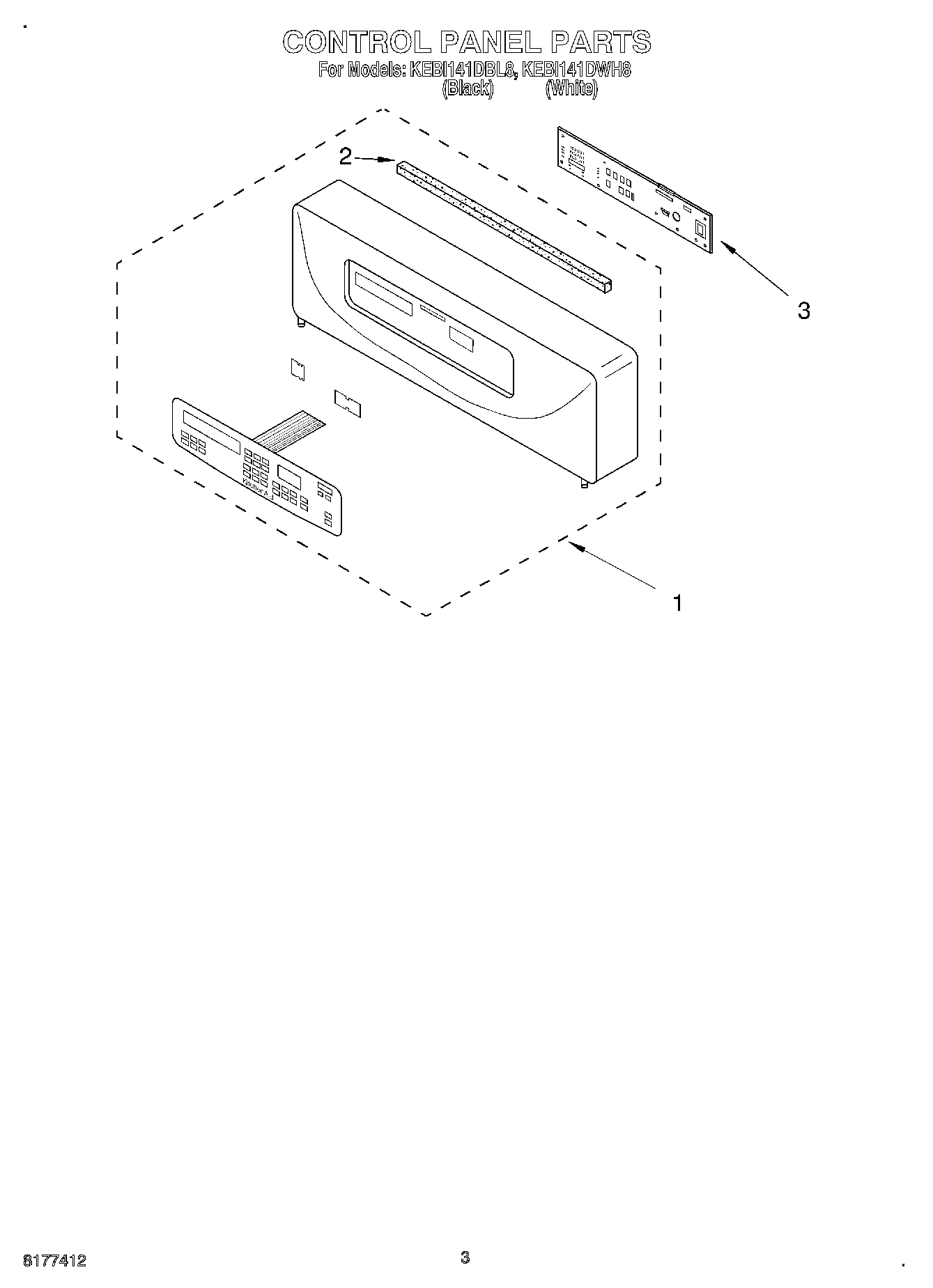

02 - CONTROL PANEL, LITERATURE

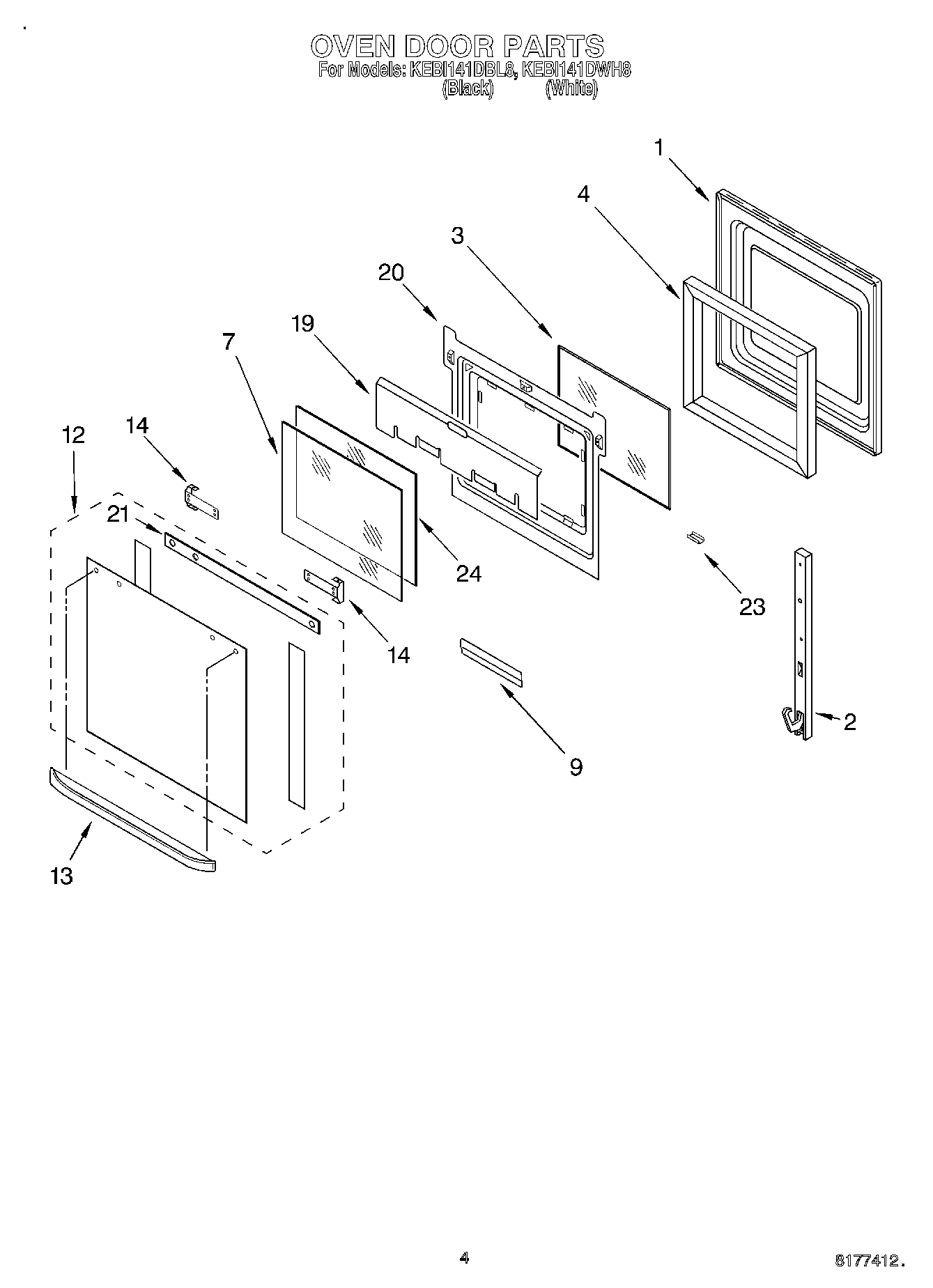

03 - OVEN DOOR
Common parts from model Whirlpool KEBI141DWH8
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450409 Contact Us For Availability
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
Tech Sheet (EDC) WPL LIT4451876 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4451951 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451900 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451903 Contact Us For Availability
2
Gasket, Control Panel WPL 4451032 Contact Us For Availability
3
Blower WPL 4455334 Contact Us For Availability
3
Microcomputer WPL 4453163 Contact Us For Availability
7
Glass, Inner WPL 4449251 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
12
Door Glass, Assy (Black Model) WPL 4452068 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452069 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448408 Contact Us For Availability
13
Door Handle (White Model) WPL 4448409 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Spacer, Harness WPL 4452222 Contact Us For Availability
18
Cover, Top Front WPL 4452365 Contact Us For Availability
18
Harness, Wire (Main) WPL 4452791 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Shield, Heat WPL 4450360 Contact Us For Availability
20
Retainer, Glass WPL 4451669 Contact Us For Availability
21
Seal, Door Top WPL 4451672 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
24
Glass, Inner WPL 4455255 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
× ![]()
