Model Whirlpool KEBI100YWH0 – Common Parts & Diagrams

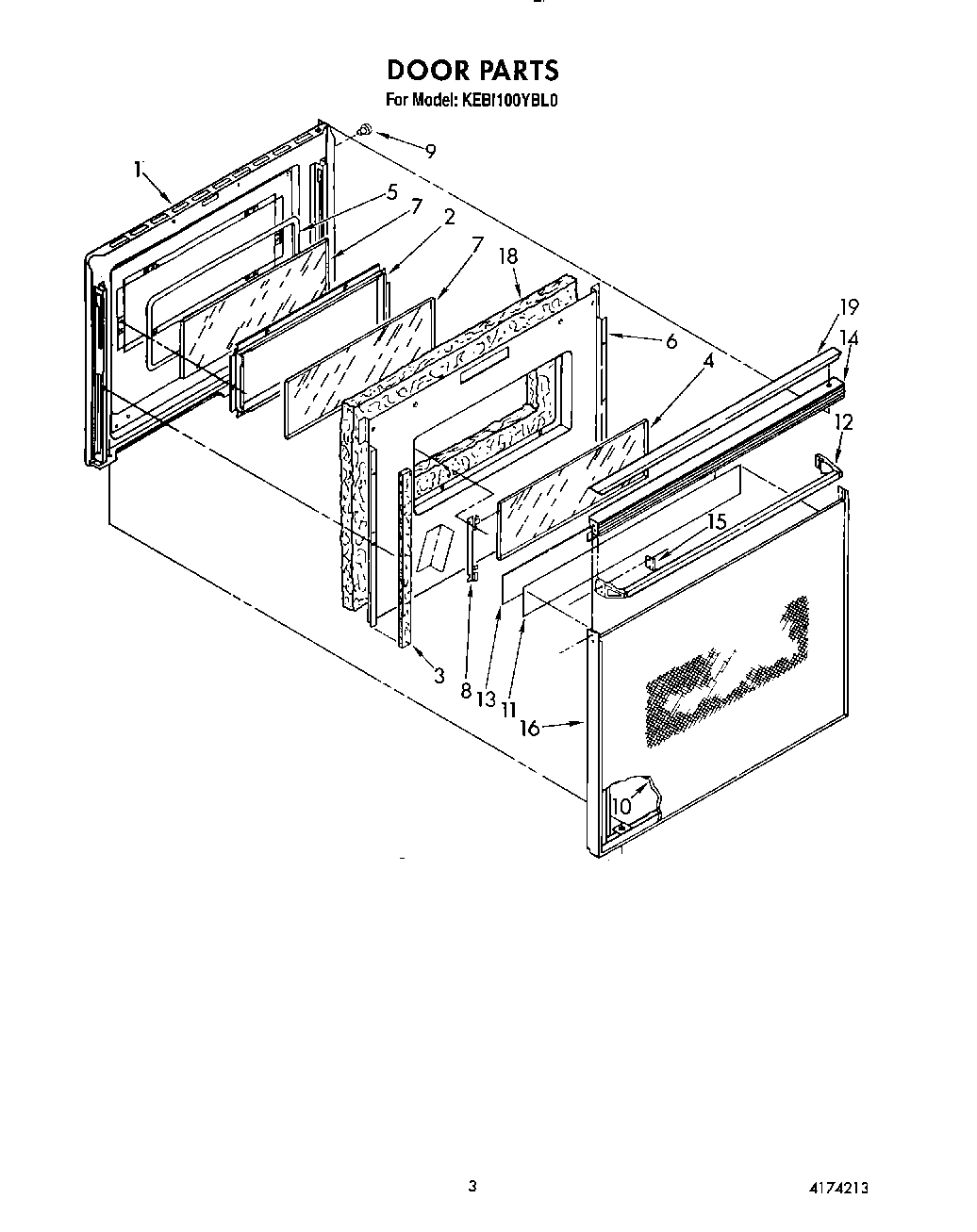

03 - DOOR

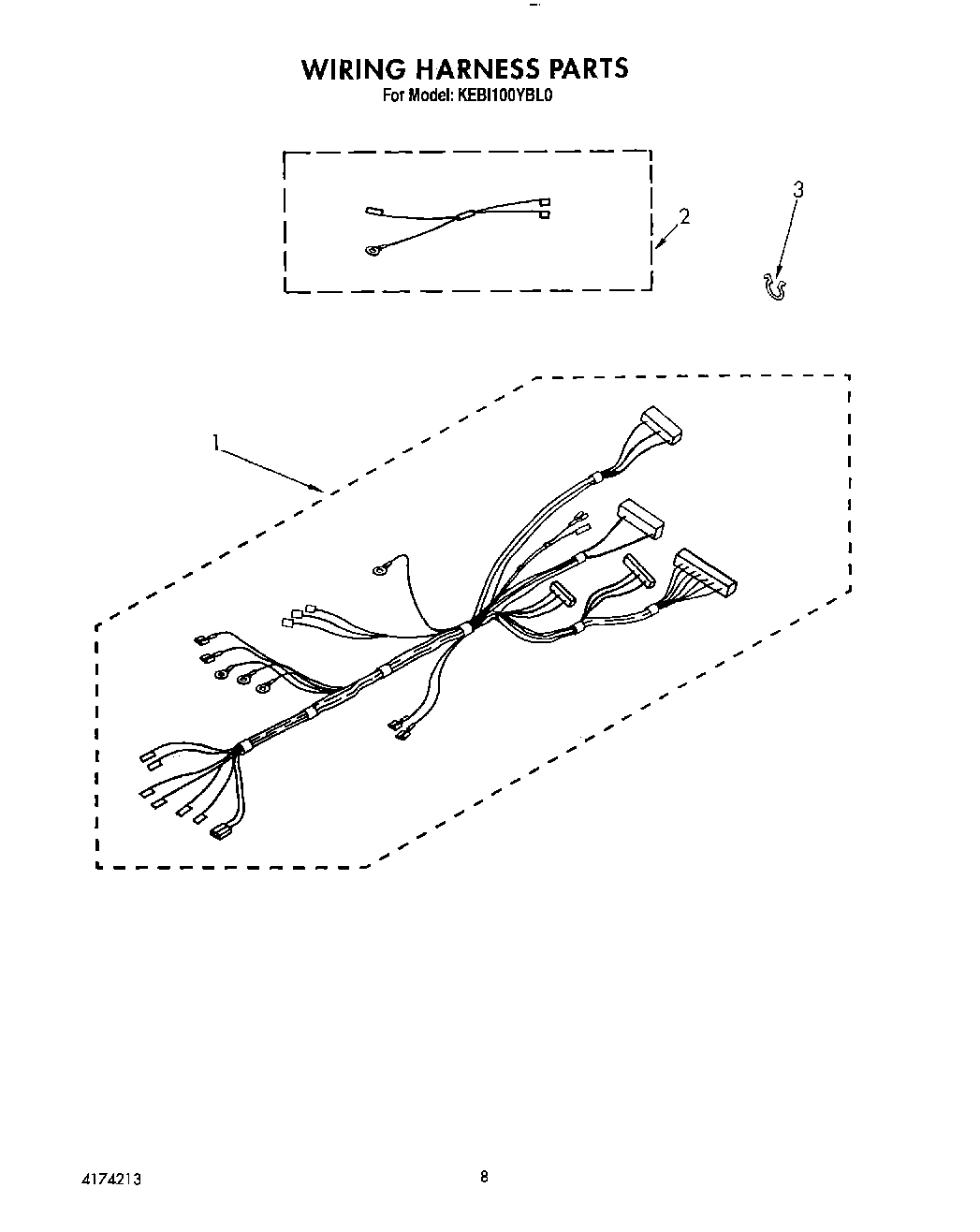

06 - WIRING HARNESS
02 - CONTROL PANEL
04 - OVEN, LIT/OPTIONAL
05 - LATCH AND VENT, OPTIONAL
Common parts from model Whirlpool KEBI100YWH0
WPL LIT3182129 WPL LIT3182129 Contact Us For Availability
WPL LIT3182134 WPL LIT3182134 Contact Us For Availability
WPL LIT3182137 WPL LIT3182137 Contact Us For Availability
WPL LIT4174213 WPL LIT4174213 Contact Us For Availability
1
Harness, Wire (Main Oven) WPL 3182191 Contact Us For Availability
1
Membrane, Switch (Black) WPL 3181786 Contact Us For Availability
1
Membrane, Switch (White) WPL 3181787 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
Baffle, Vent WPL 3183749 Contact Us For Availability
2
Harness, Wire (Blower Fan) WPL 3183657 Contact Us For Availability
2
Bracket, Mounting Switch Membrane WPL 3183794 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Screw (2) WPL 3179117 Contact Us For Availability
3
Microcomputer WPL 3181702 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
4
Retainer, Bracket WPL 3183705 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Clip, Retainer (3) WPL 3182985 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Insulator, Switch WPL 309245 Contact Us For Availability
5
Screw WPL 309258 Contact Us For Availability
6
Trim, Door WPL 3182162 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
6
Shield, Terminal WPL 313035 Contact Us For Availability
7
Door, Latch Handle (Screw (2)) WPL 3179847 Contact Us For Availability
7
Door, Latch Handle (Black) WPL 3182152 Contact Us For Availability
7
Door, Latch Handle (White) WPL 3182155 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw WPL 308422 Contact Us For Availability
7
Handle, Latch WPL 3184002 Contact Us For Availability
8
Trim, Panel WPL 3183703 Contact Us For Availability
8
Button, Plug WPL 3185086 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
9
Screw (2) WPL 3182939 Contact Us For Availability
9
Bracket (2) WPL 3184321 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
10
Frame, Control Panel WPL 3182149 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Latch, Mechanism WPL 3183800 Contact Us For Availability
11
Screw (3) WPL 311056 Contact Us For Availability
11
Oven WPL 3182032 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Switch, latch WPL 3183784 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Box, Vent (2) WPL 3184078 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Tube, Vent WPL 3183792 Contact Us For Availability
20
Bracket, Element WPL 3180694 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
14 Ga. 150~c Rating (White) WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
12 Ga. 150~c Rating (Red) WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
14 Ga. 200~c Rating (Yellow) WPL 242832 Contact Us For Availability
25
Harvest Gold WPL 261890 Contact Us For Availability
25
Harvest Gold WPL 261891 Contact Us For Availability
25
Toast WPL 285365 Contact Us For Availability
25
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
25
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
25
Platinum WPL 285368 Contact Us For Availability
25
Mounting Hardware WPL 3171507 Contact Us For Availability
25
Baffle, Vent Mtg. WPL 3183948 Contact Us For Availability
25
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
25
Leveler (Primer) WPL 350941 Contact Us For Availability
25
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
25
WPL 72112 WPL 72112 Contact Us For Availability
25
WPL 799832 WPL 799832 Contact Us For Availability
25
WPL 832985 WPL 832985 Contact Us For Availability
25
WPL 978883 WPL 978883 Contact Us For Availability
27
Screw (4) WPL 3150532 Contact Us For Availability
27
Unit, Broil WPL 3182451 Contact Us For Availability
32
Seal, Front WPL 3185197 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
47
Bottom Grill (Screw (3)) WPL 309029 Contact Us For Availability
47
Bottom Grill (Black Model) WPL 3150349 Contact Us For Availability
47
Bottom Grill (White Model) WPL 3150350 Contact Us For Availability
52
Cover, Rear WPL 311011 Contact Us For Availability
53
Screw (2) WPL 308043 Contact Us For Availability
54
Cover, Bottom WPL 310458 Contact Us For Availability
61
Rack, Oven WPL 308173 Contact Us For Availability
62
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
67
Sensor, Heat WPL 3148440 Contact Us For Availability
68
Cover, Top WPL 3184099 Contact Us For Availability
69
Insulation, Wrap WPL 310433 Contact Us For Availability
69
Insulation, Oven WPL 310434 Contact Us For Availability
69
Insulation, Top WPL 3149328 Contact Us For Availability
69
Br WPL 3182585 Contact Us For Availability
× ![]()
