Model Whirlpool KEBI100YBL2 – Common Parts & Diagrams
01 - CONTROL
04 - LATCH AND VENT, OPTIONAL

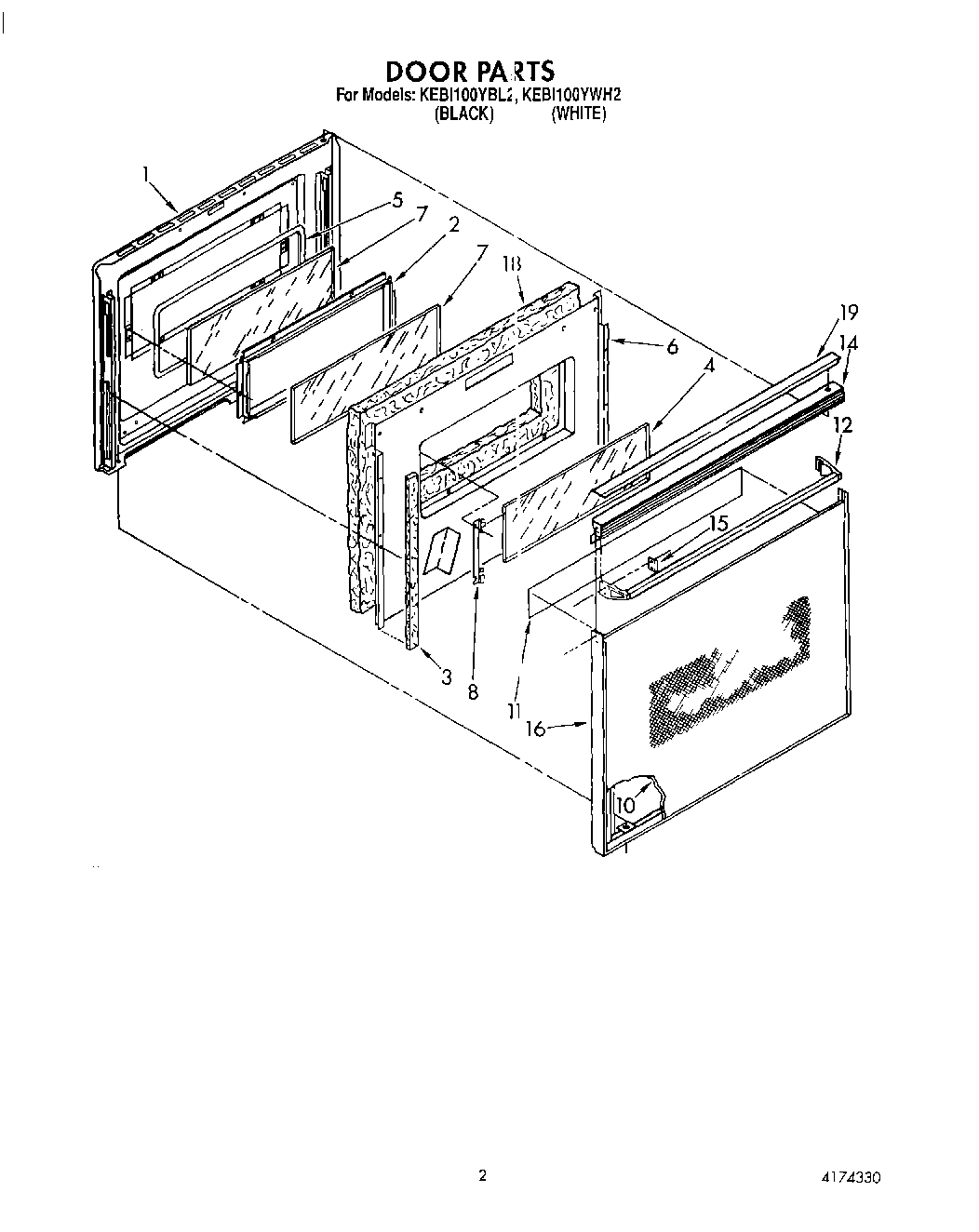

02 - DOOR

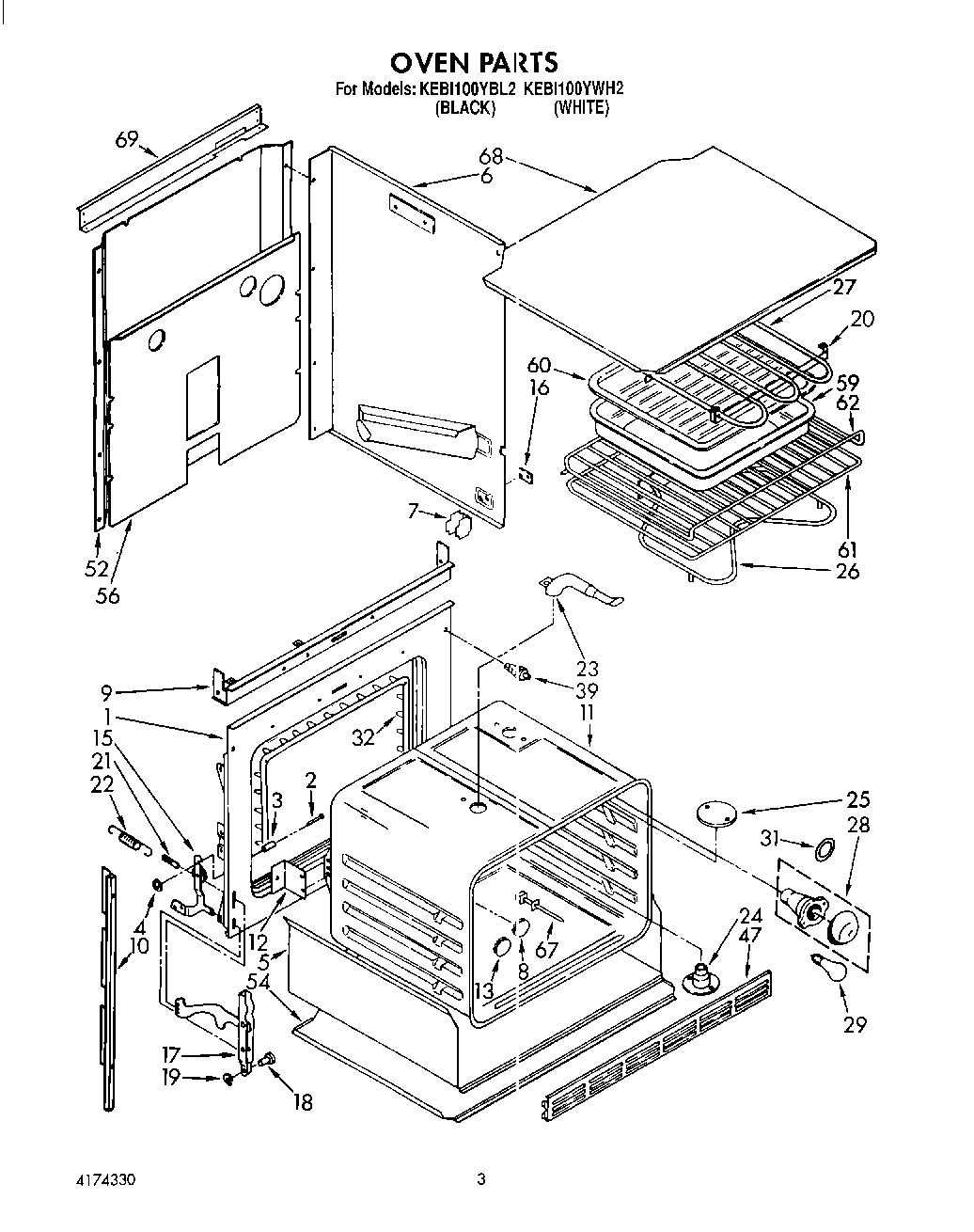

03 - OVEN, LITERATURE

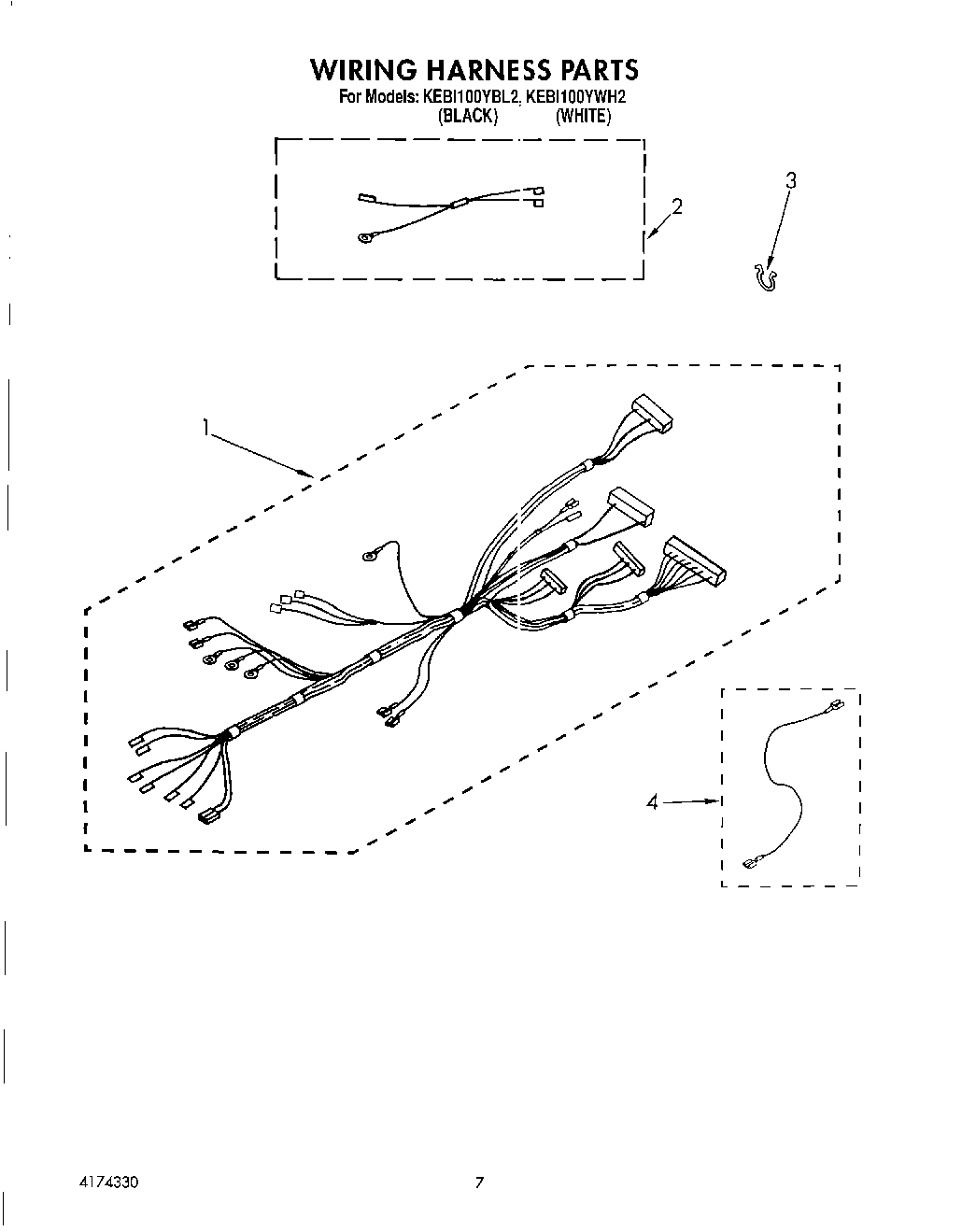

05 - WIRING HARNESS
Common parts from model Whirlpool KEBI100YBL2
WPL LIT3182129 WPL LIT3182129 Contact Us For Availability
WPL LIT3182137 WPL LIT3182137 Contact Us For Availability
WPL LIT3185642 WPL LIT3185642 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Front Frame WPL 3176718 Contact Us For Availability
1
Harness, Wire (Main Oven) WPL 3182191 Contact Us For Availability
2
Frame, Window WPL 3148234 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Blower Fan) WPL 3183657 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Harness, Wire (Switch) WPL 3185920 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Button, Plug WPL 3185086 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
10
Latch Mechanism WPL 3187081 Contact Us For Availability
10
Glass, Panel (Black Model) WPL 3148185 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3150347 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Screw (3) WPL 311056 Contact Us For Availability
11
Oven WPL 3182032 Contact Us For Availability
12
Switch, Latch WPL 3178668 Contact Us For Availability
12
Handle, Oven Door (Black Model) WPL 3183402 Contact Us For Availability
12
Handle, Oven Door (White Model) WPL 3183403 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Nozzle, Vent Bottom WPL 3183954 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
14
Nozzle, Vent Top WPL 3183955 Contact Us For Availability
14
Top, Door (Black Model) WPL 3148223 Contact Us For Availability
14
Top, Door (White Model) WPL 3149355 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Box, Vent (2) WPL 3184078 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
End, Vent Box WPL 3183964 Contact Us For Availability
16
Screw WPL 4173231 Contact Us For Availability
16
Frame, Door WPL 3148235 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Bracket, Mounting Fan WPL 3183533 Contact Us For Availability
18
Blower, fan WPL 3183720 Contact Us For Availability
18
Insulation, Door WPL 3147951 Contact Us For Availability
19
Cap, Top WPL 3181363 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
SPST Thermostat WPL 3149650 Contact Us For Availability
20
Bracket, Element WPL 3180694 Contact Us For Availability
23
Tube, Vent WPL 3183792 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
WPL 799344 WPL 799344 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
18 Ga. 80~c Rating (White) WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
18 Ga. 80~c Rating (Blue 14 Ga. 150~c Rating) WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
18 Ga. 80~c Rating (Yellow 12 Ga. 150~c Ratin WPL 242832 Contact Us For Availability
25
Harvest Gold WPL 261890 Contact Us For Availability
25
Harvest Gold WPL 261891 Contact Us For Availability
25
Toast WPL 285365 Contact Us For Availability
25
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
25
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
25
Platinum WPL 285368 Contact Us For Availability
25
Mounting Hardware WPL 3171507 Contact Us For Availability
25
Baffle, Vent Mtg. WPL 3183948 Contact Us For Availability
25
18 Ga. 80~c Rating (Yellow 16 Ga. 80~c Rating WPL 350806 Contact Us For Availability
25
Leveler (Primer) WPL 350941 Contact Us For Availability
25
A WPL 591014 Contact Us For Availability
25
WPL 72112 WPL 72112 Contact Us For Availability
25
WPL 799832 WPL 799832 Contact Us For Availability
25
WPL 832985 WPL 832985 Contact Us For Availability
25
WPL 978883 WPL 978883 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw (4) WPL 3150532 Contact Us For Availability
27
Unit, Broil WPL 3182451 Contact Us For Availability
28
Screw (2) WPL 308043 Contact Us For Availability
32
Seal, Front WPL 3185197 Contact Us For Availability
39
Switch, Door WPL 310345 Contact Us For Availability
47
Bottom Grill (Screw (3)) WPL 309029 Contact Us For Availability
47
Bottom Grill (Black Model) WPL 3150349 Contact Us For Availability
47
Bottom Grill (White Model) WPL 3150350 Contact Us For Availability
52
Cover, Rear WPL 311011 Contact Us For Availability
54
Cover, Bottom WPL 3185945 Contact Us For Availability
56
Panel, Back WPL 3182052 Contact Us For Availability
61
Rack, Oven WPL 3185440 Contact Us For Availability
62
Rack, Oven Offset WPL 3185441 Contact Us For Availability
67
Sensor, Heat WPL 3148440 Contact Us For Availability
68
Cover, Top WPL 3184099 Contact Us For Availability
69
Insulation, Wrap WPL 310433 Contact Us For Availability
69
Insulation, Oven WPL 310435 Contact Us For Availability
69
screw WPL 312713 Contact Us For Availability
69
Insulati WPL 3149328 Contact Us For Availability
69
WPL 3182585 WPL 3182585 Contact Us For Availability
× ![]()
