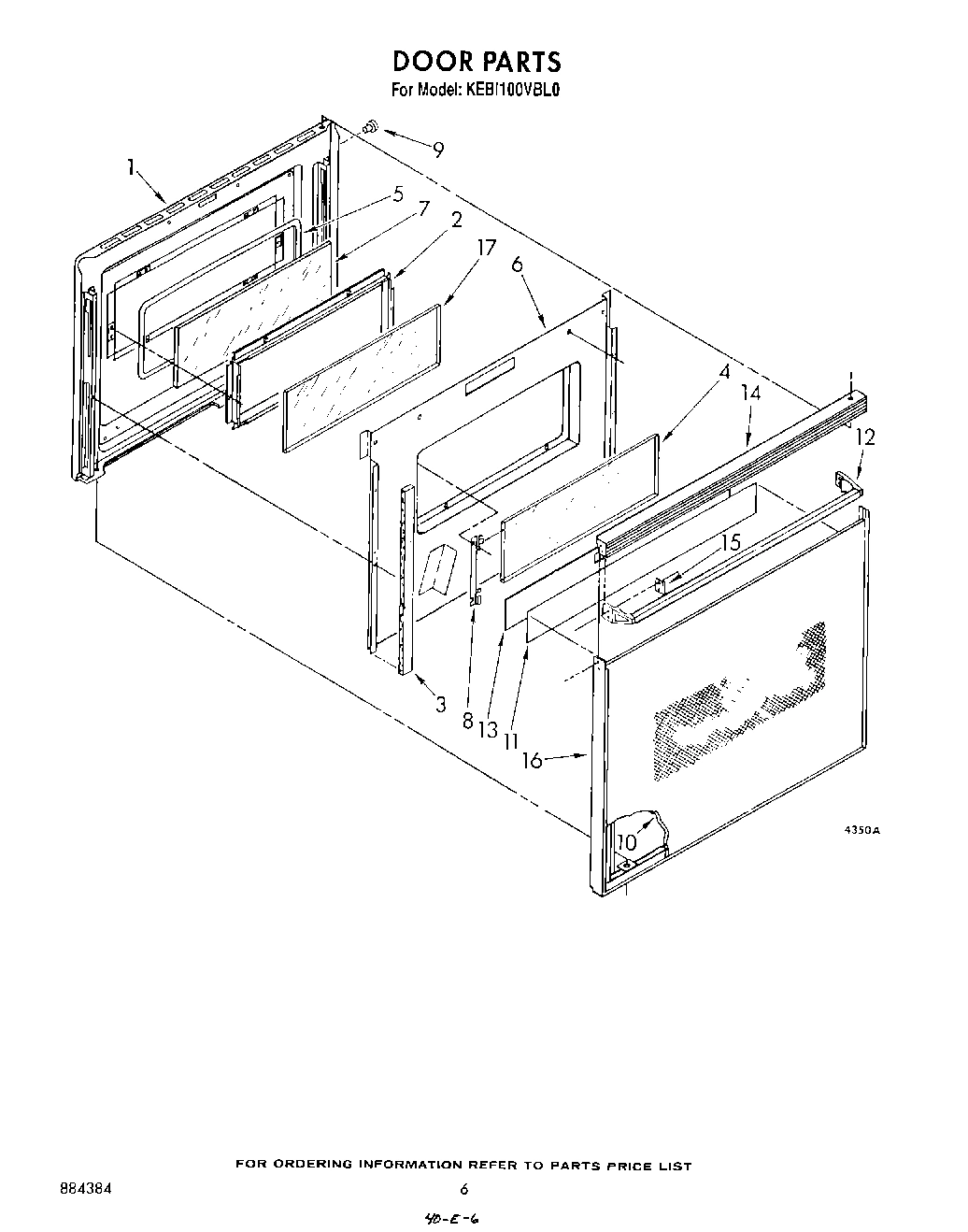

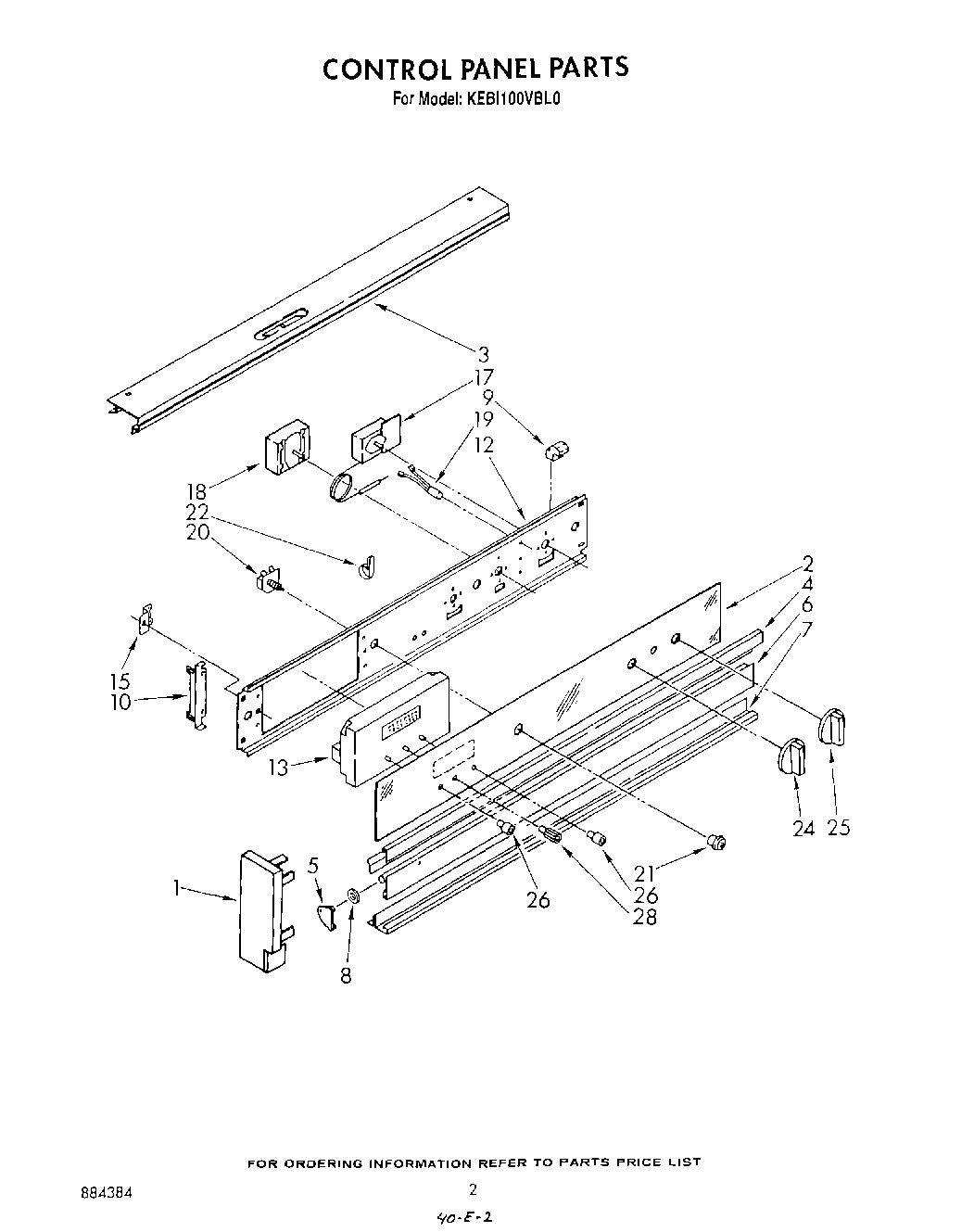

Model Whirlpool KEBI100VBL0 – Common Parts &amp; Diagrams

WPL ARI82677A2 WPL ARI82677A2 Contact Us For Availability

1

Screw (2) WPL 311056 Contact Us For Availability

1

Wiring, Harness (Main Oven) WPL 3149263 Contact Us For Availability

1

End Cap. L.H. WPL 3148014 Contact Us For Availability

1

End Cap R.H. WPL 3148015 Contact Us For Availability

1

Screw WPL 3148443 Contact Us For Availability

1

Liner, Door WPL 3170706 Contact Us For Availability

2

Adapter, Terminal WPL 3147832 Contact Us For Availability

2

Control Panel, Glass WPL 3148089 Contact Us For Availability

3

16515 Whirlpool Clip Backorder WPL 16515 $11.62

3

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

3

Rail, Top WPL 3149437 Contact Us For Availability

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

4

Trim, Center WPL 314179 Contact Us For Availability

4

Glass, Reflective WPL 3148178 Contact Us For Availability

5

Seal, Window WPL 3148183 Contact Us For Availability

5

End Trim, Vent Door R.H. WPL 3148697 Contact Us For Availability

5

End Trim, Vent Door L.H. WPL 3148698 Contact Us For Availability

6

Screw, 8-32 x 5/16 WPL 310210 Contact Us For Availability

6

Door, Vent WPL 314190 Contact Us For Availability

6

Retainer, Insulation WPL 3148723 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Screw (4) WPL 342043 Contact Us For Availability

7

Trim, Bottom WPL 314184 Contact Us For Availability

8

Washer (2) WPL 3148905 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

9

Retainer, Glass (4) WPL 310823 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

10

Bracket, Control Panel (2) WPL 310720 Contact Us For Availability

10

Glass, Panel WPL 3148185 Contact Us For Availability

11

Foil, Door WPL 3148184 Contact Us For Availability

12

Bracket, Control WPL 3148110 Contact Us For Availability

12

Handle, Oven Door WPL 3147636 Contact Us For Availability

13

Plug Button WPL 257314 Contact Us For Availability

13

Timer, Digital WPL 3148656 Contact Us For Availability

13

Shield, Door WPL 3148680 Contact Us For Availability

14

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

14

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

14

Top, Door WPL 3148606 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

Bracket, Timer (2) WPL 3148108 Contact Us For Availability

Clip, Mtg.(2) WPL 314235 Contact Us For Availability

16

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

16

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

16

Frame, Glass WPL 3148234 Contact Us For Availability

17

Channel Arm (2) WPL 329713 Contact Us For Availability

17

Screw, 6-32 x 1/4 (2) WPL 311491 Contact Us For Availability

17

Thermostat, Oven WPL 3148937 Contact Us For Availability

18

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

18

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

18

Selector Switch WPL 3148119 Contact Us For Availability

19

Ring, Retainer (2) WPL 307594 Contact Us For Availability

19

Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability

Relay WPL 3148688 Contact Us For Availability

Screw, 8A x 3/8 (4) WPL 98520 Contact Us For Availability

Switch, Oven Light WPL 312581 Contact Us For Availability

Washer WPL 312796 Contact Us For Availability

21

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

21

Bezel Switch WPL 313030 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

22

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

23

Tube, Vent Extension WPL 310836 Contact Us For Availability

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

24

Knob, Control WPL 3149116 Contact Us For Availability

25

Plate, Cover WPL 310662 Contact Us For Availability

25

Knob, Control WPL 3149106 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

Knob, Timer (2) WPL 3177121 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

Socket, Oven Light WPL 660556 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (1 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 3177122 WPL 3177122 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

Cover, Light WPL 308039 Contact Us For Availability

31

Retainer, Light WPL 308038 Contact Us For Availability

32

Seal, Front WPL 3148284 Contact Us For Availability

33

Latch Assembly WPL 3171148 Contact Us For Availability

34

Safety Swit WPL 308185 Contact Us For Availability

34

WPL 98106 WPL 98106 Contact Us For Availability

35

WPL 309245 WPL 309245 Contact Us For Availability

36

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

36

WPL 309258 WPL 309258 Contact Us For Availability

36

WPL 313035 WPL 313035 Contact Us For Availability

37

WPL 308422 WPL 308422 Contact Us For Availability

37

WPL 310825 WPL 310825 Contact Us For Availability

38

WPL 246135 WPL 246135 Contact Us For Availability

38

WPL 311253 WPL 311253 Contact Us For Availability

39

WPL 310345 WPL 310345 Contact Us For Availability

40

WPL 314209 WPL 314209 Contact Us For Availability

41

WPL 314215 WPL 314215 Contact Us For Availability

41

WPL 314210 WPL 314210 Contact Us For Availability

47

WPL 309029 WPL 309029 Contact Us For Availability

47

WPL 310668 WPL 310668 Contact Us For Availability

52

WPL 311011 WPL 311011 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 3149542 WPL 3149542 Contact Us For Availability

58

WPL 3149142 WPL 3149142 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability

63

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

63

WPL 311982 WPL 311982 Contact Us For Availability

64

WPL 314178 WPL 314178 Contact Us For Availability
