Model Whirlpool KEBI100TBL1 – Common Parts & Diagrams

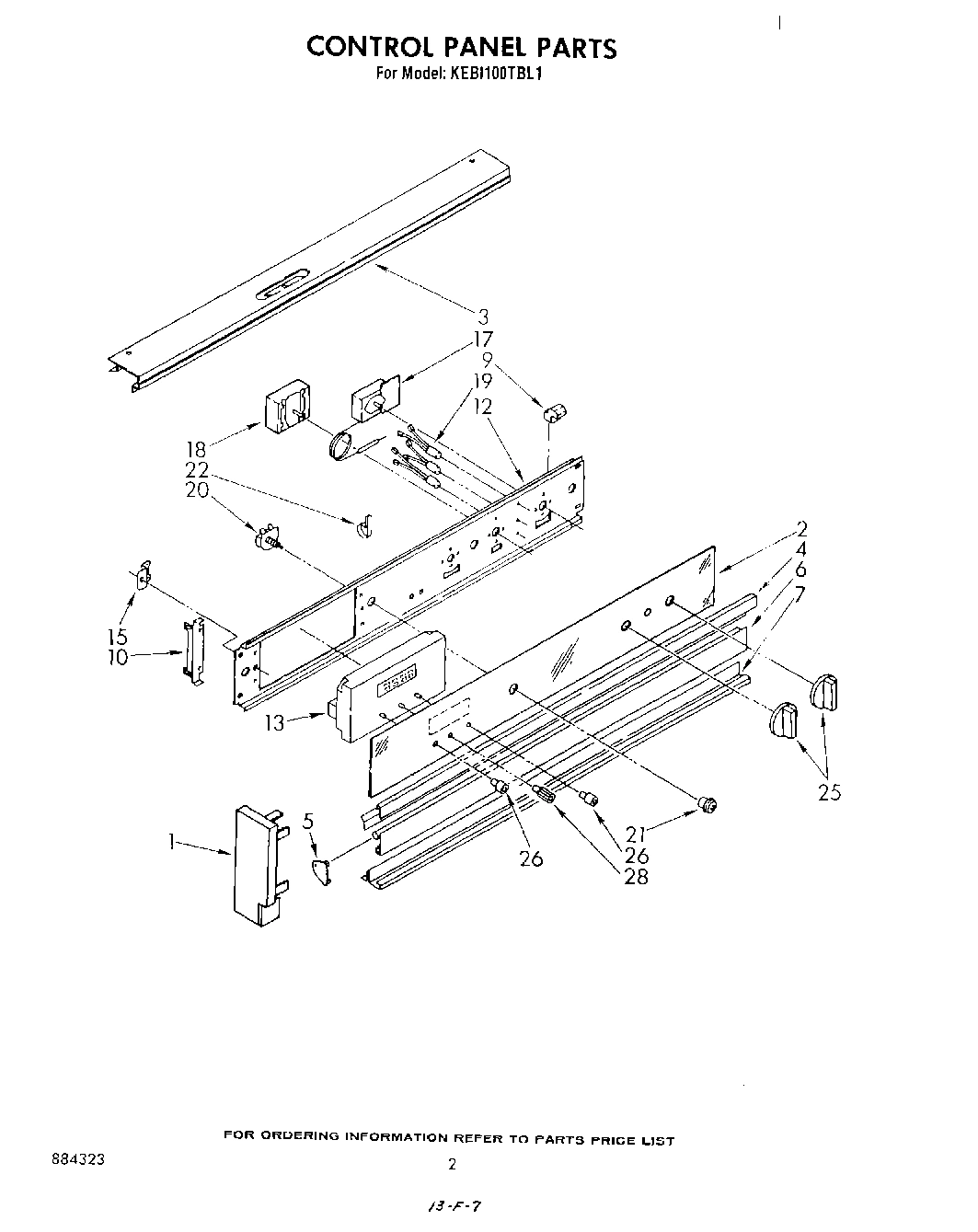

02 - CONTROL PANEL , LITERATURE AND OPTIONAL

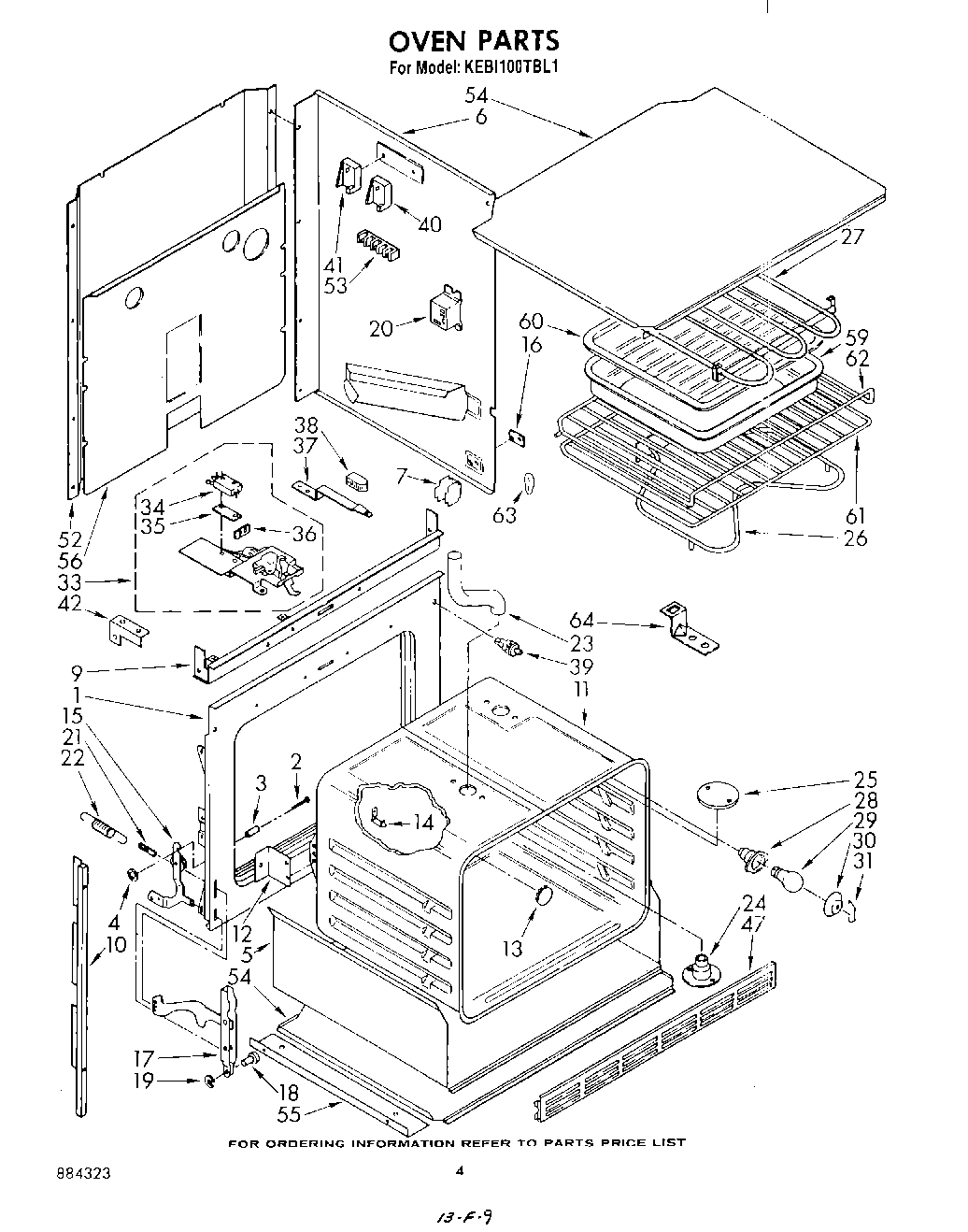

03 - OVEN
04 - DOOR
05 - WIRING HARNESS
Common parts from model Whirlpool KEBI100TBL1
WPL 246127 WPL 246127 Contact Us For Availability
WPL 308043 WPL 308043 Contact Us For Availability
1
Frame, Front WPL 328747 Contact Us For Availability
1
Screw (2) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 329694 Contact Us For Availability
1
Harness, Wire (Main) WPL 3148695 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Screw, 10-24 x 1/2 (4) WPL 247326 Contact Us For Availability
2
Channel, Latch WPL 308033 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Adapter, Terminal WPL 3147832 Contact Us For Availability
4
Trim, Center WPL 314179 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Window Package WPL 330038 Contact Us For Availability
5
End Trim, Vent (Left Side) WPL 310832 Contact Us For Availability
5
End Trim, Vent (Right Side) WPL 310833 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Retainer, Insulation WPL 308021 Contact Us For Availability
6
Screw, 8-32 x 5/16 WPL 310210 Contact Us For Availability
6
Door, Vent WPL 314188 Contact Us For Availability
6
Side Wrapper (R.H.) WPL 311005 Contact Us For Availability
6
Side Wrapper (L.H.) WPL 311008 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
9
Retainer, Glass (4) WPL 310823 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
9
Glass, Outer WPL 309069 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 310720 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
11
Oven (30`` Pyro) WPL 328756 Contact Us For Availability
11
Top, Door Frame WPL 314250 Contact Us For Availability
12
Bracket, Control WPL 3148110 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Handle, Oven Door WPL 3147636 Contact Us For Availability
13
Timer, Digital WPL 3148656 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Baffle, Heat WPL 309056 Contact Us For Availability
14
Screw, 10A x 1/2 (2) (Black) WPL 307748 Contact Us For Availability
14
Frame, Door WPL 3148023 Contact Us For Availability
15
Bracket, Timer (2) WPL 3148108 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Seal, Fiberglass WPL 311904 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Clip, Glass (10) WPL 314234 Contact Us For Availability
17
Screw, 6-32 x 1/4 (2) WPL 311491 Contact Us For Availability
17
Thermostat, Oven WPL 313861 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Selector Switch WPL 3148119 Contact Us For Availability
19
Light Indicator Oven, Lock & Clean (3) WPL 311802 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
20
Relay WPL 3148688 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
23
Tube, Vent Extension WPL 310836 Contact Us For Availability
23
Panel, Inner WPL 327898 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Knob, Control (2) WPL 314222 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (2) WPL 3177121 Contact Us For Availability
28
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
28
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
28
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
28
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
28
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
28
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
28
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
28
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
28
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
28
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
28
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
28
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
28
WPL 242832 WPL 242832 Contact Us For Availability
28
WPL 261582 WPL 261582 Contact Us For Availability
28
WPL 261881 WPL 261881 Contact Us For Availability
28
WPL 3177122 WPL 3177122 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability
28
Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
30
Clip (2) WPL 314235 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability
33
Latch Assembly WPL 328585 Contact Us For Availability
33
Retainer, Glass (2) WPL 309843 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator WPL 309245 Contact Us For Availability
36
WPL 309258 WPL 309258 Contact Us For Availability
36
WPL 313035 WPL 313035 Contact Us For Availability
37
WPL 308422 WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314211 WPL 314211 Contact Us For Availability
42
WPL 312320 WPL 312320 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 311011 WPL 311011 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 310459 WPL 310459 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
64
WPL 314178 WPL 314178 Contact Us For Availability
× ![]()
