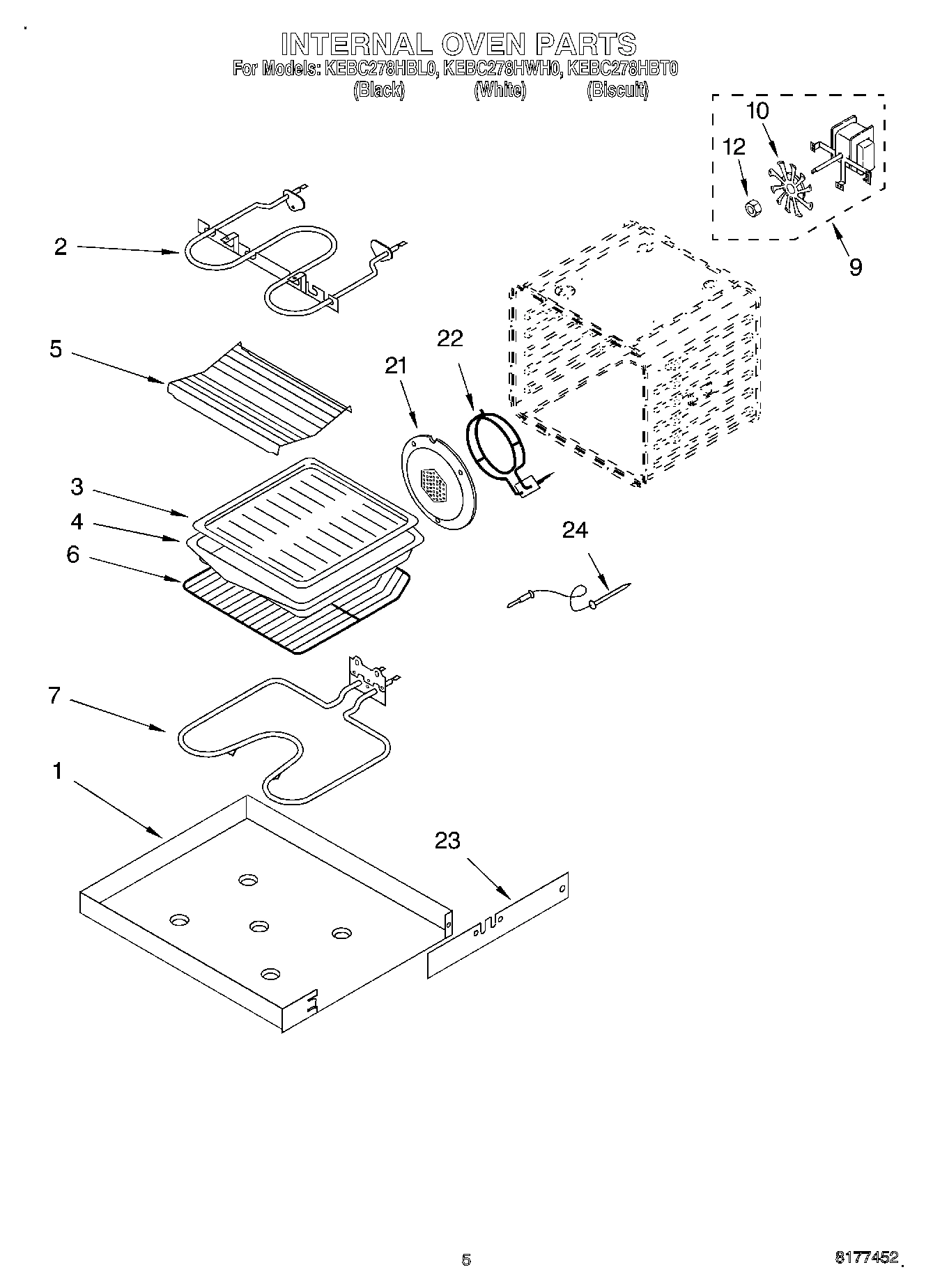

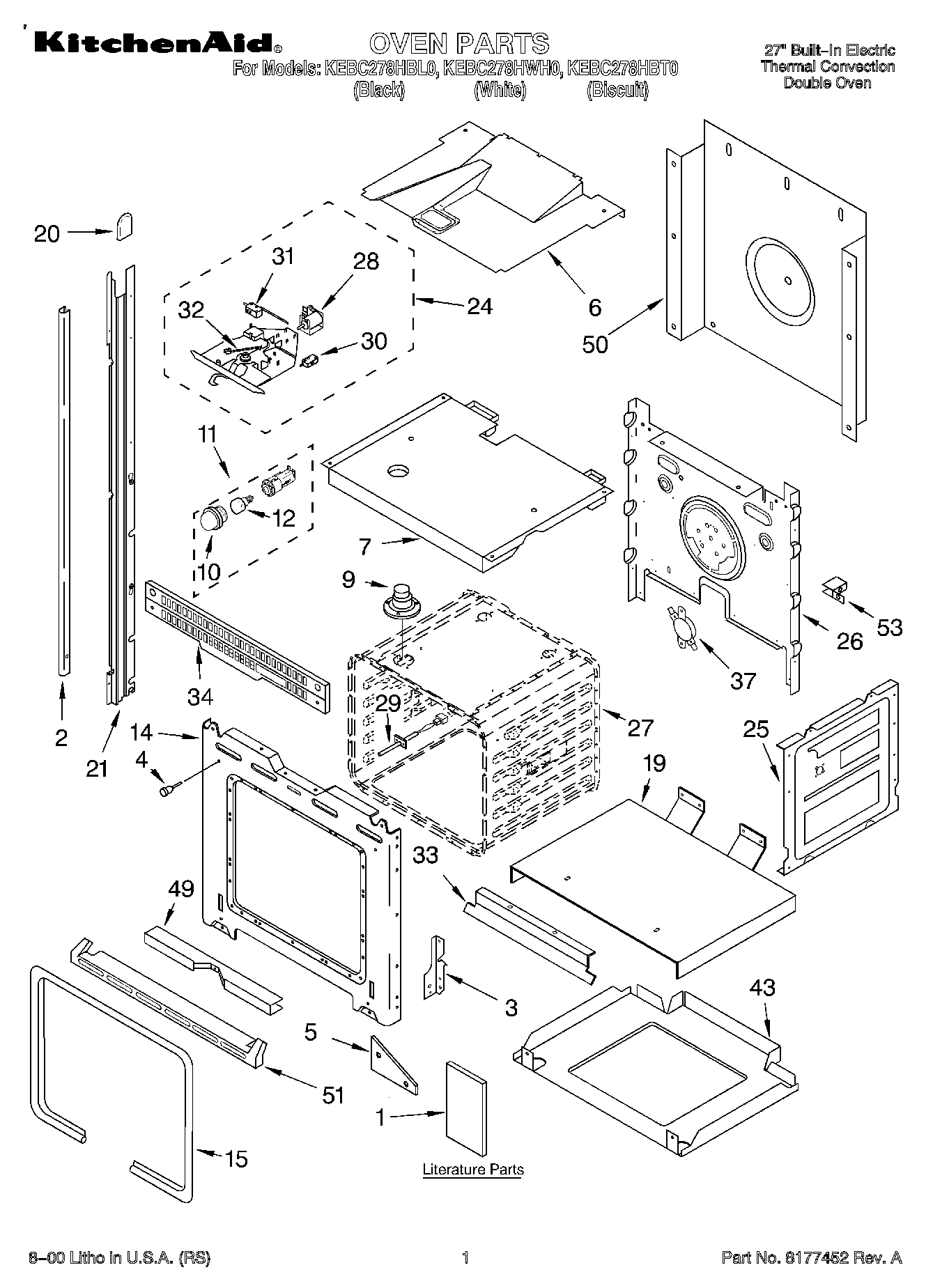

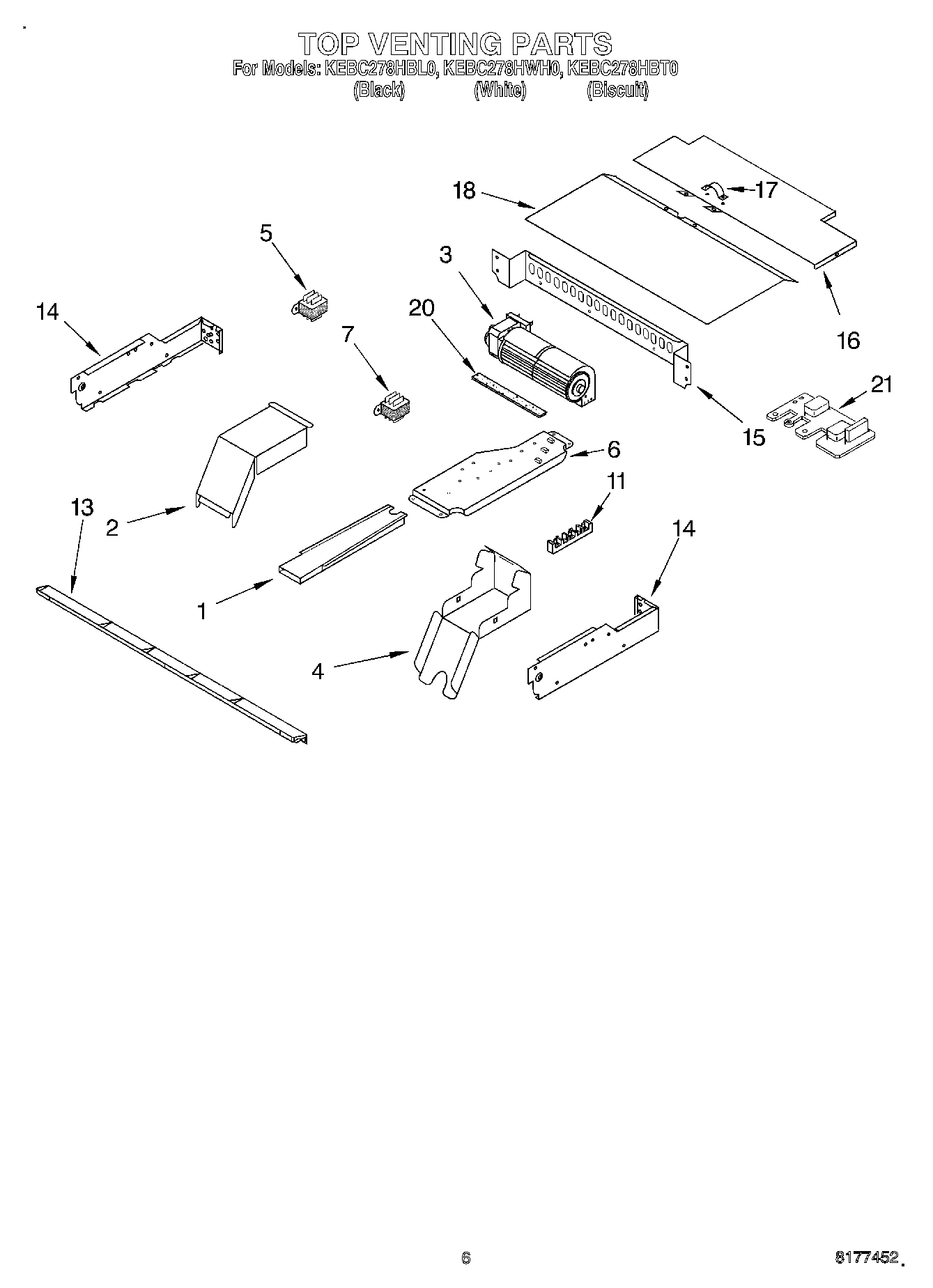

Model Whirlpool KEBC278HBL0 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

Tray, Hidden Bake WPL 4455036 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

3

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $27.76

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Transformer, KAD Power WPL 4451929 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Divider, Vent WPL 4452200 Contact Us For Availability

6

Plate, Mounting WPL 4451789 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

7

Top, Chassis WPL 4455285 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

Motor Convection WPL 4451583 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

12

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $27.18

12

Nut WPL 4452227 Contact Us For Availability

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Vent, (Control Panel) WPL 4448548 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Retainer, Glass WPL 4451668 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4451739 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

18

Cover, Top Front WPL 4452366 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

20

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

20

Cap, Spacer WPL 4451605 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Conduit, Double WPL 4450953 Contact Us For Availability

Seal, Door Top WPL 4452325 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Harness, Wire (Main) WPL 4451864 Contact Us For Availability

Harness, Wire (Latch) WPL 4451926 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Spac WPL 4452260 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

22

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

22

Plug, Button WPL 4448982 Contact Us For Availability

23

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

24

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

24

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

24

Latch Assembly WPL 4451896 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI82563A4 Contact Us For Availability

28

Solenoid WPL 4452224 Contact Us For Availability

29

Sensor WPL 4451665 Contact Us For Availability

30

Switch, Micro N.C. WPL 4452312 Contact Us For Availability

31

Switch, Micro WPL 4451426 Contact Us For Availability

32

Spring, Latch WPL 4451537 Contact Us For Availability

33

Deflector, Vent WPL 4452495 Contact Us For Availability

34

Vent, Center WPL 4452266 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WPL 4455442 WPL 4455442 Contact Us For Availability

WPL 4455444 WPL 4455444 Contact Us For Availability

WPL 4455446 WPL 4455446 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability
