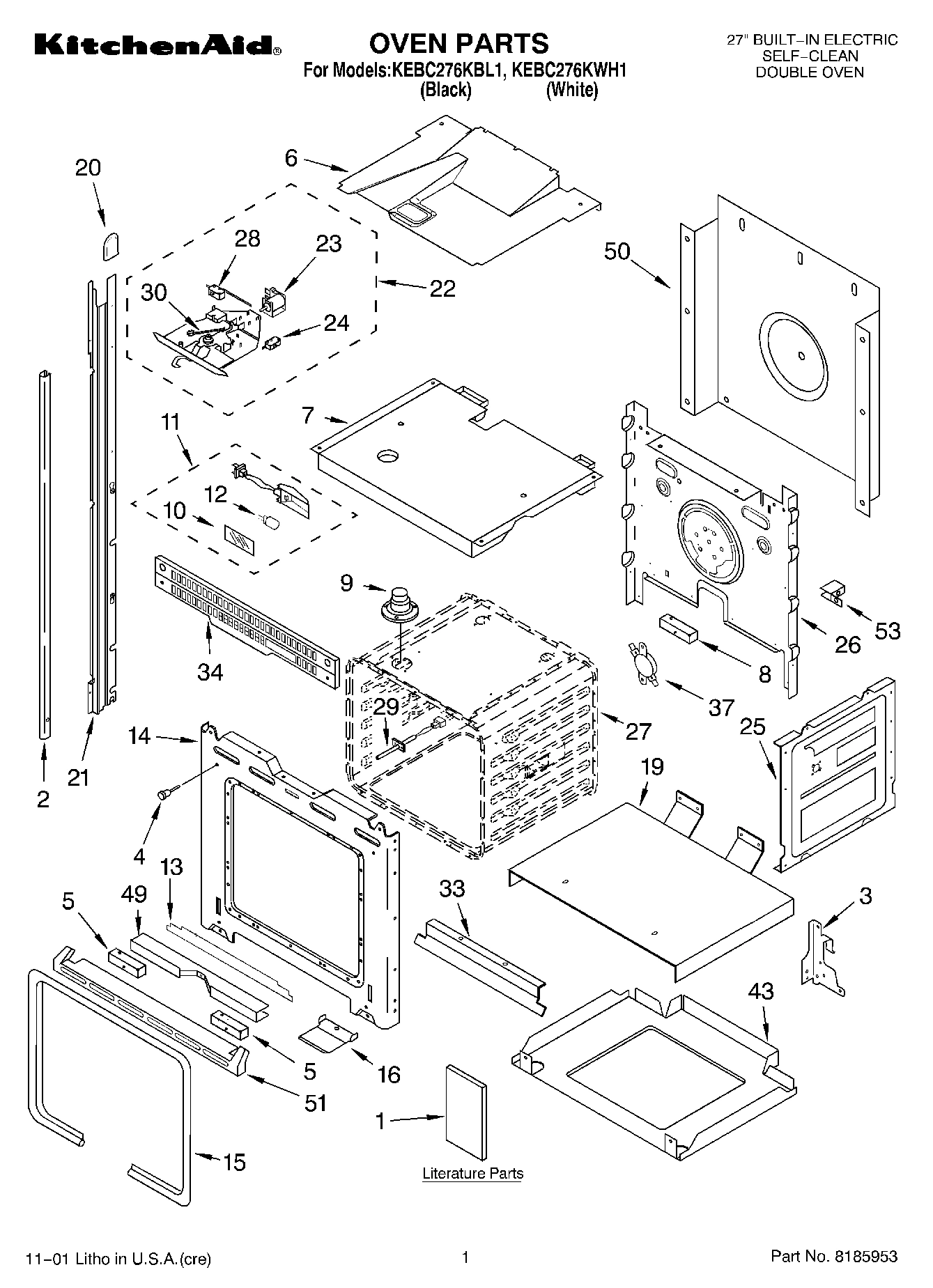

Model Whirlpool KEBC276KBL1 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT4451879 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4455992 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8300887 Contact Us For Availability

1

Door Liner WPL 4455617 Contact Us For Availability

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $45.07

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $44.10

2

Trim, Side Left (White) WPL 4455374 Contact Us For Availability

2

Trim, Side Right (White) WPL 4455375 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4455426 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4455427 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $74.43

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

Spacer, Foam WPL 4452490 Contact Us For Availability

5

Retainer, Glass WPL 8300777 Contact Us For Availability

6

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $58.95

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Insulation, Board WPL 4452248 Contact Us For Availability

6

Divider, Vent WPL 4452200 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $96.15

7

Insulation, Board Support WPL 4452249 Contact Us For Availability

7

Top, Chassis WPL 4455864 Contact Us For Availability

8

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

8

Spacer, Foam WPL 4452260 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

10

Lens, Light WPL 4452163 Contact Us For Availability

11

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

11

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

11

Screw WPL 3400080 Contact Us For Availability

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

12

Door Glass, Assy (White Model) WPL 4455392 Contact Us For Availability

12

Door Glass, Assy (Black Model) WPL 4455393 Contact Us For Availability

13

Insulation, Bottom Vent WPL 4452336 Contact Us For Availability

13

Door Handle (Black Model) WPL 4452500 Contact Us For Availability

13

Door Handle (White Model) WPL 4452501 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle (L.Side) WPL 4455804 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

Bracket, Handle (Screw) WPL 4451040 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $71.22

16

4455807 Whirlpool Oven Vent Deflector Backorder WPL 4455807 $48.15

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit WPL 4450953 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $90.90

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $90.99

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door WPL 4452325 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

24

Glass, Inner WPL 4455256 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI82382A4 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

Deflector, Vent WPL 4452495 Contact Us For Availability

34

Vent, Center WPL 4452266 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $39.01

43

Base, Chassis WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

Trim, Bottom ( WPL 4455442 Contact Us For Availability

WPL 4455444 WPL 4455444 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability
