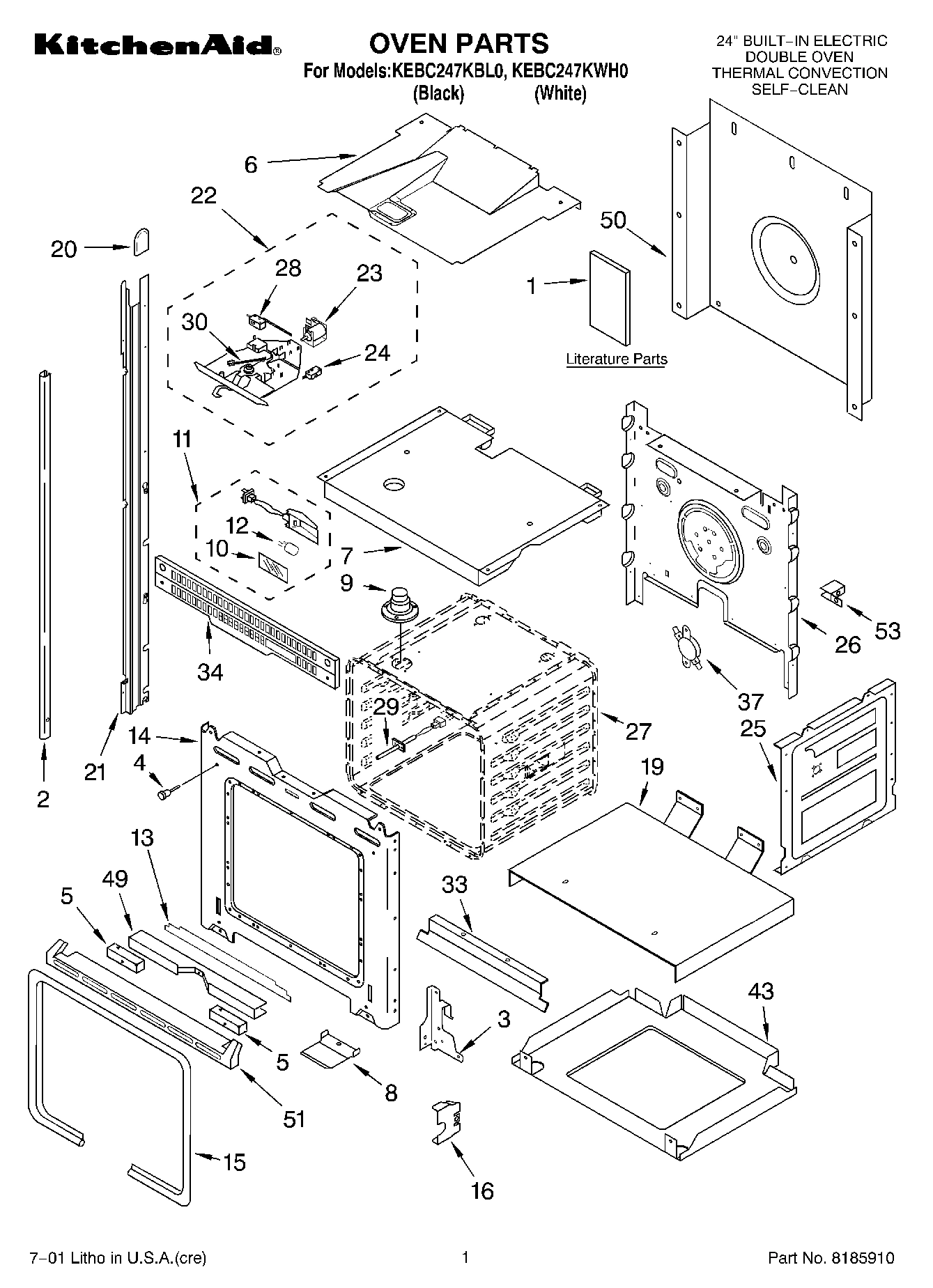

Model Whirlpool KEBC247KBL0 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

WP8303698 Whirlpool Door Liner Backorder WPL WP8303698 $177.38

1

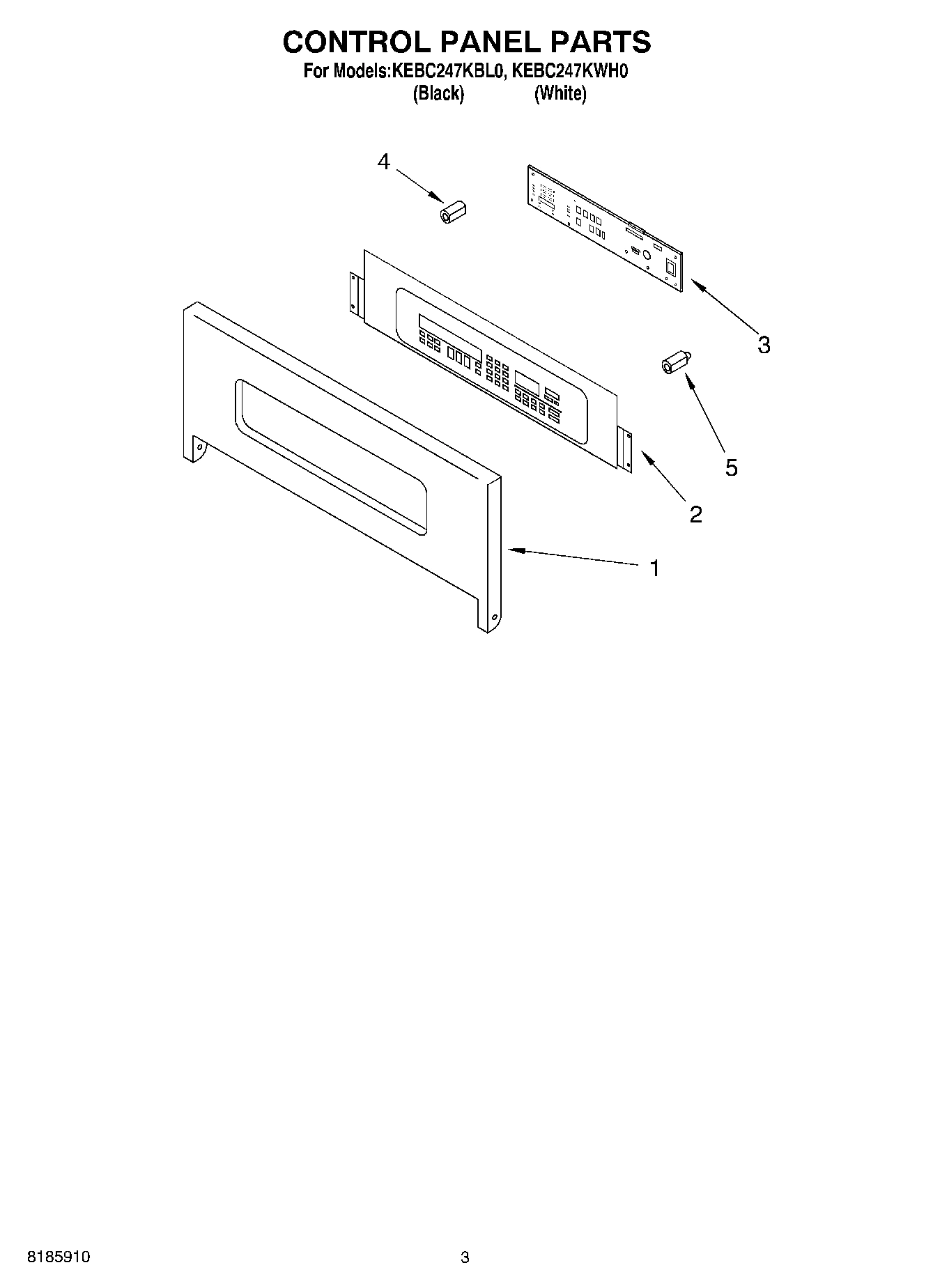

Panel, Control (White Model) WPL 8300816 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability

1

Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451879 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300656 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8300886 Contact Us For Availability

2

9760569 Whirlpool Door Hinge Backorder WPL 9760569 $39.24

2

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $39.00

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455426 Whirlpool Trim Backorder WPL WP4455426 $66.54

2

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

Switch, Membrane (Black) WPL 8300842 Contact Us For Availability

2

Switch, Membrane (White) WPL 8300845 Contact Us For Availability

2

Trim, Side Left (White) WPL 4455374 Contact Us For Availability

2

Trim, Side Right (White) WPL 4455375 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4455427 Contact Us For Availability

3

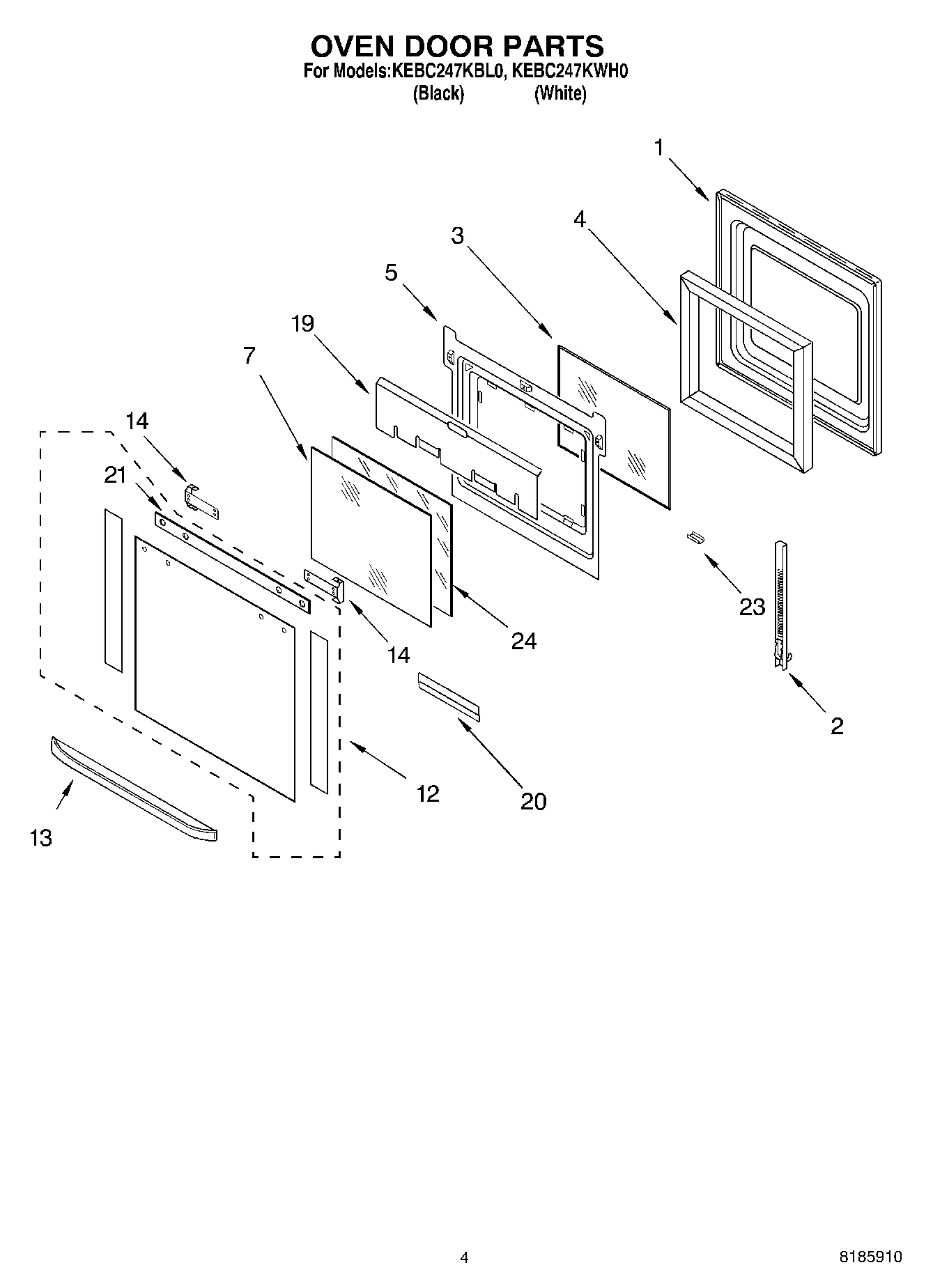

WP4449247 Whirlpool Inner Door Glass In Stock WPL WP4449247 $64.91

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower (60MM Upper Oven) WPL 4455334 Contact Us For Availability

3

Screw WPL 3400406 Contact Us For Availability

3

Microcomputer WPL 4453379 Contact Us For Availability

4

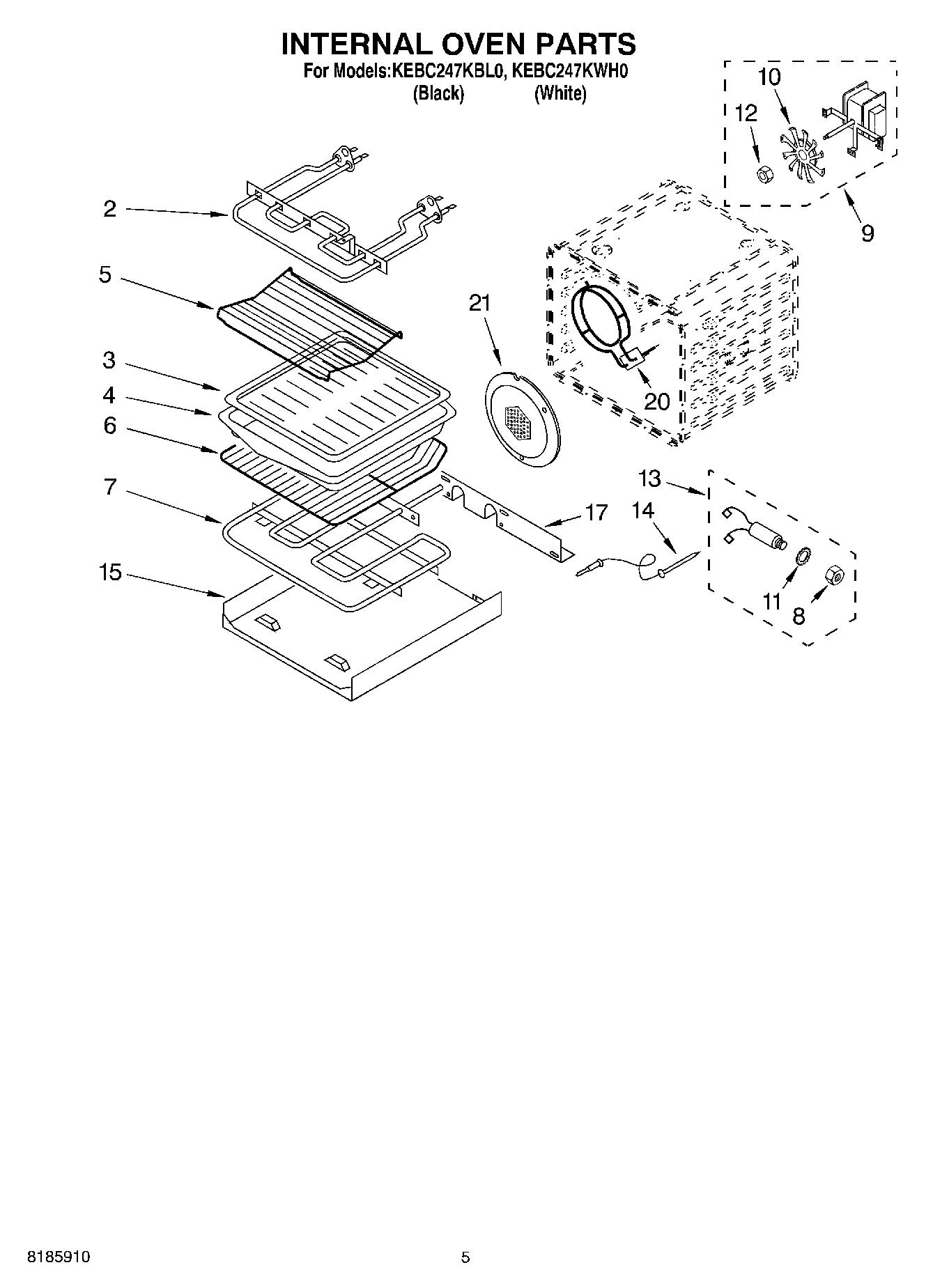

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

4

Insulation, Board WPL 4452248 Contact Us For Availability

5

4457130 Whirlpool Oven Retainer Backorder WPL 4457130 $44.71

5

Insulation, Board Support WPL 4452249 Contact Us For Availability

5

Spacer, Foam WPL 4452490 Contact Us For Availability

6

4448716 Whirlpool Oven Rack 24" Backorder WPL 4448716 $39.95

6

8302347 Whirlpool Vent Panel Backorder WPL 8302347 $29.59

7

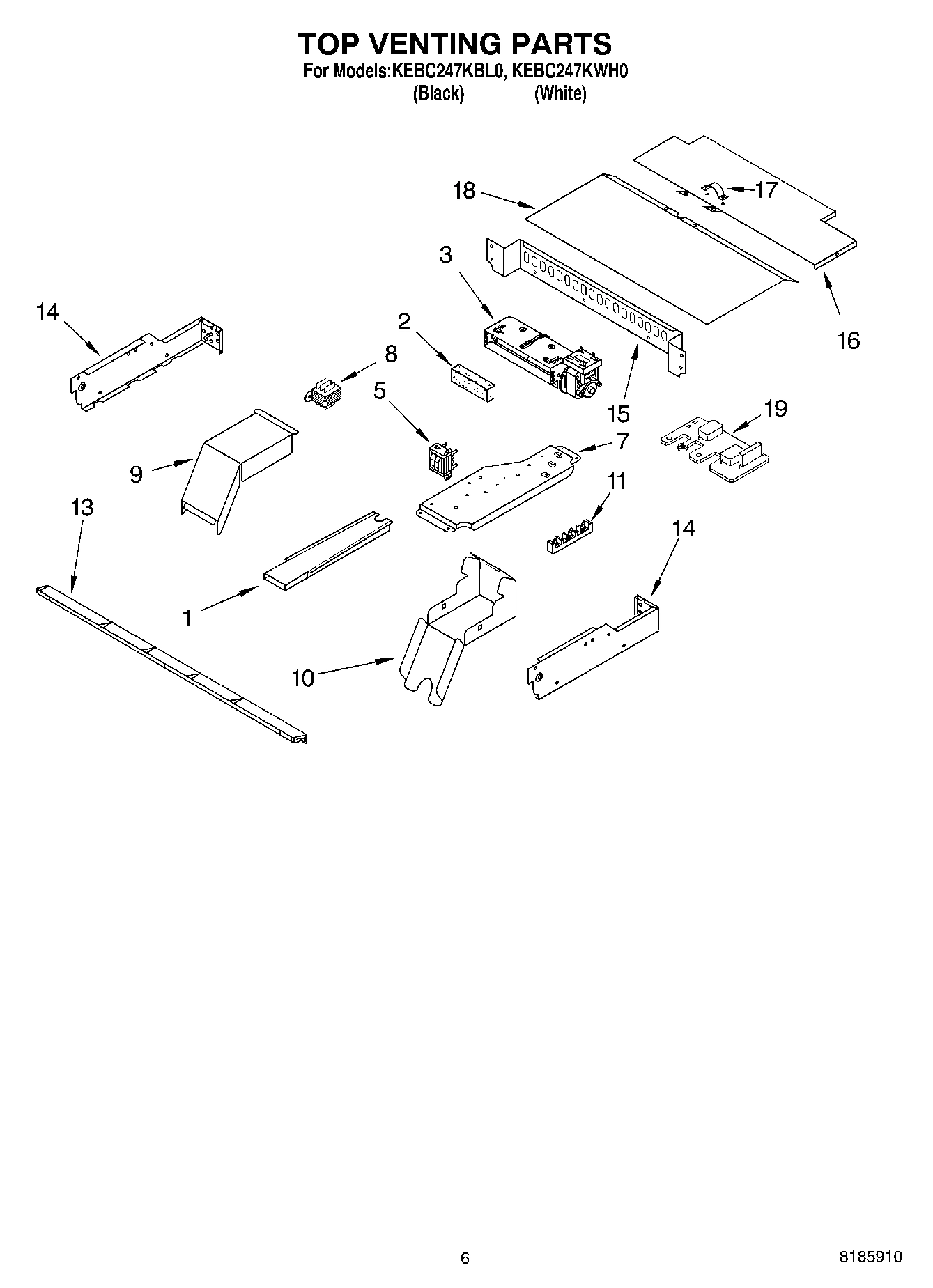

4455863 Whirlpool Oven Top Assembly Backorder WPL 4455863 $40.53

7

Glass, Inner WPL 4449251 Contact Us For Availability

8

4455807 Whirlpool Oven Vent Deflector Backorder WPL 4455807 $45.86

8

W10145009 Whirlpool Vent Deflector Backorder WPL W10145009 $30.07

9

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Convection Motor WPL 4451583 Contact Us For Availability

10

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452163 Contact Us For Availability

11

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

11

Screw WPL 3400080 Contact Us For Availability

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

12

Door Glass, Assy (Black Model) WPL 8300836 Contact Us For Availability

12

Door Glass, Assy (White Model) WPL 8300837 Contact Us For Availability

4448547 Whirlpool Oven Vent Control Backorder WPL 4448547 $38.19

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Insulation, Bottom Vent WPL 8300825 Contact Us For Availability

Door Handle (Black Model) WPL 4452498 Contact Us For Availability

Door Handle (White Model) WPL 4452499 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

9760754 Whirlpool Oven Front Frame Backorder WPL 9760754 $39.82

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Screw WPL 4449040 Contact Us For Availability

Bracket, Handle (Screw) WPL 4451040 Contact Us For Availability

Bracket, Handle (L.Side) WPL 4452960 Contact Us For Availability

15

WP4455380 Whirlpool Door Gasket Backorder WPL WP4455380 $59.75

16

4450549 Whirlpool Oven Top Cover Backorder WPL 4450549 $26.21

16

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4451476 Whirlpool Support Backorder WPL 4451476 $35.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit, Double WPL 4450953 Contact Us For Availability

Shield, Heat WPL 4450360 Contact Us For Availability

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door Top WPL 4451672 Contact Us For Availability

22

Latch Assy WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

23

Retainer, Clip (Black Model) WPL 8300853 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

24

Glass, Inner WPL 4455255 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

4452232 Whirlpool Oven Rear Cover Backorder WPL 4452232 $44.03

27

Liner, Oven (Not serviceable) WPL ARI82193A4 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

Deflector, Vent WPL 8300880 Contact Us For Availability

34

W10358914 Whirlpool Oven Vent Backorder WPL W10358914 $54.92

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

4450525 Whirlpool Oven Bottom Assembly Backorder WPL 4450525 $52.25

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

51

WPL 8300828 WPL 8300828 Contact Us For Availability

51

WPL 8300829 WPL 8300829 Contact Us For Availability

WP4449314 Whirlpool Insulation Backorder WPL WP4449314 $66.64

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WP4450363 Whirlpool Insulation Backorder WPL WP4450363 $66.64

WPL 4449845 WPL 4449845 Contact Us For Availability
