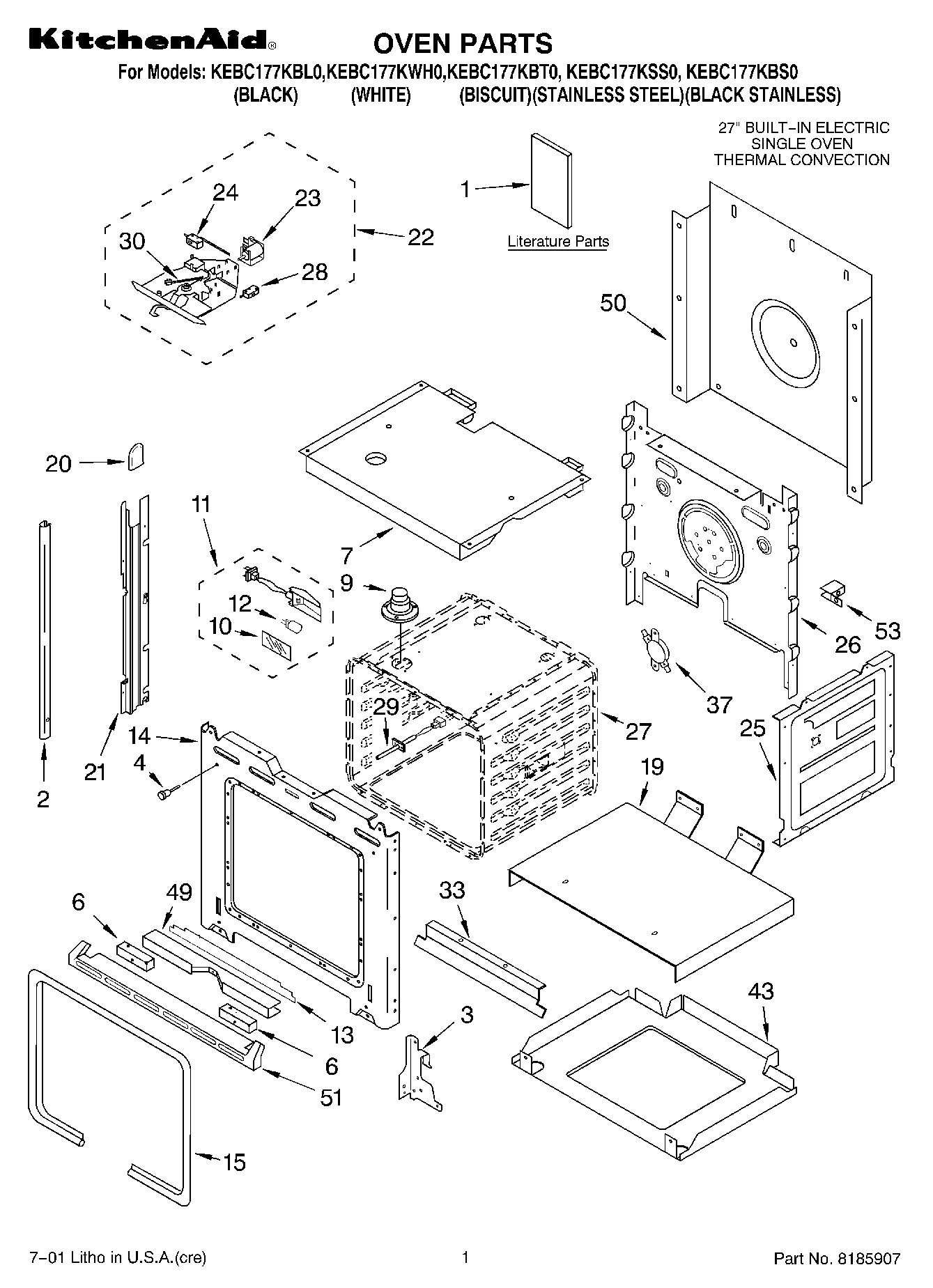

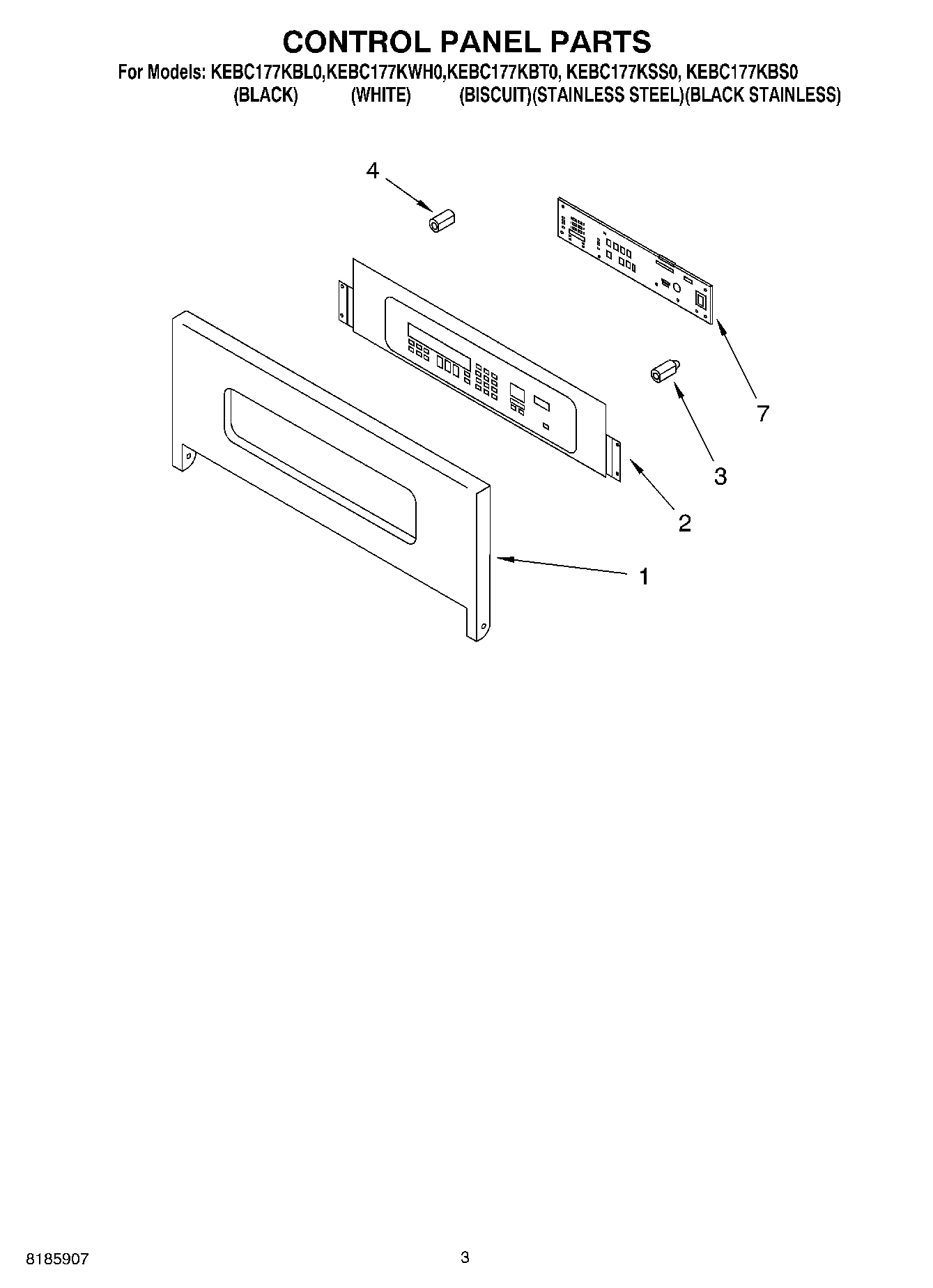

Model Whirlpool KEBC177KBL0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Screw WPL 4449040 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation/ Undercounter) WPL LIT3192225 Contact Us For Availability

1

Literature Parts (Guide, Easy Set) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Installation/ MWO Trim Kit) WPL LIT4450841 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451876 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT4451952 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300655 Contact Us For Availability

1

Literature Parts (Cookbook T/C) WPL LIT8300886 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

4455377 Whirlpool Oven Trim Backorder WPL 4455377 $100.02

2

W10144984 Whirlpool Trim Backorder WPL W10144984 $84.17

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WPW10144983 Whirlpool Trim Backorder WPL WPW10144983 $59.53

2

Trim, Side Left (Black) WPL 4455376 Contact Us For Availability

2

Trim, Side (Left Hand) (Biscuit) WPL 4455378 Contact Us For Availability

2

Trim, Side (Right Hand) (Biscuit) WPL 4455424 Contact Us For Availability

2

Trim, Side (RH White) WPL 4455428 Contact Us For Availability

2

Trim, Side (LH White) WPL 4455429 Contact Us For Availability

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower 60MM WPL 4455334 Contact Us For Availability

3

Insulation, Door WPL 4451721 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

4

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Spacer, Foam WPL 4452490 Contact Us For Availability

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

Top, Chassis WPL 4455864 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Fan, Convect. Assy WPL 4451583 Contact Us For Availability

9

Bracket, Handle (Stainless Steel) WPL 4455804 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

Lens, Light WPL 4452163 Contact Us For Availability

Seal, Top WPL 4452325 Contact Us For Availability

Transformer, Control WPL 8300642 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

Screw WPL 3400080 Contact Us For Availability

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

13

WP4452315 Whirlpool Door Glass In Stock WPL WP4452315 $220.14

13

Vent, (Control Panel) WPL 4448548 Contact Us For Availability

13

Insulation, Bottom Vent WPL 4452336 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Frame, Front WPL 4455611 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Back, Control WPL 4452244 Contact Us For Availability

16

Retainer, Glass WPL 4451668 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

18

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

18

Cover, Top Front WPL 4452366 Contact Us For Availability

19

Support, Insulation WPL 4451477 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

814381 Whirlpool Pin Backorder WPL 814381 $3.70

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $86.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455729 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable WPL ARI81759A6 Contact Us For Availability

28

WPL 4451426 WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WPL 4451537 WPL 4451537 Contact Us For Availability

33

W10145009 Whirlpool Vent Deflector Backorder WPL W10145009 $30.07

33

WPL 4452495 WPL 4452495 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

WPL 4455529 WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

WPL 4455146 WPL 4455146 Contact Us For Availability

WPL 4455442 WPL 4455442 Contact Us For Availability

WPL 4455444 WPL 4455444 Contact Us For Availability

WPL 4455446 WPL 4455446 Contact Us For Availability

53

WPL 4449315 WPL 4449315 Contact Us For Availability

53

WPL 4449845 WPL 4449845 Contact Us For Availability

53

WPL 4450364 WPL 4450364 Contact Us For Availability
