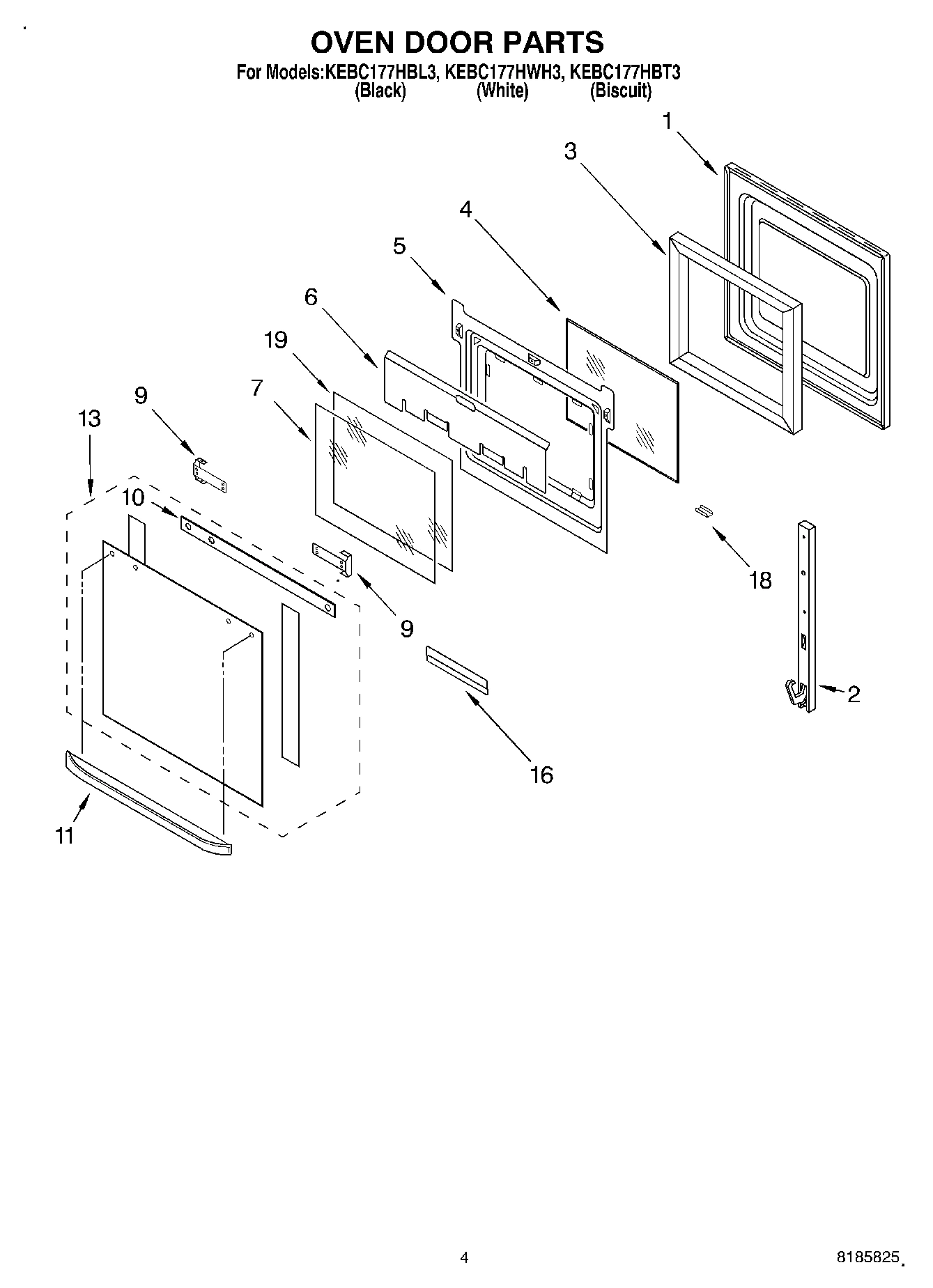

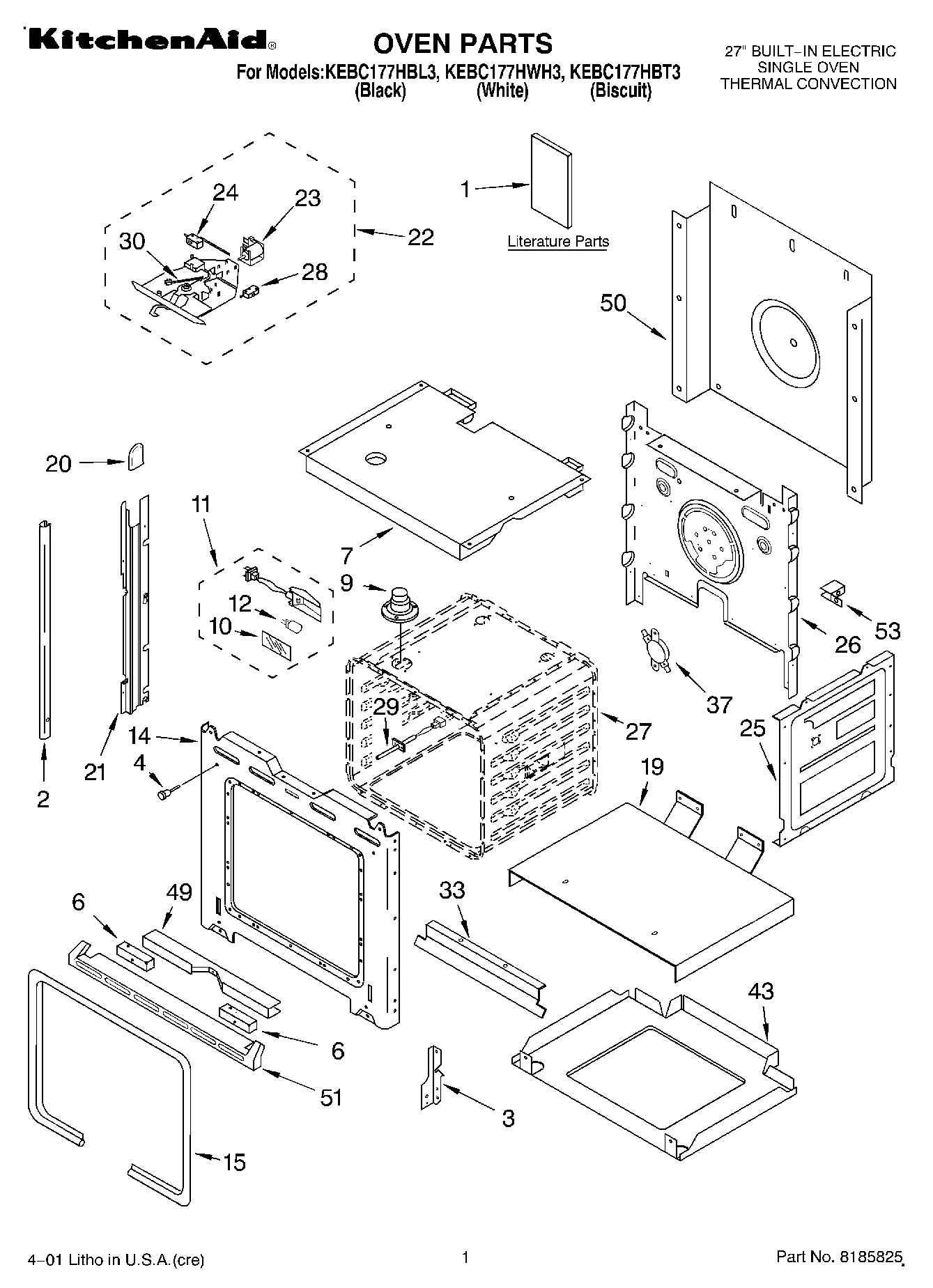

Model Whirlpool KEBC177HBL3 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Screw WPL 4449040 Contact Us For Availability

1

Panel, Control (Black) WPL 4452602 Contact Us For Availability

1

Panel, Control (White) WPL 4452603 Contact Us For Availability

1

Panel, Control (Biscuit) WPL 4452973 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

4455377 Whirlpool Oven Trim Backorder WPL 4455377 $100.02

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $41.25

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

2

Switch, Membrane (Black) WPL 4455402 Contact Us For Availability

2

Switch, Membrane (White) WPL 4455408 Contact Us For Availability

2

Switch, Membrane (Biscuit) WPL 4455414 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

3

Blower 60MM WPL 4455334 Contact Us For Availability

3

Insulation, Door WPL 4451721 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

3

Insulation, Board WPL 4452248 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

4

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

4

Insulation, Board Support WPL 4452249 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

Spacer, Foam WPL 4452260 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

Plate, Mounting WPL 4451789 Contact Us For Availability

7

Screw WPL 3400406 Contact Us For Availability

7

Microcomputer WPL 4453163 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

9

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

9

Fan, Convect. Assy WPL 4451583 Contact Us For Availability

9

Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

Lens, Light WPL 4452163 Contact Us For Availability

Seal, Top WPL 4452325 Contact Us For Availability

Transformer, Control WPL 8300642 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

12

Nut WPL 4452227 Contact Us For Availability

13

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

13

Vent, (Control Panel) WPL 4448548 Contact Us For Availability

14

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

14

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

14

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Back, Control WPL 4452244 Contact Us For Availability

15

Tray, Bake WPL 4455036 Contact Us For Availability

16

Retainer, Glass WPL 4451668 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

18

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

18

Cover, Top Front WPL 4452366 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $86.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455729 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

43

WPL 4455529 WPL 4455529 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WPL 4159465 WPL 4159465 Contact Us For Availability

WPL 4455442 WPL 4455442 Contact Us For Availability

WPL 4455444 WPL 4455444 Contact Us For Availability

WPL 4455446 WPL 4455446 Contact Us For Availability

53

WPL 4449315 WPL 4449315 Contact Us For Availability

53

WPL 4449845 WPL 4449845 Contact Us For Availability

53

WPL 4450364 WPL 4450364 Contact Us For Availability
