Model Whirlpool KEBC171KWH0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams
04 - INTERNAL OVEN
03 - OVEN DOOR

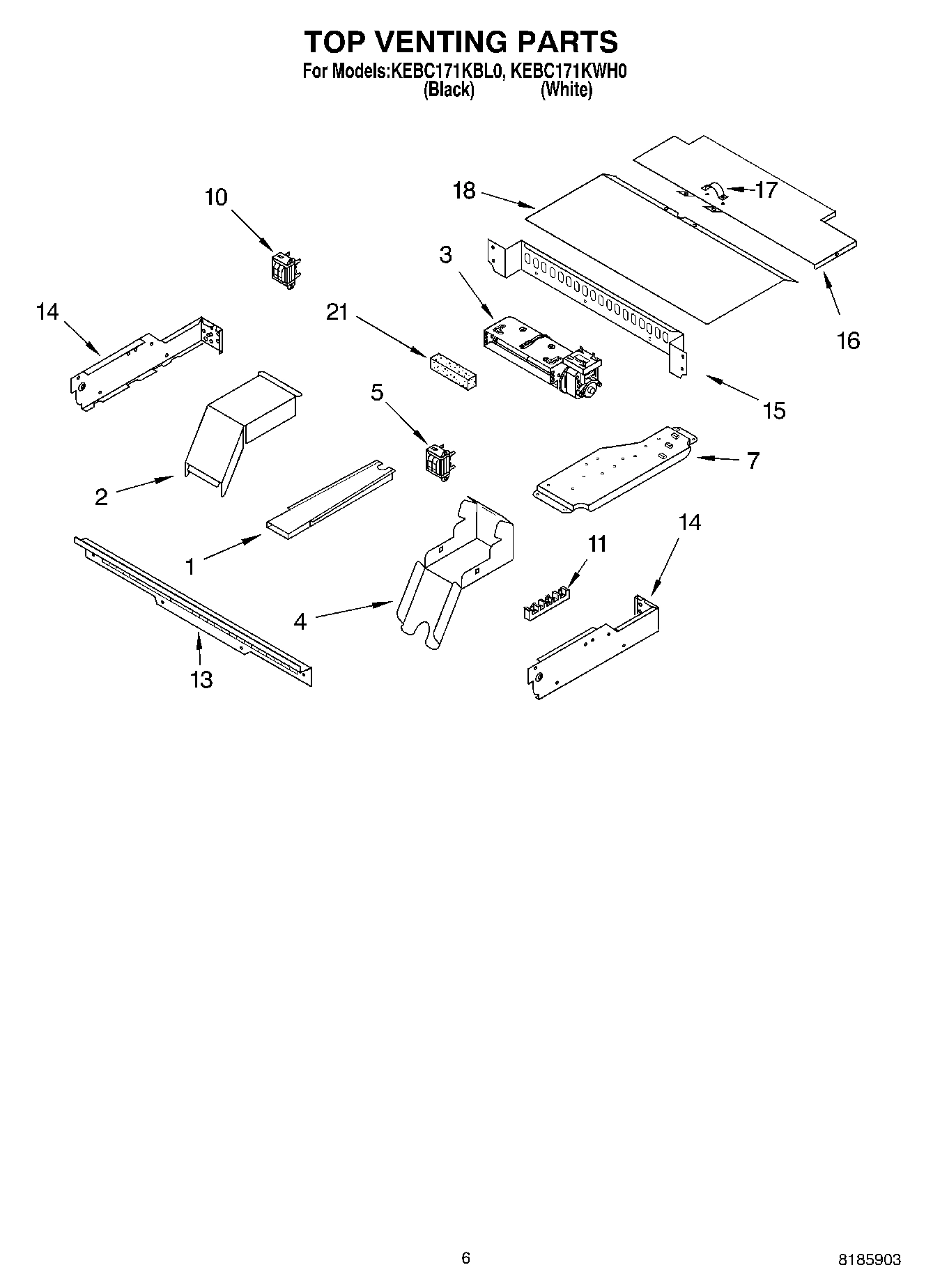

05 - TOP VENTING

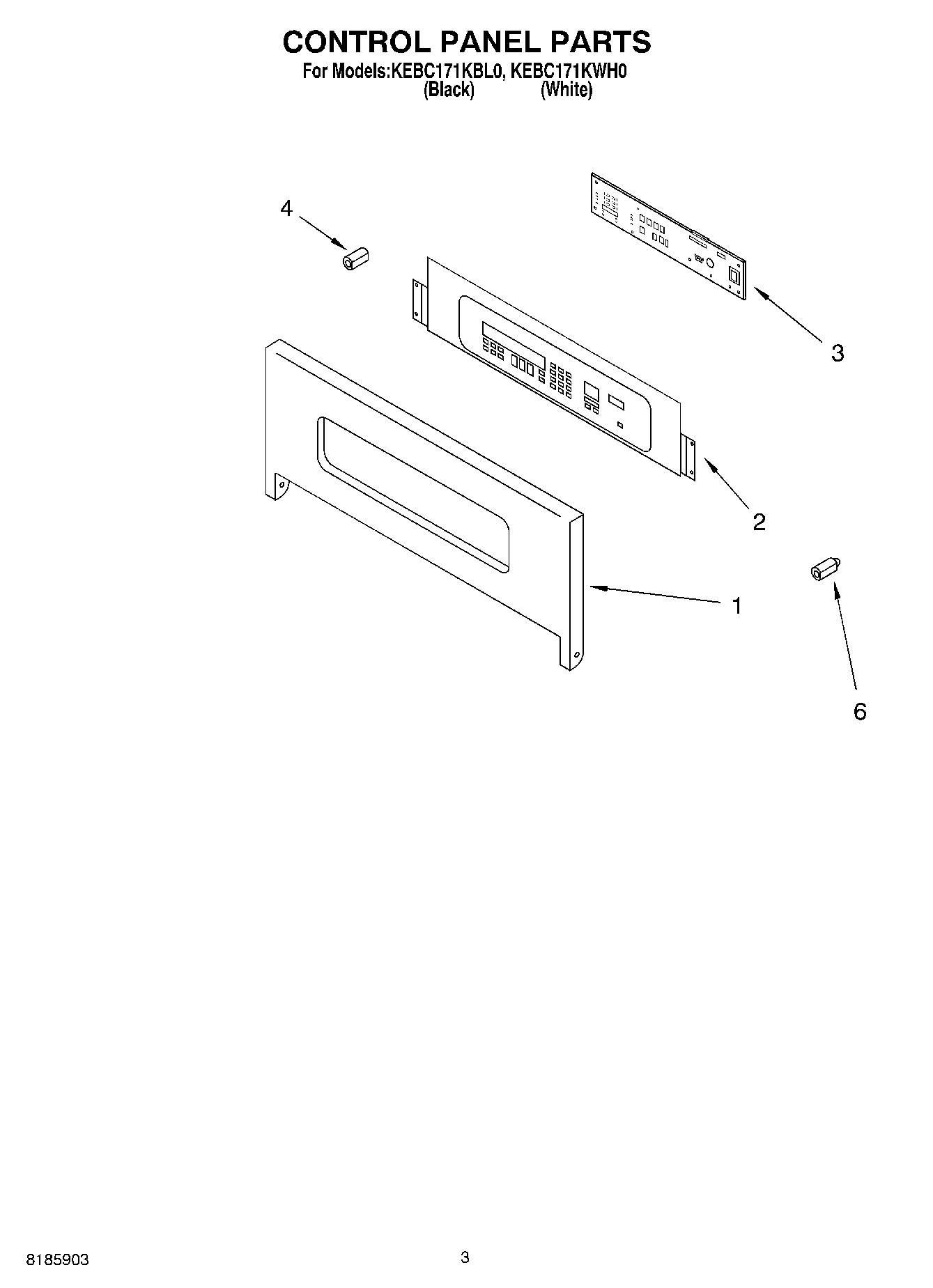

02 - CONTROL PANEL

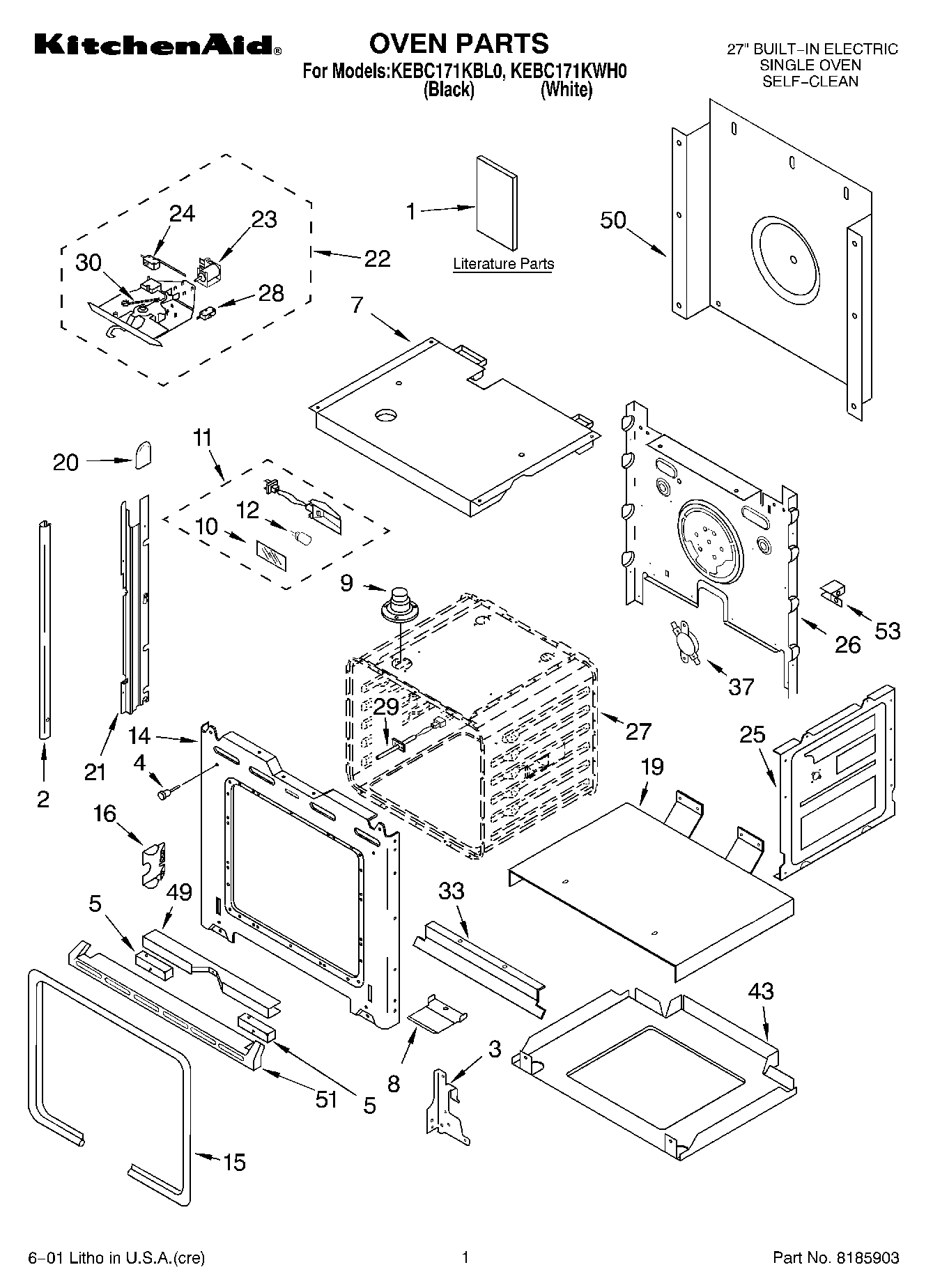

01 - OVEN, LITERATURE
Common parts from model Whirlpool KEBC171KWH0 BUILT-IN ELECTRIC SINGLE OVEN
1
Screw WPL 4449040 Contact Us For Availability
1
Control Panel Assy. (Black Model) WPL 4452602 Contact Us For Availability
1
Control Panel Assy. (White Model) WPL 4452603 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation/ Undercounter) WPL LIT3192225 Contact Us For Availability
1
Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Installation/ MWO Trim Kit) WPL LIT4450841 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4451876 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8300655 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8300887 Contact Us For Availability
2
Switch, Membrane WPL 8300865 Contact Us For Availability
2
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
2
Trim, Side Left (Black) WPL 4455376 Contact Us For Availability
2
Trim, Side (RH White) WPL 4455428 Contact Us For Availability
2
Trim, Side (LH White) WPL 4455429 Contact Us For Availability
3
Blower WPL 4455334 Contact Us For Availability
3
Insulation, Sides WPL 4451721 Contact Us For Availability
3
Screw WPL 3400406 Contact Us For Availability
3
Microcomputer WPL 4453163 Contact Us For Availability
4
Insulation, Board Support WPL 4452249 Contact Us For Availability
5
Spacer, Foam WPL 4452490 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Insulation, Board WPL 4452248 Contact Us For Availability
7
Top, Chassis WPL 4455285 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Seal, Top WPL 4452325 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
14
Frame, Front WPL 4455611 Contact Us For Availability
16
Retainer, Glass WPL 4451668 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Spacer, Harness WPL 4452222 Contact Us For Availability
21
Harness, Wire (Main) WPL 4455730 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI81711A6 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4452495 Contact Us For Availability
43
Base, Chassis WPL 4455529 Contact Us For Availability
51
WPL 4455442 WPL 4455442 Contact Us For Availability
51
WPL 4455444 WPL 4455444 Contact Us For Availability
53
WPL 4449315 WPL 4449315 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL 4450364 WPL 4450364 Contact Us For Availability
× ![]()
