Model Whirlpool KEBC149BSS0 24`` BUILT-IN ELECTRIC SINGLE OVEN WITH CONVECTION – Common Parts & Diagrams

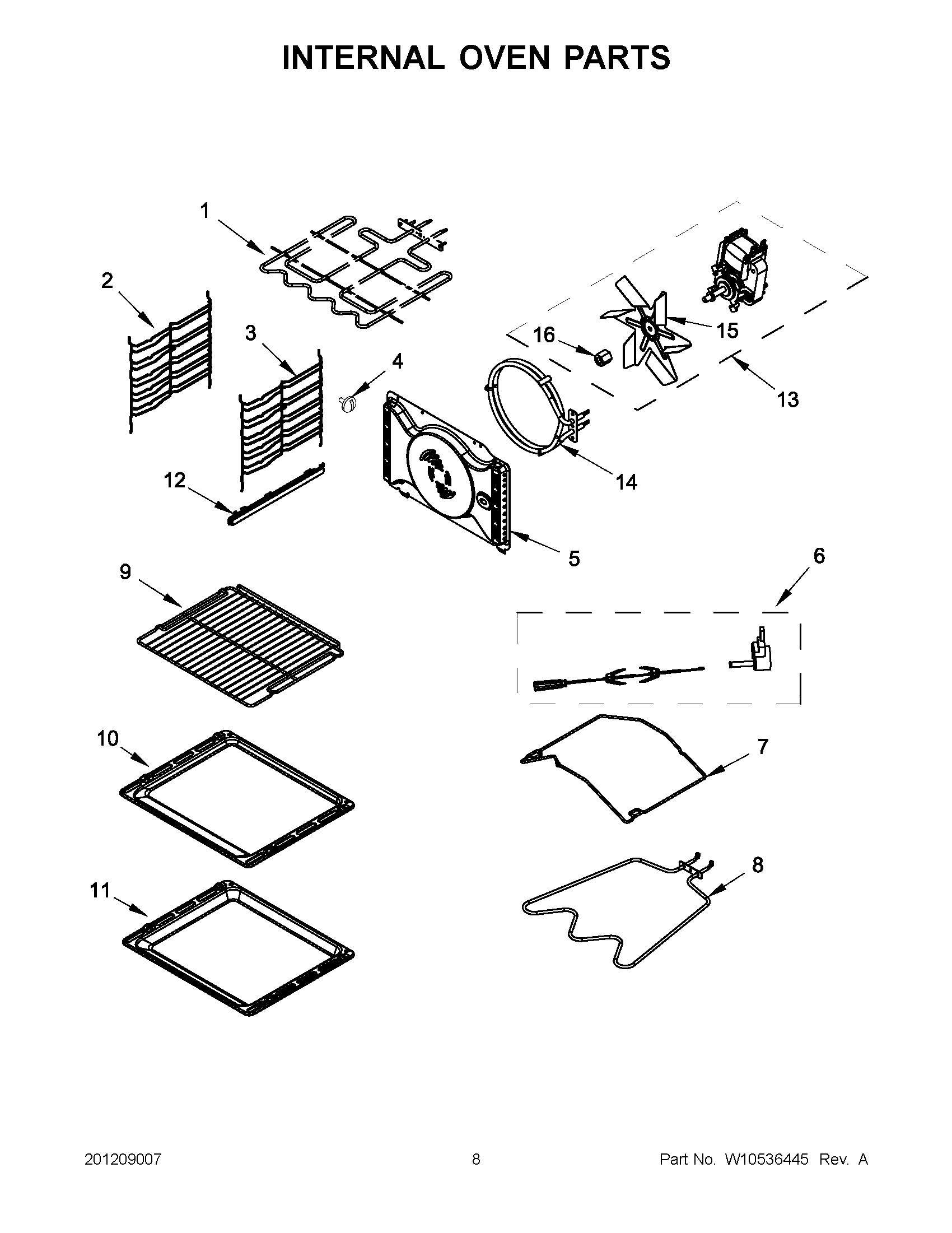

04 - INTERNAL OVEN PARTS

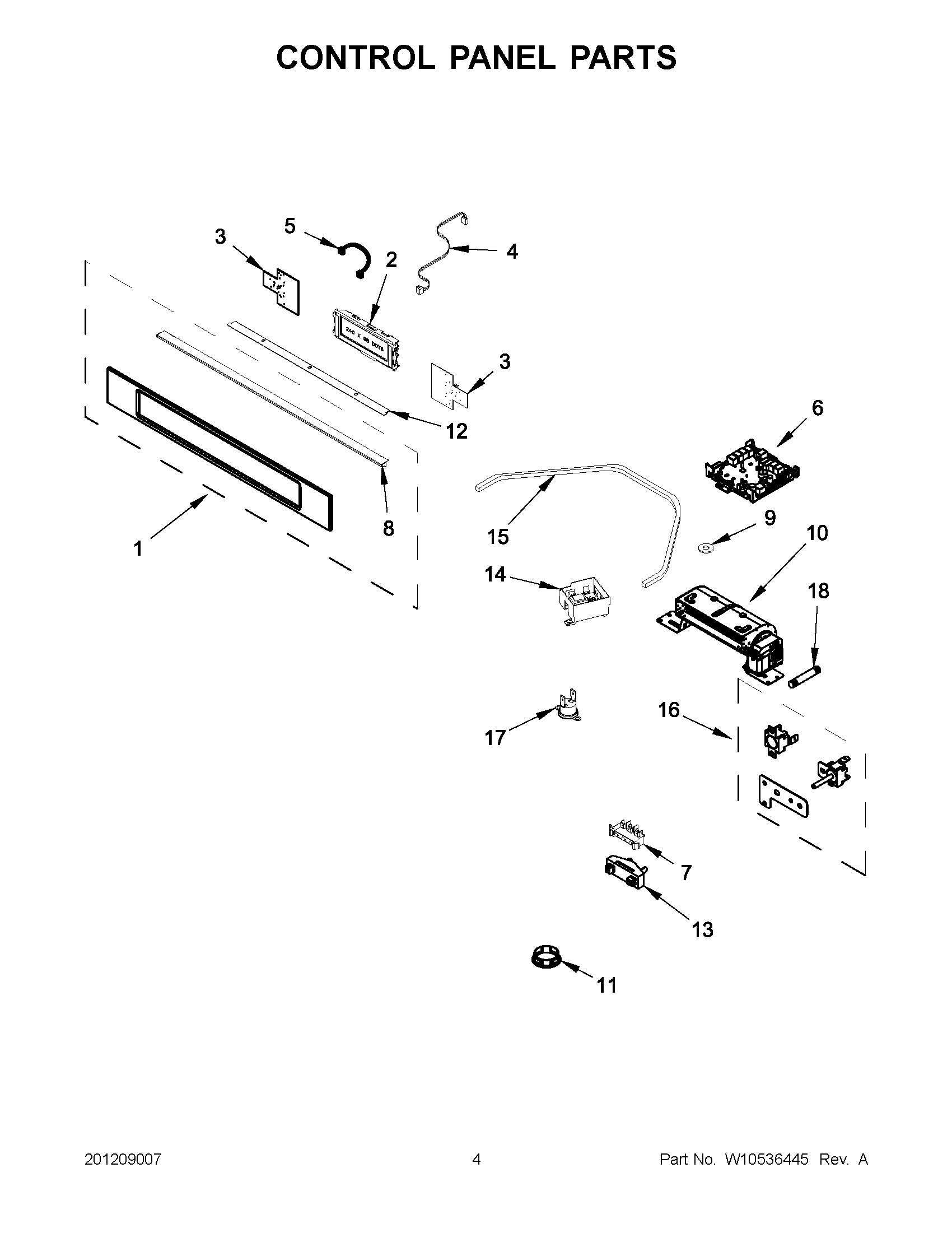

02 - CONTROL PANEL PARTS
01 - OVEN PARTS
03 - OVEN DOOR
Common parts from model Whirlpool KEBC149BSS0 24`` BUILT-IN ELECTRIC SINGLE OVEN WITH CONVECTION
1
ELEMENT, UPPER/GRILL 2450 WATTS WPL W10518927 Contact Us For Availability
1
PANEL, CONTROL FRONT PANEL AND GLASS WPL W10517904 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10539685 Contact Us For Availability
1
USE AND CARE GUIDE WPL W10539689 Contact Us For Availability
1
TECH SHEET WPL W10539710 Contact Us For Availability
2
GRID, RACK LEFT SIDE WPL W10519019 Contact Us For Availability
2
BOARD, DISPLAY NAVIGATOR WPL W10517878 Contact Us For Availability
3
GRID, RACK RIGHT SIDE WPL W10519021 Contact Us For Availability
3
BOARD, ELECTRONIC CONTROL WPL W10517895 Contact Us For Availability
3
LATCH, DOOR WPL W10518305 Contact Us For Availability
3
GLASS, DOOR INNER ASSEMBLY WPL W10518374 Contact Us For Availability
4
SCREW, GRID WPL W10519022 Contact Us For Availability
4
HARNESS, TOUCH DISPLAY WPL W10517879 Contact Us For Availability
5
BAFFLE, CONVECTION FAN WPL W10518390 Contact Us For Availability
5
BULB, HALOGEN 40 WATT WPL W10518971 Contact Us For Availability
6
BOARD, POWER ANTARES WPL W10517891 Contact Us For Availability
6
ASSEMBLY, BULB INCLUDES SOCKET AND LENS COVER WPL W10518973 Contact Us For Availability
6
SPACER, DOOR HANDLE WPL W10322156 Contact Us For Availability
7
RACK, ROTISSERIE SPIT SUPPORT WPL W10519018 Contact Us For Availability
7
BLOCK, TERMINAL WPL W10518946 Contact Us For Availability
7
SENSOR, TEMPERATURE WPL W10518975 Contact Us For Availability
8
ELEMENT, LOWER 1150 WATTS WPL W10517988 Contact Us For Availability
8
SOCKET, MEAT PROBE WITH HARNESS WPL W10519001 Contact Us For Availability
8
HANDLE, DOOR WPL W10517986 Contact Us For Availability
9
RACK, OVEN WPL W10519013 Contact Us For Availability
9
GASKET, TOP PANEL WPL 8186903 Contact Us For Availability
9
PROBE, MEAT WPL W10518976 Contact Us For Availability
9
HINGE, DOOR WPL W10517972 Contact Us For Availability
10
TRAY, BAKING WPL W10519015 Contact Us For Availability
10
BLOWER, COOLING FAN WPL W10517960 Contact Us For Availability
10
NUT, MEAT PROBE 10X1.57 WPL W10519007 Contact Us For Availability
10
DOOR, OVEN OUTER ASSEMBLY WPL W10518297 Contact Us For Availability
11
PAN, DEEP WPL W10519016 Contact Us For Availability
11
GROMMET, CABLE WPL W10518942 Contact Us For Availability
11
WASHER, MEAT PROBE WPL W10519008 Contact Us For Availability
11
SUPPORT, OVEN DOOR GLASS WPL W10518383 Contact Us For Availability
12
RAIL, SLIDING LEFT AND RIGHT WPL W10519023 Contact Us For Availability
12
GASKET, CONTROL PANEL WPL W10518397 Contact Us For Availability
12
KIT, OVEN SCREWS WPL W10519011 Contact Us For Availability
13
MOTOR, FAN CONVECTION WPL W10517945 Contact Us For Availability
13
CLAMP, CABLE WPL W10516534 Contact Us For Availability
13
HINGE, RUNNING MECHANISM WPL W10517968 Contact Us For Availability
13
SPACER, OVEN DOOR GLASS WPL W10519004 Contact Us For Availability
14
ELEMENT, FORCED AIR 2450 WATTS WPL W10518925 Contact Us For Availability
14
INTERFACE, MEAT PROBE WPL W10518967 Contact Us For Availability
14
BUMPER, OVEN WPL W10519010 Contact Us For Availability
15
GASKET, BLOWER MOTOR WPL W10519009 Contact Us For Availability
15
BUMPER, OVEN DOOR WPL W10519005 Contact Us For Availability
16
NUT WPL 8186882 Contact Us For Availability
16
THERMOSTAT WPL W10518968 Contact Us For Availability
16
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
18
FUSE, 315MA WPL W10518970 Contact Us For Availability
× ![]()
