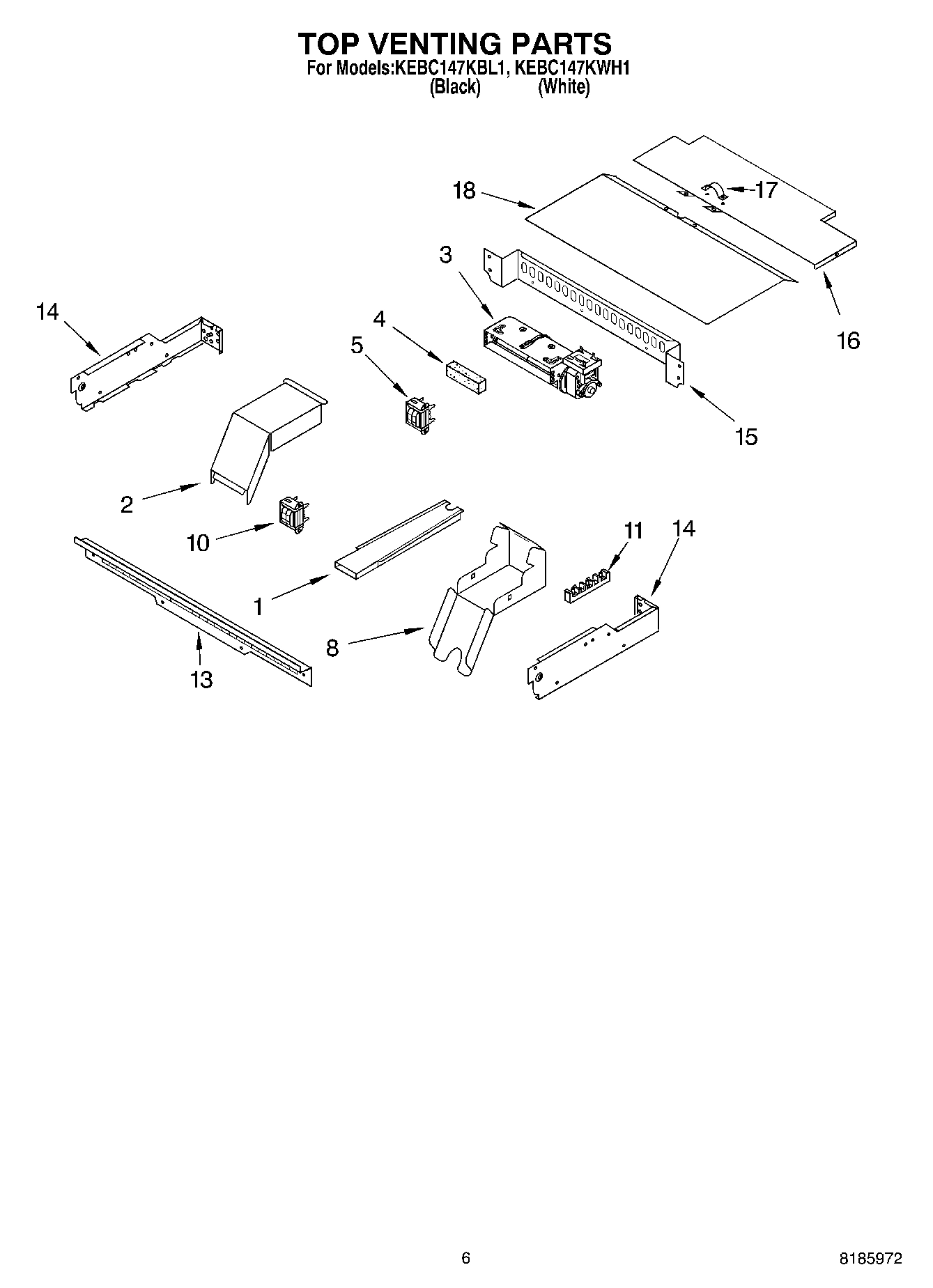

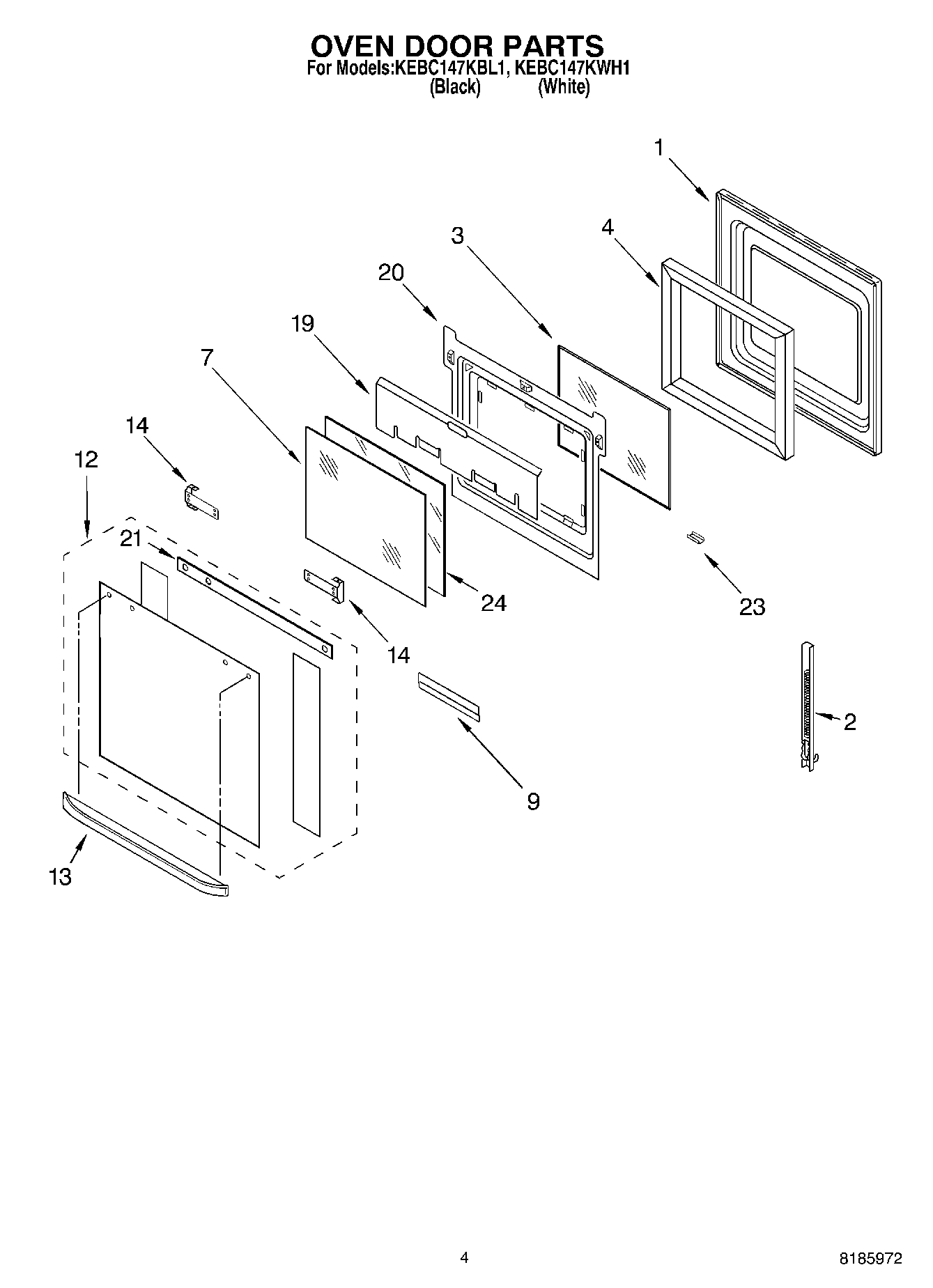

Model Whirlpool KEBC147KBL1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

WPW10358920 Whirlpool Control Panel Assembly Backorder WPL WPW10358920 $161.00

1

Control Panel Assy. W/Membrane Switch (White WPL 8300816 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

4455377 Whirlpool Oven Trim Backorder WPL 4455377 $100.02

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

2

Trim, Side (RH White) WPL 4455428 Contact Us For Availability

2

Trim, Side (LH White) WPL 4455429 Contact Us For Availability

2

Switch, Membrane (Black) WPL 8300841 Contact Us For Availability

2

Switch, Membrane (White) WPL 8300844 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449247 Whirlpool Inner Door Glass In Stock WPL WP4449247 $64.91

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Screw WPL 3400406 Contact Us For Availability

3

Microcomputer WPL 4456033 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

4

Insulation, Board WPL 4452248 Contact Us For Availability

5

Spacer, Foam WPL 4452490 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Insulation, Board Support WPL 4452249 Contact Us For Availability

6

4448716 Whirlpool Oven Rack 24" Backorder WPL 4448716 $39.95

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

4455863 Whirlpool Oven Top Assembly Backorder WPL 4455863 $40.53

7

Glass, Inner WPL 4449251 Contact Us For Availability

8

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

8

4455807 Whirlpool Oven Vent Deflector Backorder WPL 4455807 $45.86

8

W10145009 Whirlpool Vent Deflector Backorder WPL W10145009 $30.07

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Fan, Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Door Glass, Assy (Black Model) WPL 8300836 Contact Us For Availability

Door Glass, Assy (White Model) WPL 8300837 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

13

4448547 Whirlpool Oven Vent Control Backorder WPL 4448547 $38.19

13

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

13

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

9760754 Whirlpool Oven Front Frame Backorder WPL 9760754 $39.82

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

Bracket, Handle (L.Hand) WPL 4455804 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

15

4455035 Whirlpool Bake Tray Backorder WPL 4455035 $36.34

15

WP4455380 Whirlpool Door Gasket Backorder WPL WP4455380 $59.75

16

4450549 Whirlpool Oven Top Cover Backorder WPL 4450549 $26.21

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

17

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

19

4451476 Whirlpool Support Backorder WPL 4451476 $35.26

20

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

22

Latch Assy WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

4452232 Whirlpool Oven Rear Cover Backorder WPL 4452232 $44.03

27

Liner, Oven (Not serviceable) WPL ARI81520A3 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

Deflector, Vent WPL 8300880 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

4450525 Whirlpool Oven Bottom Assembly Backorder WPL 4450525 $52.25

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

51

WPL 8300828 WPL 8300828 Contact Us For Availability

51

WPL 8300829 WPL 8300829 Contact Us For Availability

WP4449314 Whirlpool Insulation Backorder WPL WP4449314 $66.64

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WP4450363 Whirlpool Insulation Backorder WPL WP4450363 $66.64

WPL 4449845 WPL 4449845 Contact Us For Availability
