Model Whirlpool KDTF924PPA0 DISHWASHER – Common Parts & Diagrams
01 - COVER SHEET
02 - DOOR AND PANEL PARTS

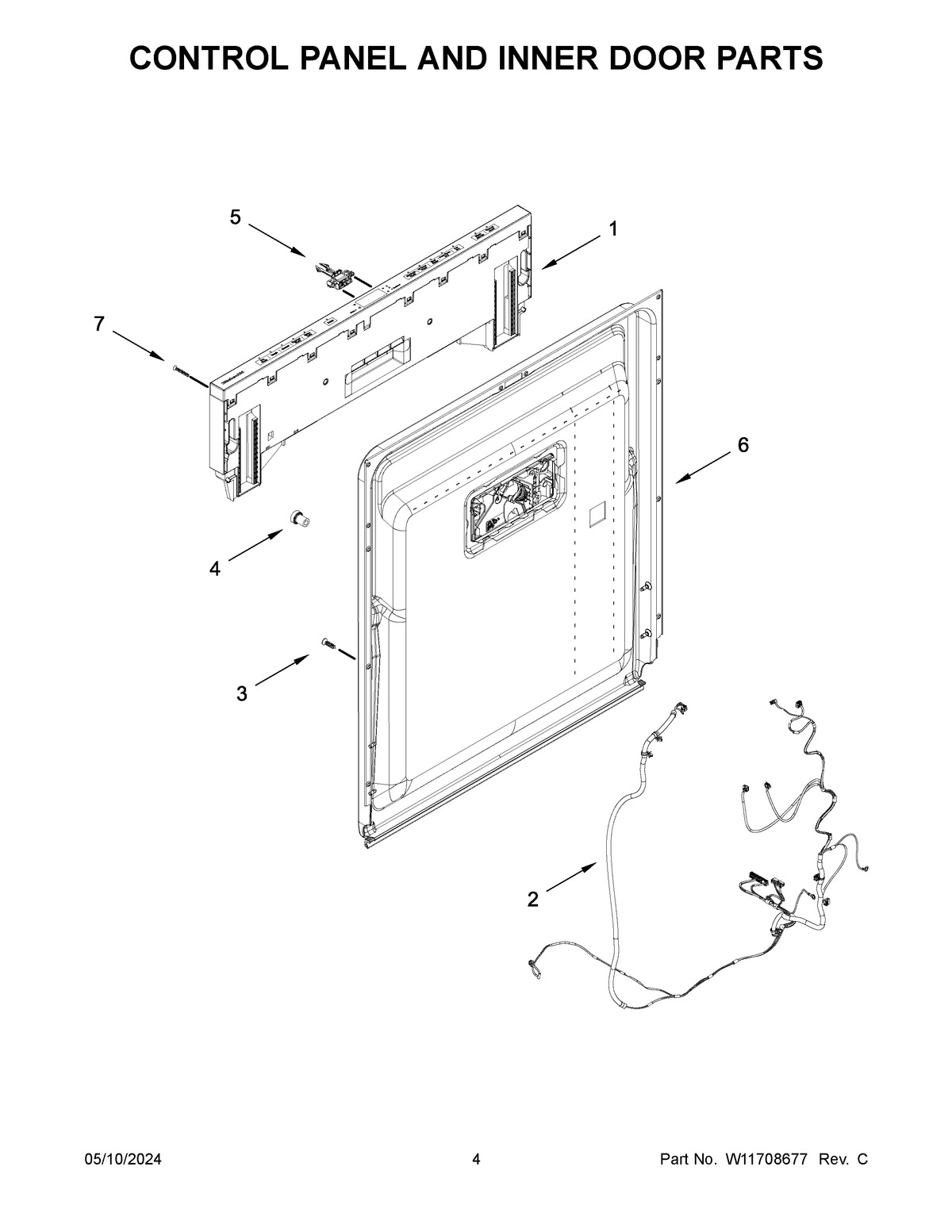

03 - CONTROL PANEL AND INNER DOOR PARTS

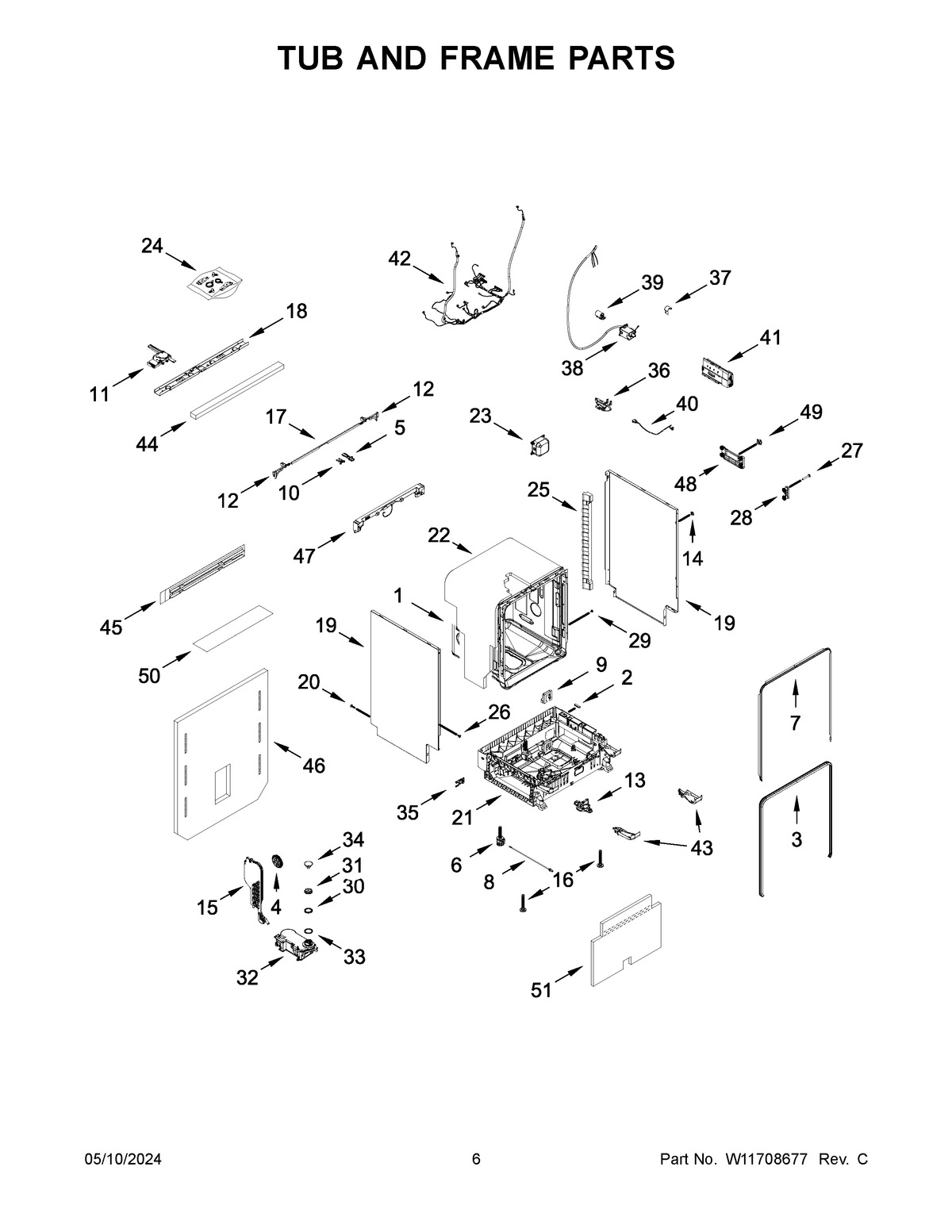

04 - TUB AND FRAME PARTS

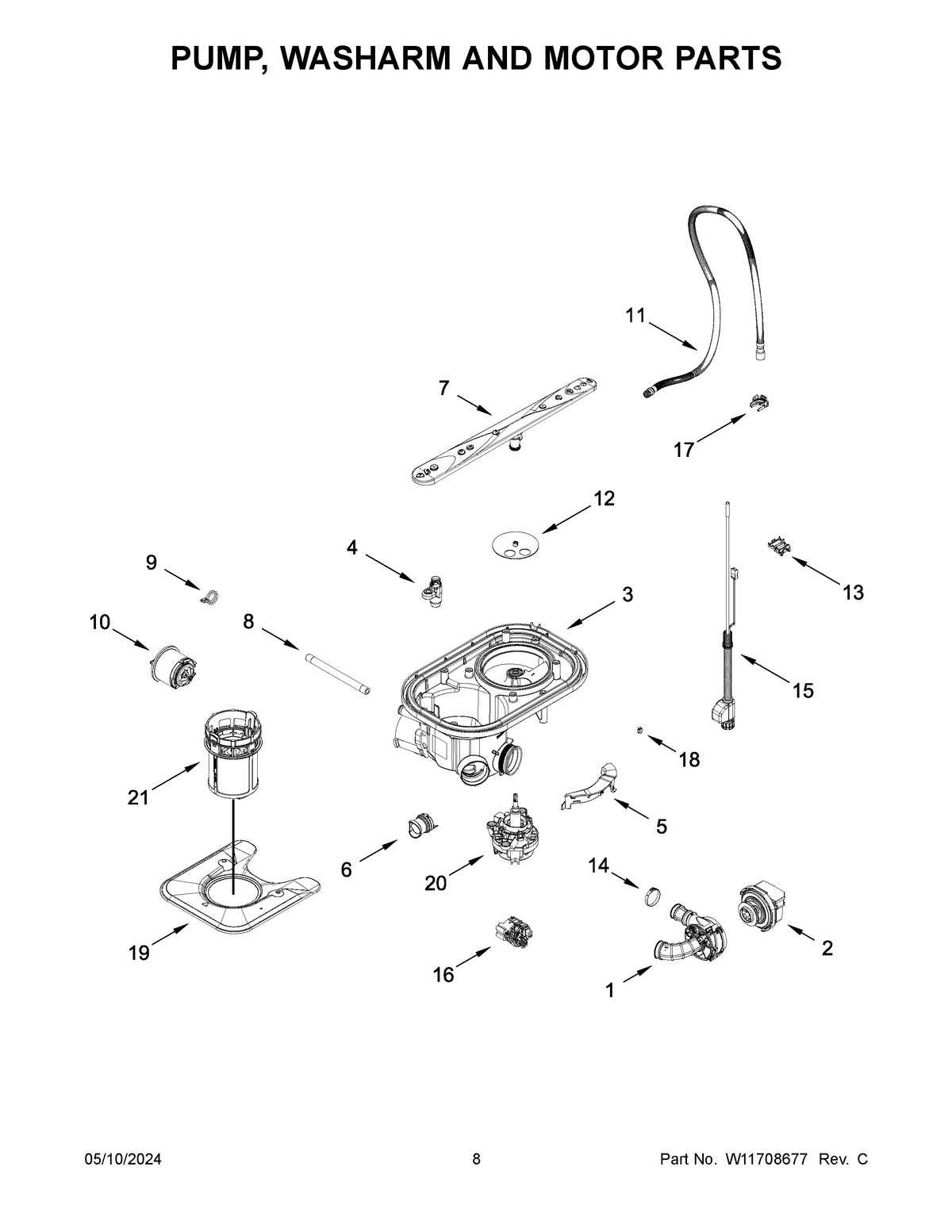

05 - PUMP, WASHARM AND MOTOR PARTS

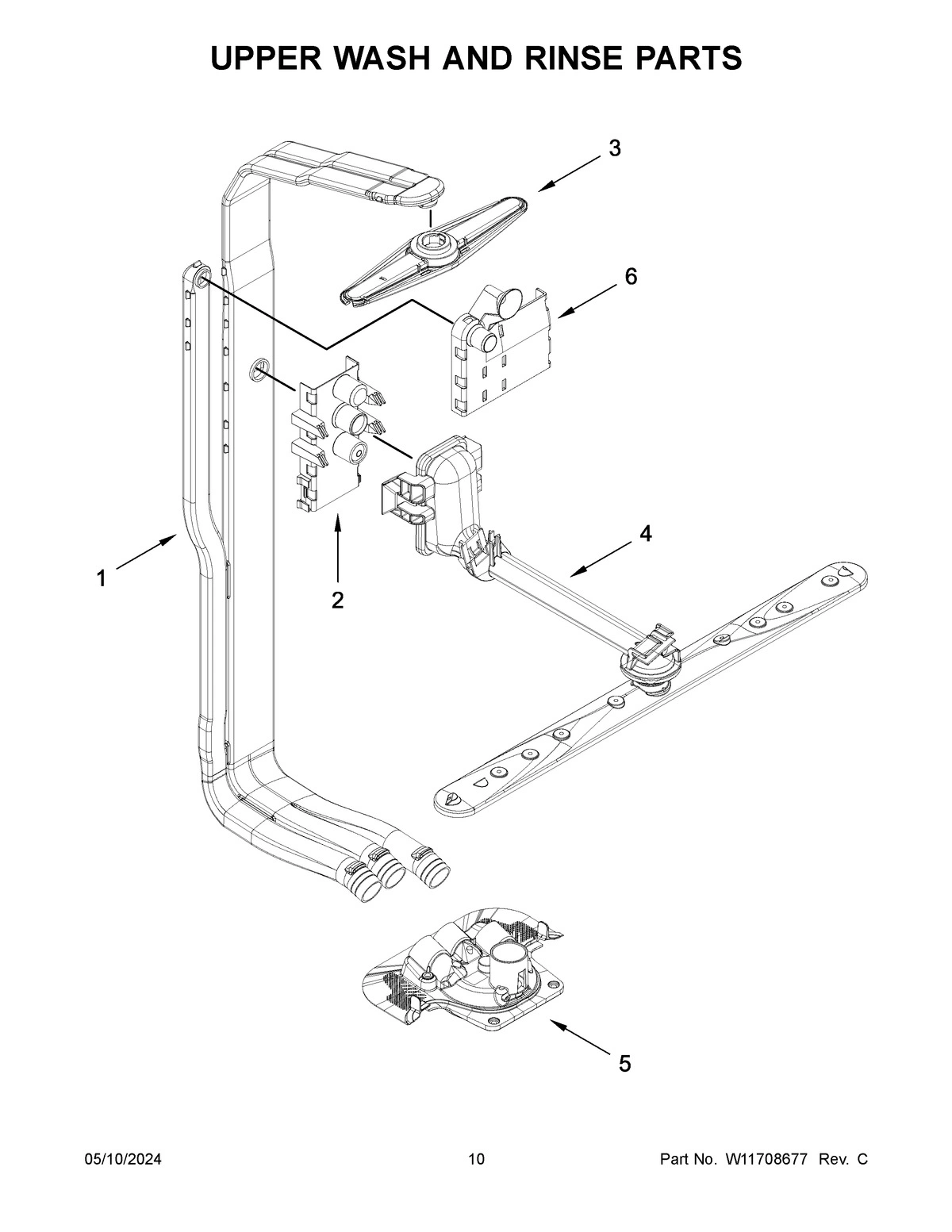

06 - UPPER WASH AND RINSE PARTS

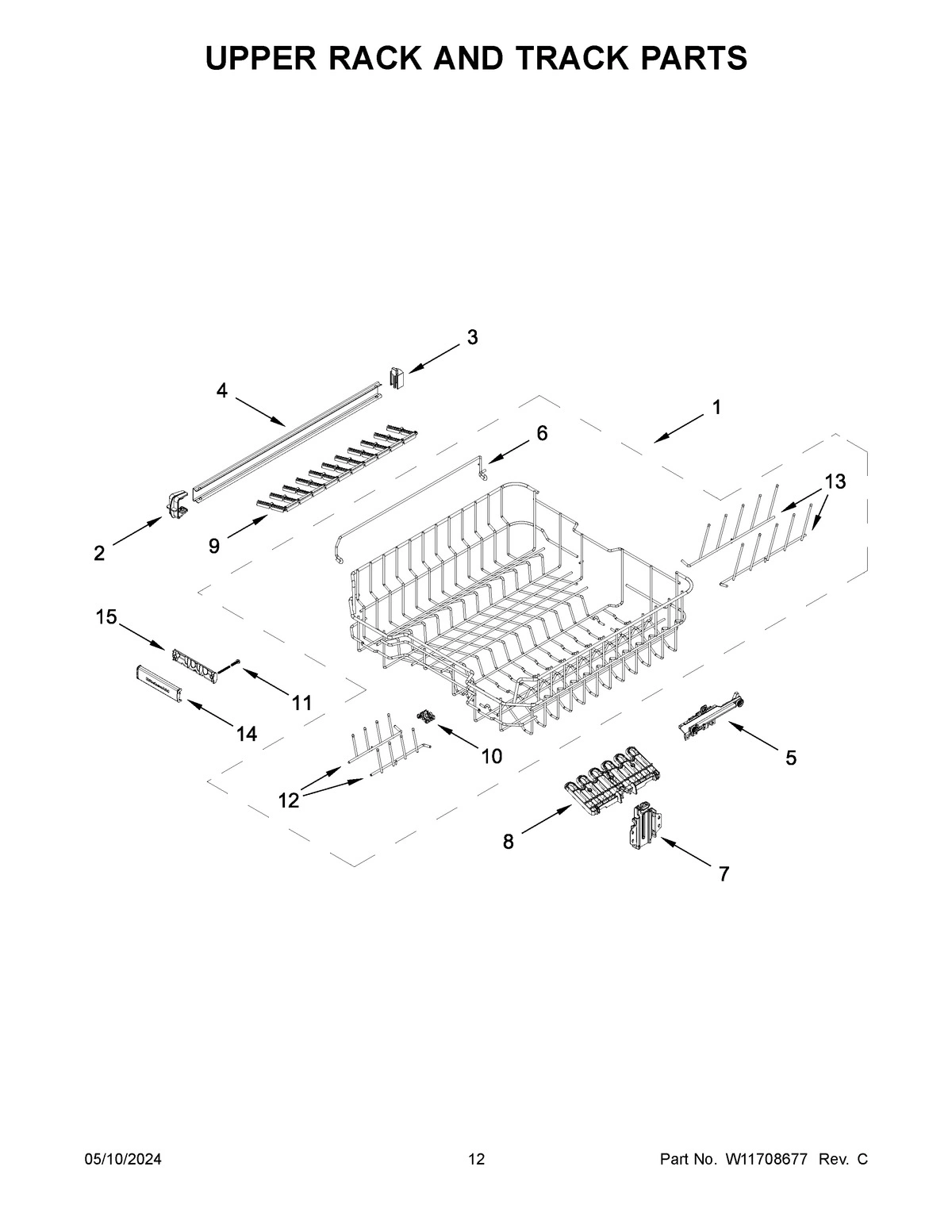

07 - UPPER RACK AND TRACK PARTS

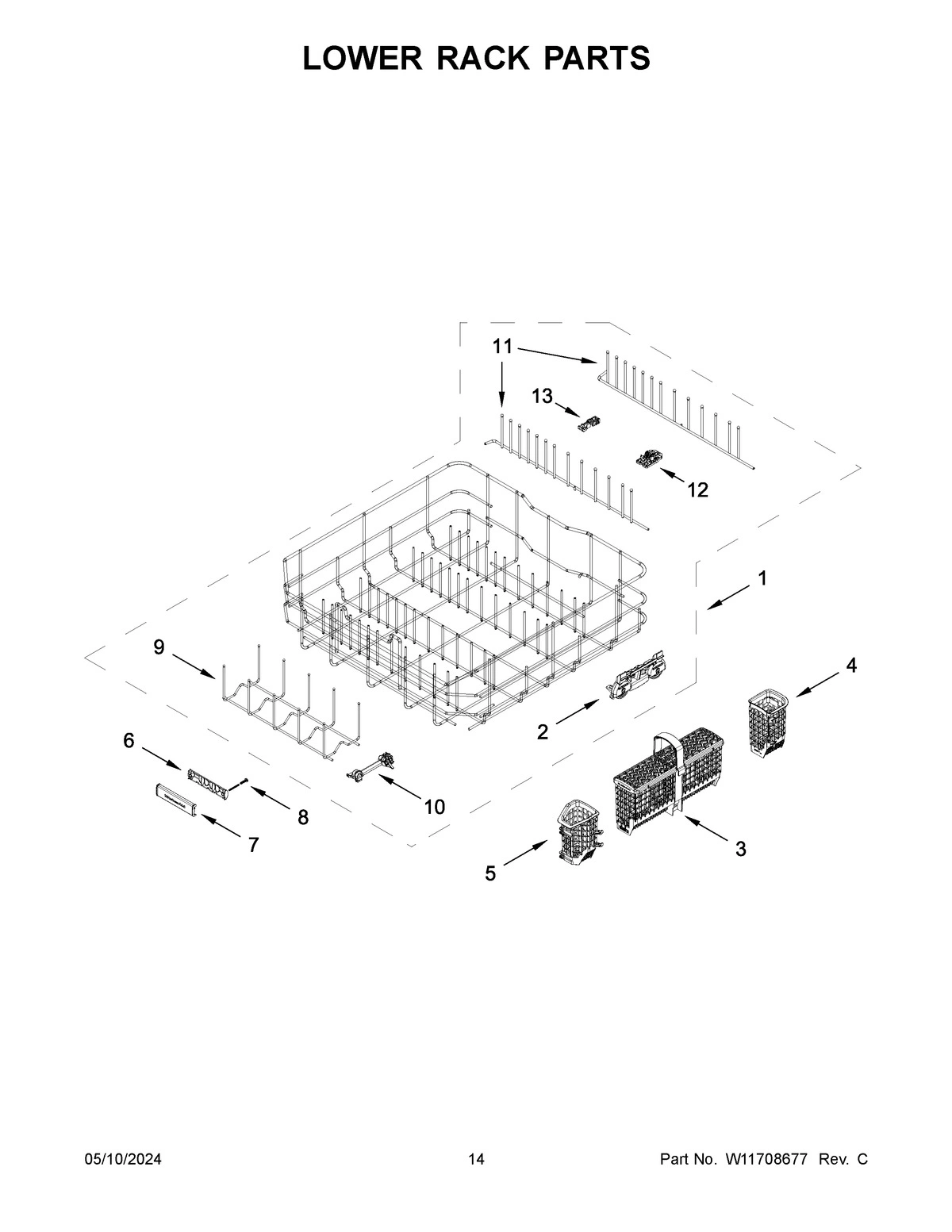

08 - LOWER RACK PARTS

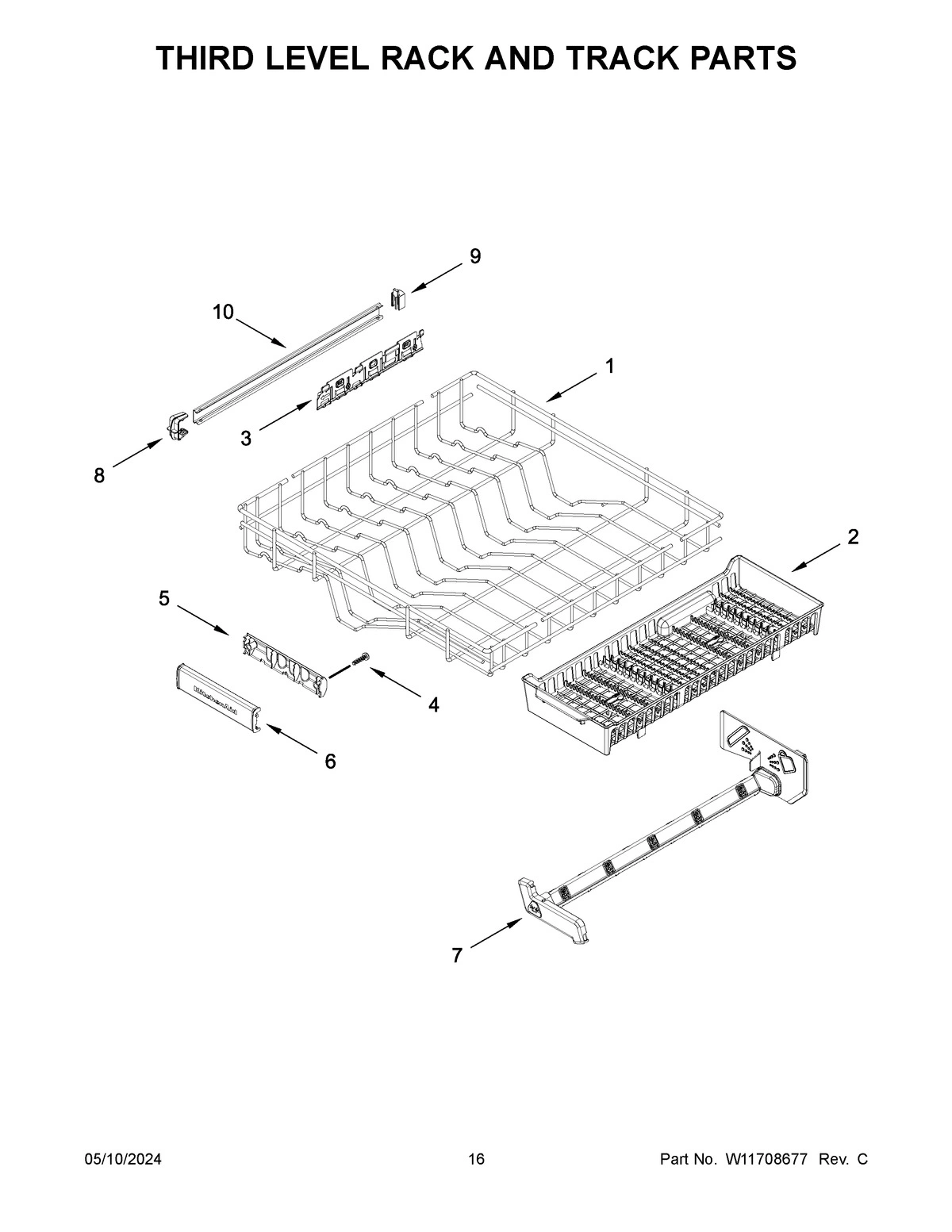

09 - THIRD LEVEL RACK AND TRACK PARTS
Common parts from model Whirlpool KDTF924PPA0 DISHWASHER
1
TUB (NOT SERVICED) WPL ARIA17CA5C5D5FD35750732AA32B1D13FC1 Contact Us For Availability
1
FEED TUBE ASSEMBLY WPL W11668592 Contact Us For Availability
1
DISHRACK, UPPER WPL W11534668 Contact Us For Availability
1
DISHRACK, LOWER WPL W11626547 Contact Us For Availability
1
RACK, THIRD LEVEL WPL W11543809 Contact Us For Availability
1A
ENERGY GUIDE WPL W11645481 Contact Us For Availability
1B
TECH SHEET WPL W11663923 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) WPL W11631592 Contact Us For Availability
2
WIRING HARNESS, INNER DOOR WPL W11608932 Contact Us For Availability
2
PAD, TUB SUPPORT WPL W11671752 Contact Us For Availability
2
MOTOR, PUMP WPL W11630725 Contact Us For Availability
2
RETAINER, DOCKING (2ND LEVEL) WPL W11522213 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY WPL W11543650 Contact Us For Availability
2
SILVERWARE TRAY WPL W11545952 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) WPL W11631591 Contact Us For Availability
3
CROSS BRACE, DOOR WPL W11126789 Contact Us For Availability
3
SCREW WPL W10941960 Contact Us For Availability
3
SUMP (INCLUDES SEAL) WPL W11560668 Contact Us For Availability
3
SPRAYARM, THIRD LEVEL WPL W11522201 Contact Us For Availability
3
SILVERWARE BASKET ASSEMBLY WPL W11629677 Contact Us For Availability
3
MOUNT, DISHRACK (LEFT) WPL W11525717 Contact Us For Availability
3A
MOUNT, DISHRACK (RIGHT) WPL W11525715 Contact Us For Availability
4
BUSHING, DOOR WPL W10885778 Contact Us For Availability
4
BUSHING, SHOULDERED WPL W10944891 Contact Us For Availability
4
NUT, AIR BREAK WPL W11236521 Contact Us For Availability
4
DRAIN VENT ASSEMBLY WPL W11559823 Contact Us For Availability
4
UPPER SPRAYARM ASSEMBLY WPL W11680190 Contact Us For Availability
4
SCREW WPL W11337336 Contact Us For Availability
4
UTENSIL BASKET (REAR) WPL W11634637 Contact Us For Availability
5
PANEL, MAIN ACCESS (BLACK) WPL W11625157 Contact Us For Availability
5
STRIKE, LATCH WPL W11314779 Contact Us For Availability
5
DIFFUSER, INLET WPL W11560657 Contact Us For Availability
5
COVER, DIVERTER WPL W11602499 Contact Us For Availability
5
ADJUSTMENT ASSEMBLY (LEFT) WPL W11561903 Contact Us For Availability
5
HANDLE, REAR WPL W11590235 Contact Us For Availability
5
UTENSIL BASKET (FRONT) WPL W11634635 Contact Us For Availability
5A
ADJUSTMENT ASSEMBLY (RIGHT) WPL W11561902 Contact Us For Availability
6
PANEL, OUTER DOOR (INCLUDES 4) WPL W11524403 Contact Us For Availability
6
INNER DOOR ASSEMBLY (INCLUDES SOAP DISPENSER) WPL W11715716 Contact Us For Availability
6
CHECK VALVE, DRAIN WPL W11560834 Contact Us For Availability
6
RETAINER, DOCKING (3RD LEVEL) WPL W11221214 Contact Us For Availability
6
SUPPORT, TINE ROW WPL W11356045 Contact Us For Availability
6
HANDLE, FRONT WPL W11590245 Contact Us For Availability
7
SCREW WPL W11381263 Contact Us For Availability
7
WASH ARM ASSEMBLY WPL W11528063 Contact Us For Availability
7
CLIP, CUP SHELF WPL W11592682 Contact Us For Availability
7
HANDLE, FRONT WPL W11590247 Contact Us For Availability
7
WASHARM ASSEMBLY WPL W11528590 Contact Us For Availability
8
PANEL, 2" ADJUSTABLE (BLACK) WPL W11625159 Contact Us For Availability
8
HOSE, PUMP INLET WPL W11008962 Contact Us For Availability
8
CUP SHELF WPL W11592896 Contact Us For Availability
9
INSULATION, INNER DOOR WPL W11564603 Contact Us For Availability
9
HOLDER, DAMPER WPL W11668893 Contact Us For Availability
9
TRACK STOP, REAR WPL W11315116 Contact Us For Availability
9
TINE ROW, FOLD DOWN WPL W11538488 Contact Us For Availability
9
SLIDING TINE, BOWL WPL W11543710 Contact Us For Availability
10
SCREW WPL W10942031 Contact Us For Availability
10
COVER, DOOR OPENING WPL W11317043 Contact Us For Availability
10
TRACK, DISHRACK WPL W10884045 Contact Us For Availability
10
CLIP, TINE ROW WPL W11315981 Contact Us For Availability
10
CLIP, SLIDING TINE WPL W11523448 Contact Us For Availability
11
SCREW WPL W10941985 Contact Us For Availability
11
TINE, FOLDDOWN (REAR) WPL W11389056 Contact Us For Availability
11A
TINE, FOLDDOWN (FRONT) WPL W11385226 Contact Us For Availability
12
PANEL, 4" ADJUSTABLE (BLACK) WPL W11625156 Contact Us For Availability
12
COVER, TUB CORNER (LEFT) WPL W11316692 Contact Us For Availability
12
DISC, DIVERTER WPL W11175586 Contact Us For Availability
12
TINE ROW, FRONT (LEFT) WPL W11598462 Contact Us For Availability
12
CLIP, POSITIONING WPL W11545635 Contact Us For Availability
12A
COVER, TUB CORNER (RIGHT) WPL W11316688 Contact Us For Availability
12A
TINE ROW, FRONT (RIGHT) WPL W11598463 Contact Us For Availability
13
SCREW WPL W10942053 Contact Us For Availability
13
FLOAT SWITCH WPL W11602936 Contact Us For Availability
13
HOUSING, CONNECTOR WPL W10942827 Contact Us For Availability
13
TINE ROW, BACK (LEFT) WPL W11534672 Contact Us For Availability
13
CLIP, RETAINER WPL W11545636 Contact Us For Availability
13A
TINE ROW, BACK (RIGHT) WPL W11534677 Contact Us For Availability
14
INSULATION, DOOR WPL W11564608 Contact Us For Availability
14
PLUG, TUB WPL W11321022 Contact Us For Availability
15
INSULATION, BOTTOM WPL W11564610 Contact Us For Availability
15
AIR BREAK WPL W11568183 Contact Us For Availability
16
DISPLAY, FLOOR WPL W11540965 Contact Us For Availability
16
LEG, LEVELING (FRONT) WPL W11325130 Contact Us For Availability
17
GASKET, BOTTOM DOOR WPL W11125570 Contact Us For Availability
17
COVER, TOP WPL W11317036 Contact Us For Availability
17
CLIP, HOSE WPL W11626817 Contact Us For Availability
18
CLAMP, HOSE WPL W11015323 Contact Us For Availability
19
SIDE PANEL (LEFT) WPL W11355600 Contact Us For Availability
19
GRATE WPL W11445183 Contact Us For Availability
19A
SIDE PANEL (RIGHT) WPL W11355598 Contact Us For Availability
20
SCREW WPL W10986499 Contact Us For Availability
21
ASSEMBLY, BASE WPL W11690567 Contact Us For Availability
21
FILTER WPL W11559846 Contact Us For Availability
22
SHIELD, TUB SOUND WPL W11564606 Contact Us For Availability
23
ASSEMBLY, JUNCTION BOX WPL W11643567 Contact Us For Availability
24
MISCELLANEOUS PARTS BAG WPL W11696042 Contact Us For Availability
25
SPACER, SIDE PANEL WPL W11525808 Contact Us For Availability
26
SCREW WPL W11350847 Contact Us For Availability
27
SCREW WPL W10941972 Contact Us For Availability
28
TUB MOUNT, UPPER RACK WPL W11345595 Contact Us For Availability
29
BUTTON, TUB WPL W11656505 Contact Us For Availability
30
NUT, SOFTNER WPL W11227921 Contact Us For Availability
31
CAP, SALT WPL W11227934 Contact Us For Availability
32
SOFTENER, WATER WPL W11546882 Contact Us For Availability
33
SEAL, SOFTENER WPL W11224085 Contact Us For Availability
34
FUNNEL, SALT WPL W11509486 Contact Us For Availability
35
PLATE, IN/OUT HOSES WPL W11686061 Contact Us For Availability
36
JUMPER, RFI TO CONTROL WPL W11545951 Contact Us For Availability
37
SPRING, GROUNDING WPL W10943118 Contact Us For Availability
38
POWER CORD ASSEMBLY WPL W11578108 Contact Us For Availability
39
FILTER, RFI WPL W11418782 Contact Us For Availability
40
JUMPER HARNESS, SERVICE PORT WPL W11646878 Contact Us For Availability
42
WIRING HARNESS, MAIN WPL W11609316 Contact Us For Availability
43
CHANNEL, OVERFLOW (LEFT) WPL W11684708 Contact Us For Availability
43A
CHANNEL, OVERFLOW (RIGHT) WPL W11684709 Contact Us For Availability
44
FOAM, CROSSBAR WPL W11676843 Contact Us For Availability
45
KIT, SIDE COVER INSTALLATION WPL W11673775 Contact Us For Availability
46
INSULATION, BACK WPL W11600452 Contact Us For Availability
47
CROSSBAR, UPPER REAR WPL W11664579 Contact Us For Availability
48
TUB MOUNT, THIRD LEVEL RACK (LEFT) WPL W11315145 Contact Us For Availability
48A
TUB MOUNT, THIRD LEVEL RACK (RIGHT) WPL W11315146 Contact Us For Availability
49
NUT, TUB WPL W11630670 Contact Us For Availability
50
STRIP, ANTI-CONDENSATION WPL W11676404 Contact Us For Availability
51
INSULATION, FLO WPL W11626034 Contact Us For Availability
× ![]()
