Model Whirlpool KDRS505XSS01 30`` DUAL FUEL FREESTANDING SELF CLEAN RANGE CONVE – Common Parts & Diagrams

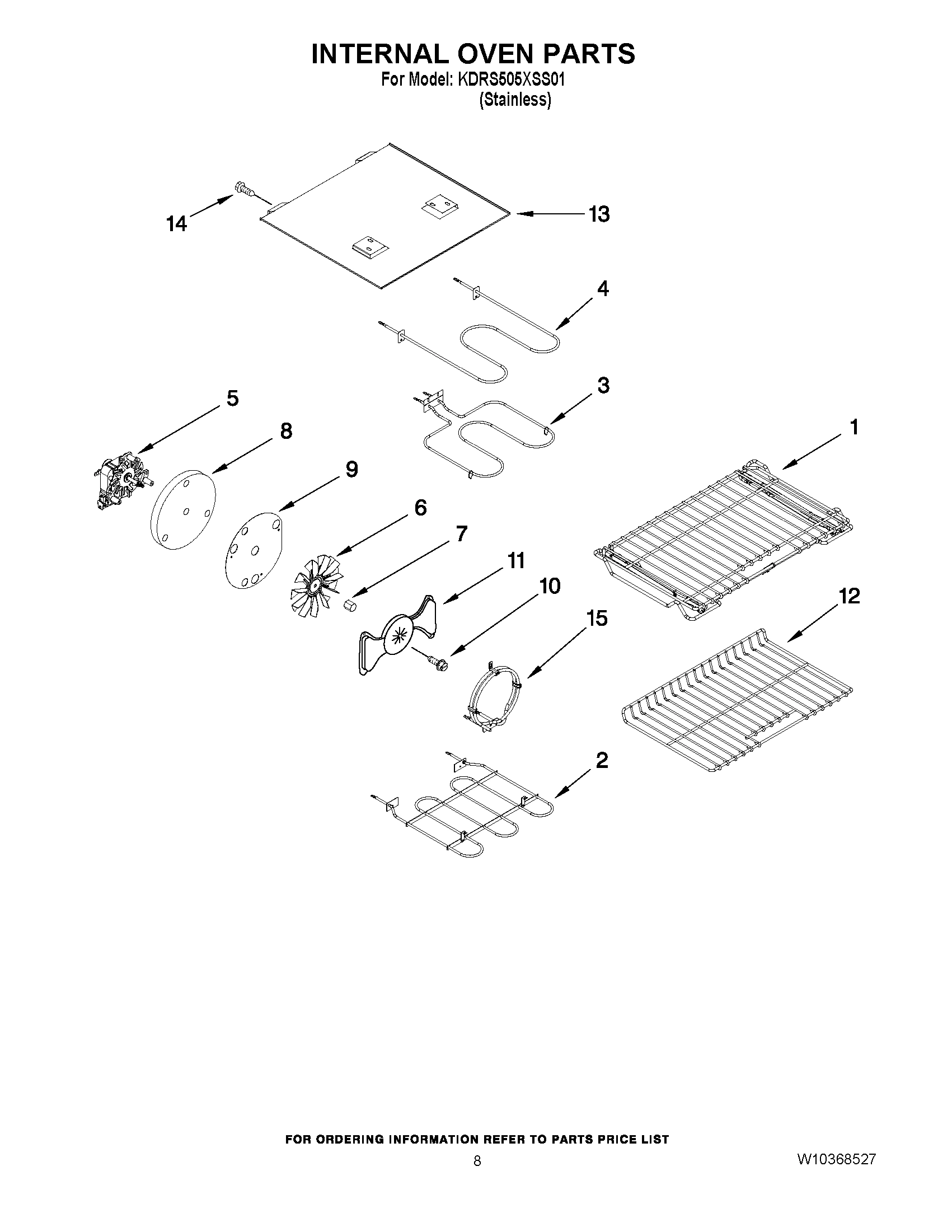

07 - INTERNAL OVEN PARTS

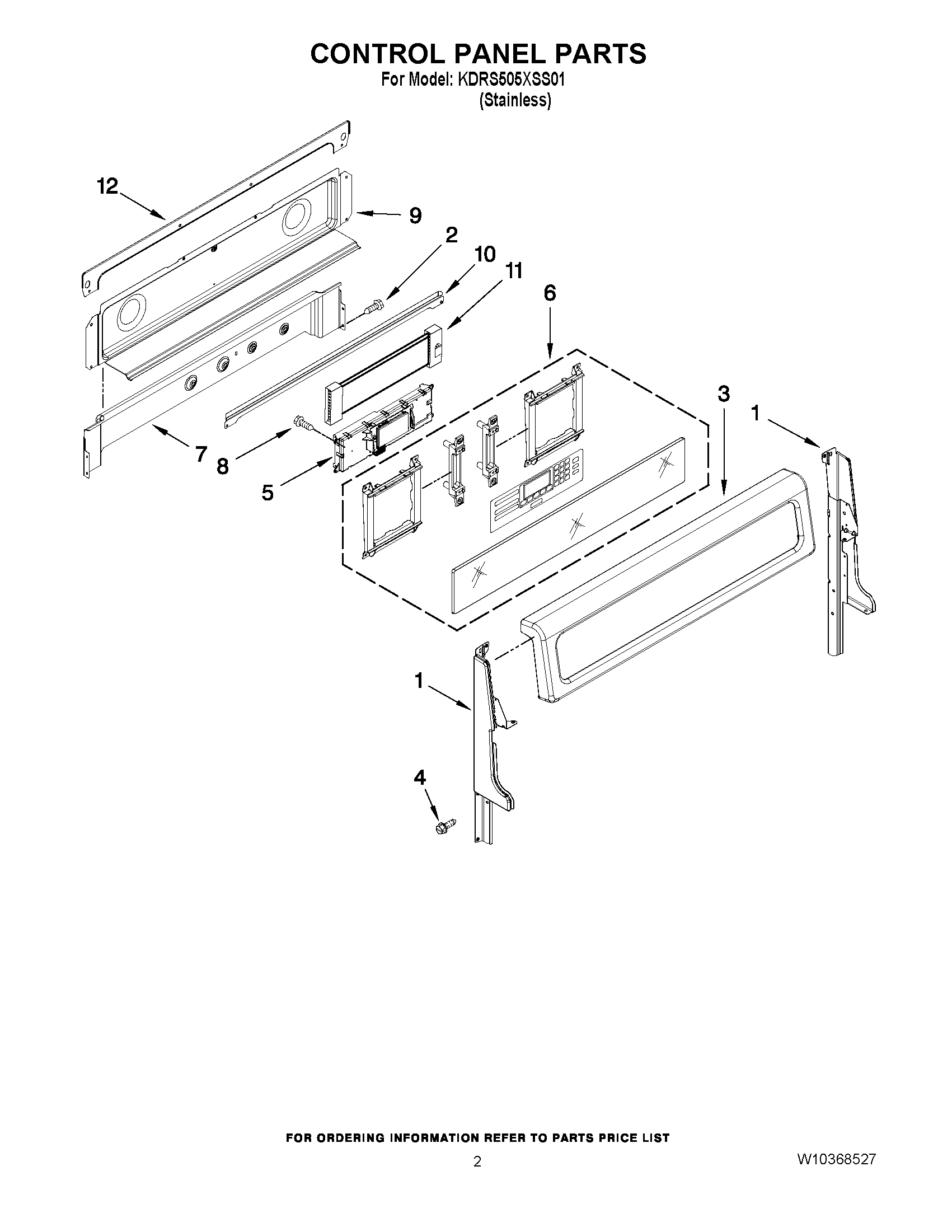

02 - CONTROL PANEL PARTS

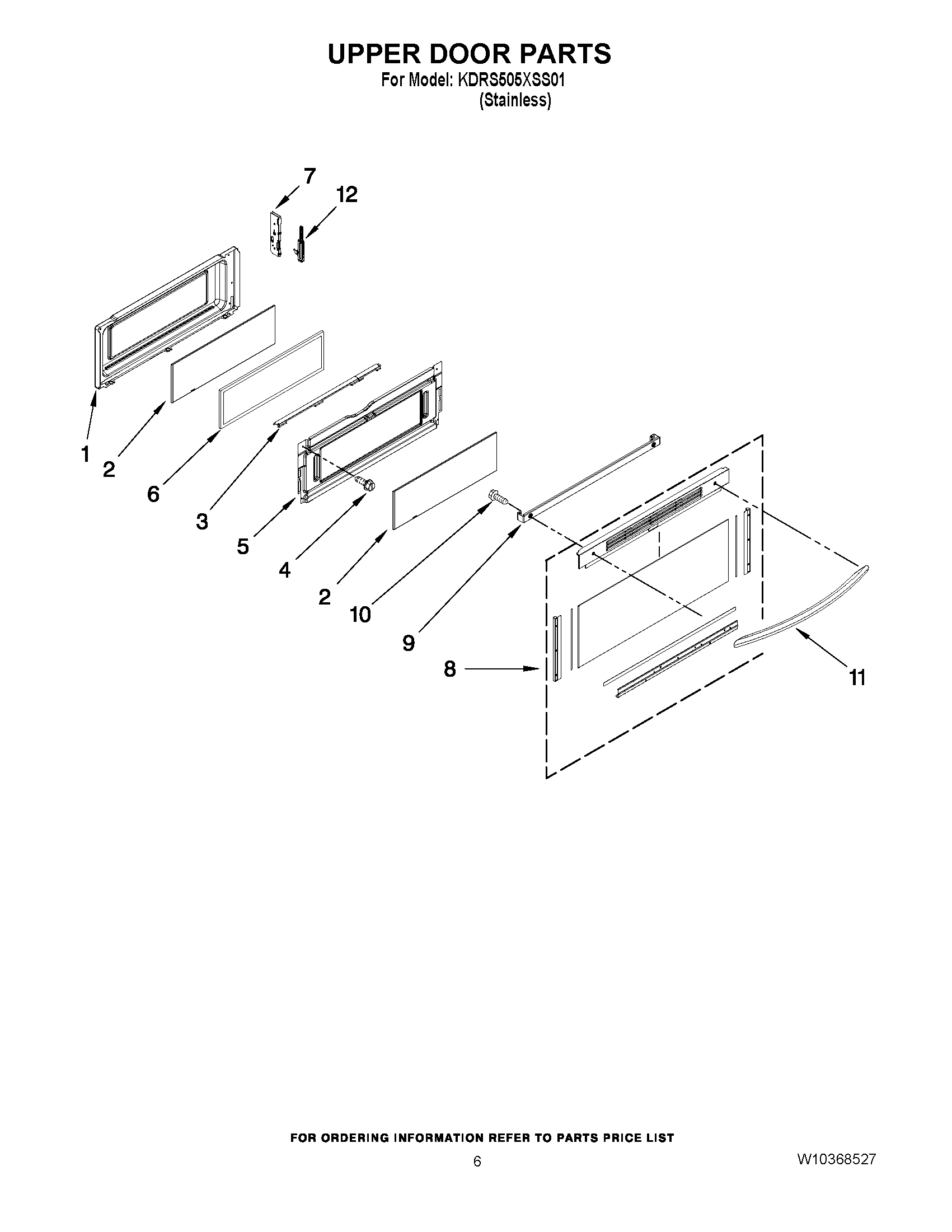

05 - UPPER DOOR PARTS

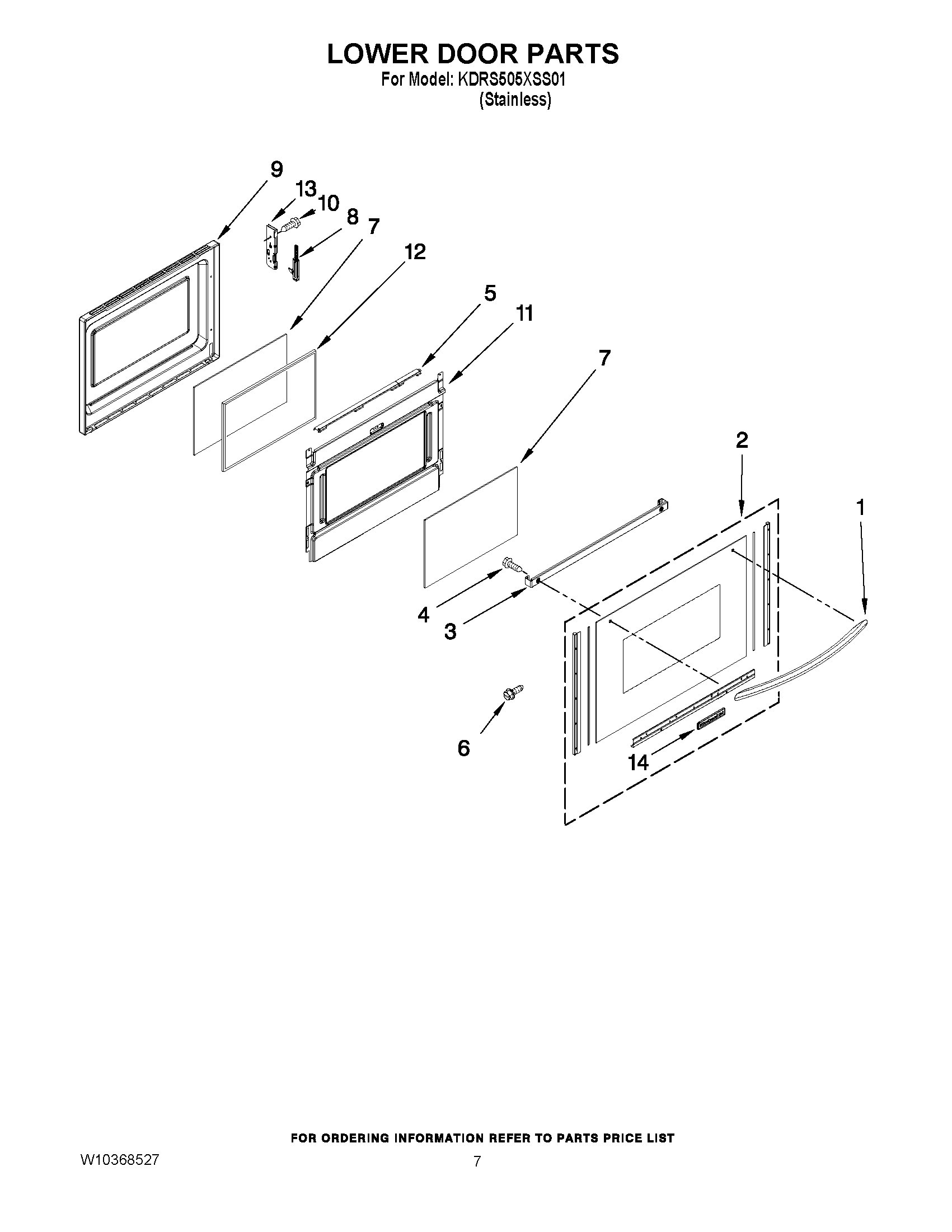

06 - LOWER DOOR PARTS

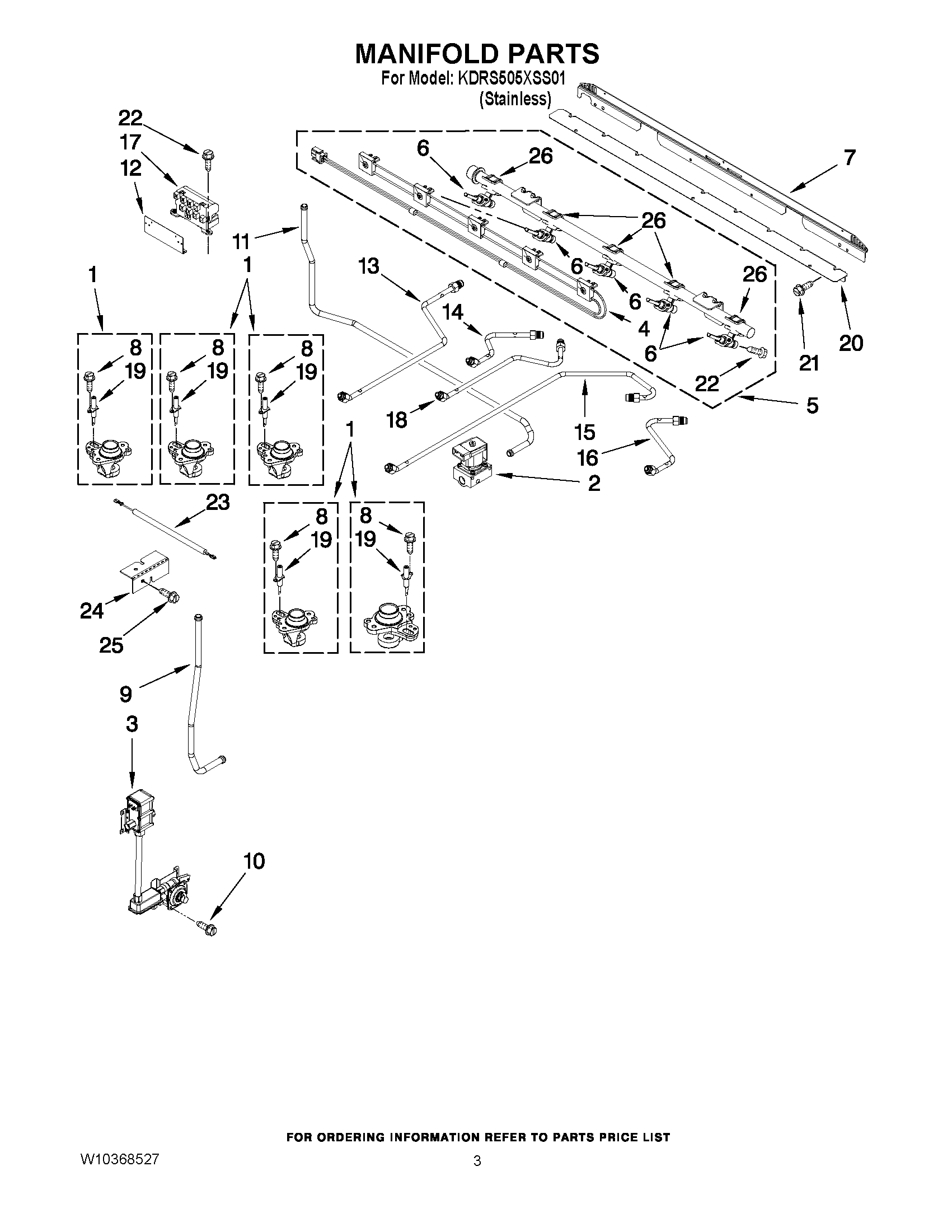

03 - MANIFOLD PARTS

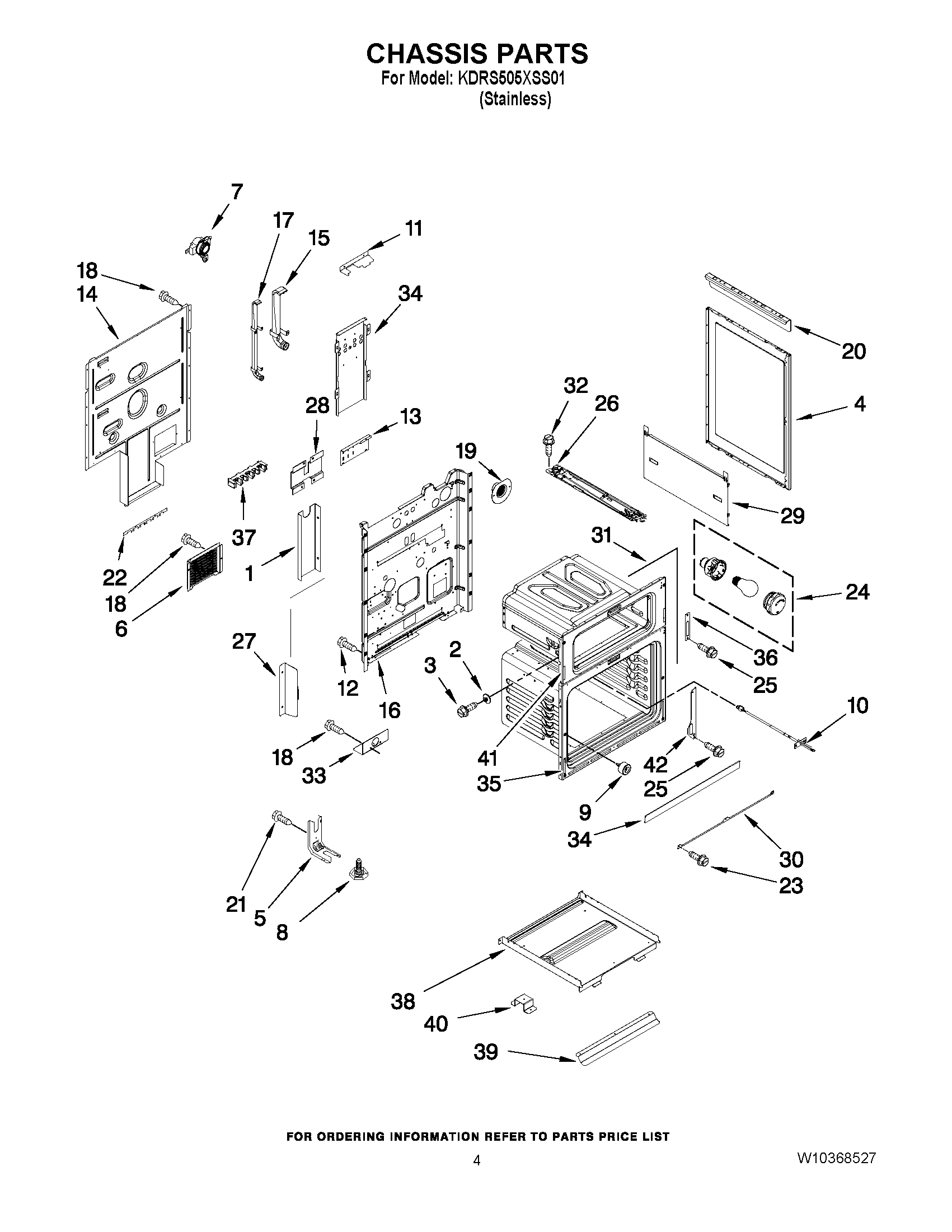

04 - CHASSIS PARTS

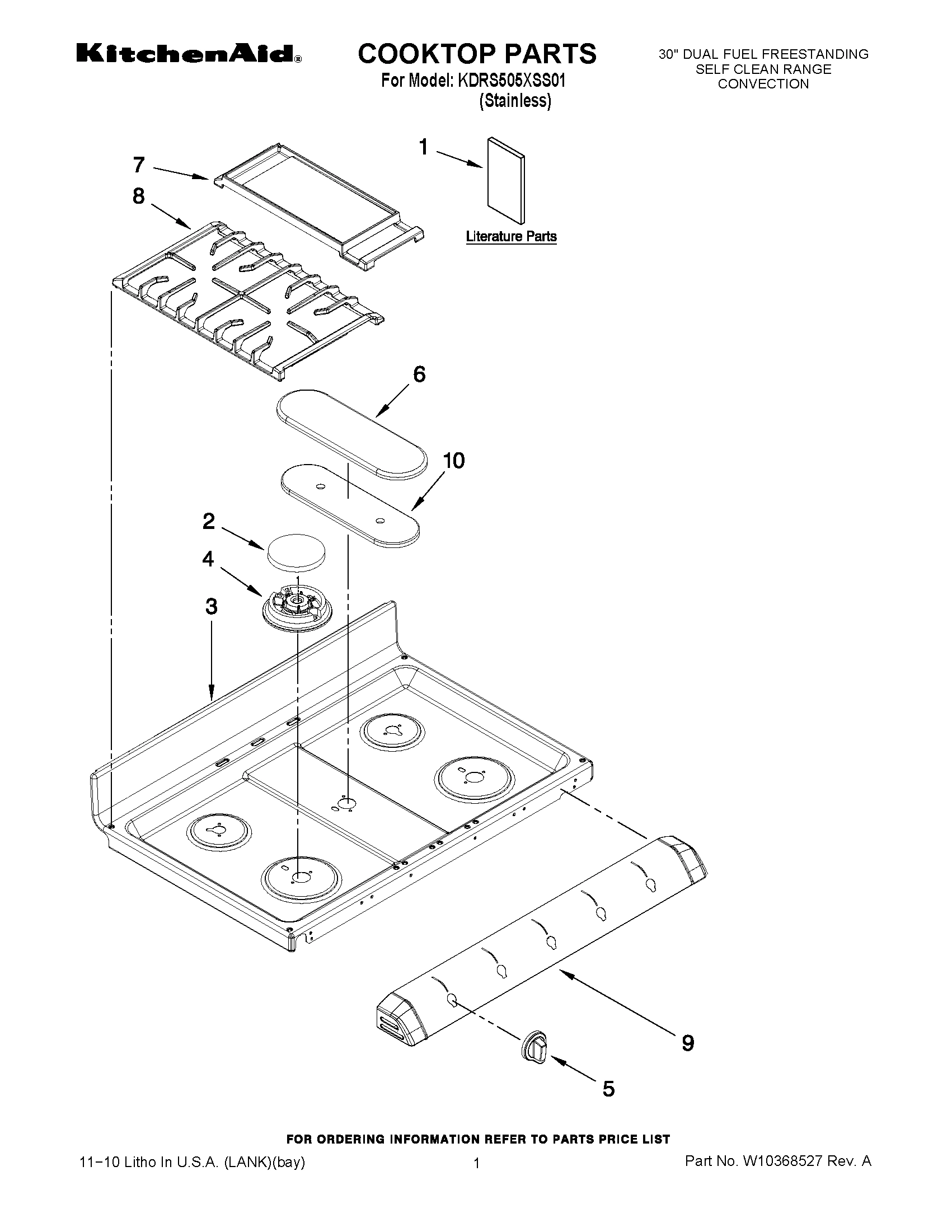

01 - COOKTOP PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool KDRS505XSS01 30`` DUAL FUEL FREESTANDING SELF CLEAN RANGE CONVE
1
SUPPORT, BACKGUARD (BLACK, LEFT) WPL W10319109 Contact Us For Availability
1
SUPPORT, BACKGUARD (BLACK, RIGHT) WPL W10319111 Contact Us For Availability
2
VALVE, SHUT OFF WPL 9758382 Contact Us For Availability
4
ELEMENT, BROIL (UPPER) WPL W10317476 Contact Us For Availability
6
COVER, ACCESS (TERMINAL BLOCK) WPL W10312612 Contact Us For Availability
6
ASSY., MEMBRANE (INCL. BRACKET) WPL W10295113 Contact Us For Availability
7
GRIDDLE WPL W10311218 Contact Us For Availability
7
SHIELD, VENT WPL W10278697 Contact Us For Availability
7
RECEIVER WPL W10277006 Contact Us For Availability
8
INSULATION, CONVECTION MOTOR WPL W10274268 Contact Us For Availability
9
PANEL, MANIFOLD WPL W10284717 Contact Us For Availability
9
PLATE, INSUL. RETAINER WPL W10339476 Contact Us For Availability
9
TUBING (SUPPLY REGULATOR TO SHUTOFF) WPL W10295050 Contact Us For Availability
9
SCREW, BUMPER WPL W10105790 Contact Us For Availability
9
COVER, BACKGUARD WIRE WPL W10296773 Contact Us For Availability
11
TUBING (SUPPLY SHUTOFF TO MANIFOLD) WPL W10295055 Contact Us For Availability
11
Cover, Fan WPL 8303962BU Contact Us For Availability
12
HINGE, DOOR (LEFT) WPL W10335430 Contact Us For Availability
12
HINGE, DOOR (RIGHT) WPL W10335429 Contact Us For Availability
12
INSULATION, DOOR WPL W10321285 Contact Us For Availability
13
SHIELD, BROIL WPL W10319762 Contact Us For Availability
13
SHIELD, CORD WPL W10332449 Contact Us For Availability
13
TUBING, LR WPL W10323464 Contact Us For Availability
14
TUBING, LF WPL W10323463 Contact Us For Availability
15
ELEMENT, CONVECT. (240VAC) WPL W10271639 Contact Us For Availability
15
TUBE, VENT (UPPER) WPL W10337391 Contact Us For Availability
15
TUBING, RR WPL W10323467 Contact Us For Availability
16
TUBING, RF WPL W10323466 Contact Us For Availability
18
TUBING, CENTER WPL W10323465 Contact Us For Availability
19
ADAPTER (VENT TUBE) WPL W10322408 Contact Us For Availability
19
IGNITOR (FISH ELECTRODE) WPL W10324015 Contact Us For Availability
20
BRACKET, END POST SUPPORT WPL W10319087 Contact Us For Availability
25
SCREW (EXTENSION HOLDER) WPL W10217535 Contact Us For Availability
25
Screw WPL 4449040 Contact Us For Availability
26
CONNECTION, SADDLE WPL 98017516 Contact Us For Availability
31
GASKET, OVEN DOOR (UPPER) WPL W10337392 Contact Us For Availability
36
COVER, HINGE WPL W10333442 Contact Us For Availability
39
BRACKET, RETAINING WPL W10253470 Contact Us For Availability
40
CLIP, RETAINING WPL W10260545 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
NI
KIT, BROILER PAN WPL W10123240 Contact Us For Availability
NI
CLEANER, ALL-PURPOSE WPL 31682 Contact Us For Availability
NI
STONE, BRICK PIZZA WPL 4378577 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI
HARNESS, SENSOR WPL W10225701 Contact Us For Availability
NI
HARNESS, MAIN WPL W10292523 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
