Model Whirlpool KDDT207BWH6 DUAL FUEL SLIDE-IN RANGE – Common Parts & Diagrams
05 - INTERNAL OVEN
06 - CONTROL PANEL

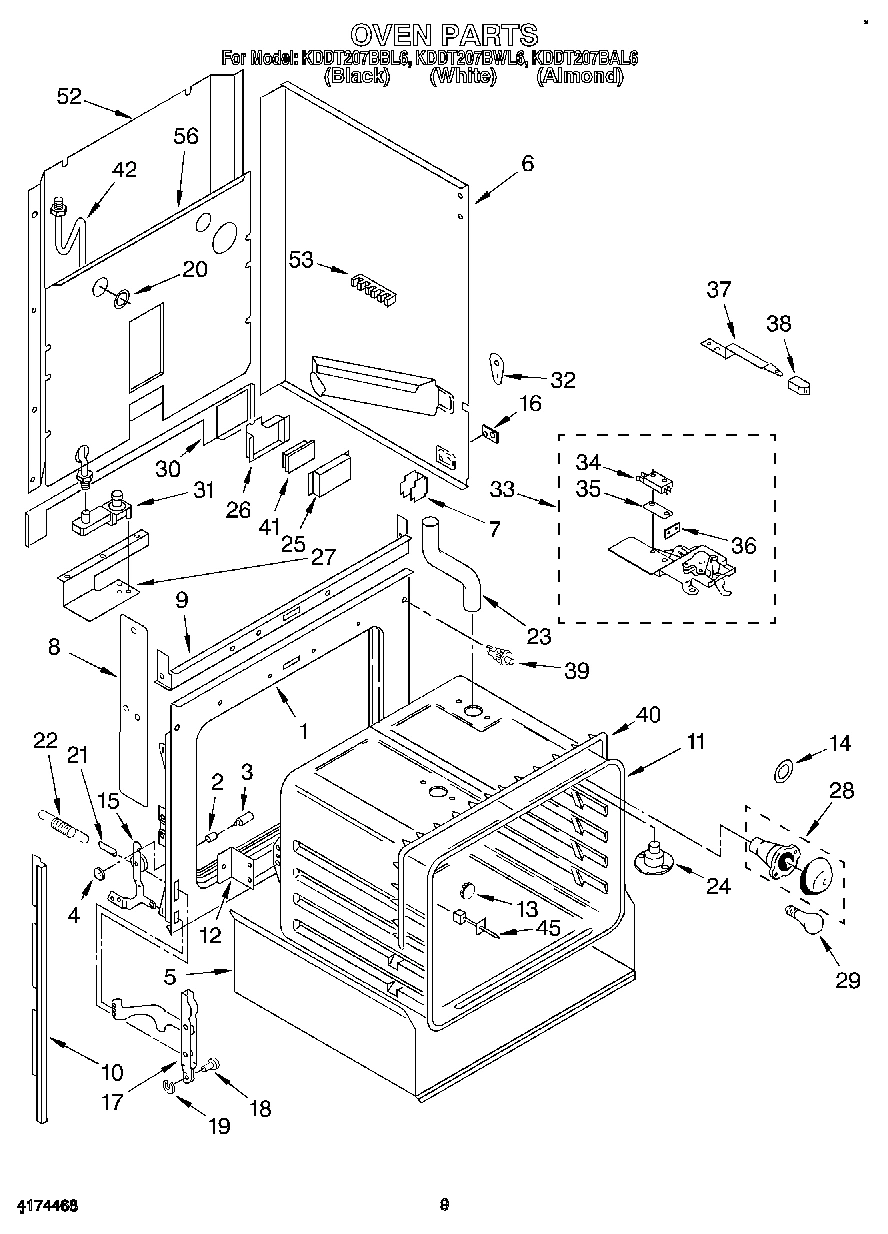

07 - OVEN, LITERATURE

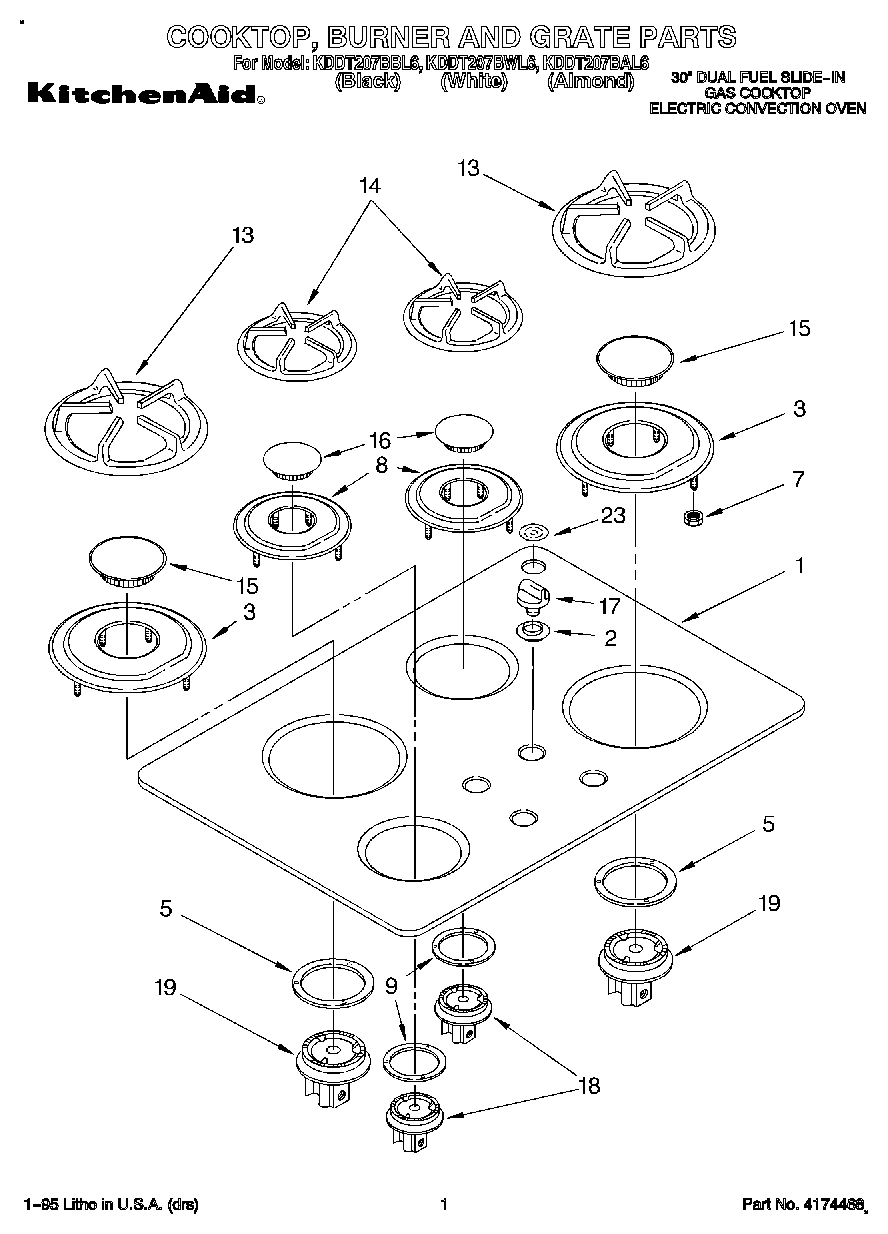

01 - COOKTOP, BURNER AND GRATE

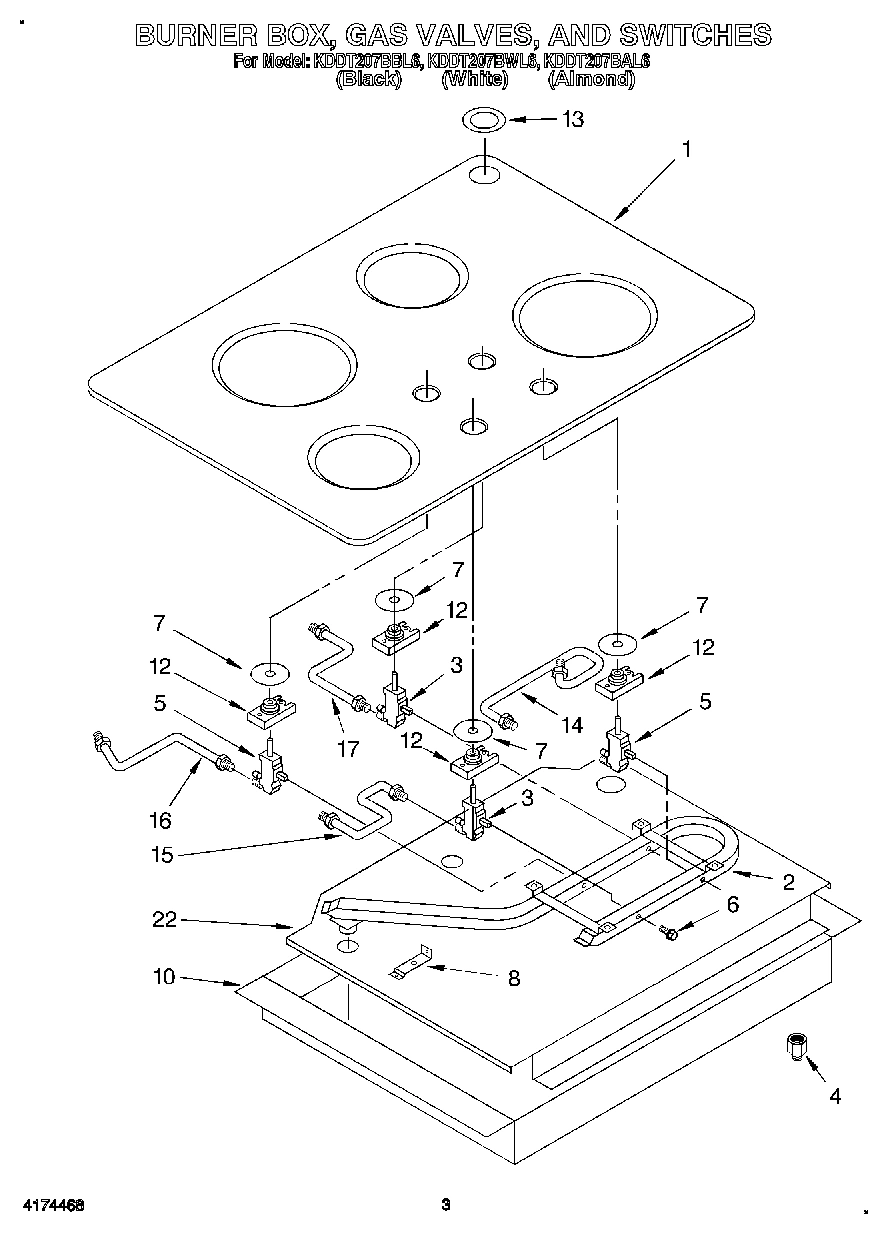

03 - BURNER BOX, GAS VALVES, AND SWITCHES

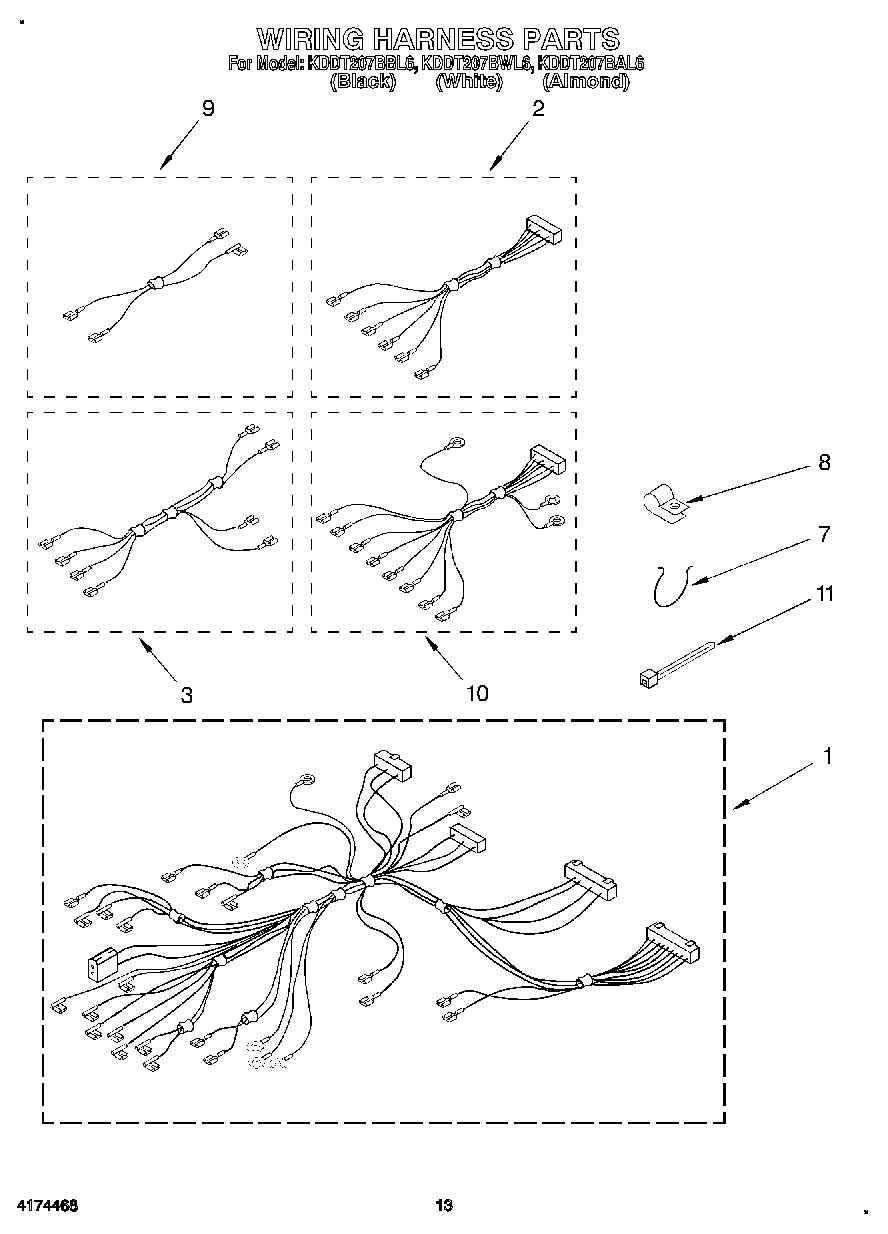

10 - WIRING HARNESS

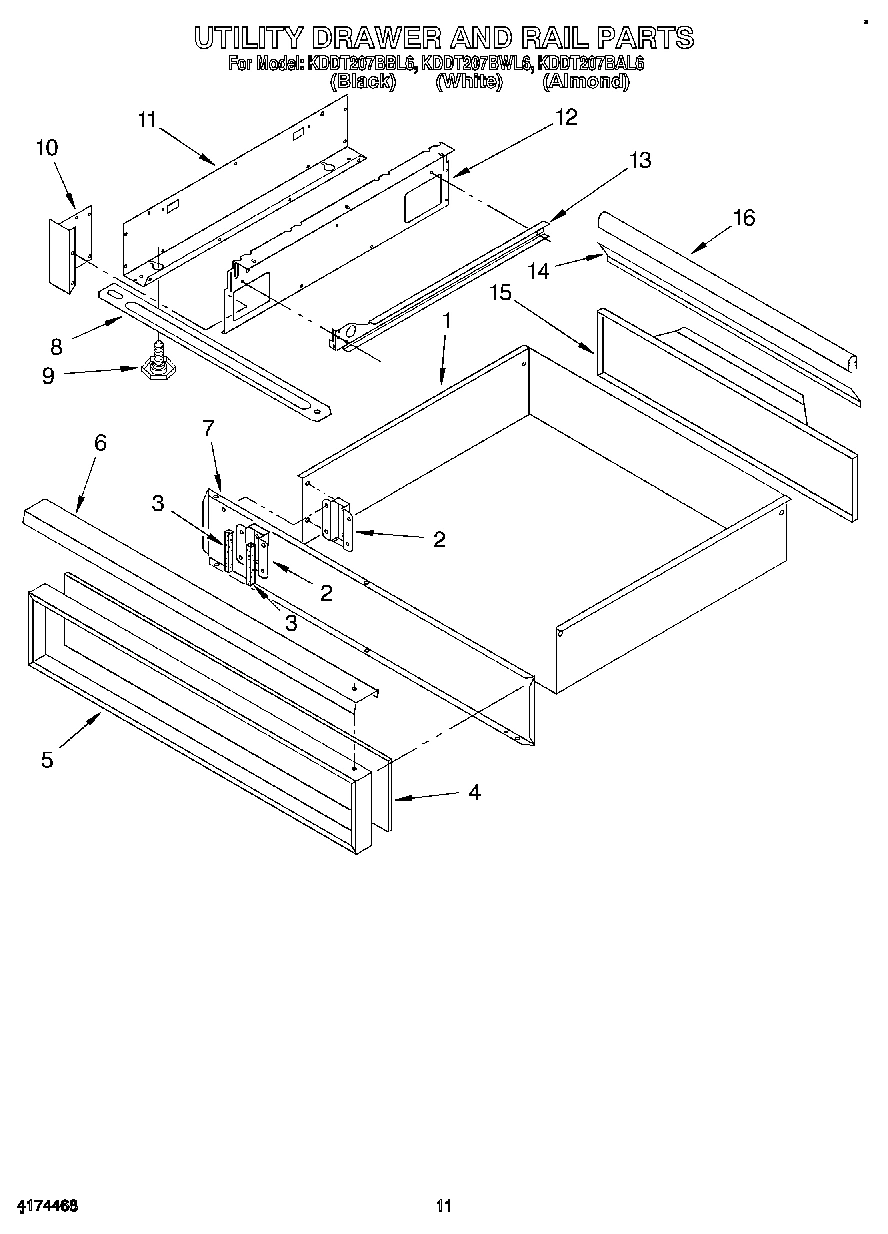

08 - UTILITY DRAWER AND RAIL

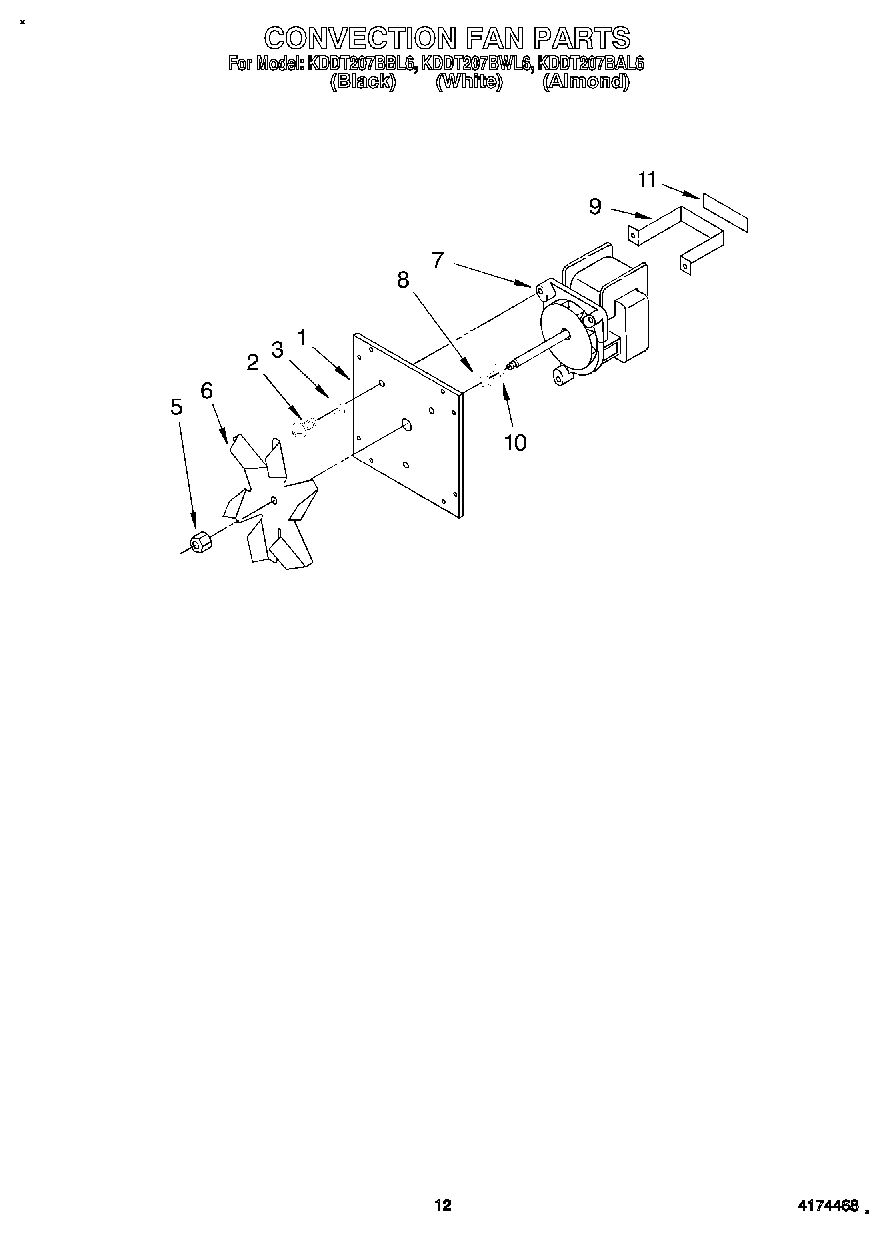

09 - CONVECTION FAN

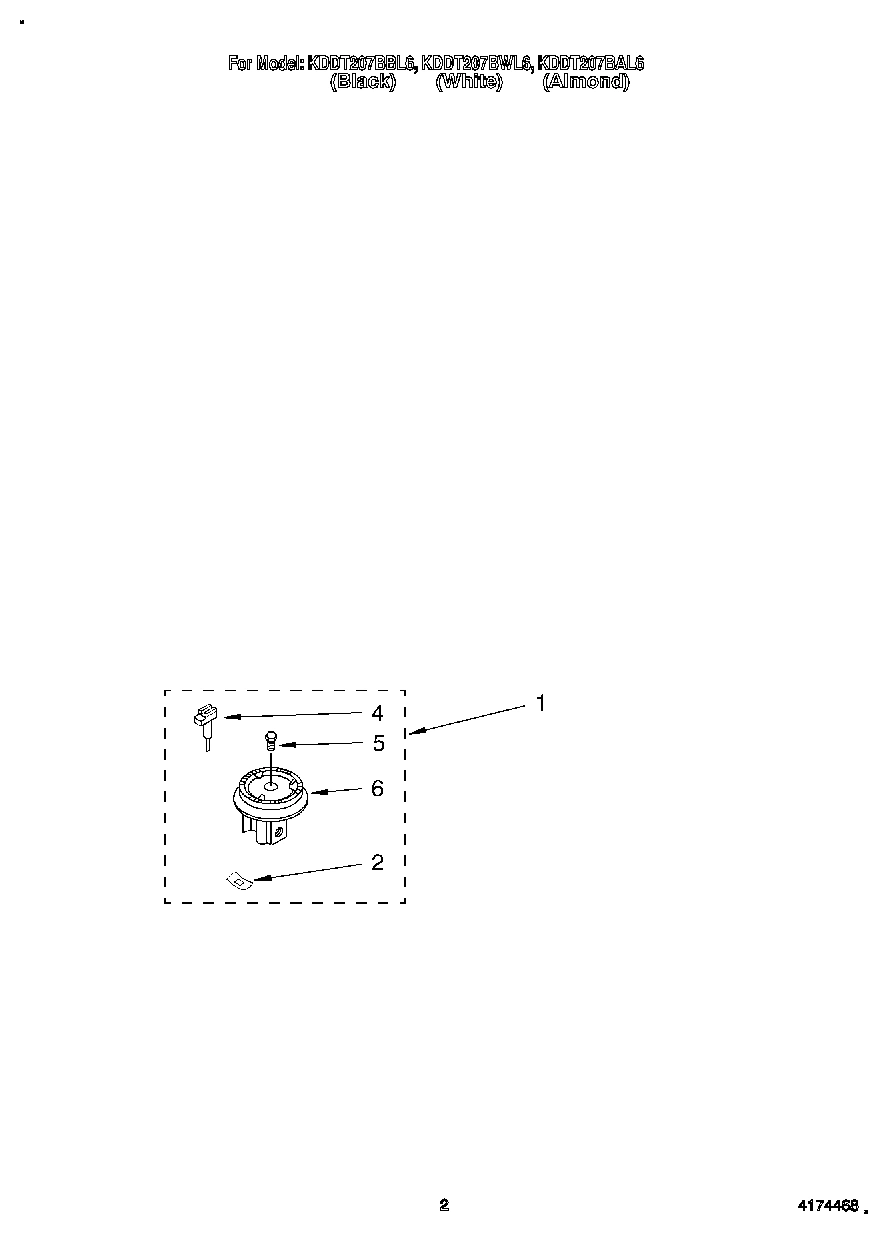

02 - SEALED GAS ASSEMBLY

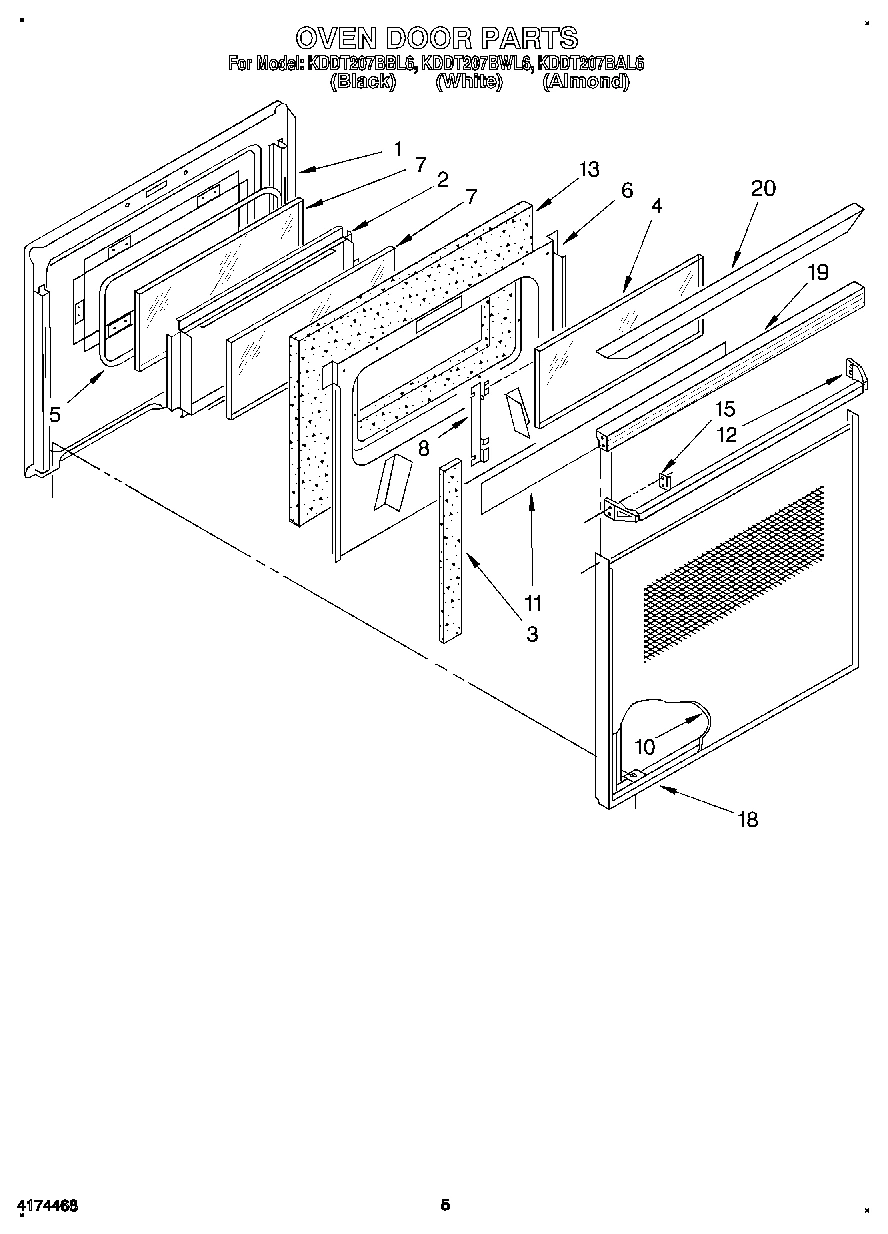

04 - OVEN DOOR
Common parts from model Whirlpool KDDT207BWH6 DUAL FUEL SLIDE-IN RANGE
WPL LIT3150693 WPL LIT3150693 Contact Us For Availability
WPL LIT3183987 WPL LIT3183987 Contact Us For Availability
WPL LIT3186508 WPL LIT3186508 Contact Us For Availability
WPL LIT3187001 WPL LIT3187001 Contact Us For Availability
WPL LIT3187214 WPL LIT3187214 Contact Us For Availability
WPL LIT3188265 WPL LIT3188265 Contact Us For Availability
1
End Cap (Almond, RH) WPL 3150733 Contact Us For Availability
1
Frame, Front WPL 3176719 Contact Us For Availability
1
Cooktop, Glass (Black) WPL 3185972 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 3185973 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3185974 Contact Us For Availability
1
Backer, Plate WPL 3187710 Contact Us For Availability
1
Harness, Wire (Main) WPL 3187283 Contact Us For Availability
1
Drawer, Utility WPL 3183571 Contact Us For Availability
1
Plate, Mounting (Fan Motor) WPL 3182045 Contact Us For Availability
1
Sealed Gas Burner Assembly (Large Burner) WPL 814244 Contact Us For Availability
1
Sealed Gas Burner Assembly (Small Burner) WPL 814245 Contact Us For Availability
1
Liner, Door WPL 3148165 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Pipe, Manifold WPL 3187442 Contact Us For Availability
2
Harness, Wire (Cooktop Switch) WPL 3184927 Contact Us For Availability
2
Bracket, Mounting WPL 3185163 Contact Us For Availability
2
Screw, Fan Mounting WPL 4173193 Contact Us For Availability
2
Nut WPL 3185805 Contact Us For Availability
2
Frame, Window WPL 3148234 Contact Us For Availability
3
Rail, Top (Screw) WPL 254217 Contact Us For Availability
3
Rail, Top (Black) WPL 3183329 Contact Us For Availability
3
Rail, Top (Bright Aluminum) WPL 3183341 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black) WPL 3185818 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond (Includes Illu WPL 3185819 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 3185820 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3187570 Contact Us For Availability
3
Harness, Wire (Ingnitor) WPL 3187415 Contact Us For Availability
3
Seal, Foam (4) WPL 3147603 Contact Us For Availability
3
Lockwasher (3) WPL 4173194 Contact Us For Availability
3
screw (6) WPL 3148443 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
4
Trim, Center (Black) WPL 3183366 Contact Us For Availability
4
Trim, Center (Bright Aluminum) WPL 3183367 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Fitting, Manifold Pipe WPL 3187000 Contact Us For Availability
4
Glass, Drawer Front (Black) WPL 3185226 Contact Us For Availability
4
Glass, Drawer Front (Almond) WPL 3185227 Contact Us For Availability
4
Glass, Drawer Front (White) WPL 3185228 Contact Us For Availability
4
Screw WPL 3185647 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
End Trim, Vent Door (Brite Aluminum, LH) WPL 3148471 Contact Us For Availability
5
End Trim, Vent Door (Brite Aluminum, RH) WPL 3148472 Contact Us For Availability
5
End Trim, Vent Door (Black, LH) WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door (Black, RH) WPL 3148698 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Gasket, Burner (Large) WPL 3181659 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3187569 Contact Us For Availability
5
Fastener (2) WPL 310423 Contact Us For Availability
5
Frame, Outer WPL 3185131 Contact Us For Availability
5
Nut (Left Hand) WPL 4173237 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability
6
Vent Door (Black) WPL 314190 Contact Us For Availability
6
Vent Door (Brushed Chrome) WPL 3149676 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Burner, Sealed (Small Burner (Orifice Include WPL 3185821 Contact Us For Availability
6
Burner, Sealed (Large Burner (Orifice Include WPL 3185822 Contact Us For Availability
6
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
6
Handle, Drawer (Screw, Black (3)) WPL 309133 Contact Us For Availability
6
Handle, Drawer (White) WPL 3185206 Contact Us For Availability
6
Handle, Drawer (Black) WPL 3185207 Contact Us For Availability
6
Handle, Drawer (Almond) WPL 3185208 Contact Us For Availability
6
Fan WPL 4173236 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw WPL 4173601 Contact Us For Availability
7
Trim, Bottom WPL 314184 Contact Us For Availability
7
Screw WPL 342043 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
7
Panel, Back WPL 3186695 Contact Us For Availability
7
Motor, Fan WPL 3183220 Contact Us For Availability
8
Bracket, Control Panel (Left Side) WPL 3184731 Contact Us For Availability
8
Bracket, Control Panel (Right Side) WPL 3184732 Contact Us For Availability
8
Insulation Baffle (2) WPL 311256 Contact Us For Availability
8
Screw, No.6-20x1 1/4 (2) WPL 3148442 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 3185815 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond (Includes Illu WPL 3185816 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3185817 Contact Us For Availability
8
Bracket, Manifold WPL 3188531 Contact Us For Availability
8
Washer WPL 4159603 Contact Us For Availability
8
Bracket WPL 3183441 Contact Us For Availability
8
E-Ring WPL 4173238 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188720 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
9
Harness, Wire (Gas Valve) WPL 3187282 Contact Us For Availability
9
Bracket, Guard WPL 3181750 Contact Us For Availability
10
Bracket, Control Panel (2) WPL 3183316 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Box Burner WPL 3187708 Contact Us For Availability
10
Harness, Wire (Spark Module) WPL 3184857 Contact Us For Availability
10
Cap, Front (Right Hand) WPL 3185141 Contact Us For Availability
10
Cap, Front (Left Hand) WPL 3185142 Contact Us For Availability
10
Flat Washer WPL 4173230 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188050 Contact Us For Availability
10
Glass, Panel (Almond Model) WPL 3188051 Contact Us For Availability
10
Glass, Panel (Black Model) WPL 3188052 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182031 Contact Us For Availability
11
Wire Tie WPL 3149157 Contact Us For Availability
11
Support, Outer Drawer WPL 3185144 Contact Us For Availability
11
Gasket, Foam WPL 3179790 Contact Us For Availability
11
Foil WPL 3188706 Contact Us For Availability
12
Microcomputer WPL 3187099 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Support, Inner Drawer WPL 3185147 Contact Us For Availability
12
Handle, Oven Door (Black) WPL 3186524 Contact Us For Availability
12
Handle, Oven Door (White) WPL 3186525 Contact Us For Availability
12
Handle, Oven Door (Almond) WPL 3186526 Contact Us For Availability
13
Control Panel (Screw) WPL 98520 Contact Us For Availability
13
Control Panel (Black) WPL 3186988 Contact Us For Availability
13
Control Panel (White) WPL 3186989 Contact Us For Availability
13
Control Panel (Almond) WPL 3186990 Contact Us For Availability
13
Plug Button WPL 3185086 Contact Us For Availability
13
Grate, Large (RF & LR) (Black) WPL 3186564 Contact Us For Availability
13
Grate, Large (RF & LR) (White) WPL 3186598 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond) WPL 3186599 Contact Us For Availability
13
Seal, Tube WPL 3187523 Contact Us For Availability
13
Track, Drawer (Left Hand) WPL 3185210 Contact Us For Availability
13
Track, Drawer (Right Hand) WPL 3185211 Contact Us For Availability
13
Insulation WPL 3147951 Contact Us For Availability
14
Meat Probe WPL 3150144 Contact Us For Availability
14
Grate (Small) LF & RR (Black) WPL 3186565 Contact Us For Availability
14
Grate (Small) LF & RR (White) WPL 3186600 Contact Us For Availability
14
Grate (Small) (LF & RR) (Almond) WPL 3186601 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3186689 Contact Us For Availability
14
Baffle, Drip WPL 3184856 Contact Us For Availability
15
Pad, Handle Mtg. WPL 3148282 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Panel, Back WPL 3184735 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3186690 Contact Us For Availability
15
Screw WPL 3185918 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Almond Burner (2)) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3186692 Contact Us For Availability
16
Protector, Edge WPL 3147757 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3186691 Contact Us For Availability
18
Frame WPL 3148235 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Top, Door (Black) WPL 3148223 Contact Us For Availability
19
Door, Top (White or Almond Model) WPL 3149355 Contact Us For Availability
20
Bushing WPL 4159035 Contact Us For Availability
20
Cap, Top (White Or Almond Model) WPL 3181363 Contact Us For Availability
22
Protector, Edge WPL 3147758 Contact Us For Availability
22
Bracket Cooktop WPL 3188530 Contact Us For Availability
22
L.P. Gas Conversion Kit WPL 4175461 Contact Us For Availability
23
Tube, Vent Extension WPL 3184741 Contact Us For Availability
23
Cover, Vent (Black) WPL 3182496 Contact Us For Availability
23
WPL 3182497 WPL 3182497 Contact Us For Availability
23
WPL 3182498 WPL 3182498 Contact Us For Availability
24
Smoke Eliminator WPL 3186684 Contact Us For Availability
25
SPST Thermostat WPL 3149653 Contact Us For Availability
25
Bracket, Spark Module WPL 3184733 Contact Us For Availability
26
Bumper, Rubber (4) WPL 3183328 Contact Us For Availability
26
Cover, Spark Module WPL 3184727 Contact Us For Availability
27
Screw, WPL 254225 Contact Us For Availability
27
Bracket, Regulator WPL 3187289 Contact Us For Availability
31
Brace, Control Bracket WPL 3183317 Contact Us For Availability
31
Pressure Regulator WPL 3187205 Contact Us For Availability
32
Screw (2) WPL 3179117 Contact Us For Availability
32
Coverplate WPL 310662 Contact Us For Availability
33
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
33
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
33
Trim, End Cap (Almond) WPL 3149902 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3187356 Contact Us For Availability
34
Shield, Air WPL 3149142 Contact Us For Availability
34
Safety Switch WPL 3178672 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw No.6 x 3/8 WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Shield, Control WPL 3183992 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw, 8 x 5/16 WPL 3183294 Contact Us For Availability
38
K WPL 3184039 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 3185197 WPL 3185197 Contact Us For Availability
41
WPL 247326 WPL 247326 Contact Us For Availability
42
WPL 3184853 WPL 3184853 Contact Us For Availability
45
WPL 3148440 WPL 3148440 Contact Us For Availability
52
WPL 3182052 WPL 3182052 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
56
WPL 310433 WPL 310433 Contact Us For Availability
56
WPL 310435 WPL 310435 Contact Us For Availability
56
WPL 3149328 WPL 3149328 Contact Us For Availability
56
WPL 3185960 WPL 3185960 Contact Us For Availability
56
WPL 3187218 WPL 3187218 Contact Us For Availability
× ![]()
