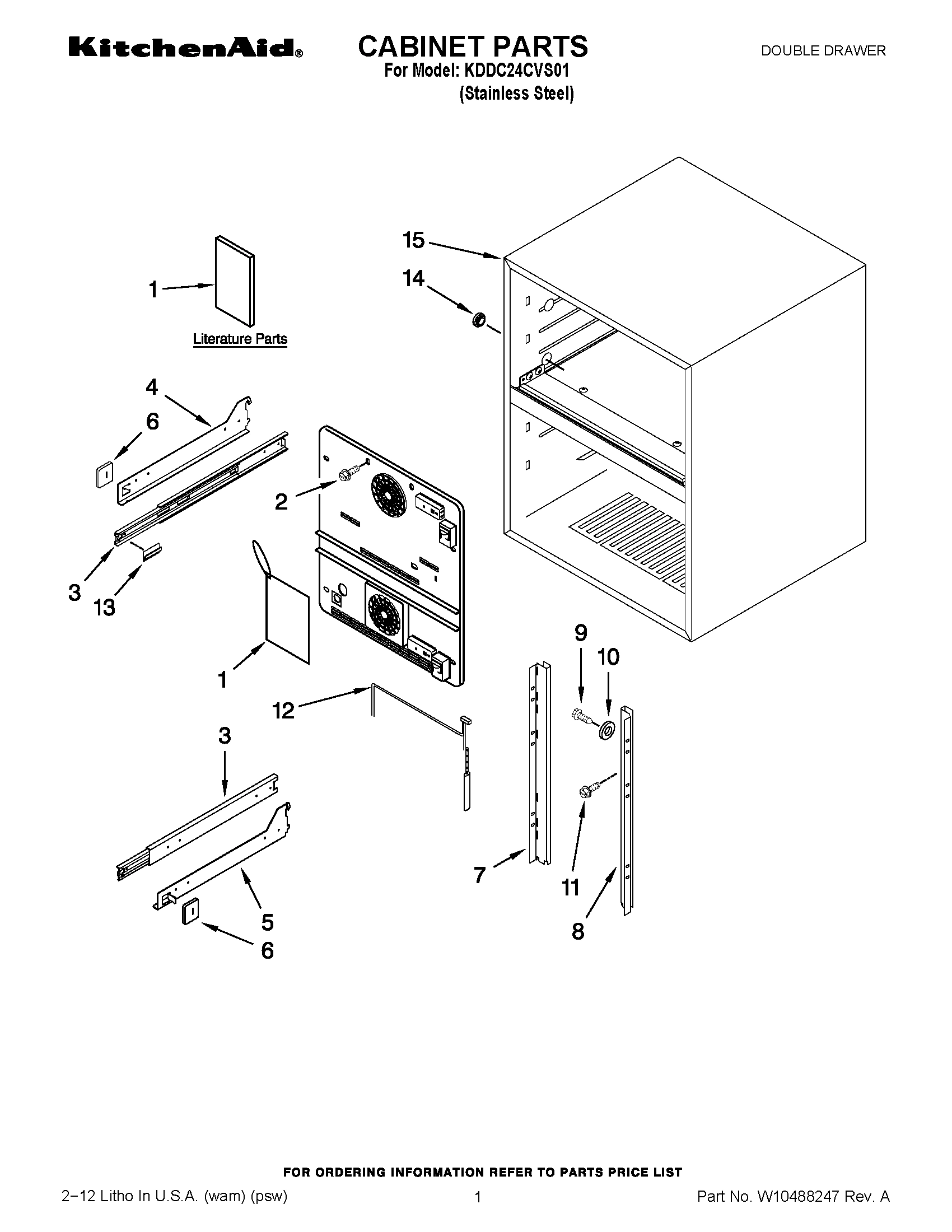

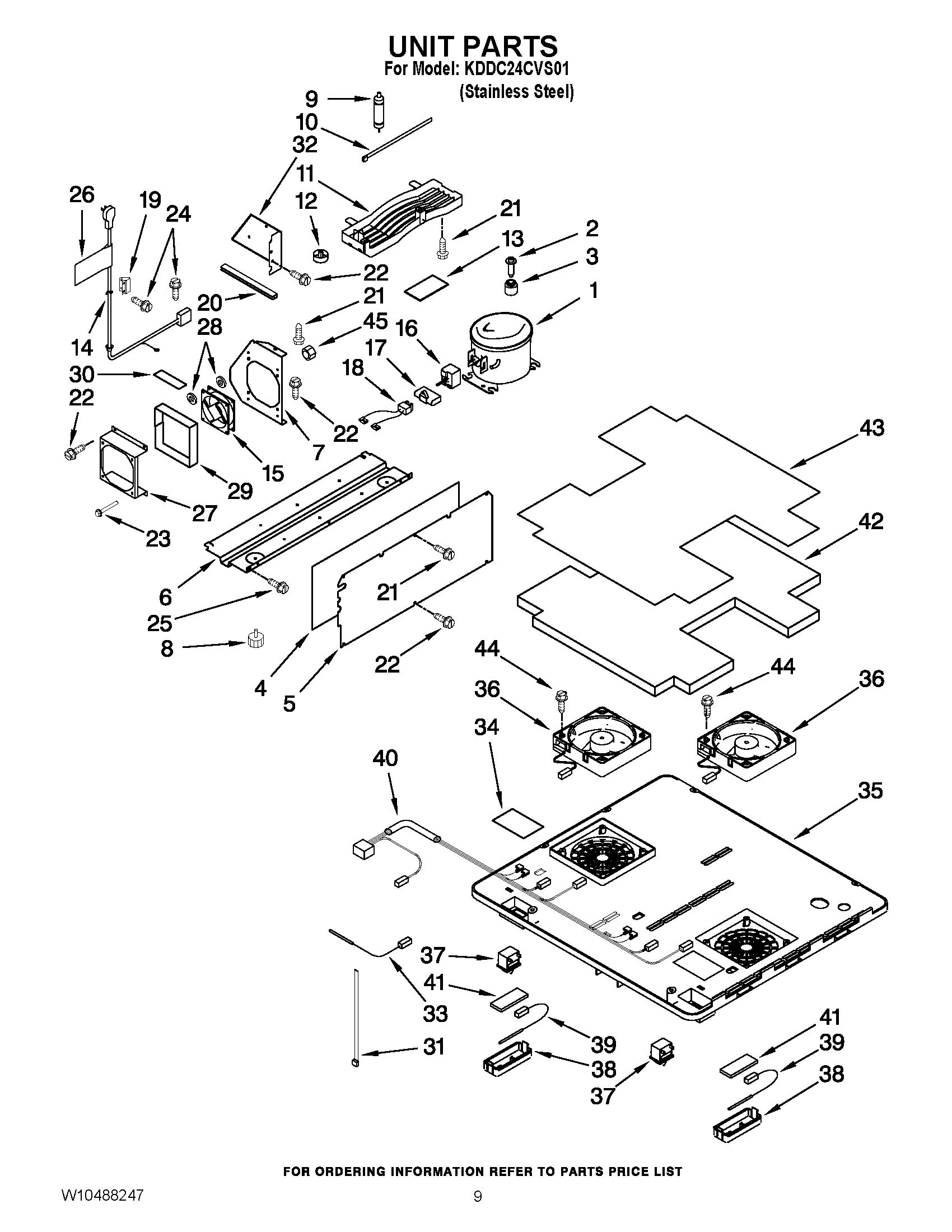

Model Whirlpool KDDC24CVS01 DOUBLE DRAWER – Common Parts &amp; Diagrams

1

BRACKET Backorder WPL W10281555 $28.09

1

WPW10287744 Whirlpool Refrigerator Compressor Backorder WPL WPW10287744 $276.88

1

Drawer Box Assy. WPL W10204697 Contact Us For Availability

2

W10772873 Whirlpool Screw Backorder WPL W10772873 $29.87

2

SCREW WPL W10281556 Contact Us For Availability

2

Top Mat WPL W10204698 Contact Us For Availability

3

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

3

WP4344779 Whirlpool Refrigerator Grommet Backorder WPL WP4344779 $3.70

3

Drawer Partition WPL W10204699 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

4

WPW10233777 Whirlpool Refrigerator Slide Backorder WPL WPW10233777 $133.50

4

SUPPORT SHELF, LH (TOP DRAWER) WPL W10233778 Contact Us For Availability

4

Rear Insulation WPL W10204672 Contact Us For Availability

5

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $97.38

5

WPW10204700 Whirlpool Refrigerator Gasket Backorder WPL WPW10204700 $122.68

5

SUPPORT SHELF, RH (TOP DRAWER) WPL W10233779 Contact Us For Availability

5

REAR COVER WPL W10281501 Contact Us For Availability

6

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

6

CABINET BASE PLATE WPL W10238066 Contact Us For Availability

6

TOP DOOR ASSY. WPL W10392451 Contact Us For Availability

7

W10204674 Whirlpool Refrigerator Baffle Backorder WPL W10204674 $49.56

7

W10204808 Whirlpool Refrigerator Screw Backorder WPL W10204808 $27.52

7

W10281561 Whirlpool Refrigerator Block Backorder WPL W10281561 $27.52

8

4344771 Whirlpool Refrigerator Clip Backorder WPL 4344771 $36.11

8

SCREW Backorder WPL W10204809 $27.52

8

W10772928 Whirlpool Refrigerator Water Tube In Stock WPL W10772928 $58.37

8

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

9

4344820 Whirlpool Refrigerator Support Backorder WPL 4344820 $82.84

9

W10163273 Whirlpool Refrigerator Tube Backorder WPL W10163273 $30.89

9

W10204810 Whirlpool Screw Backorder WPL W10204810 $27.52

9

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $96.20

10

4344821 Whirlpool Refrigerator Support Backorder WPL 4344821 $46.21

10

W10281565 Whirlpool Refrigerator Bracket Backorder WPL W10281565 $27.52

10

Top Wrap WPL W10204861 Contact Us For Availability

W10204640 Whirlpool Refrigerator Clip Backorder WPL W10204640 $27.52

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $2.51

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

Drain Tray WPL W10163193 Contact Us For Availability

W10163276 Whirlpool Refrigerator Trap Backorder WPL W10163276 $30.25

W10281315 Whirlpool Refrigerator Bi-Metal In Stock WPL W10281315 $176.59

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Plate, Door Handle WPL 4344809 Contact Us For Availability

13

W10163274 Whirlpool Pad Backorder WPL W10163274 $42.16

13

W10859467 Whirlpool Refrigerator Screw Backorder WPL W10859467 $27.52

13

SCREW WPL W10281585 Contact Us For Availability

14

W10204867 Whirlpool Front Drawer Backorder WPL W10204867 $43.94

14

W10281586 Whirlpool Refrigerator Fitting Backorder WPL W10281586 $43.04

14

WPW10204676 Whirlpool Refrigerator Power Cord Backorder WPL WPW10204676 $47.58

15

W10204677 Whirlpool Refrigerator Condenser Mo Backorder WPL W10204677 $166.63

15

W10204868 Whirlpool Front Drawer Backorder WPL W10204868 $9.10

15

CLAMP-TUBE Backorder WPL W10281587 $9.61

16

W10488357 Whirlpool Refrigerator Wire Harness Backorder WPL W10488357 $176.09

16

OVERLOAD RELAY WPL W10287745 Contact Us For Availability

17

W10287848 Whirlpool Refrigerator Thermistor Backorder WPL W10287848 $68.82

17

SCREW WPL W10281588 Contact Us For Availability

17

LEAD WIRE SUPPORT WPL W10488627 Contact Us For Availability

W10281589 Whirlpool Refrigerator Tape Backorder WPL W10281589 $27.52

PCB Box Film WPL W10204646 Contact Us For Availability

CAPACITOR WPL W10287954 Contact Us For Availability

CONTROL PANEL ASSY WPL W10273123 Contact Us For Availability

CLIP Backorder WPL W10270517 $27.52

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $25.46

MAIN PCB WPL W10281497 Contact Us For Availability

HANDLE WPL W10204888 Contact Us For Availability

20

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

20

TRIM Backorder WPL 4344907 $83.71

20

W10204920 Whirlpool Refrigerator Nut Backorder WPL W10204920 $27.52

W10204659 Whirlpool Refrigerator Spacer Backorder WPL W10204659 $27.52

W10204889 Whirlpool Refrigerator Gasket Backorder WPL W10204889 $44.73

W10281546 Whirlpool Refrigerator Arm Shut Backorder WPL W10281546 $46.70

Screw WPL 4344825 Contact Us For Availability

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $73.47

W10204897 Whirlpool Refrigerator Gasket Backorder WPL W10204897 $49.17

W10281498 Whirlpool Refrigerator Wire Harness Backorder WPL W10281498 $143.25

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

23

SCREW Backorder WPL W10205069 $27.52

23

W10205081 Whirlpool Refrigerator Tape Backorder WPL W10205081 $35.63

23

BOLT WPL W10270492 Contact Us For Availability

24

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

24

W10488628 Whirlpool Refrigerator Bracket Backorder WPL W10488628 $119.83

24

CONTROL PANEL WPL W10281502 Contact Us For Availability

25

4344797 Whirlpool Screw Backorder WPL 4344797 $9.15

25

LABEL, PANEL WPL W10281504 Contact Us For Availability

25

SCREW WPL W10281549 Contact Us For Availability

26

4344913 Whirlpool Label Assembly Backorder WPL 4344913 $26.48

26

W10204929 Whirlpool Cover Backorder WPL W10204929 $30.25

26

HARNESS, DEFROST WPL W10281550 Contact Us For Availability

27

W10204930 Whirlpool Refrigerator Light Lens Backorder WPL W10204930 $127.61

27

W10281551 Whirlpool Refrigerator Wire Harness Backorder WPL W10281551 $32.56

27

Fan Cover WPL W10204687 Contact Us For Availability

28

W10204688 Whirlpool Plate Assembly Backorder WPL W10204688 $27.52

28

W10204931 Whirlpool Socket Assembly Backorder WPL W10204931 $27.52

28

W10281552 Whirlpool Refrigerator Extension Backorder WPL W10281552 $85.41

29

W10281553 Whirlpool Refrigerator Shield Backorder WPL W10281553 $27.52

29

WPW10281540 Whirlpool Refrigerator Electronic Backorder WPL WPW10281540 $363.32

29

Vibration Rubber A WPL W10204689 Contact Us For Availability

30

W10204933 Whirlpool Refrigerator Wire Harness Backorder WPL W10204933 $75.48

30

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

30

Vibration Rubber B WPL W10204690 Contact Us For Availability

31

4344829 Whirlpool Tie Wire Backorder WPL 4344829 $9.15

31

W10304194 Whirlpool Refrigerator Wire Harness Backorder WPL W10304194 $57.72

32

Bracket, Timer WPL 4344773 Contact Us For Availability

32

Screw WPL W10204935 Contact Us For Availability

33

W10205063 Whirlpool Thermistor Backorder WPL W10205063 $76.47

33

Panel Insulation WPL W10204936 Contact Us For Availability

34

W10205062 Whirlpool Wire Cover Backorder WPL W10205062 $27.52

34

Panel Insulation B WPL W10204937 Contact Us For Availability

35

Fan Cover WPL W10204941 Contact Us For Availability

36

W10854409 Whirlpool Refrigerator Evaporator M Backorder WPL W10854409 $132.50

37

W10270520 Whirlpool Refrigerator Switch Backorder WPL W10270520 $35.14

38

Sensor Case WPL W10204945 Contact Us For Availability

39

WPW10204946 Whirlpool Refrigerator Thermistor Backorder WPL WPW10204946 $39.33

40

W10204947 Whirlpool Refrigerator Wire Harness Backorder WPL W10204947 $137.84

41

W10204948 Whirlpool Refrigerator Control Box Backorder WPL W10204948 $27.52

42

W10281541 Whirlpool Refrigerator Sealer Backorder WPL W10281541 $26.48

43

PLATE COVER WPL W10281542 Contact Us For Availability

44

W10205061 Whirlpool Screw Assembly Backorder WPL W10205061 $27.52

45

NUT WPL W10270493 Contact Us For Availability
