Model Whirlpool KD100 – Common Parts & Diagrams
02 - SECTION
03 - SECTION
01 - SECTION

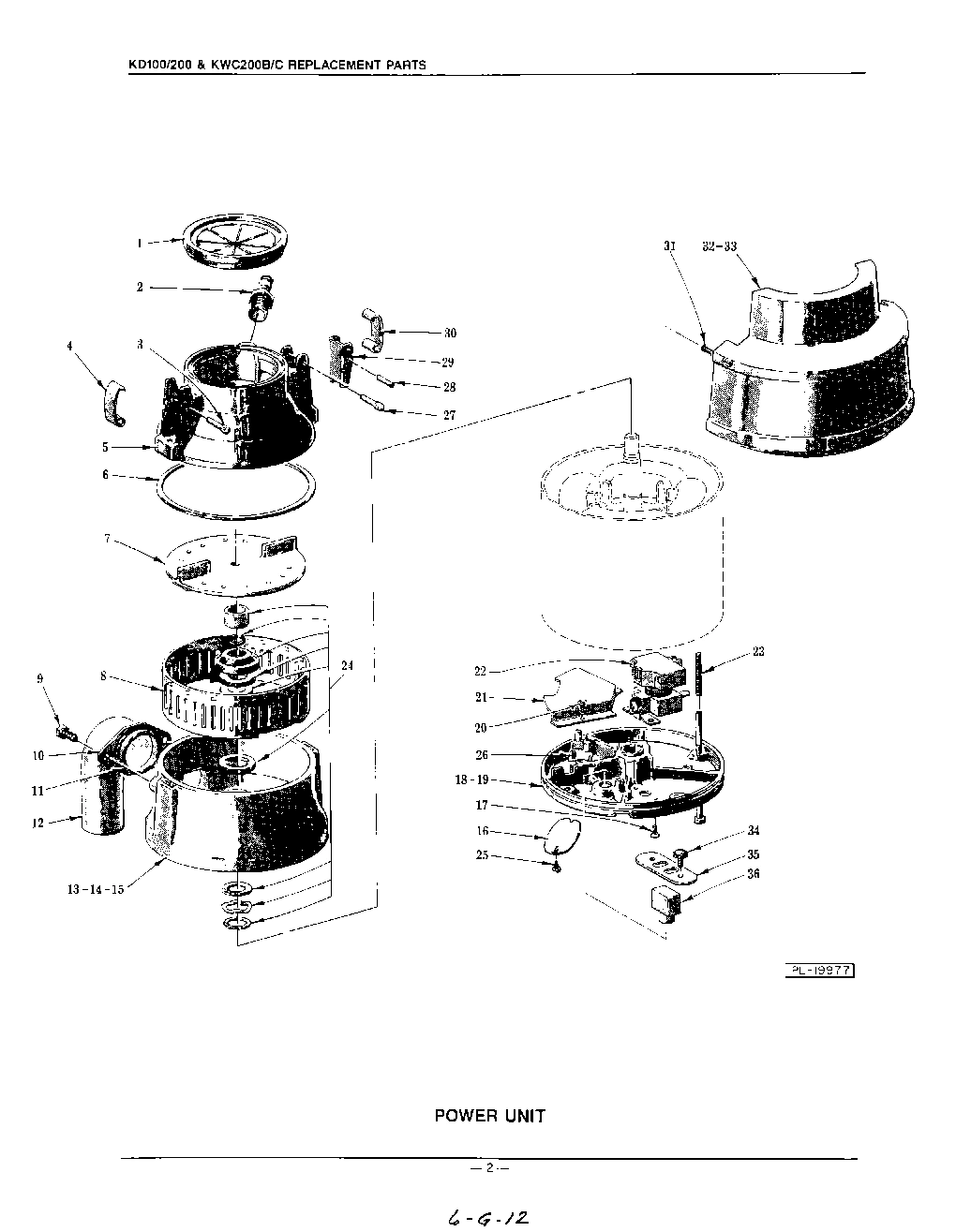

Common parts from model Whirlpool KD100
1
Guard - Splash WPL 242652 Contact Us For Availability
1
Closure - Vinyl (KD100/KD200) WPL 202125 Contact Us For Availability
2
Connector - Male Hose WPL 240758 Contact Us For Availability
2
Seal - Closure (KWC200B/C) WPL 242915 Contact Us For Availability
3
Flange - Sink WPL 2039071 Contact Us For Availability
4
Gasket - Paperboard WPL 201462 Contact Us For Availability
5
Housing - Upper (Gray) WPL 1109749 Contact Us For Availability
5
Washer - Pressure WPL 202700 Contact Us For Availability
6
Gasket - Waist WPL 201424 Contact Us For Availability
6
Screw - Jack WPL 202501 Contact Us For Availability
7
Flywheel Assy WPL 2421321 Contact Us For Availability
7
Plate - Support WPL 203160 Contact Us For Availability
8
Ring - Shredder WPL 1151372 Contact Us For Availability
8

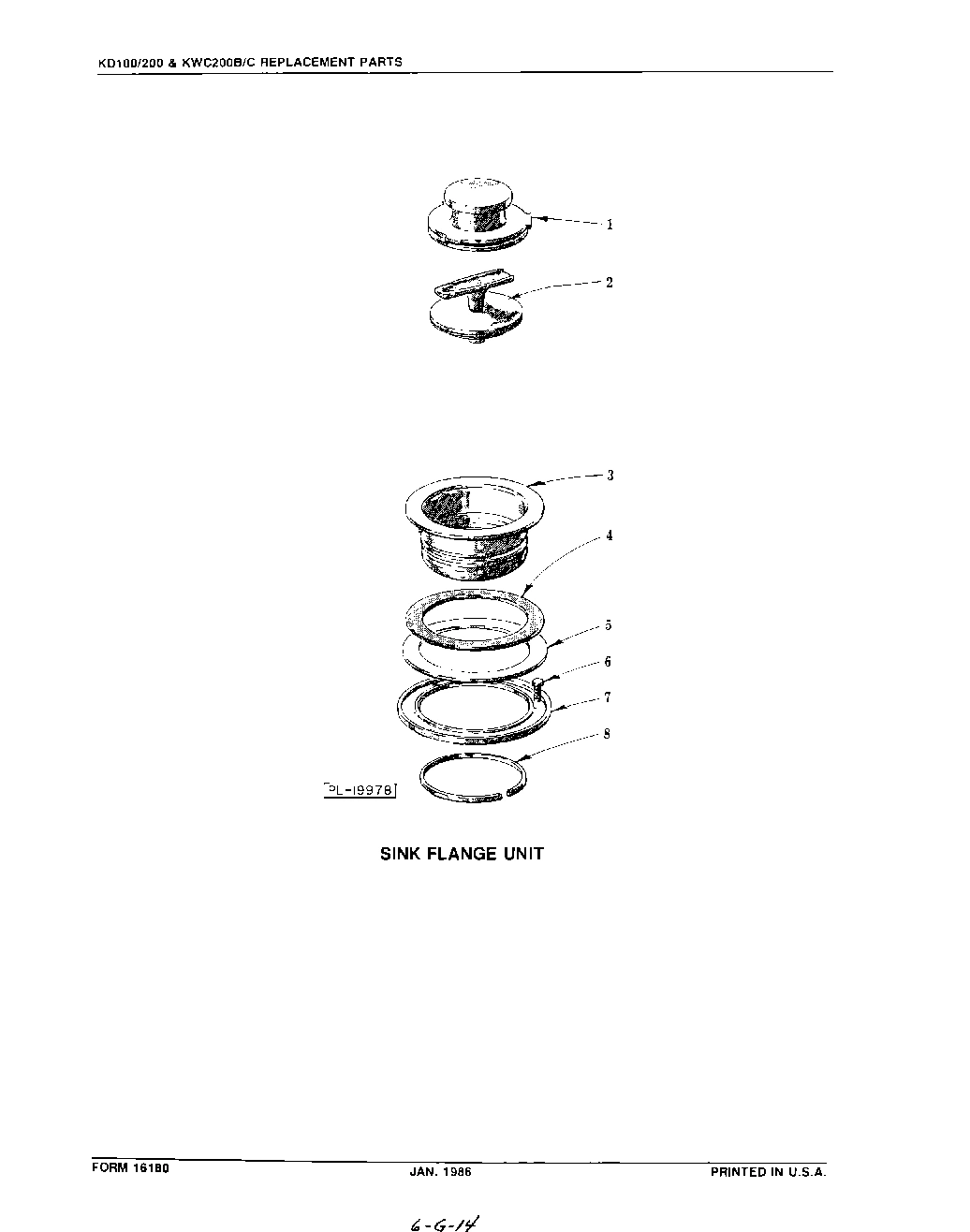

Sink Flange Assy. (Incls. items 3 thru 8) WPL 20033823 Contact Us For Availability
8
Ring - Snap WPL 202536 Contact Us For Availability
8
Closure Assy. (Incls. item 2) (KWC200B/C) WPL 242978 Contact Us For Availability
9
Cap Screw - 1/4-20 x 1/2 Hex Hd WPL SC3614 Contact Us For Availability
10
Flange - Spout WPL 241026 Contact Us For Availability
11
Seal - Spout WPL 115818 Contact Us For Availability
12
Spout & Seal Assy. (Incls. item 11) WPL 240119 Contact Us For Availability
13
Lower Housing Assy. (Gray) (KD100/KD200) WPL 11039926 Contact Us For Availability
14
Lower Housing Assy. (Gray) (Hobart Motor) (KW WPL 11039925 Contact Us For Availability
15
Lower Housing Assy. (G.E. Motor) (KWC200B/C) WPL 11039924 Contact Us For Availability
16
Cover - Elec. Access WPL 109923 Contact Us For Availability
17
Mach. Screw 8-32 x 1/4 Flat Hd WPL SC1488 Contact Us For Availability
18
Bearing Bracket Assy. (Gray) (Hobart Motor) WPL 2431472 Contact Us For Availability
19
Bearing Bracket Assy. (G.E. Motor) WPL 2431471 Contact Us For Availability
21
Barrier - Electrical Enclosure WPL 115314 Contact Us For Availability
22
Relay (115 V., 60 Hz.) WPL 87714171 Contact Us For Availability
23
Screw - Stator WPL 243173 Contact Us For Availability
24
Water Seal Service Kit WPL 2405932 Contact Us For Availability
25
Self-Tapping Screw 6-32 x 5/16 Phil. Pan Hd., WPL SD1230 Contact Us For Availability
26
Screw - Machine Grounding WPL 202559 Contact Us For Availability
27
Groov-Pin - Type C Driv-Loc, 1/8`` x 1-1/4`` WPL PG82 Contact Us For Availability
28
Pin - Hinge WPL 202917 Contact Us For Availability
30
Hook - Clamp WPL 202514 Contact Us For Availability
31
Self-Tapping Screw 6-20 x 11/16 Phil. Pan Hd. WPL 115369 Contact Us For Availability
32
Shell - Sound Barrier (Front) WPL 243184 Contact Us For Availability
33
Shell - Sound Barrier (Punched) (Rear) WPL 242006 Contact Us For Availability
34
Screw Assy. (Protector) WPL 278497 Contact Us For Availability
35
Retainer - Protector WPL 121403 Contact Us For Availability
36
Protector WPL 2946814 Contact Us For Availability
× ![]()
