Model Whirlpool KCMS185JSS3 MICROWAVE OVEN 1.8 CUBIC FOOT – Common Parts & Diagrams

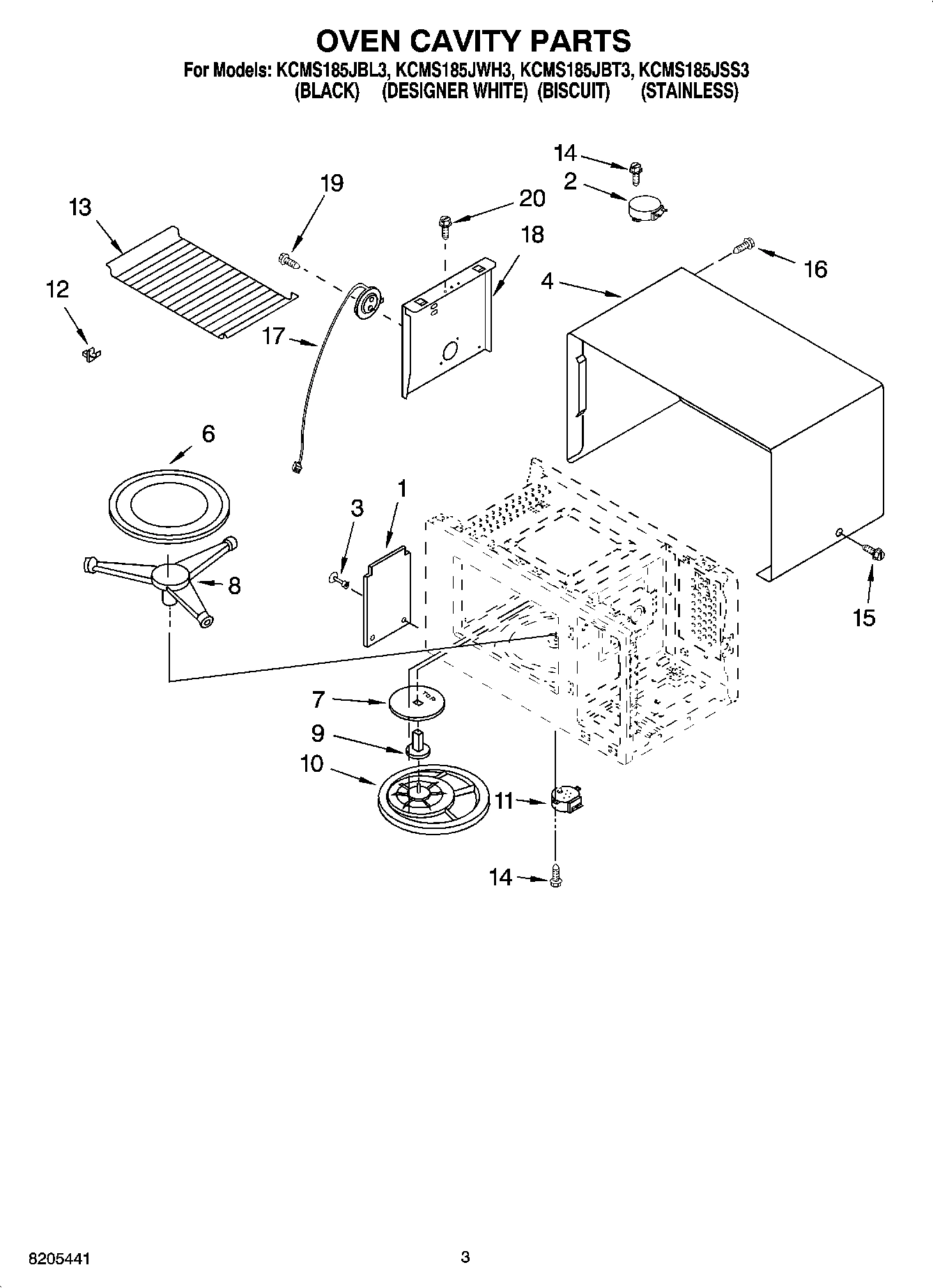

03 - OVEN CAVITY PARTS

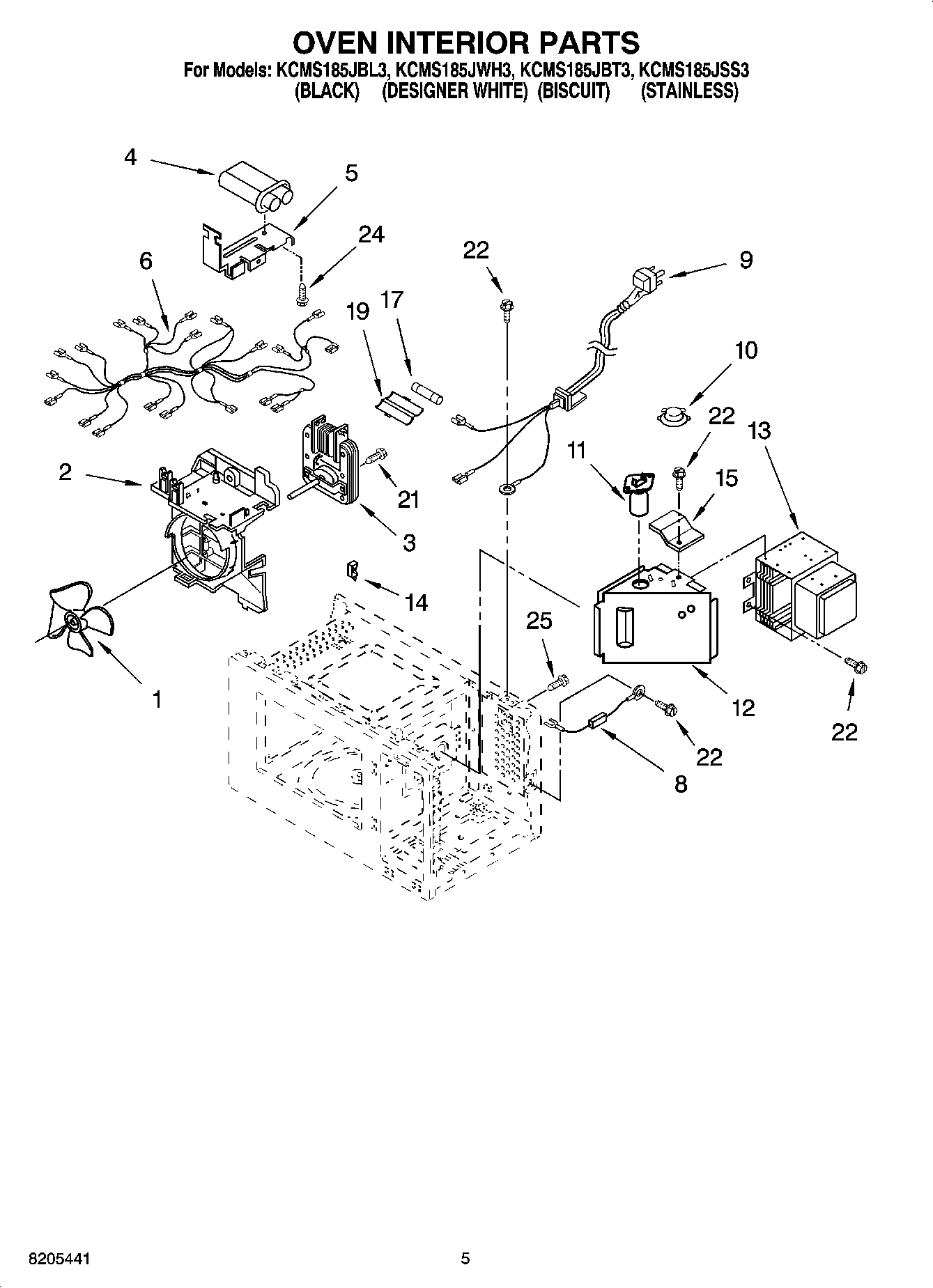

05 - OVEN INTERIOR PARTS

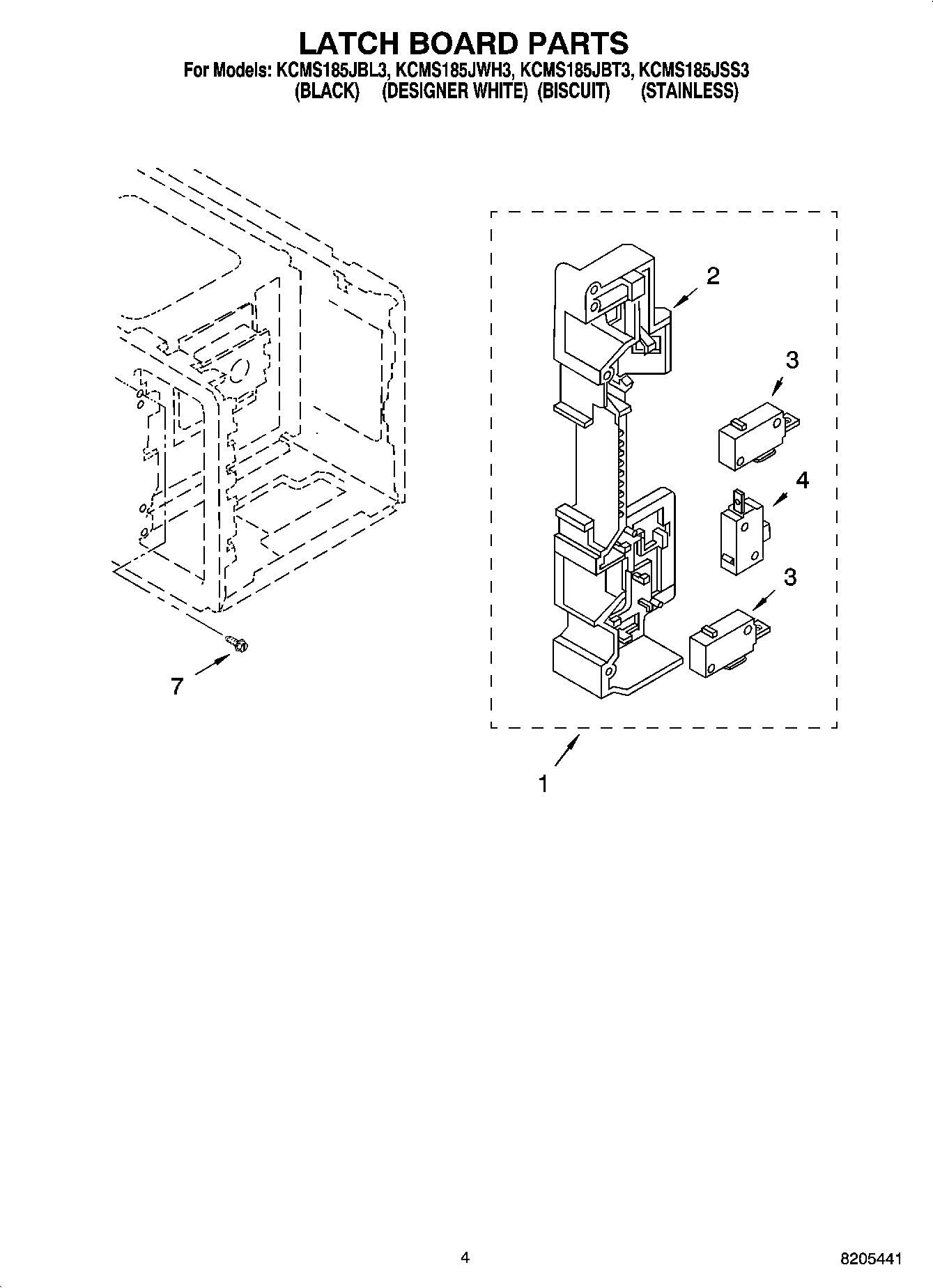

04 - LATCH BOARD PARTS

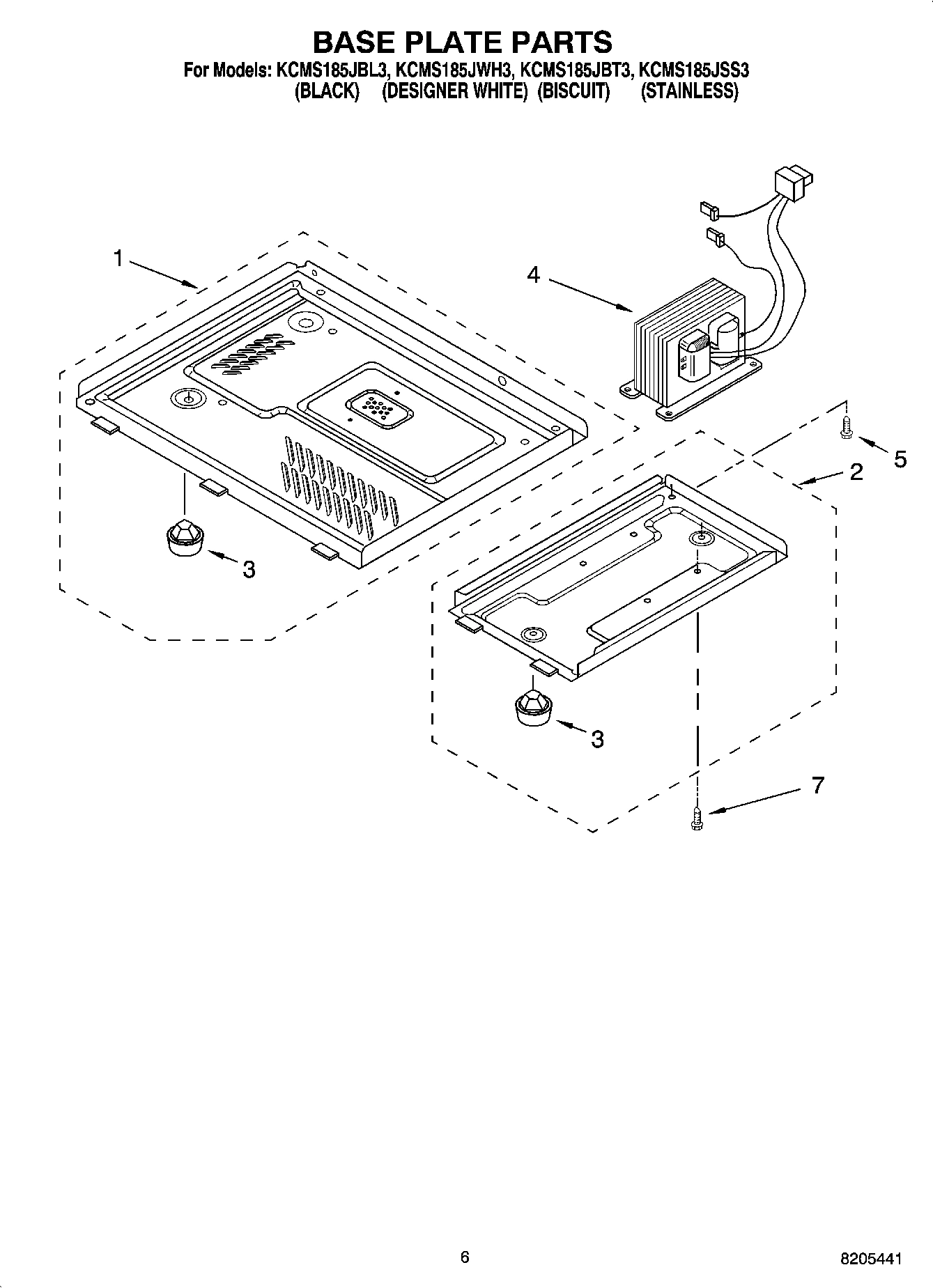

06 - BASE PLATE PARTS

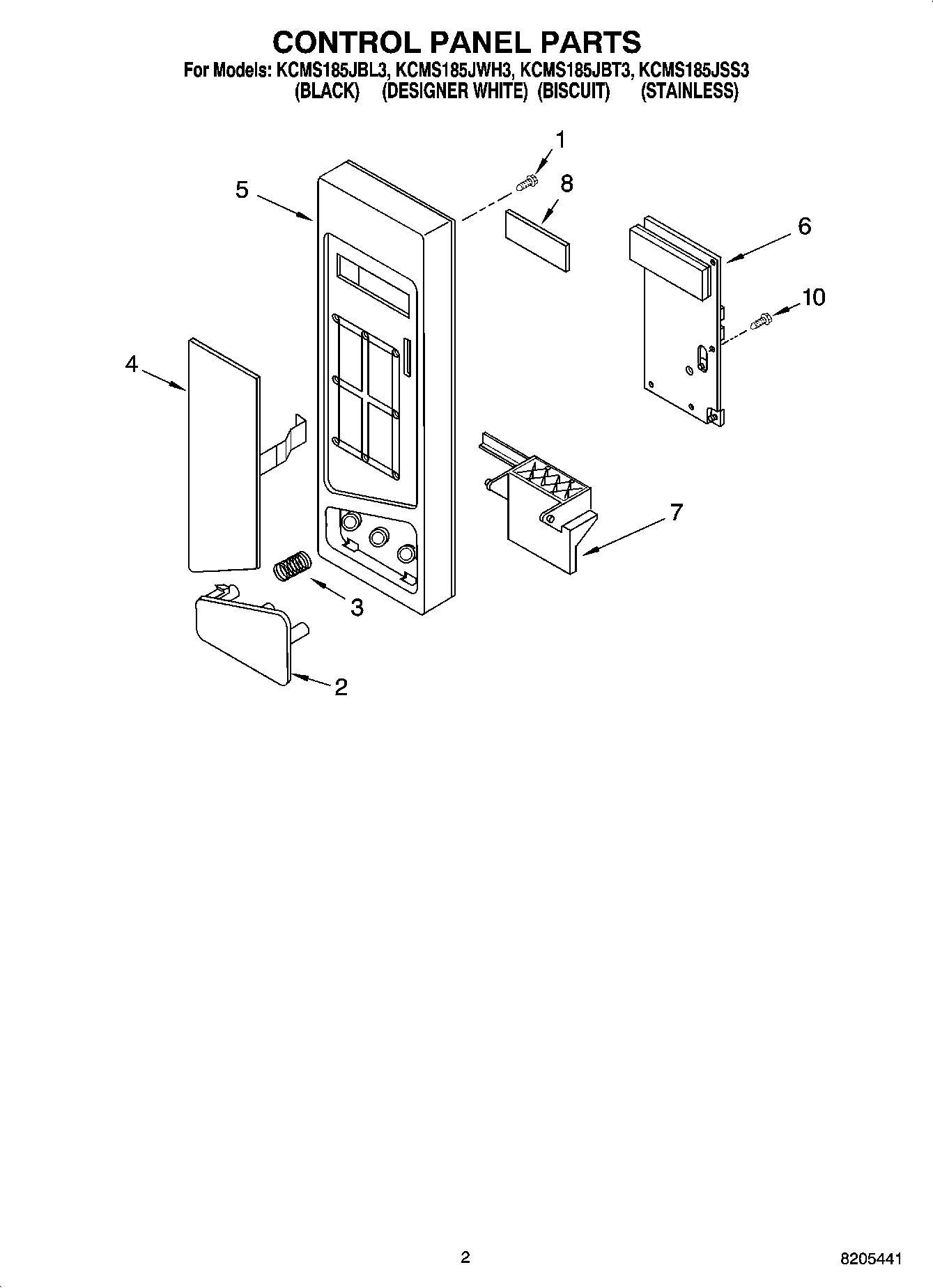

02 - CONTROL PANEL PARTS

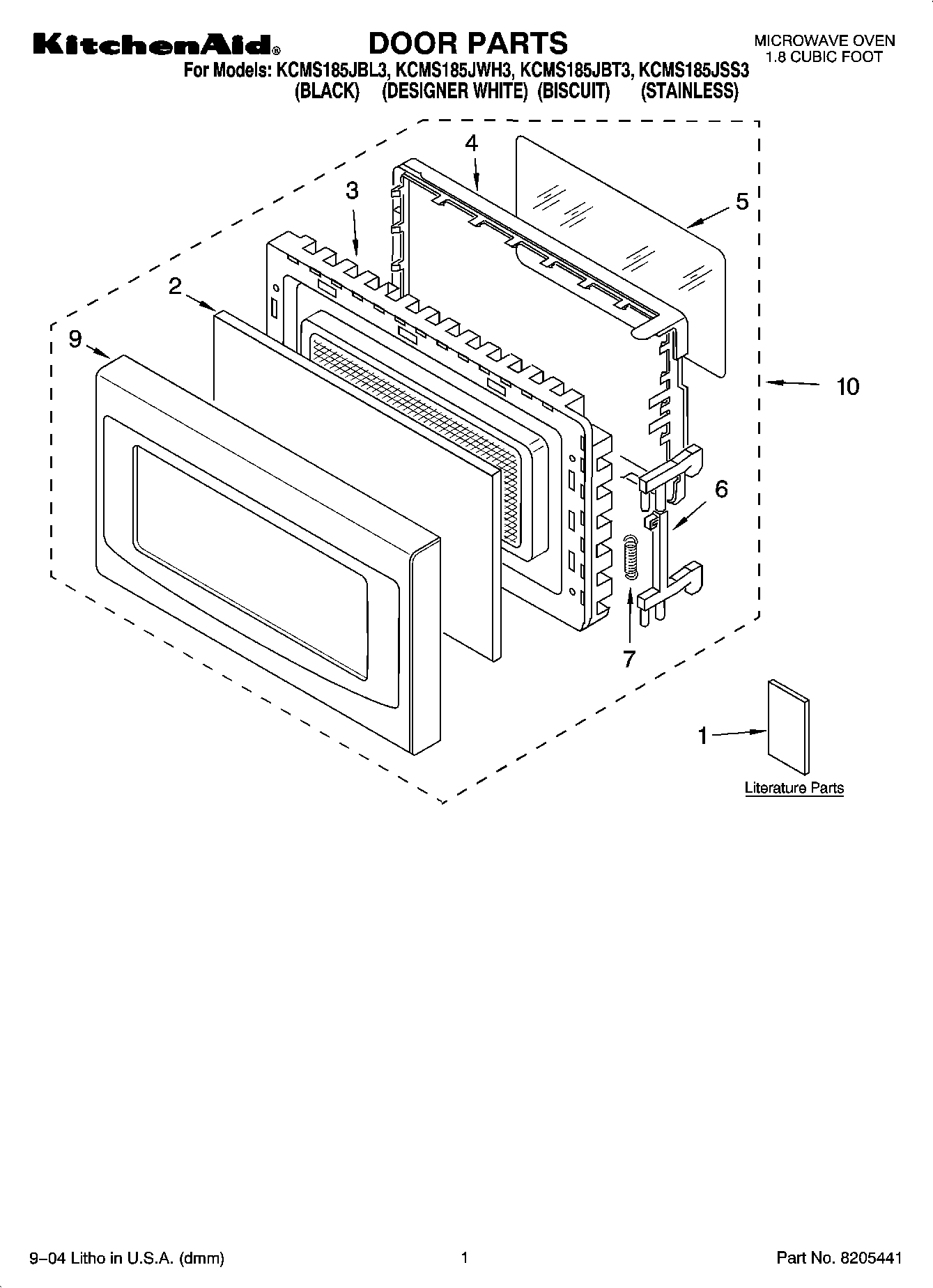

01 - DOOR PARTS
Common parts from model Whirlpool KCMS185JSS3 MICROWAVE OVEN 1.8 CUBIC FOOT
1
Propeller WPL 4359112 Contact Us For Availability
1
Screw WPL 4358381 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI80708A3 Contact Us For Availability
1
Base Plate (L) WPL 4359921 Contact Us For Availability
1
Guide, U & C WPL 8172187 Contact Us For Availability
1
English WPL 8172196 Contact Us For Availability
1
Spanish WPL 8172197 Contact Us For Availability
1
Tech Sheet Instructions, Installation WPL 8172209 Contact Us For Availability
1
Built-In Cook Guide Label WPL 8172218 Contact Us For Availability
1
Template-B/I Kit WPL 8172220 Contact Us For Availability
2
Motor, Fan WPL 8172059 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Base Plate (R) WPL 4359922 Contact Us For Availability
2
Button, Release (Biscuit) WPL 4359937 Contact Us For Availability
2
Button, Release (White) WPL 8172028 Contact Us For Availability
2
Button, Release (Black) WPL 8172030 Contact Us For Availability
2
Button, Release (Stainless) WPL 8184881 Contact Us For Availability
2
Front Screen (BL/WH/BT Models) WPL 4359866 Contact Us For Availability
2
Front Screen (SS Model) WPL 8172006 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
3
Door Frame Asm (BL/SS Models) WPL 8171890 Contact Us For Availability
3
Door Frame Asm (BT MODEL) WPL 8172086 Contact Us For Availability
3
Door Frame Asm (WH MODEL) WPL 8184736 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
4
Switch, Membrane (Black) WPL 8183657 Contact Us For Availability
4
Switch, Membrane (White) WPL 8183658 Contact Us For Availability
4
Switch, Membrane (Biscuit) WPL 8183659 Contact Us For Availability
4
Switch, Membrane (Stainless) WPL 8183660 Contact Us For Availability
4
Choke Cover WPL 4359869 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel (Black) WPL 8183654 Contact Us For Availability
5
Control Panel (White) WPL 8183655 Contact Us For Availability
5
Control Panel (Biscuit) WPL 8183656 Contact Us For Availability
5
Control Panel (Stainless) WPL 8184880 Contact Us For Availability
5
Tape, Seal WPL 4359870 Contact Us For Availability
6
Leadwire Assembly WPL 8172019 Contact Us For Availability
6
Microcomputer WPL 8183862 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door (Black) WPL 8183651 Contact Us For Availability
9
Panel, Door (White) WPL 8183652 Contact Us For Availability
9
Panel, Door (Biscuit) WPL 8183653 Contact Us For Availability
9
Panel, Door (Stainless) WPL 8183716 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (Black) WPL 8183647 Contact Us For Availability
10
Door Assembly (White) WPL 8183648 Contact Us For Availability
10
Door Assembly (Biscuit) WPL 8183649 Contact Us For Availability
10
Door Assembly (Stainless) WPL 8183650 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 8183612 Contact Us For Availability
12
Support, Rack WPL 4358383 Contact Us For Availability
12
Duct, Air WPL 4359888 Contact Us For Availability
13
Rack WPL 8172101 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
15
Bracket, Support WPL 8184344 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8204654 Contact Us For Availability
18
Guide, Sensor WPL 8183662 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
25
Screw WPL 4358271 Contact Us For Availability
× ![]()
