Model Whirlpool KCMS185JSS1 MICROWAVE OVEN 1.8 CUBIC FOOT – Common Parts & Diagrams

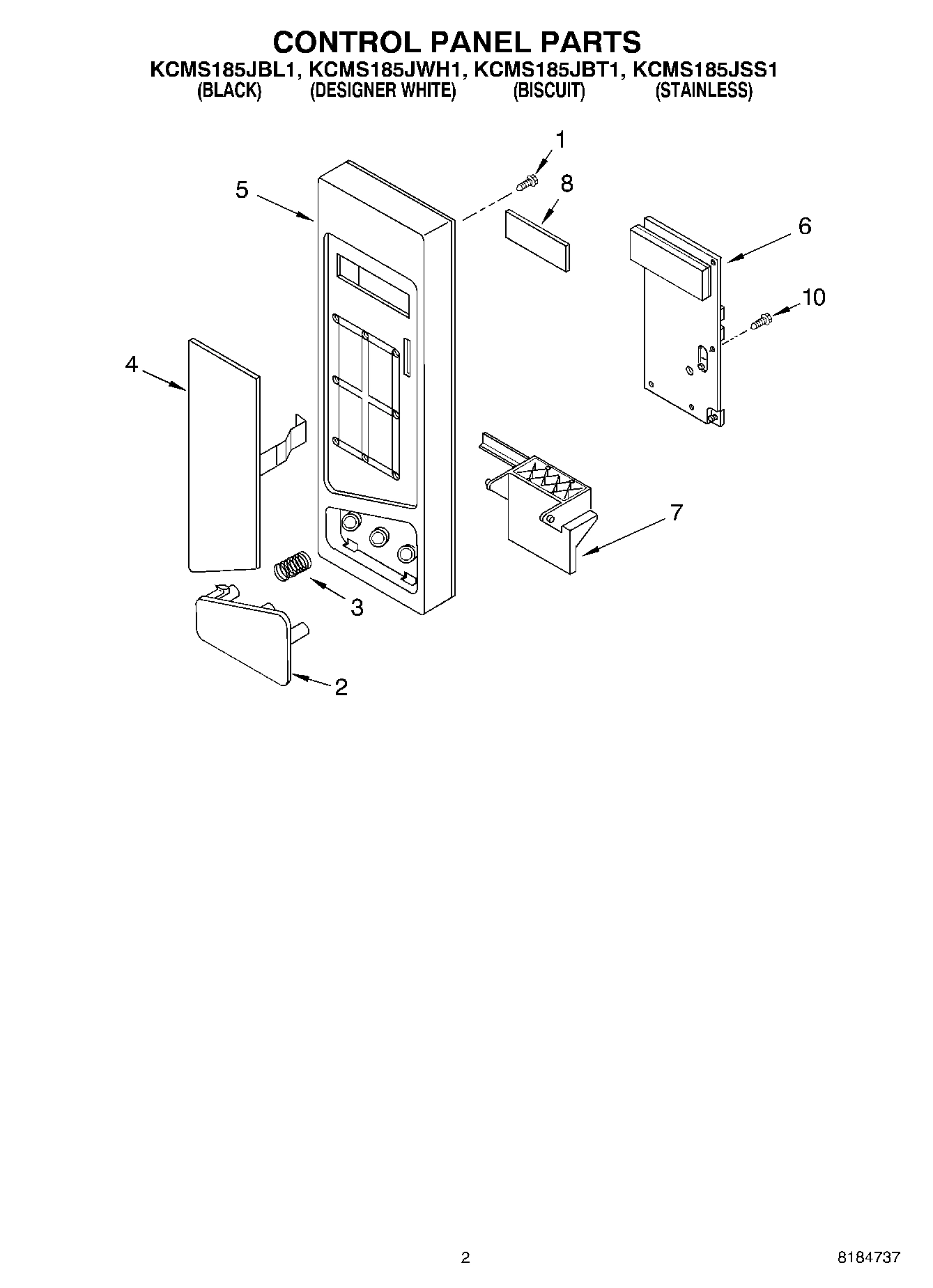

02 - CONTROL PANEL

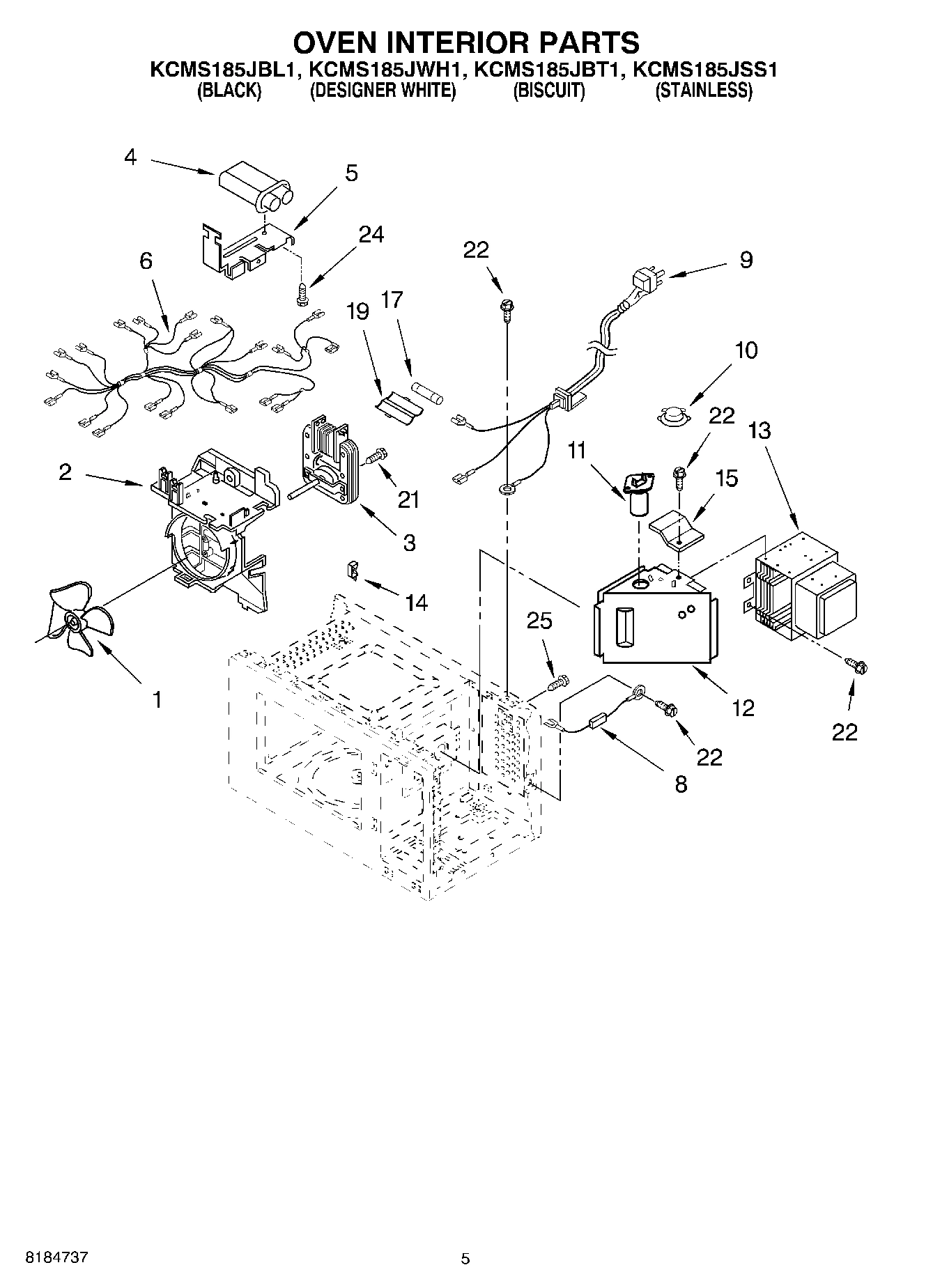

05 - OVEN INTERIOR

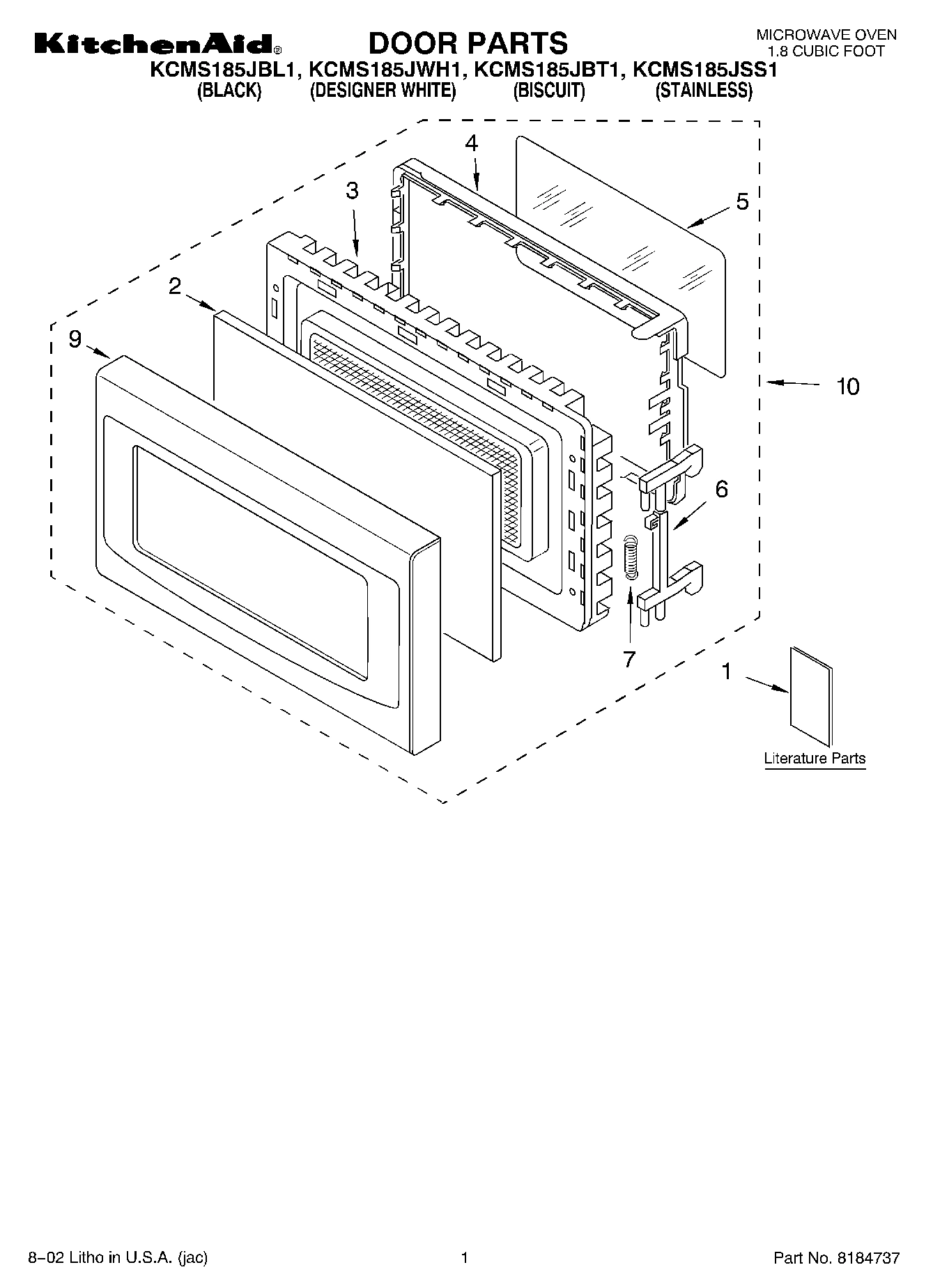

01 - DOOR, LITERATURE

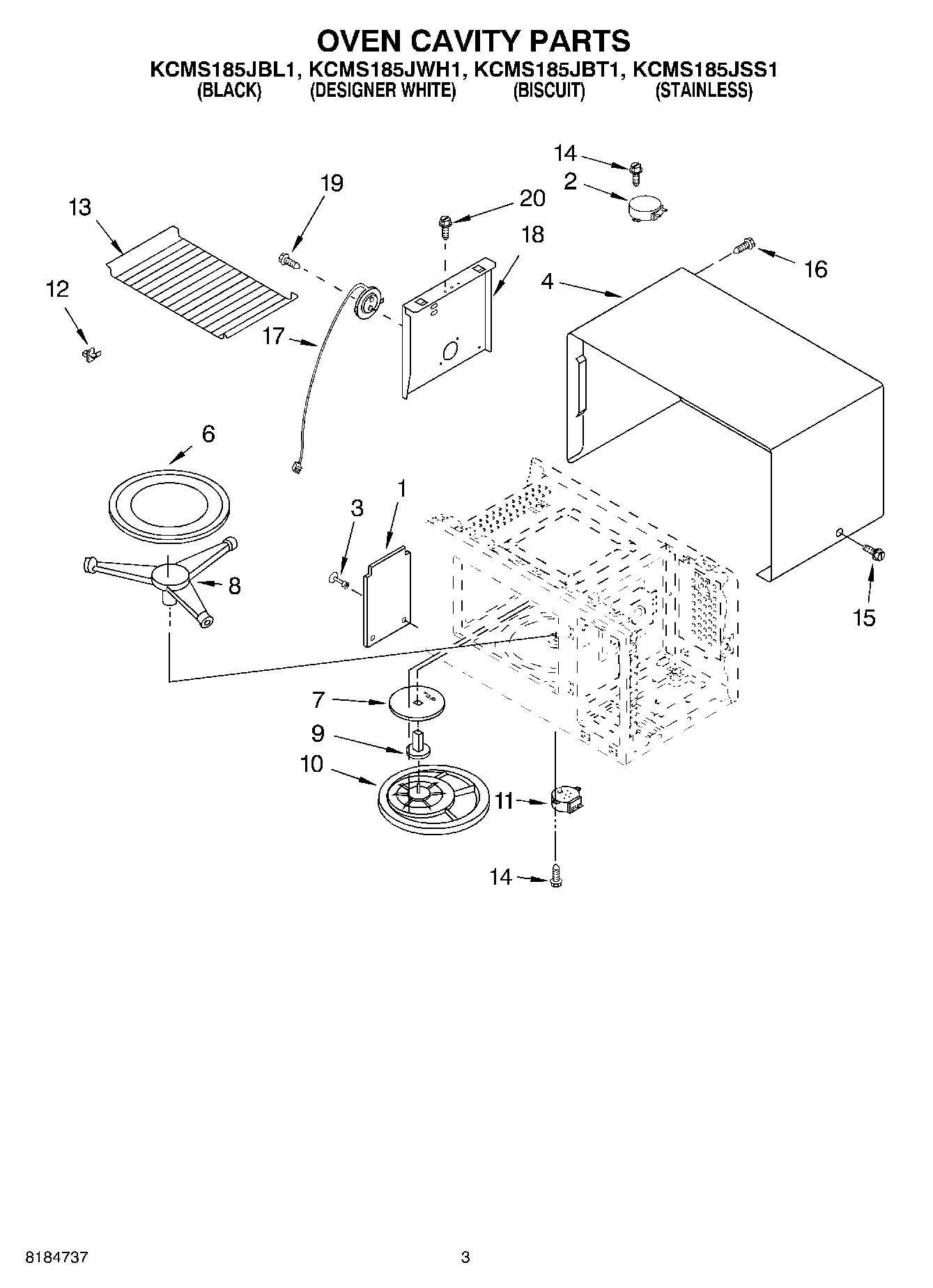

03 - OVEN CAVITY

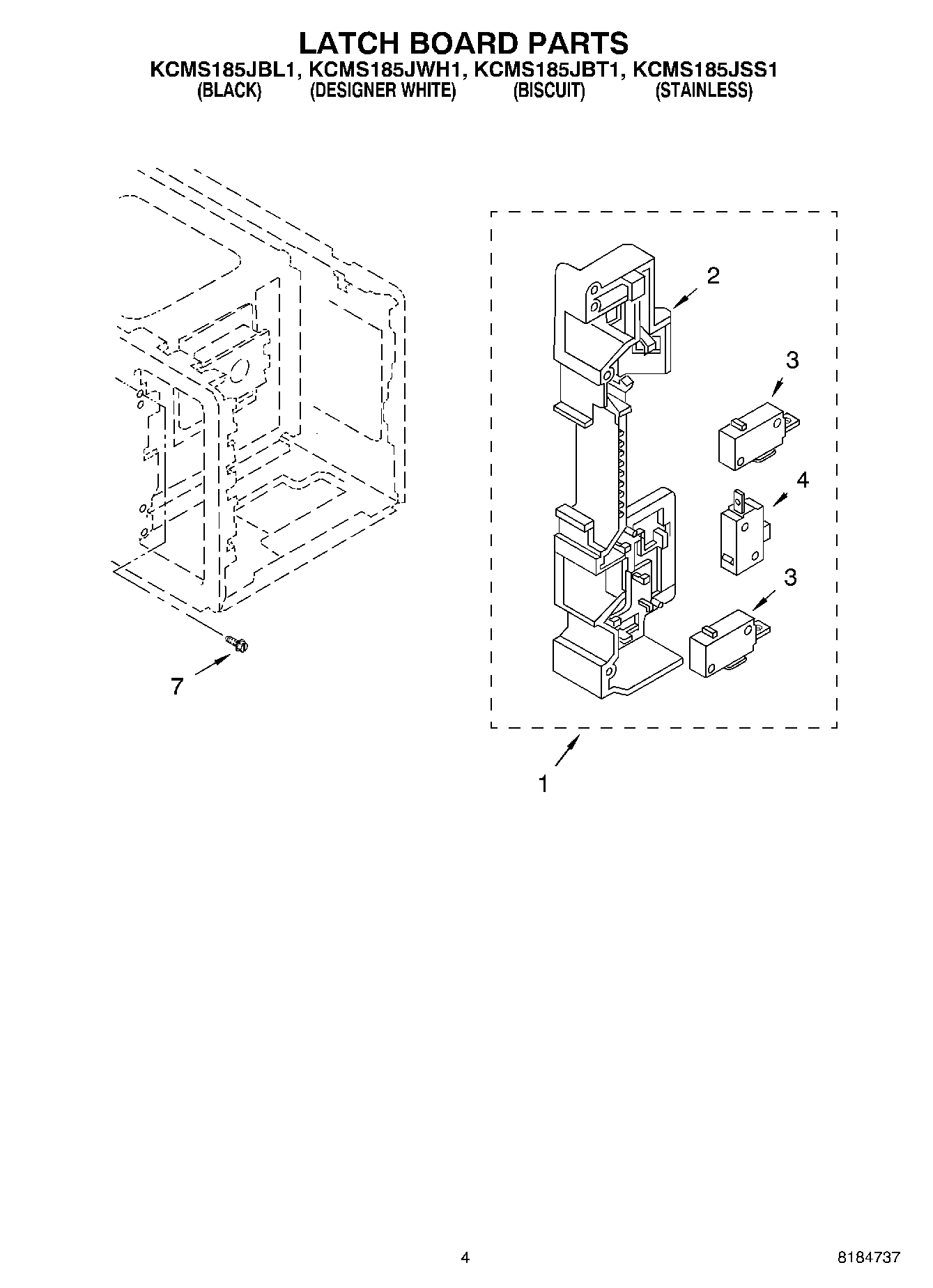

04 - LATCH BOARD

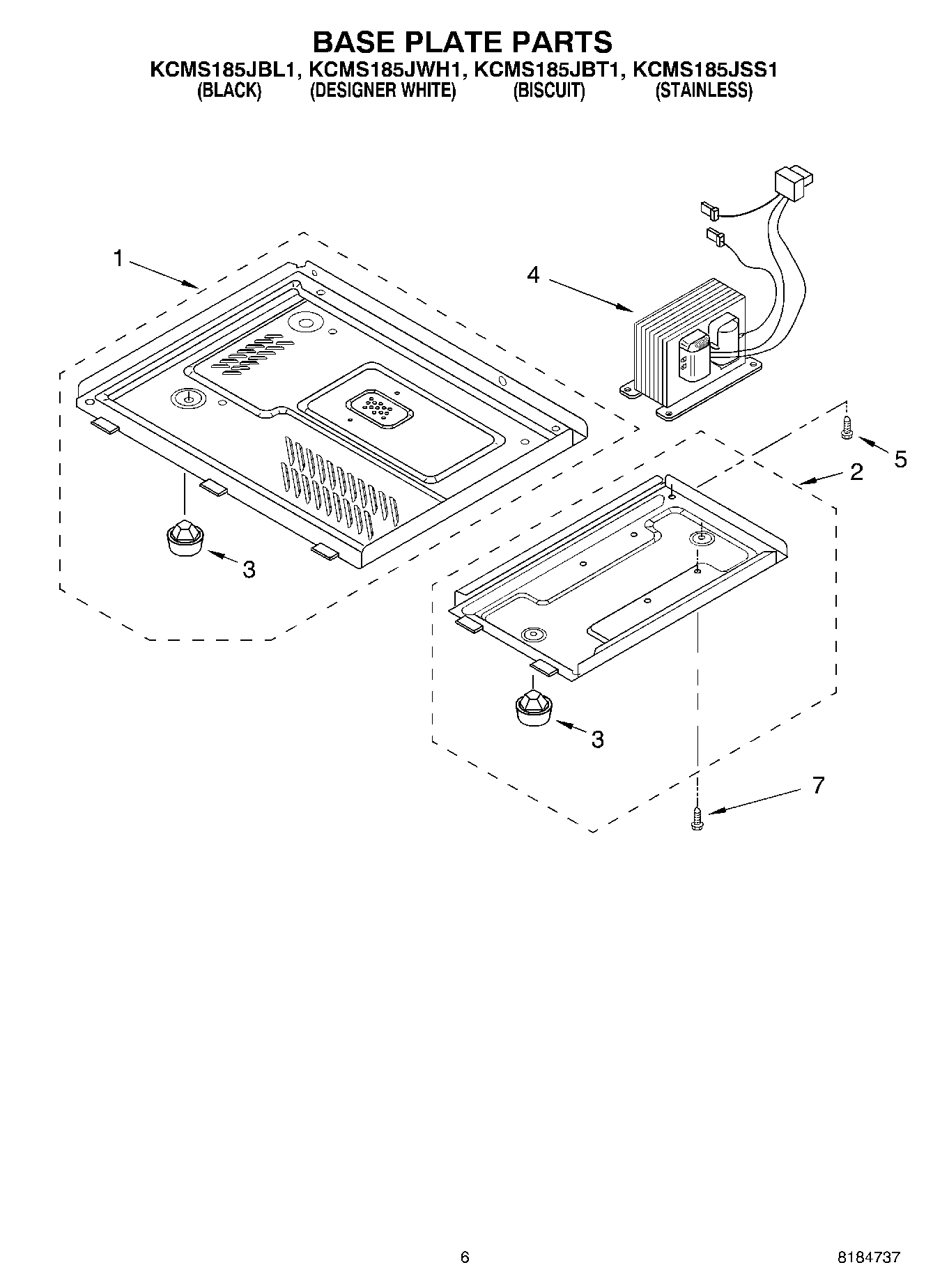

06 - BASE PLATE
Common parts from model Whirlpool KCMS185JSS1 MICROWAVE OVEN 1.8 CUBIC FOOT
1
Literature Parts (Guide, U & C) WPL LIT8172187 Contact Us For Availability
1
Literature PartsTech Sheet (English) WPL LIT8172196 Contact Us For Availability
1
Literature PartsTech Sheet (Spanish) WPL LIT8172197 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172209 Contact Us For Availability
1
Literature Parts (Built-In Cook Guide Label) WPL LIT8172218 Contact Us For Availability
1
Literature Parts (Template, B/I Kit) WPL LIT8172220 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI80706A5 Contact Us For Availability
1
Base Plate (L) WPL 4359921 Contact Us For Availability
2
Motor, Fan WPL 8172059 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Front Screen (BL/WH/BT Models) WPL 4359866 Contact Us For Availability
2
Front Screen (SS Model) WPL 8172006 Contact Us For Availability
2
Base Plate (R) WPL 4359922 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Door Frame Asm (BL/SS Models) WPL 8171890 Contact Us For Availability
3
Door Frame Asm (WH/BT Models) WPL 8172086 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
4
Choke Cover WPL 4359869 Contact Us For Availability
4
Outer Case (White) WPL 4359881 Contact Us For Availability
4
Outer Case (Black) WPL 8171897 Contact Us For Availability
4
Outer Case (Biscuit) WPL 8172091 Contact Us For Availability
4
Outer Case (Stainless) WPL 8183686 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
5
Control Panel (Biscuit) WPL 8183656 Contact Us For Availability
5
Control Panel (Stainless) WPL 8184880 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 4359870 Contact Us For Availability
6
Microcomputer WPL 8183862 Contact Us For Availability
6
Leadwire Assembly WPL 8172019 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
Fan, Stirrer WPL 8172022 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
8
Turntable Support WPL 8172018 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door (Black) WPL 8183651 Contact Us For Availability
9
Panel, Door (White) WPL 8183652 Contact Us For Availability
9
Panel, Door (Biscuit) WPL 8183653 Contact Us For Availability
9
Panel, Door (Stainless) WPL 8183716 Contact Us For Availability
9
Holder WPL 8172023 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Door Assembly (Black) WPL 8183647 Contact Us For Availability
10
Door Assembly (White) WPL 8183648 Contact Us For Availability
10
Door Assembly (Biscuit) WPL 8183649 Contact Us For Availability
10
Door Assembly (Stainless) WPL 8183650 Contact Us For Availability
10
Cover WPL 8171869 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 8183612 Contact Us For Availability
12
Duct, Air WPL 4359888 Contact Us For Availability
12
Support, Rack WPL 4358383 Contact Us For Availability
13
Rack WPL 8172101 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Bracket, Support WPL 8184344 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
15
Screw (White) WPL 8171876 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8183514 Contact Us For Availability
18
Guide, Sensor WPL 8183662 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
× ![]()
