Model LG KCMS185JBL MWO-J – Common Parts & Diagrams

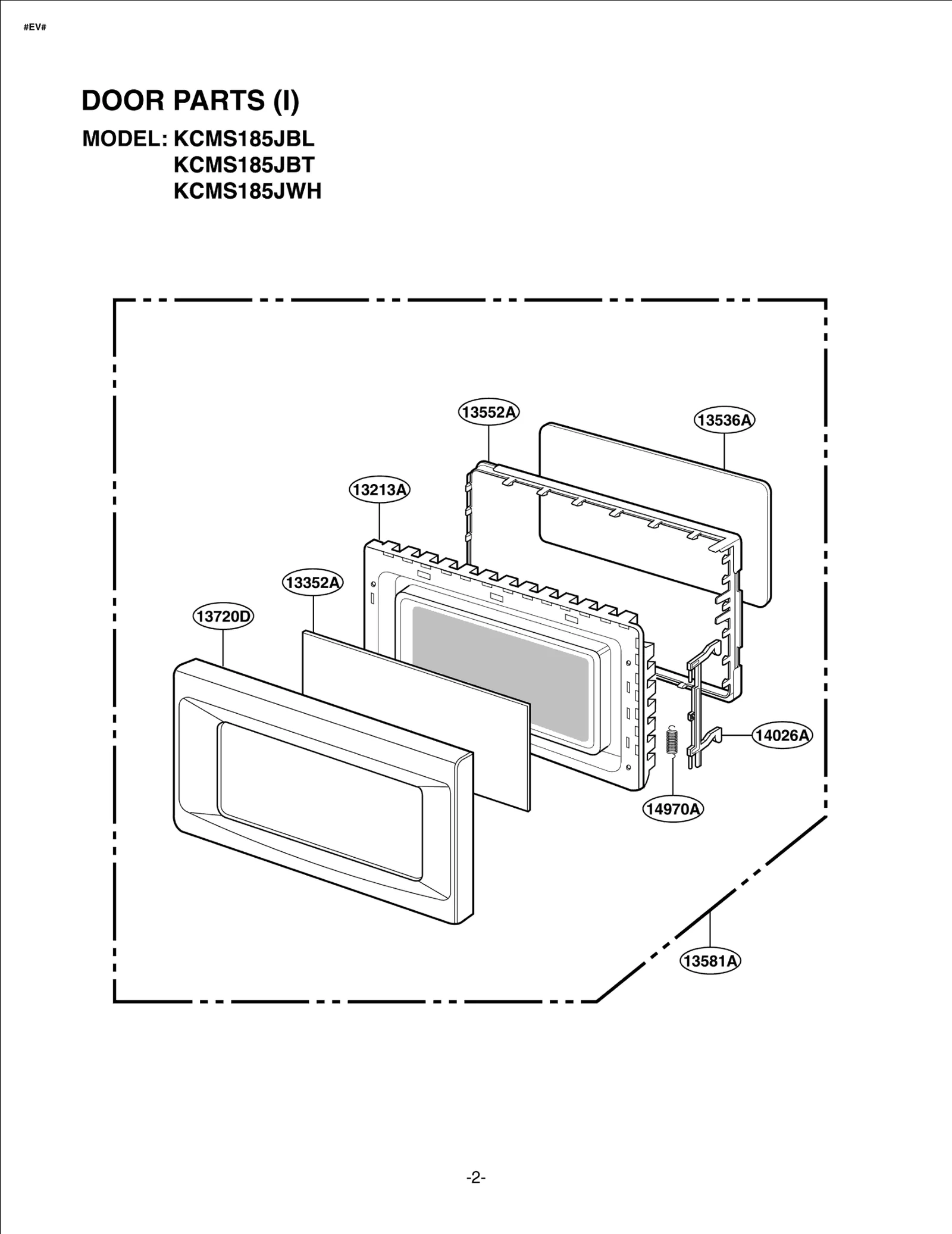

Diagram 0

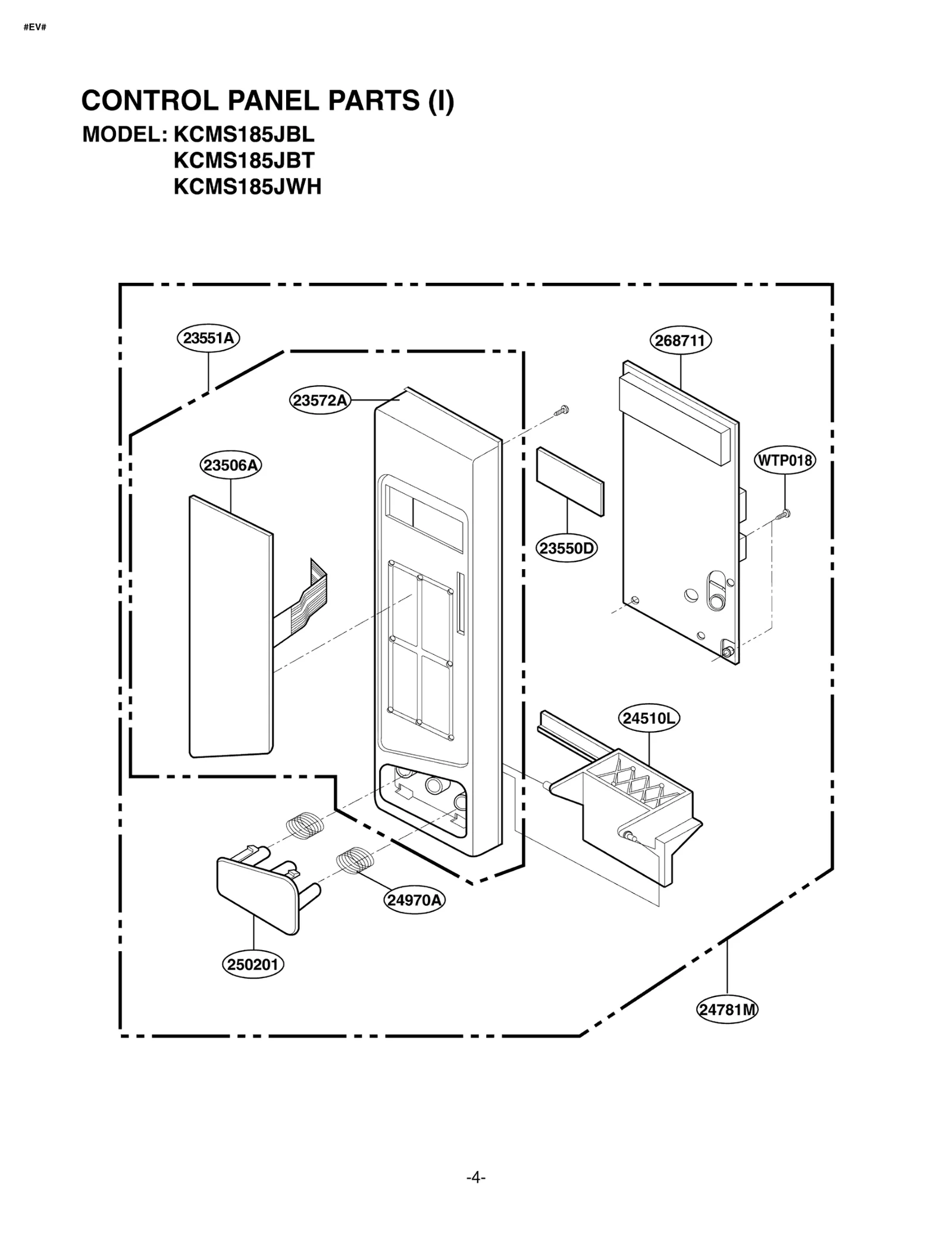

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG KCMS185JBL MWO-J
50CZZH
Capacitor,High Voltage LGE 6120W3H002C Contact Us For Availability
50CZZH
CAPACITOR,[HIGH VOLTAGE] LGE 6120W3H003J Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
Controller Assembly,Keypad LGE 4781W1M233B Contact Us For Availability
33112U
OUT CASE,[FLAT] LGE 3112W1F020E Contact Us For Availability
33390G
TRAY,[GLASS] LGE 3390W1G009C Contact Us For Availability
34930R
HOLDER,COOK AUXILIARY LGE 4930W1A027A Contact Us For Availability
35026G
SHELF (WITH BUMPER) LGE 5026W1A040C Contact Us For Availability
35889A
ROTATING RING ASSY LGE 5889W2A011C Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S015A Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011C Contact Us For Availability
43500A
BOARD,LATCH LGE 3500W1A008A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A003S Contact Us For Availability
53550F
COVER,MWO LGE 3550W1A077A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54810G
BRACKET,MWO LGE 4810W2G052A Contact Us For Availability
54930F
HOLDER,[STIRRER FAN] LGE 4930W3B026C Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
54974T
DUCT LGE 5208W1A004C Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55892A
STIRRER FAN LGE 5892W3A002B Contact Us For Availability
55900A
PROPELLER MA-1172M MS-155AM LGE 2B72125B Contact Us For Availability
56170D
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D023J Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D023B Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D050K Contact Us For Availability
56411A
POWER CORD ASSEMBLY LGE 6411W1A018G Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A018F Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F015B Contact Us For Availability
56912B
LAMP,DRAWING LGE 6912W3B002Q Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
56930V
THERMOSTAT HORIZONTAL 90/75,PA LGE 6930WRT001C Contact Us For Availability
63302L
Plate,Base LGE 3302W0A014A Contact Us For Availability
63302R
Plate,Base LGE 3302W1A046A Contact Us For Availability
63303L
BASE PLATE ASSY,MWO LGE 3303W0A010A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W1A040A Contact Us For Availability
250201
BUTTON MWO LGE 5020W2A085B Contact Us For Availability
268711
PWB(PCB) ASSY,[MAIN] LGE 6871W2S197C Contact Us For Availability
466001
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
466001
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
466003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
466003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A172A Contact Us For Availability
MAY000
BOX,[YELLOW] LGE 3890W3Y110A Contact Us For Availability
MBM792
Card,Technical LGE 3840W5T084A Contact Us For Availability
MEZ173
LABEL,[COOKING GUIDE] LGE 3850W3D047A Contact Us For Availability
MEZ174
LABEL,[COOKING GUIDE] LGE 3850W3D047B Contact Us For Availability
MFL552
MANUAL,[OWNERS]MWO LGE 3828W5A1502 Contact Us For Availability
WSZ202
SCREW,DRAWING LGE 1SZZW2A002D Contact Us For Availability
× ![]()
