Model Whirlpool KCMS1555SSS1 MICROWAVE OVEN 1.5 CUBIC FOOT – Common Parts & Diagrams
06 - BASE PLATE PARTS
04 - LATCH BOARD PARTS

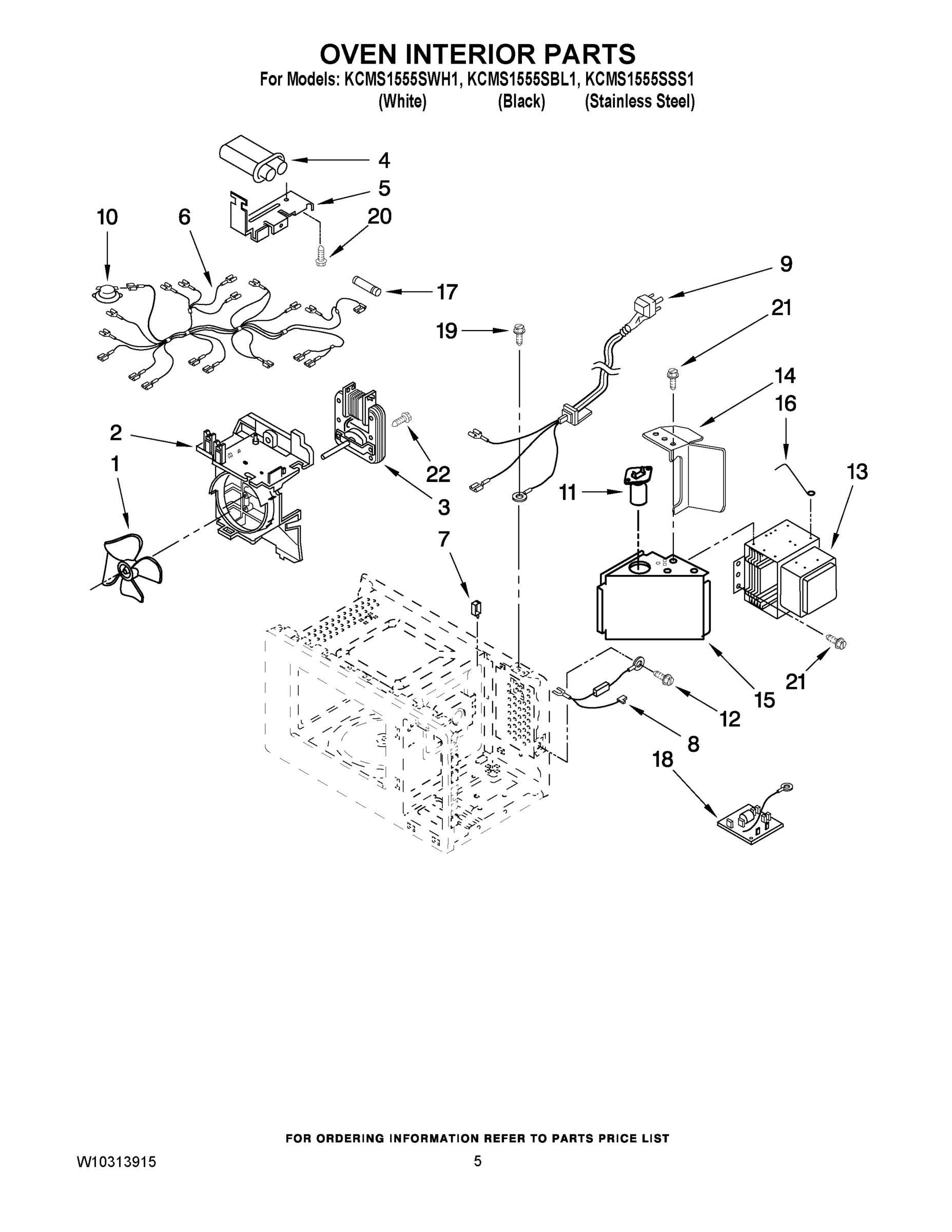

05 - OVEN INTERIOR PARTS

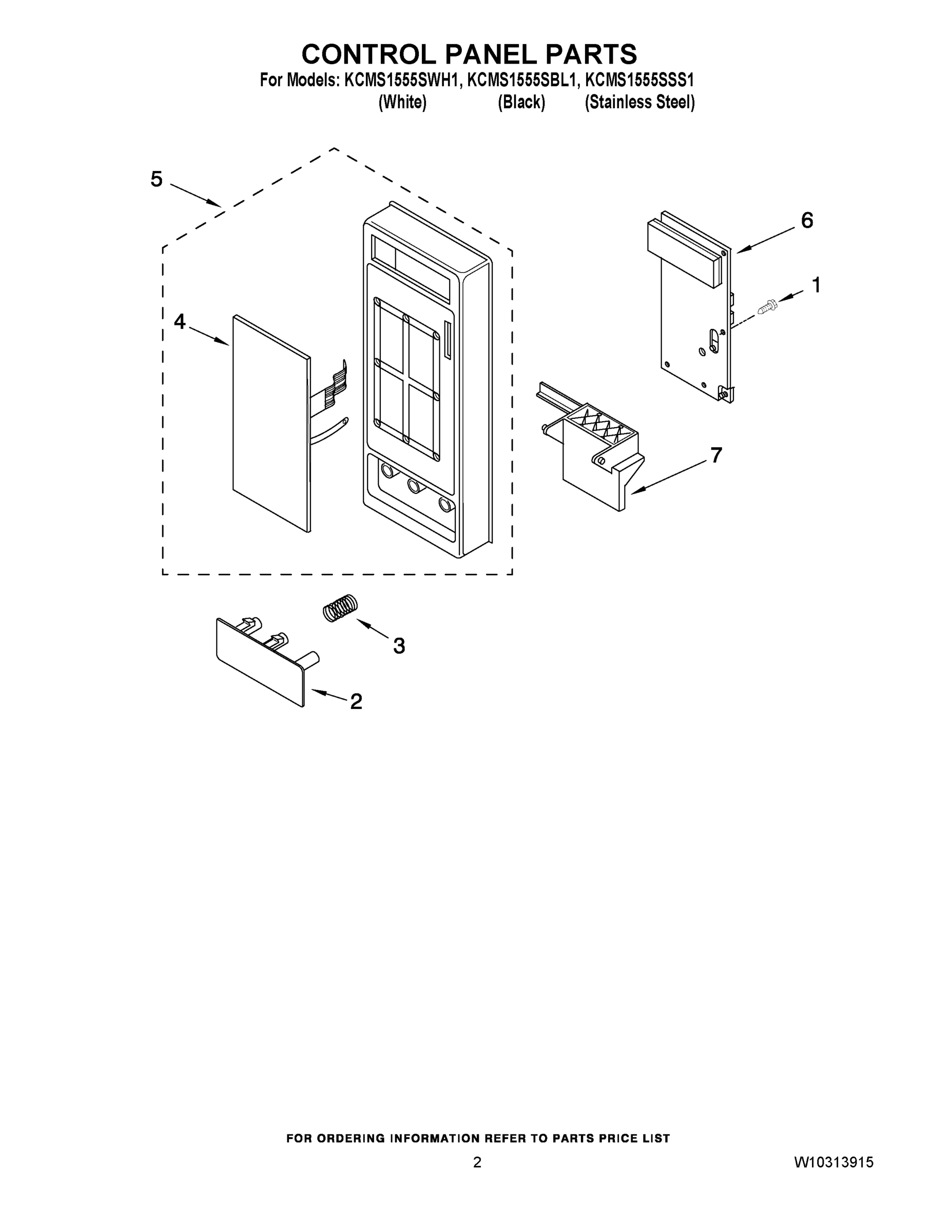

02 - CONTROL PANEL PARTS

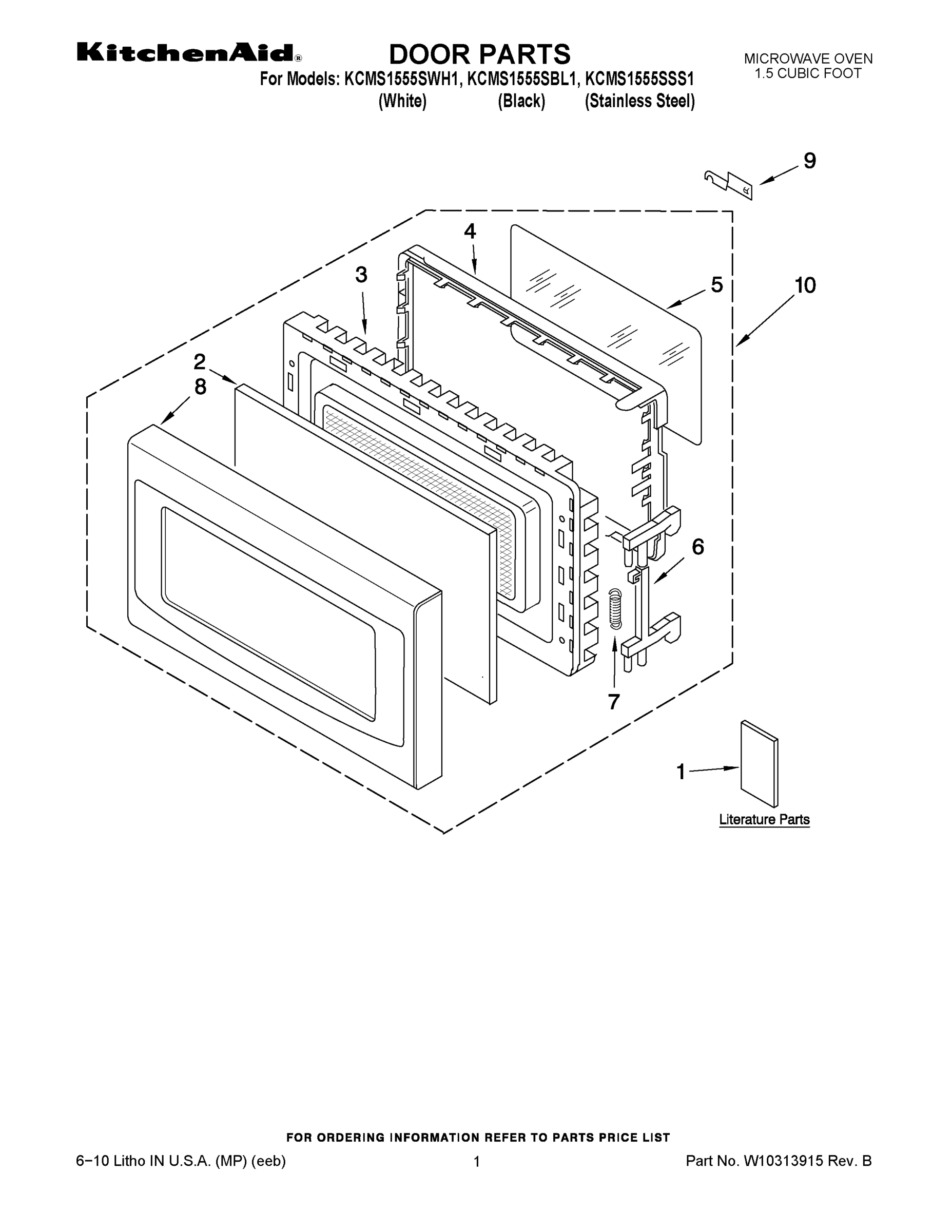

01 - DOOR PARTS

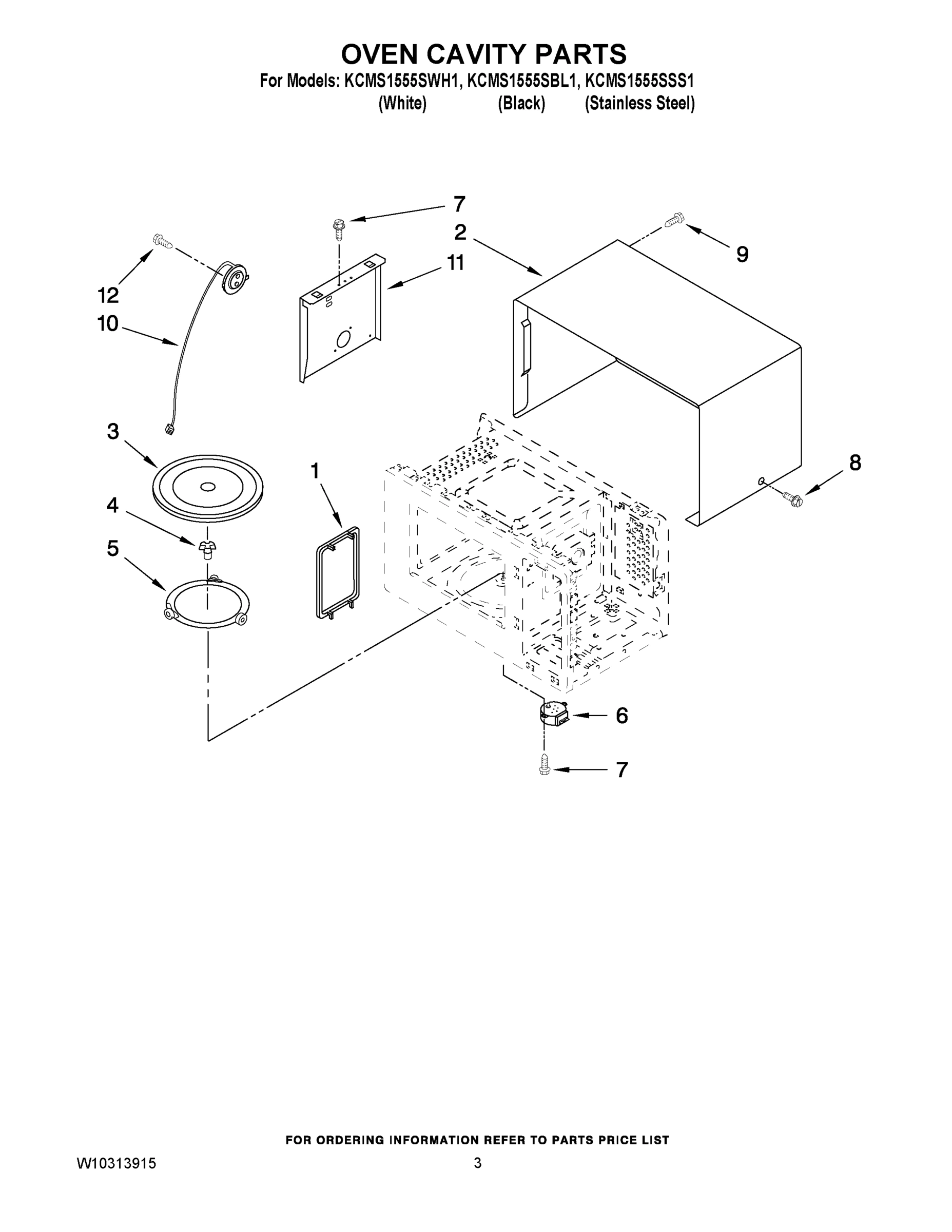

03 - OVEN CAVITY PARTS
Common parts from model Whirlpool KCMS1555SSS1 MICROWAVE OVEN 1.5 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Blade, Fan WPL 8205458 Contact Us For Availability
1
Screw WPL 4358883 Contact Us For Availability
1
Instructions, Installation (For Trim Kit) WPL 8205554 Contact Us For Availability
1
Cook Guide Label WPL W10114101 Contact Us For Availability
1
Tech Sheet WPL W10169262 Contact Us For Availability
1
USE & CARE GUIDE WPL W10215301 Contact Us For Availability
2
Release Button (Black) WPL W10169304 Contact Us For Availability
2
Release Button (White) WPL W10169271 Contact Us For Availability
2
FRONT SCREEN WPL W10318028 Contact Us For Availability
2
Outer Case (White) WPL 8205453 Contact Us For Availability
2
Outer Case (Black) WPL 8205801 Contact Us For Availability
2
Outer Case (Stainless) WPL 8205818 Contact Us For Availability
3
Motor, Fan WPL 8205462 Contact Us For Availability
3
FRAME ASSEMBLY (NON-SERVICEABLE) WPL NP Contact Us For Availability
3
Tray, Glass WPL W10143945 Contact Us For Availability
4
Shaft, Turntable WPL W10143947 Contact Us For Availability
4
Membrane (Black) WPL W10169302 Contact Us For Availability
4
Membrane (White) WPL W10169269 Contact Us For Availability
4
Choke Cover WPL W10169266 Contact Us For Availability
5
RING, ROTATING WPL W10207752 Contact Us For Availability
5
BLACK WPL W10169303 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
CONTROL PANEL WPL 8205816 Contact Us For Availability
5
WHITE WPL W10169270 Contact Us For Availability
5
TAPE,SEAL WPL W10169264 Contact Us For Availability
6
MOTOR, SYNCHRONOUS WPL W10207749 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
Microcomputer WPL W10169272 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Screw WPL 4358188 Contact Us For Availability
8
Panel, Door (Black) WPL W10169301 Contact Us For Availability
8
Panel, Door (Stainless) WPL W10169314 Contact Us For Availability
8
Panel, Door (White) WPL W10169268 Contact Us For Availability
9
Cap, Choke Cover WPL 8184265 Contact Us For Availability
9
Screw WPL 8171862 Contact Us For Availability
10
Door Assembly (Stainless) WPL W10169312 Contact Us For Availability
10
Sensor, Humidity WPL 8183514 Contact Us For Availability
10
Door Assembly (Black) WPL W10169300 Contact Us For Availability
10
Door Assembly (White) WPL W10169267 Contact Us For Availability
11
Guide, Sensor WPL 8205457 Contact Us For Availability
12
Screw WPL W10160553 Contact Us For Availability
12
Screw WPL 4358376 Contact Us For Availability
14
Bracket WPL 8205509 Contact Us For Availability
15
Duct, Air WPL 8204900 Contact Us For Availability
16
Bracket, Support WPL 8184290 Contact Us For Availability
18
Filter, Noise WPL 8206270 Contact Us For Availability
19
Screw WPL 8204902 Contact Us For Availability
22
Screw WPL 4358190 Contact Us For Availability
× ![]()
