Model Whirlpool KCMS1555RWH0 MICROWAVE OVEN 1.5 CUBIC FOOT – Common Parts & Diagrams
05 - OVEN INTERIOR PARTS
04 - LATCH BOARD PARTS

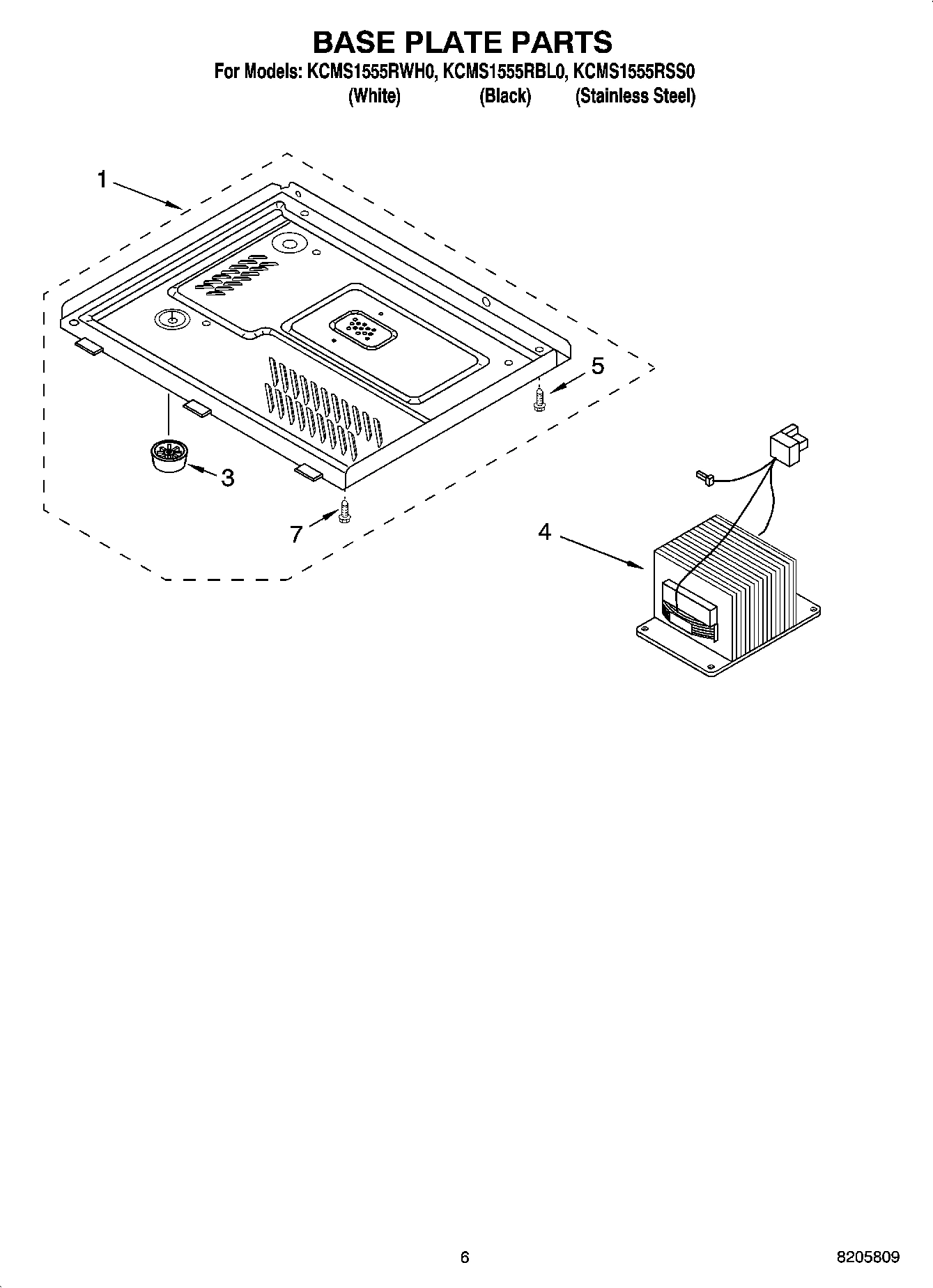

06 - BASE PLATE PARTS

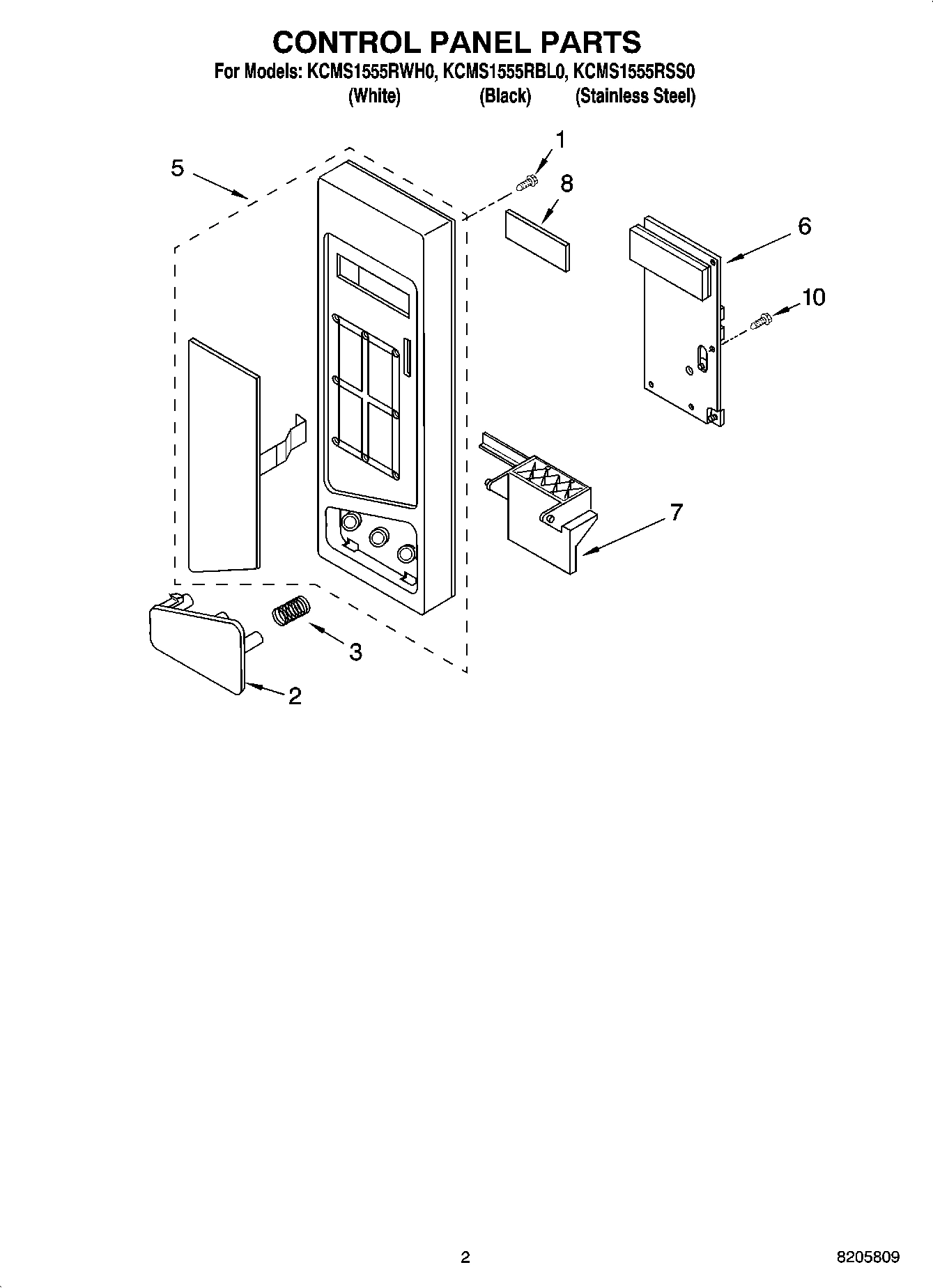

02 - CONTROL PANEL PARTS

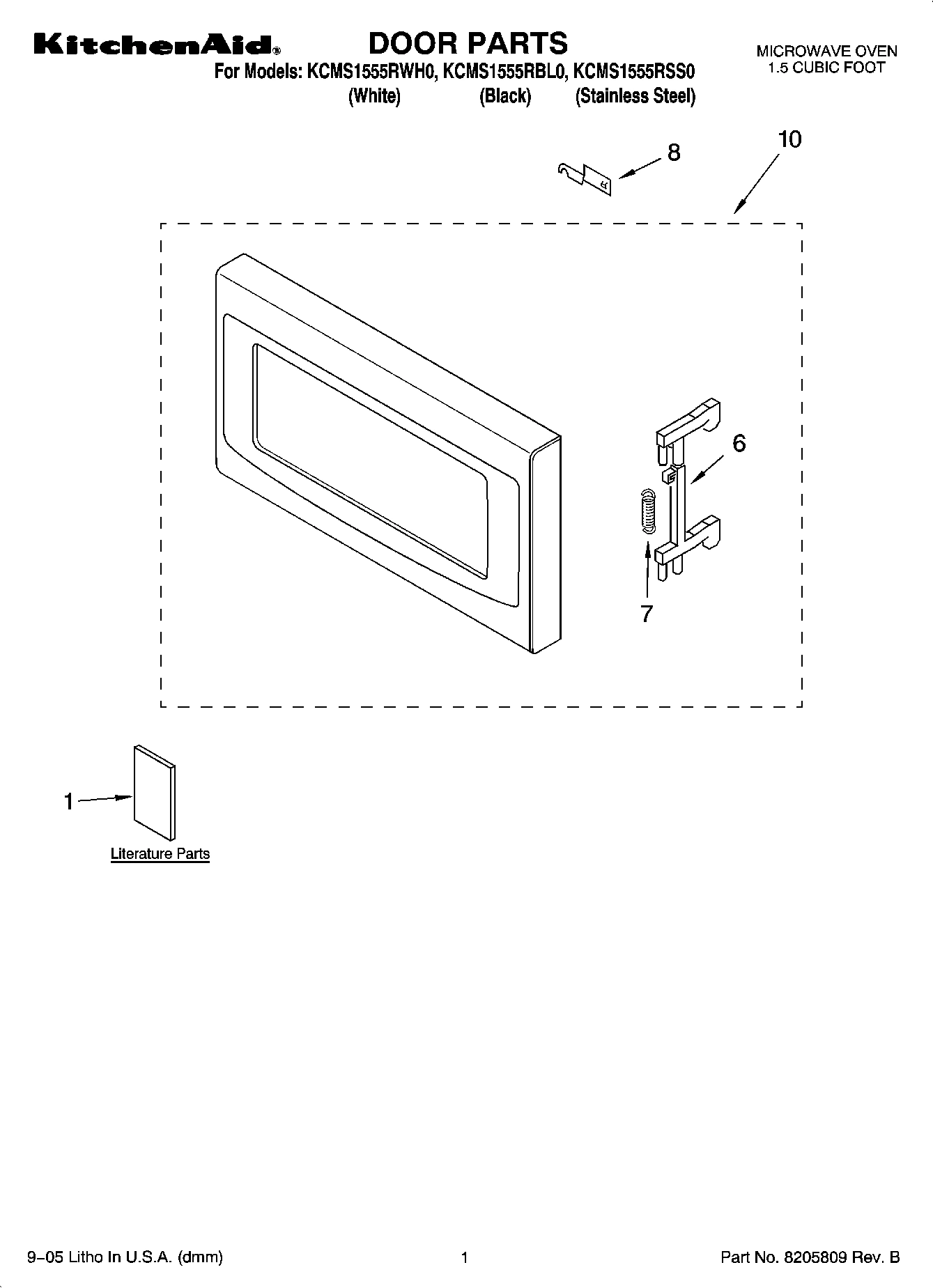

01 - DOOR PARTS

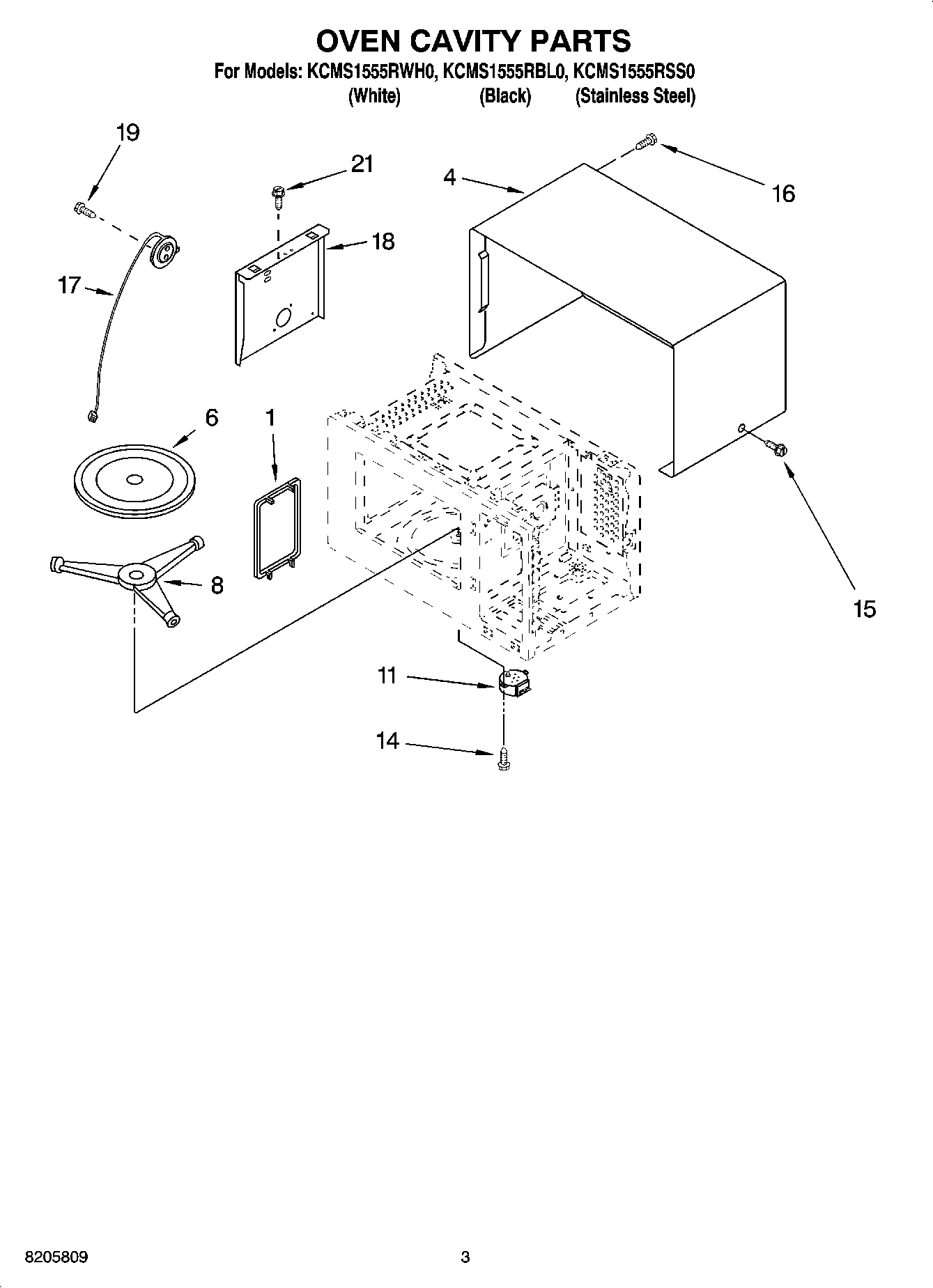

03 - OVEN CAVITY PARTS
Common parts from model Whirlpool KCMS1555RWH0 MICROWAVE OVEN 1.5 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Blade, Fan WPL 8205458 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI80679A2 Contact Us For Availability
1
Base Plate WPL 8205464 Contact Us For Availability
1
Screw WPL 4358381 Contact Us For Availability
1
Use & Care Guide WPL 8205541 Contact Us For Availability
1
Tech Sheet WPL 8205542 Contact Us For Availability
1
Cook Guide Label WPL 8205550 Contact Us For Availability
1
Instructions, Installation (For Trim Kit) WPL 8205554 Contact Us For Availability
2
Release Button (Black) WPL 8205799 Contact Us For Availability
2
Release Button (White) WPL 8205806 Contact Us For Availability
2
Release Button (Stainless) WPL 8205817 Contact Us For Availability
3
Motor, Fan WPL 8205462 Contact Us For Availability
3
Leg WPL 8184385 Contact Us For Availability
3
Spring, Button WPL 8184272 Contact Us For Availability
4
Transformer WPL 8205459 Contact Us For Availability
4
Outer Case (White) WPL 8205453 Contact Us For Availability
4
Outer Case (Black) WPL 8205801 Contact Us For Availability
4
Outer Case (Stainless) WPL 8205818 Contact Us For Availability
5
Control Panel (Black) WPL 8205798 Contact Us For Availability
5
Control Panel (White) WPL 8205805 Contact Us For Availability
5
Control Panel (Stainless) WPL 8205816 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8205800 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Hardware Pack (Incl in Trim Kit) WPL 8172131 Contact Us For Availability
7
ACCESSORY PARTS WPL ARI80680A7 Contact Us For Availability
7
Trim Kits WPL ARI80681A2 Contact Us For Availability
7
30`` Black WPL MK1150XPB Contact Us For Availability
7
30`` White WPL MK1150XPQ Contact Us For Availability
7
30`` Stainless WPL MK1150XPS Contact Us For Availability
7
24`` Black WPL MK1154XPB Contact Us For Availability
7
24`` White WPL MK1154XPQ Contact Us For Availability
7
24`` Stainless WPL MK1154XPS Contact Us For Availability
7
27`` Black WPL MK1157XPB Contact Us For Availability
7
27`` White WPL MK1157XPQ Contact Us For Availability
7
27`` Stainless WPL MK1157XPS Contact Us For Availability
8
Turntable Support WPL 8205148 Contact Us For Availability
8
Cap WPL 8184265 Contact Us For Availability
8
Lens WPL 8204891 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (Black) WPL 8205797 Contact Us For Availability
10
Door Assembly (White) WPL 8205804 Contact Us For Availability
10
Door Assembly (Stainless) WPL 8205815 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw (Black Model) WPL 4358829 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8183514 Contact Us For Availability
18
Guide, Sensor WPL 8205457 Contact Us For Availability
19
Screw WPL 4358376 Contact Us For Availability
× ![]()
