Model Whirlpool KCMS1555RSS1 MICROWAVE OVEN 1.5 CUBIC FOOT – Common Parts & Diagrams

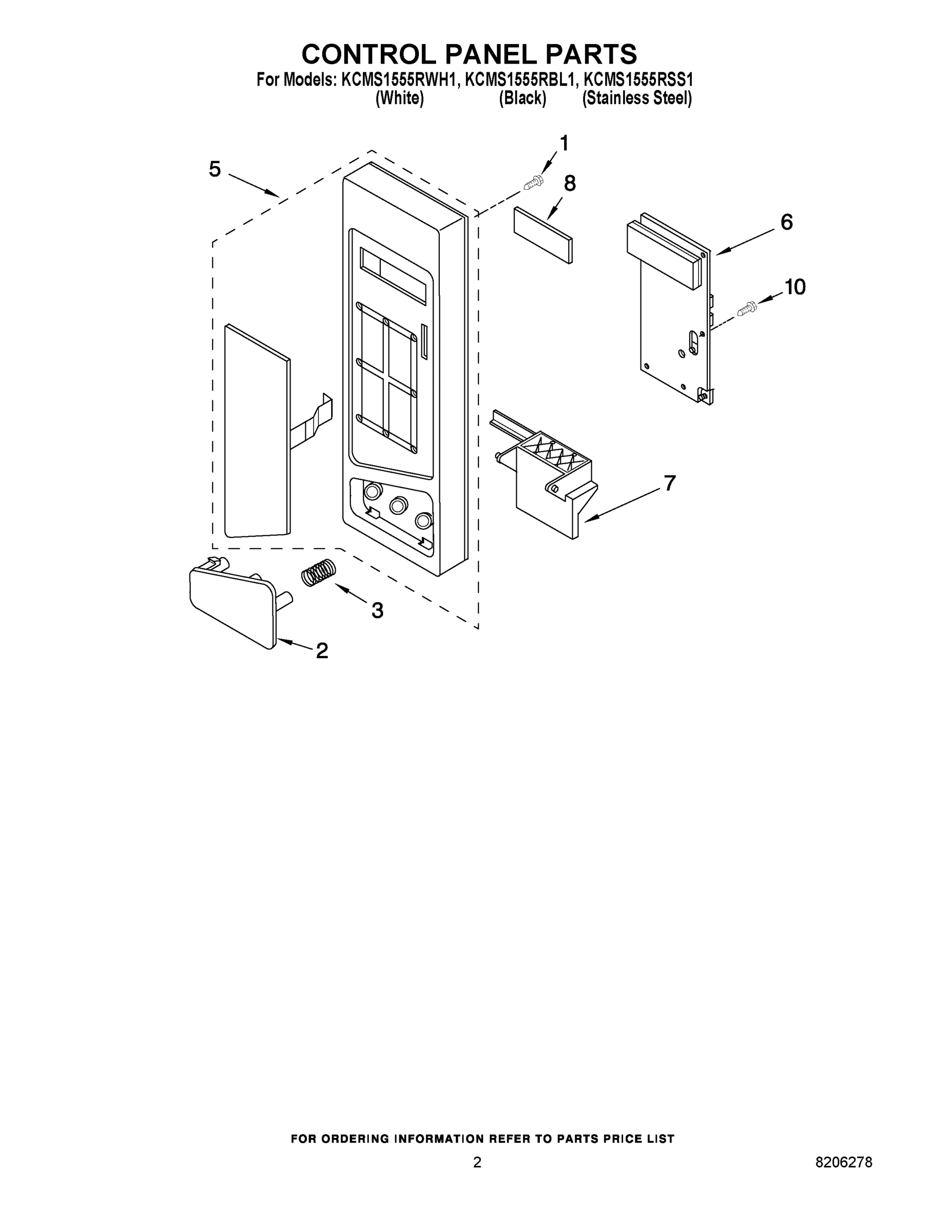

02 - CONTROL PANEL PARTS

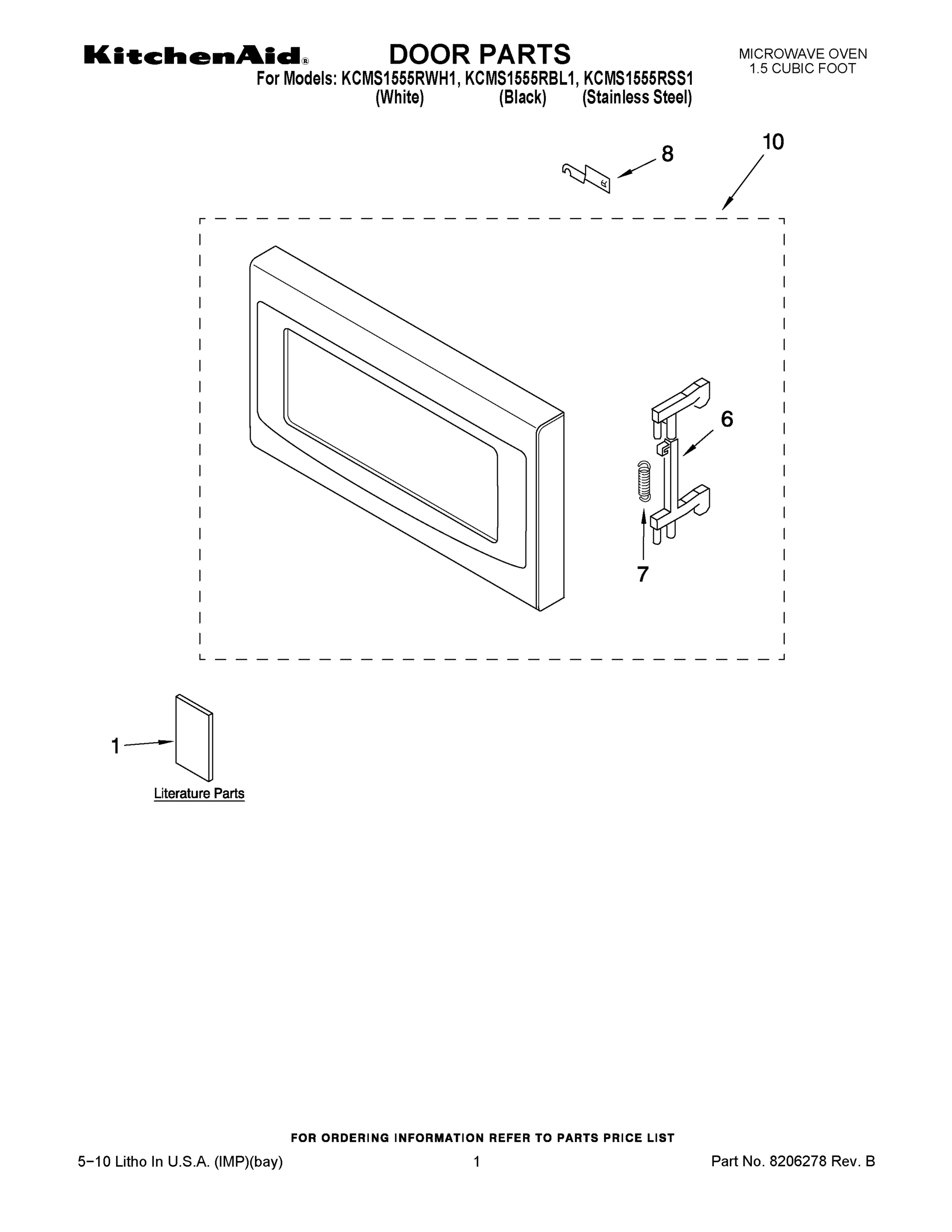

01 - DOOR PARTS
05 - OVEN INTERIOR PARTS
03 - OVEN CAVITY PARTS
04 - LATCH BOARD PARTS
06 - BASE PLATE PARTS
Common parts from model Whirlpool KCMS1555RSS1 MICROWAVE OVEN 1.5 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Blade, Fan WPL 8205458 Contact Us For Availability
1
LATCH BOARD ASSEMBLY (NON-SERVICEABLE) WPL NP Contact Us For Availability
1
Base Plate WPL 8205464 Contact Us For Availability
2
Release Button (Black) WPL 8205799 Contact Us For Availability
2
Release Button (White) WPL 8205806 Contact Us For Availability
2
Guide, Suction WPL 8205456 Contact Us For Availability
3
Motor, Fan WPL 8205462 Contact Us For Availability
3
Leg WPL 8184385 Contact Us For Availability
4
Outer Case (White) WPL 8205453 Contact Us For Availability
4
Outer Case (Black) WPL 8205801 Contact Us For Availability
4
Outer Case (Stainless) WPL 8205818 Contact Us For Availability
4
Transformer WPL 8205459 Contact Us For Availability
5
H.V.C Bracket WPL 8184288 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
Leadwire Assembly WPL 8206283 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Holder, Wire WPL 4359794 Contact Us For Availability
8
Turntable Support WPL 8205148 Contact Us For Availability
8
Cap WPL 8184265 Contact Us For Availability
9
Power Cord WPL 8206281 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Cap, Fuse WPL 8205483 Contact Us For Availability
14
Bracket WPL 8205509 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Duct, Air WPL 8204900 Contact Us For Availability
15
Screw (Black Model) WPL 4358829 Contact Us For Availability
16
Bracket, Support WPL 8184290 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8183514 Contact Us For Availability
18
Guide, Sensor WPL 8205457 Contact Us For Availability
18
Filter, Noise WPL 8206270 Contact Us For Availability
19
Screw WPL 4358376 Contact Us For Availability
21
Screw WPL 4358381 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
NI
TRIM KITS (HARDWARE PACK (INCL IN TRIM KIT)) WPL 8172131 Contact Us For Availability
NI
Trim Kits (30`` Black) WPL MK1150XPB Contact Us For Availability
NI
Trim Kits (30`` White) WPL MK1150XPQ Contact Us For Availability
NI
Trim Kits (30`` Stainless) WPL MK1150XPS Contact Us For Availability
NI
Trim Kits (24`` Black) WPL MK1154XPB Contact Us For Availability
NI
Trim Kits (24`` White) WPL MK1154XPQ Contact Us For Availability
NI
Trim Kits (24`` Stainless) WPL MK1154XPS Contact Us For Availability
NI
Trim Kits (27`` Black) WPL MK1157XPB Contact Us For Availability
NI
Trim Kits (27`` White) WPL MK1157XPQ Contact Us For Availability
NI
Trim Kits (27`` Stainless) WPL MK1157XPS Contact Us For Availability
× ![]()
