Model Whirlpool KCMS145JSS0 MICROWAVE OVEN 1.4 CUBIC FOOT – Common Parts & Diagrams
03 - OVEN CAVITY
05 - OVEN INTERIOR

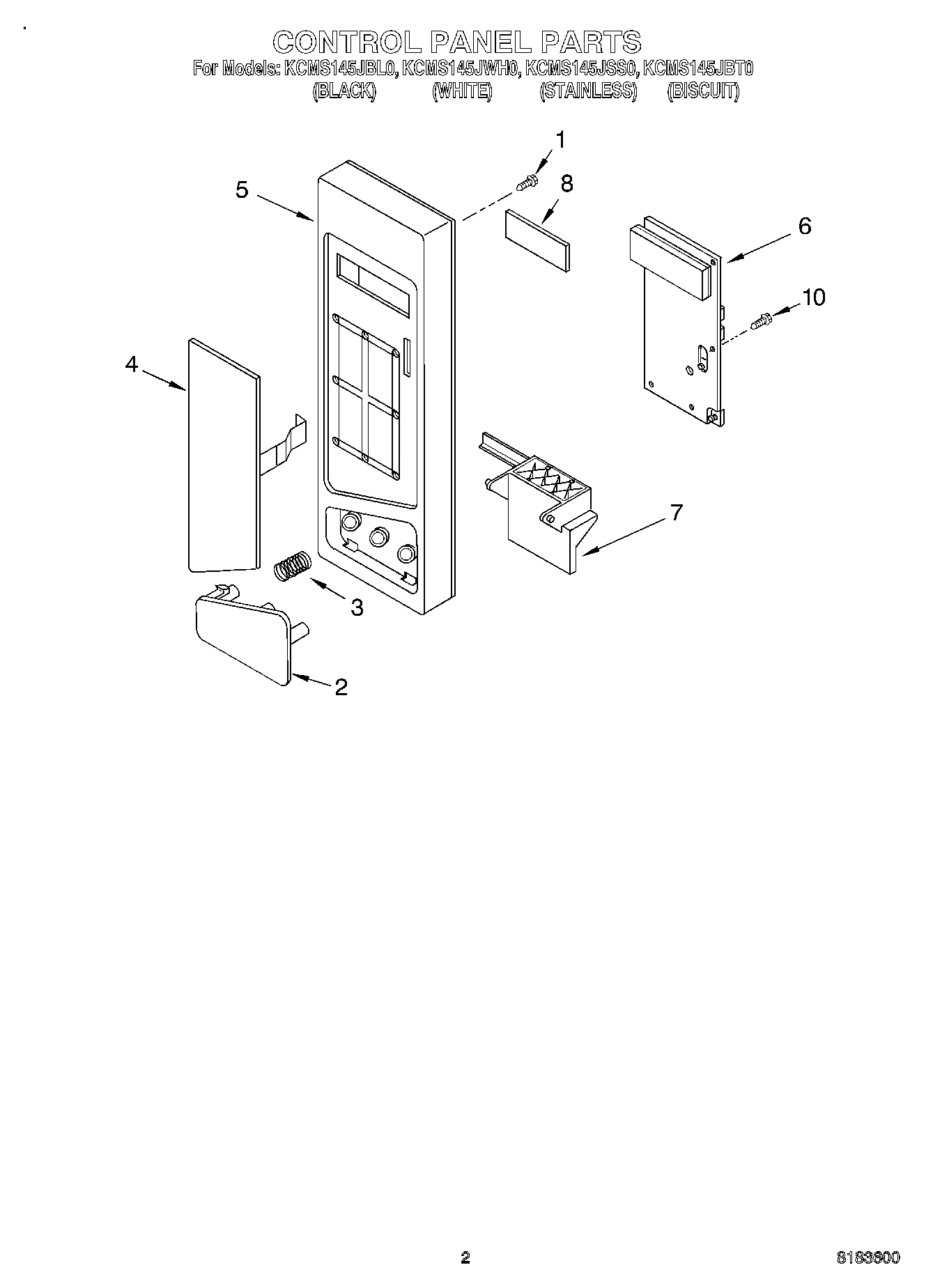

02 - CONTROL PANEL

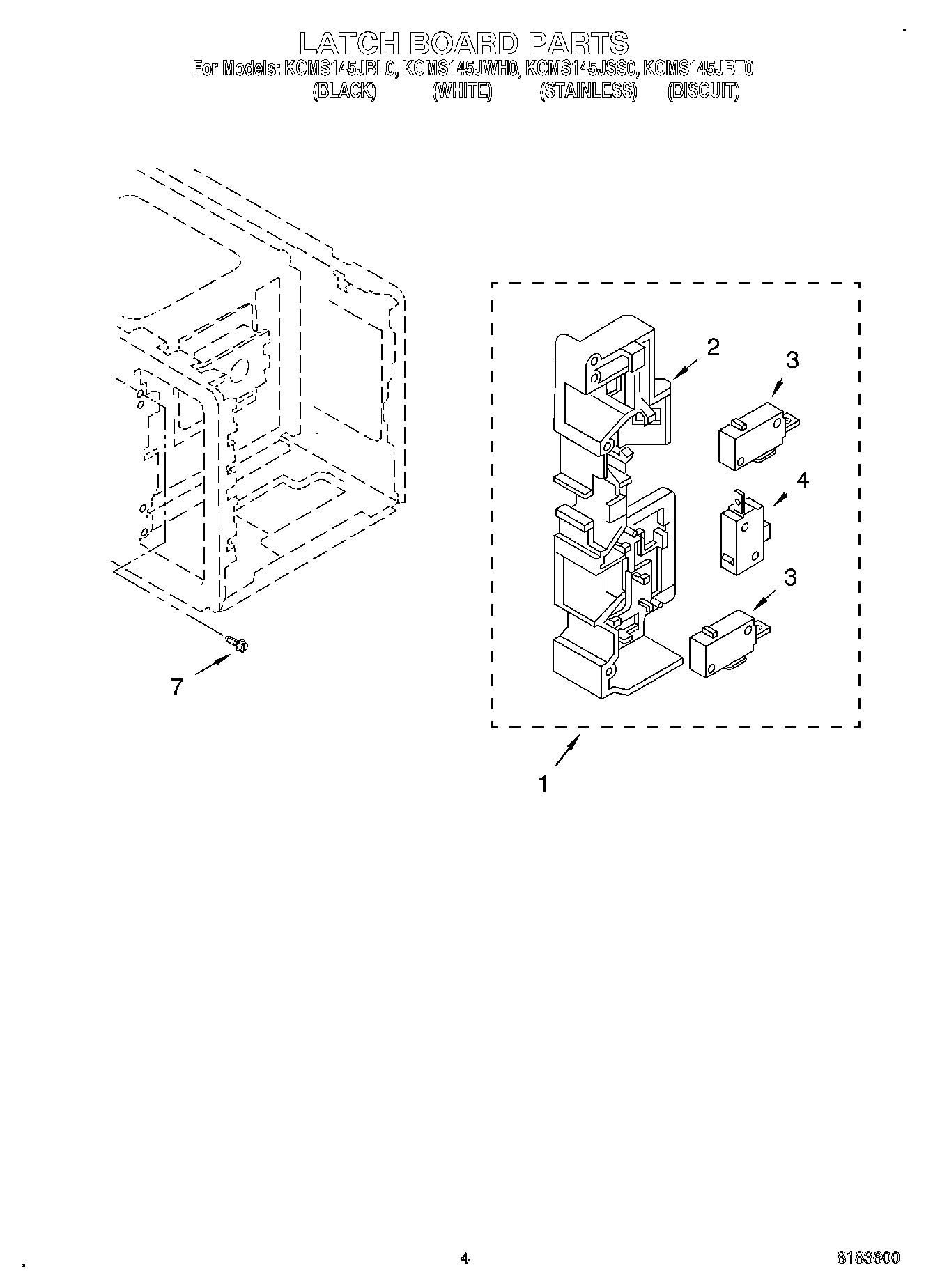

04 - LATCH BOARD

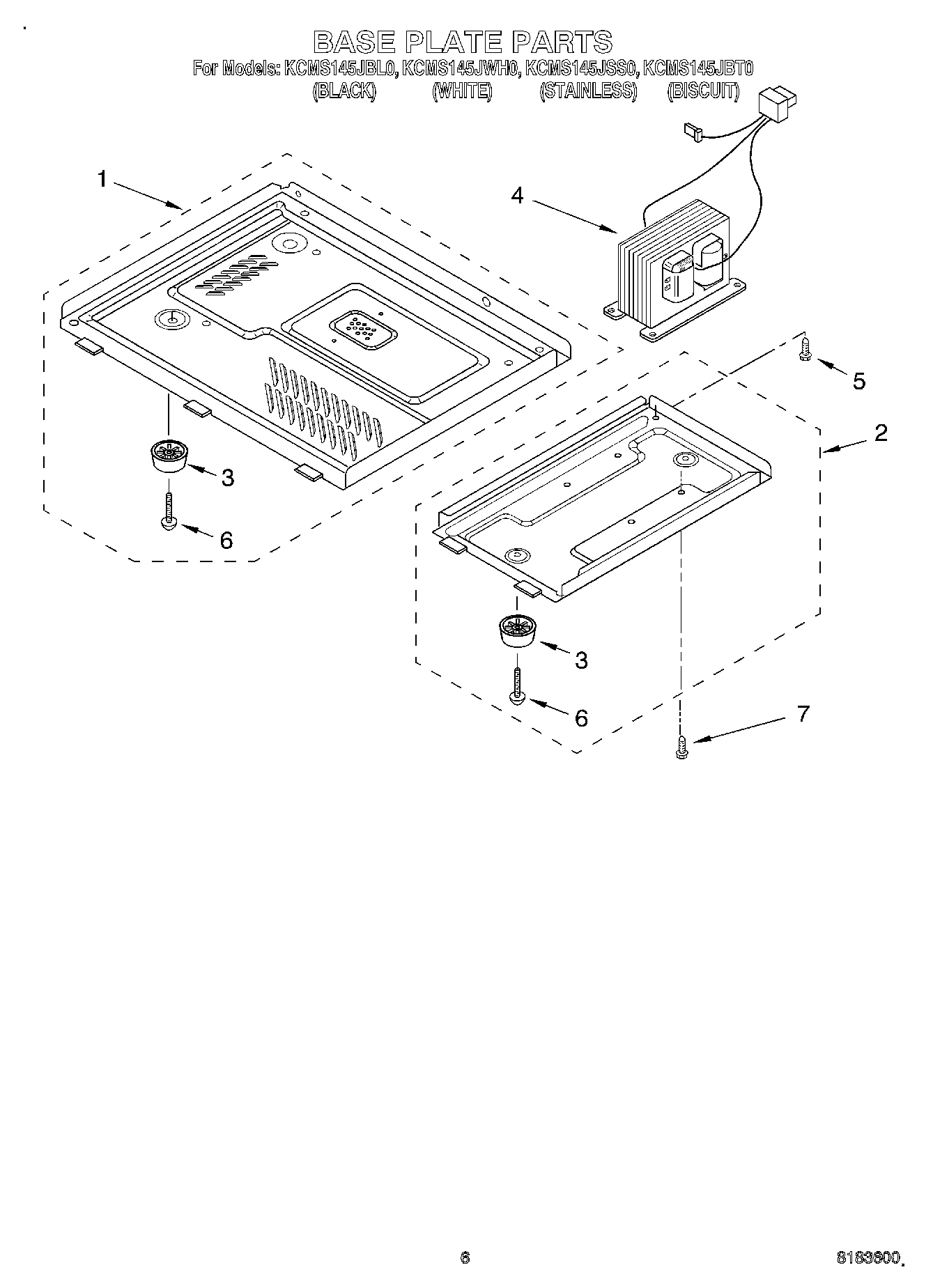

06 - BASE PLATE

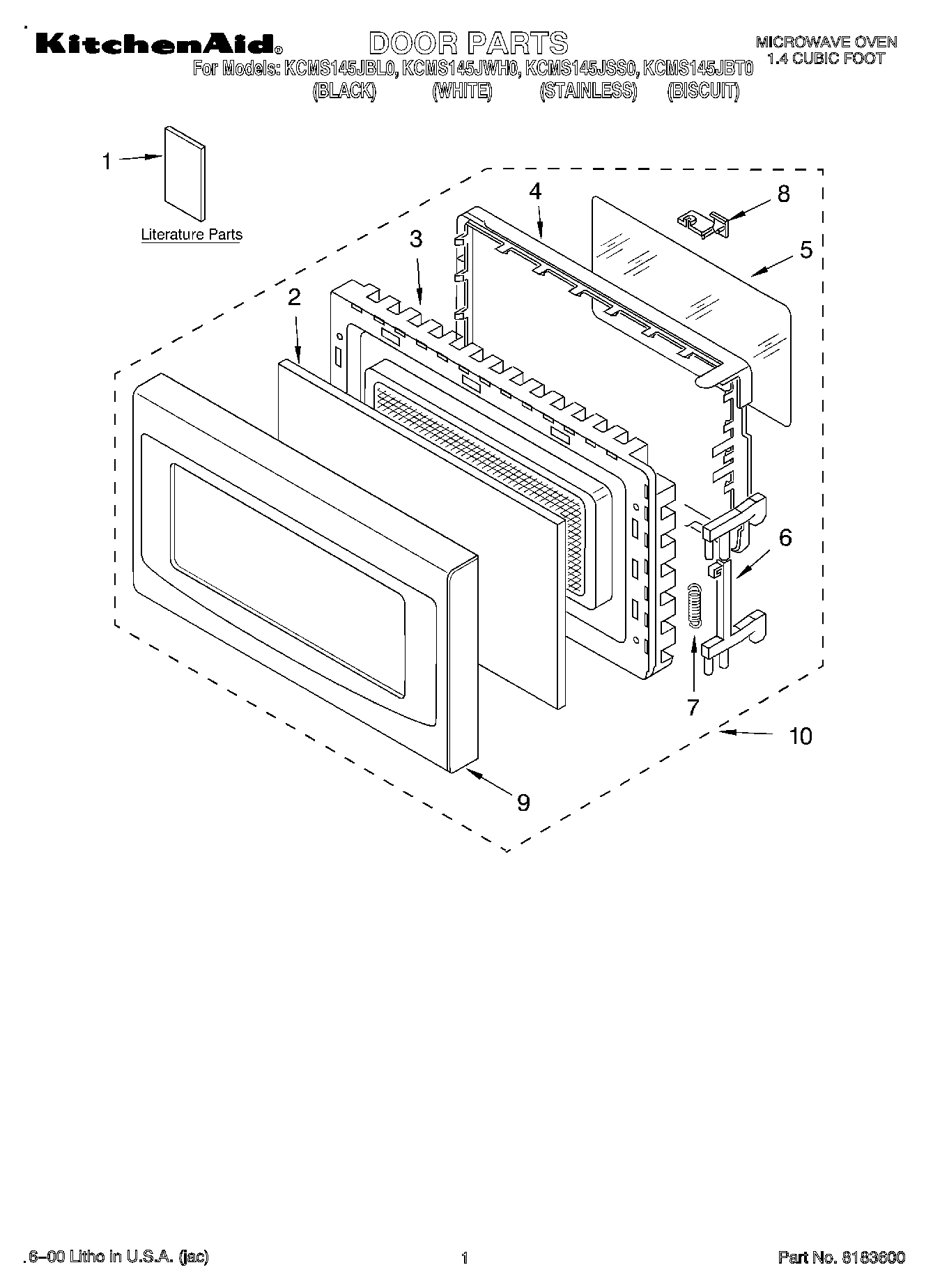

01 - DOOR, LITERATURE
Common parts from model Whirlpool KCMS145JSS0 MICROWAVE OVEN 1.4 CUBIC FOOT
1
Latch Board Assembly (Not Serviceable) WPL ARI80653A8 Contact Us For Availability
1
Base Plate (L) WPL 8172002 Contact Us For Availability
1
Literature (Use & Care Guide) WPL LIT8172187 Contact Us For Availability
1
Literature (Cook Guide Label) (English) WPL LIT8172196 Contact Us For Availability
1
Literature (Cook Guide Label) (Spanish) WPL LIT8172197 Contact Us For Availability
1
Literature (Cook Guide Label) (Tech Sheet) WPL LIT8172208 Contact Us For Availability
1
Literature (Cook Guide Label) (Instructions, WPL LIT8172217 Contact Us For Availability
1
Literature (Cook Guide Label) (Template, B/I WPL LIT8172220 Contact Us For Availability
2
Release Button (Stainless) WPL 8172029 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Release Button (Biscuit) WPL 4359937 Contact Us For Availability
2
Button, Release (White) WPL 8172028 Contact Us For Availability
2
Button, Release (Black) WPL 8172030 Contact Us For Availability
2
Base Plate (R) WPL 8172001 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 4359761 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8172024 Contact Us For Availability
3
Door Frame Assembly (Biscuit) WPL 8172025 Contact Us For Availability
4
Key Membrane (Stainless) WPL 8183627 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 8183628 Contact Us For Availability
4
Key Membrane (Black) WPL 8183625 Contact Us For Availability
4
Key Membrane (White) WPL 8183626 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel (White) WPL 4359850 Contact Us For Availability
5
Control Panel (Black) WPL 4359851 Contact Us For Availability
5
Control Panel (Biscuit) WPL 4359939 Contact Us For Availability
5
Control Panel (Stainless) WPL 8205816 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
6
Leadwire Assembly WPL 8183526 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8183629 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Hardware Pack (Incl in Trim Kit) WPL 8172131 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Lens WPL 4359720 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
9
Panel, Door (White (Stainless Not Available)) WPL 4359843 Contact Us For Availability
9
Panel, Door (Black) WPL 4359844 Contact Us For Availability
9
Panel, Door (Biscuit) WPL 4359936 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (Stainless Steel) WPL 4359839 Contact Us For Availability
10
Door Assembly (White) WPL 4359840 Contact Us For Availability
10
Door Assembly (Black) WPL 4359841 Contact Us For Availability
10
Door Assembly (Biscuit) WPL 4359933 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
12
Cap, Fuse WPL 4358659 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
15
Duct, Air WPL 8171808 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8183514 Contact Us For Availability
18
Guide, Sensor WPL 8183515 Contact Us For Availability
18
Cushion (Not Serviceable) WPL ARI80654A1 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
× ![]()
