Model Whirlpool KCMS145JBL1 MICROWAVE OVEN 1.4 CUBIC FOOT – Common Parts & Diagrams

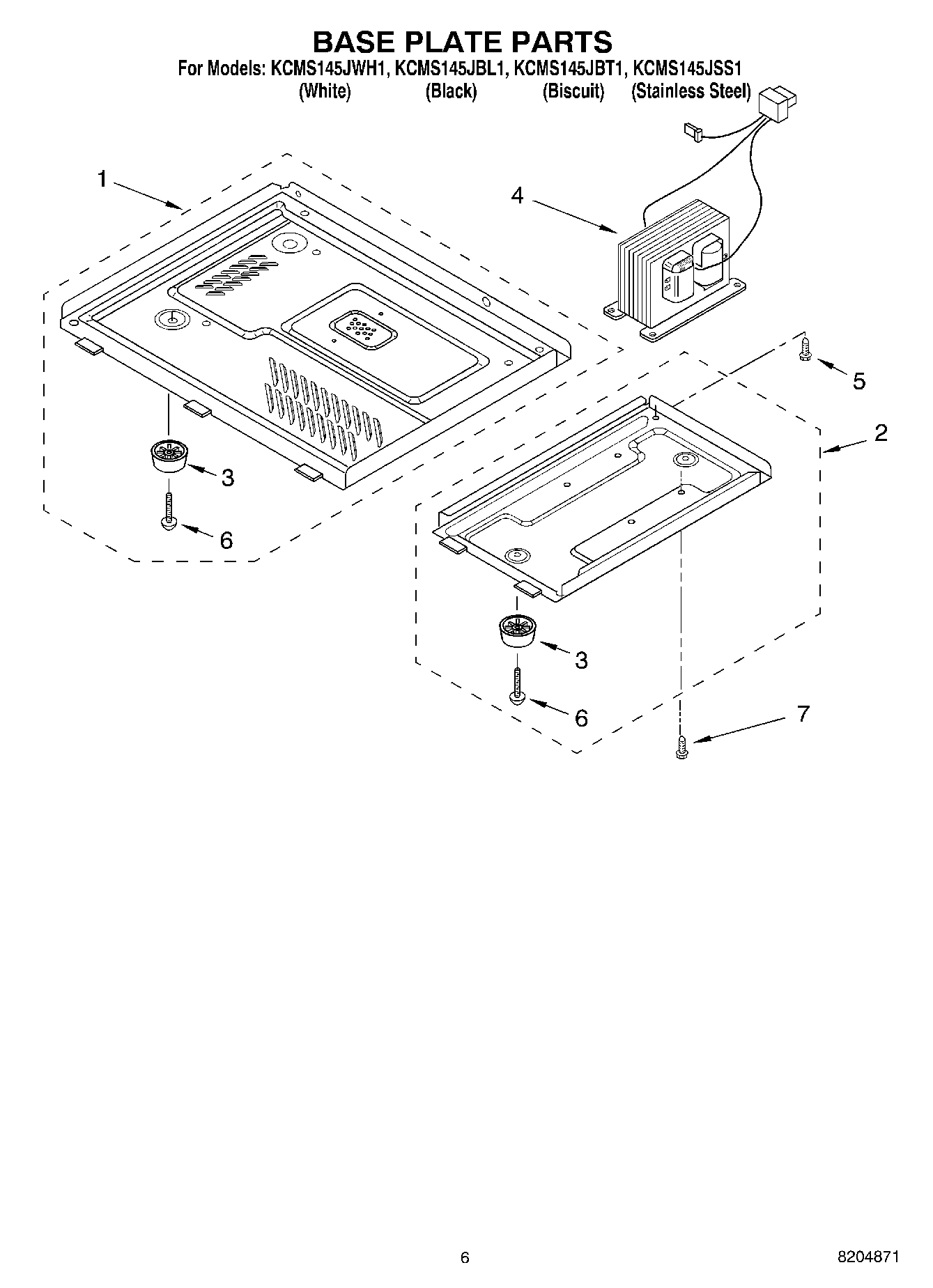

06 - BASE PLATE PARTS

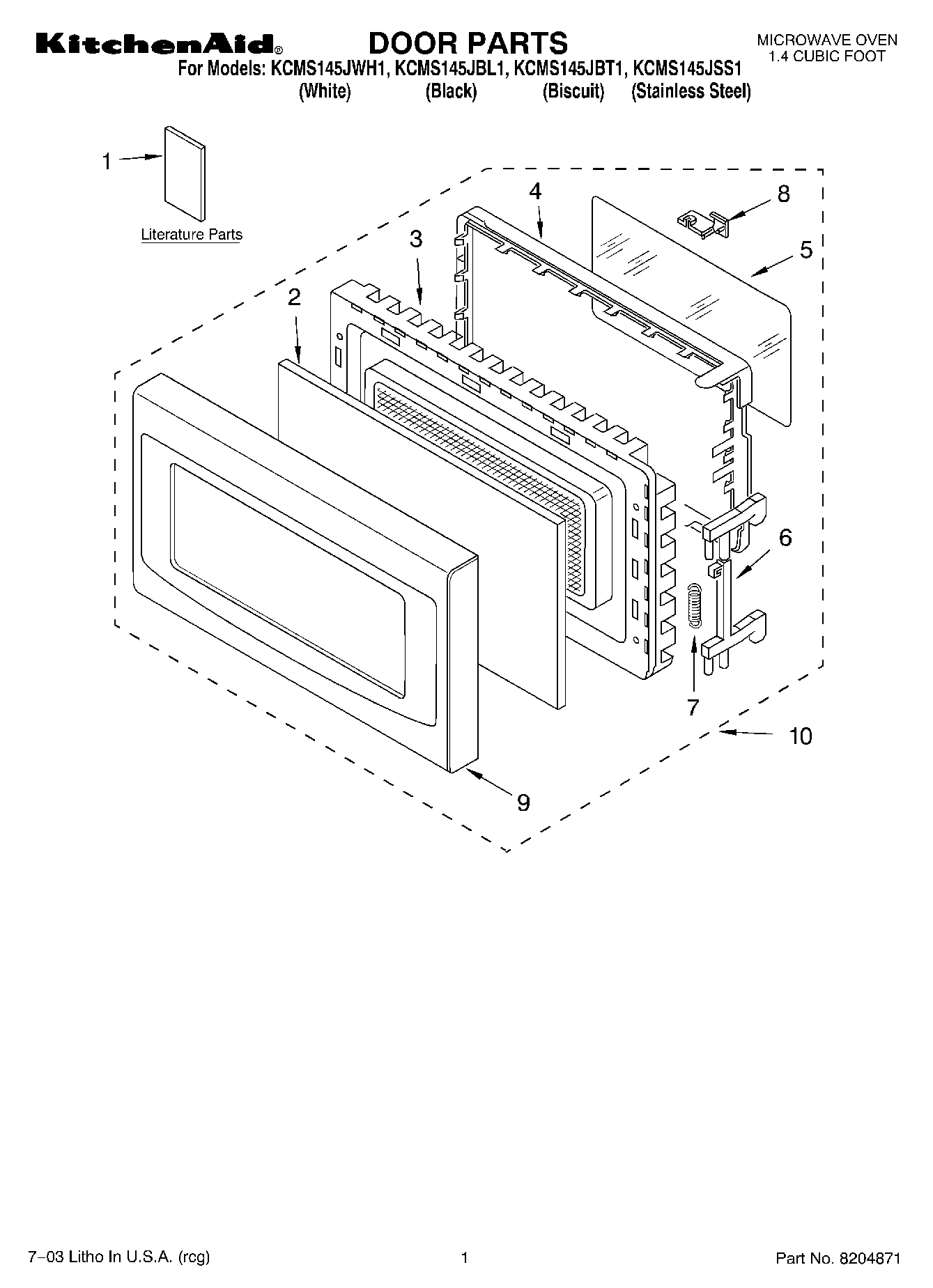

01 - DOOR PARTS

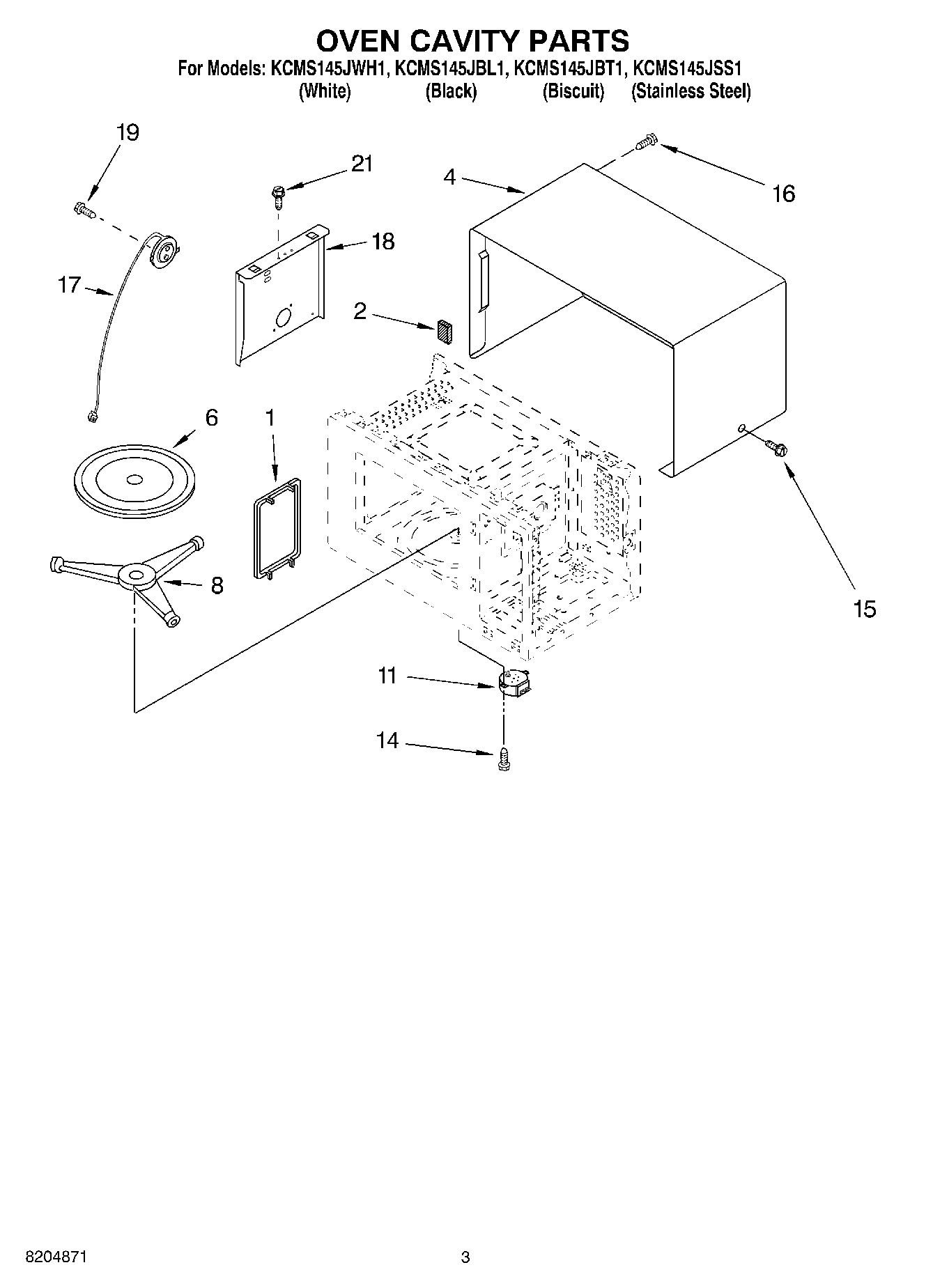

03 - OVEN CAVITY PARTS

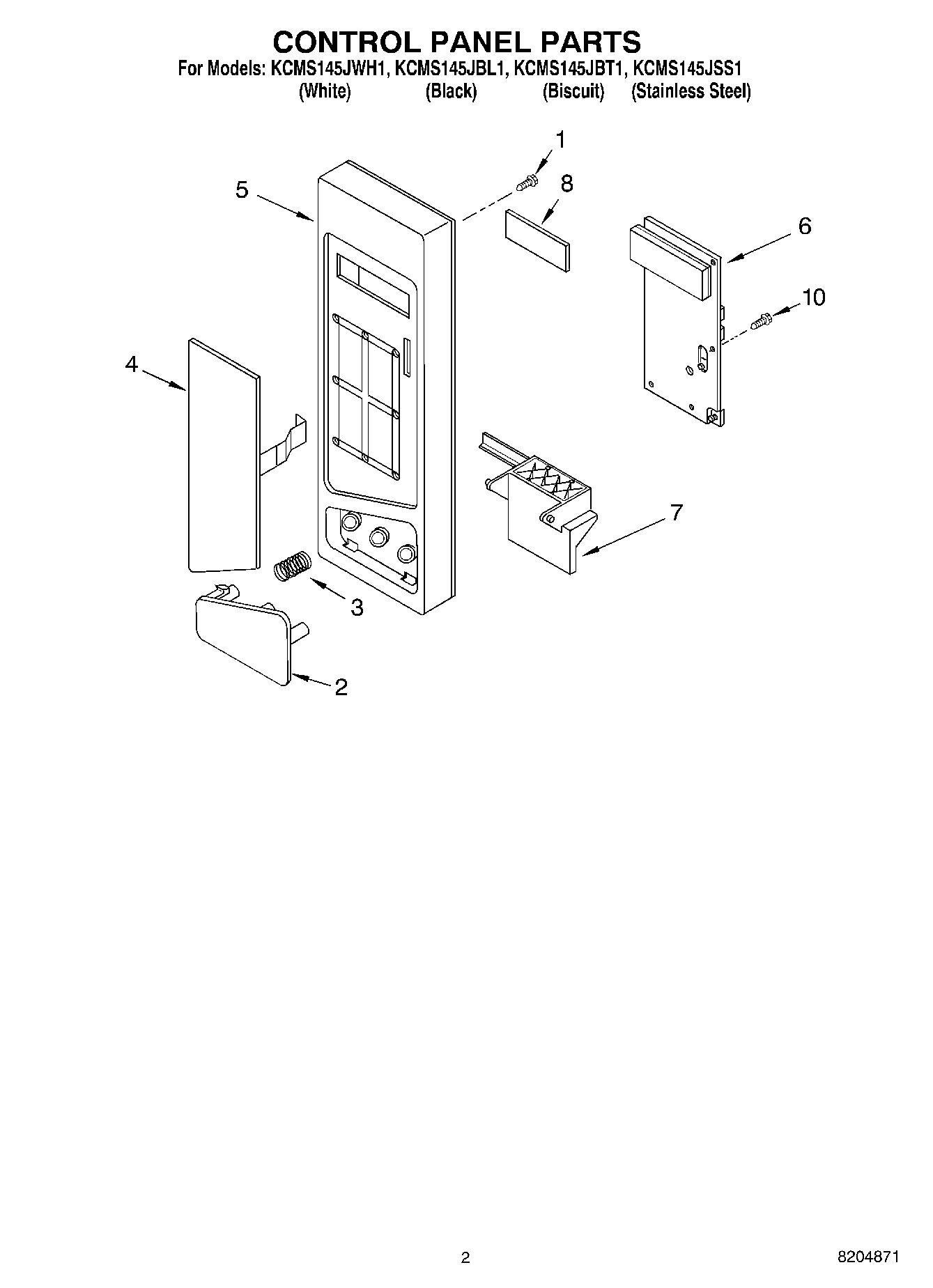

02 - CONTROL PANEL PARTS

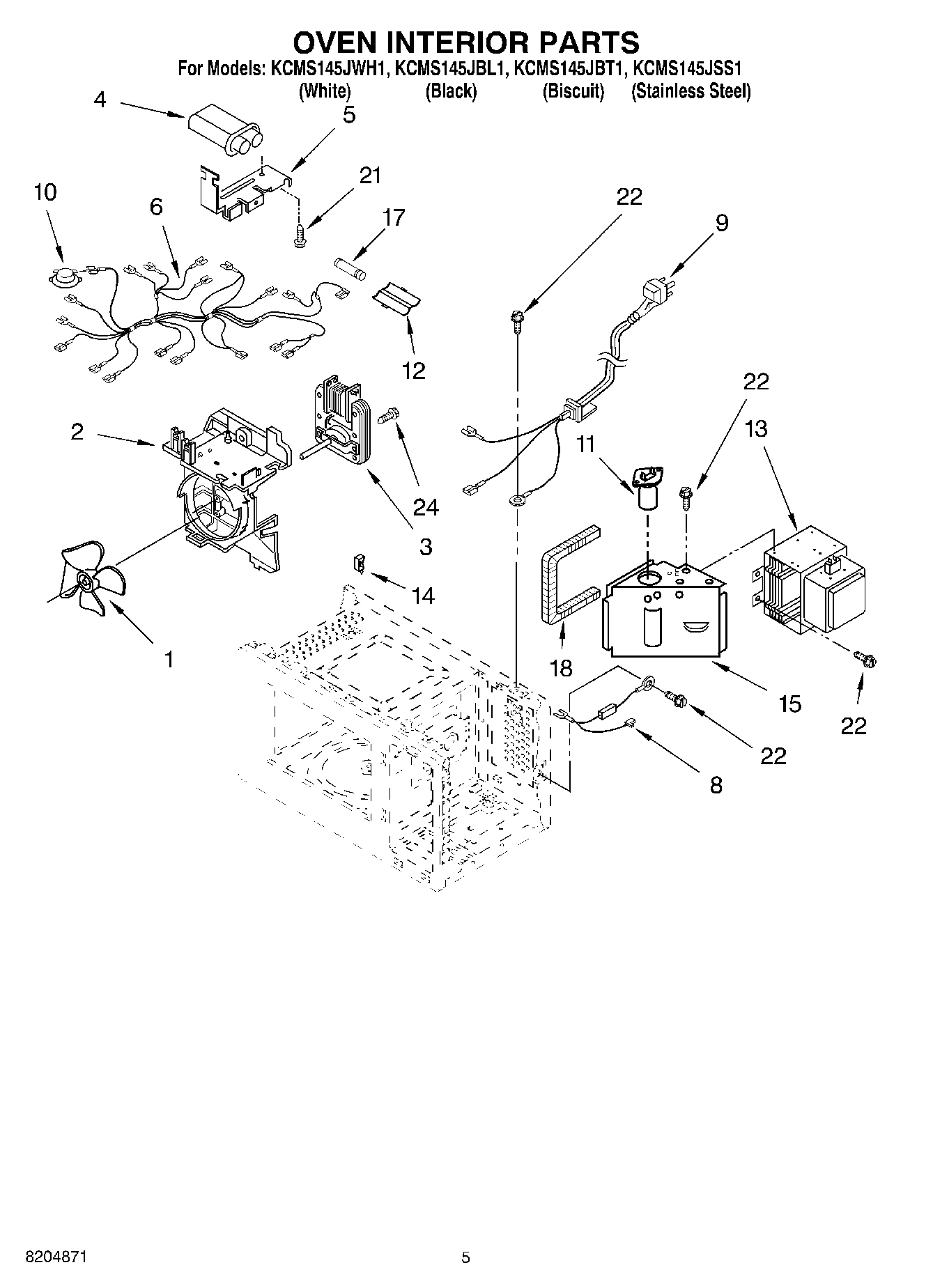

05 - OVEN INTERIOR PARTS

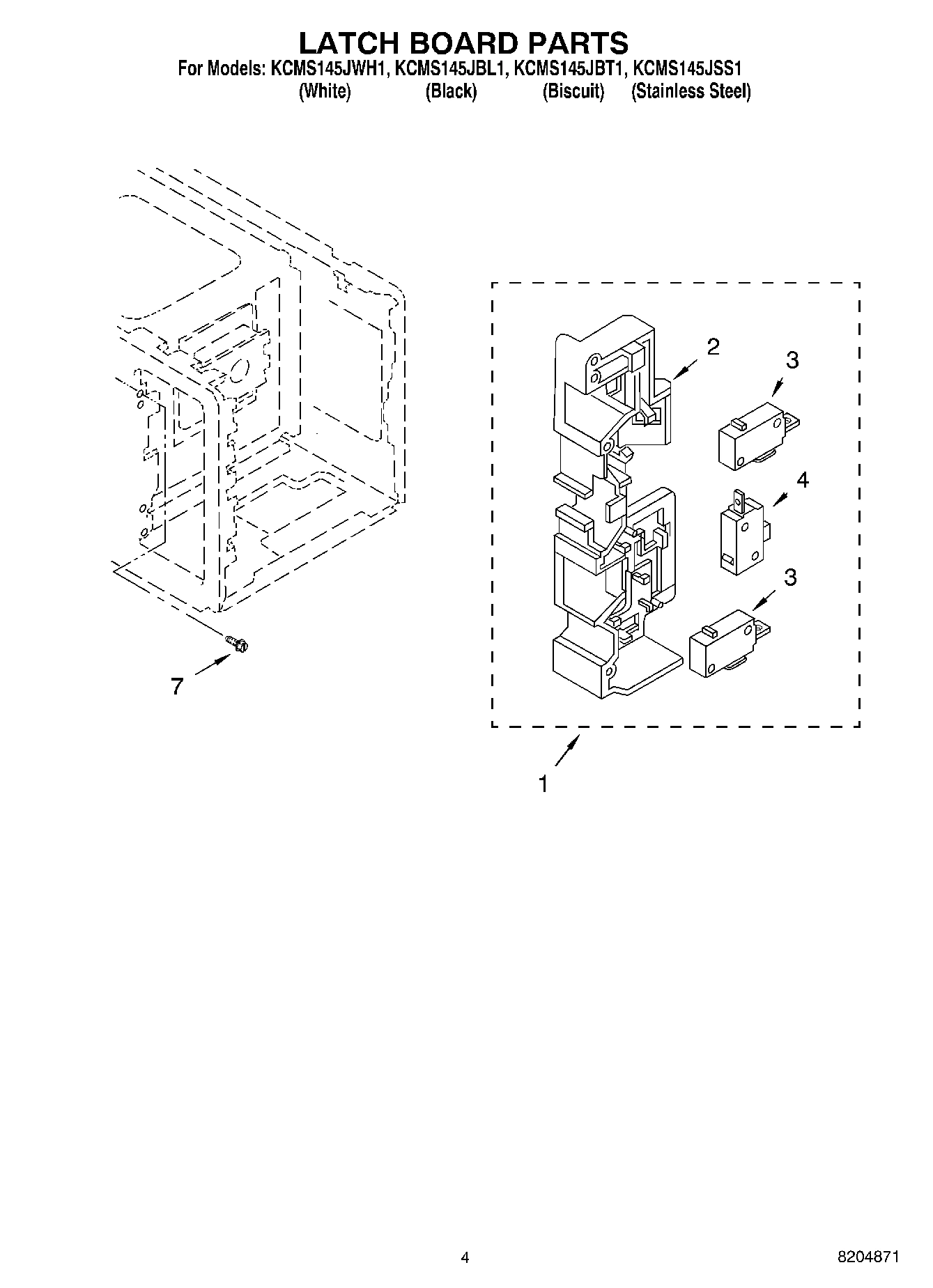

04 - LATCH BOARD PARTS
Common parts from model Whirlpool KCMS145JBL1 MICROWAVE OVEN 1.4 CUBIC FOOT
1
Literature Parts (Use & Care Guide Cook Guide WPL LIT8172187 Contact Us For Availability
1
Literature Parts (English) WPL LIT8172196 Contact Us For Availability
1
Literature Parts (Spanish) WPL LIT8172197 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8172208 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172217 Contact Us For Availability
1
Literature Parts (Template, B/I Kit) WPL LIT8172220 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
1
Propeller WPL 4359112 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI80643A9 Contact Us For Availability
2
Release Button (Stainless) WPL 8172029 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Cushion WPL 4359781 Contact Us For Availability
2
Release Button (Biscuit) WPL 4359937 Contact Us For Availability
2
Release Button (White) WPL 8172028 Contact Us For Availability
2
Release Button (Black) WPL 8172030 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 4359761 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8172024 Contact Us For Availability
3
Door Frame Assembly (Biscuit) WPL 8172025 Contact Us For Availability
4
Key Membrane (Stainless) WPL 8183627 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 8183628 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Outer Case (White) WPL 4359779 Contact Us For Availability
4
Outer Case (Black) WPL 4359852 Contact Us For Availability
4
Outer Case (Stainless) WPL 4359853 Contact Us For Availability
4
Outer Case (Biscuit) WPL 4359941 Contact Us For Availability
4
Key Membrane (Black) WPL 8183625 Contact Us For Availability
4
Key Membrane (White) WPL 8183626 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
Control Panel (White) WPL 4359850 Contact Us For Availability
5
Control Panel (Black) WPL 4359851 Contact Us For Availability
5
Control Panel (Biscuit) WPL 4359939 Contact Us For Availability
5
Control Panel (Stainless) WPL 8205816 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8183861 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
Leadwire Assembly WPL 8183526 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
30`` Biscuit WPL MK1130XHT Contact Us For Availability
7
24`` Black WPL MK1134XHB Contact Us For Availability
7
24`` White WPL MK1134XHQ Contact Us For Availability
7
24`` Stainless WPL MK1134XHS Contact Us For Availability
7
24`` Biscuit WPL MK1134XHT Contact Us For Availability
7
27`` Black WPL MK1137XHB Contact Us For Availability
7
27`` White WPL MK1137XHQ Contact Us For Availability
7
27`` Stainless WPL MK1137XHS Contact Us For Availability
7
27`` Biscuit WPL MK1137XHT Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Turntable Support WPL 4359884 Contact Us For Availability
8
Lens WPL 4359720 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door (White Stainless (Not Serviced)) WPL 4359843 Contact Us For Availability
9
Panel, Door (Black) WPL 4359844 Contact Us For Availability
9
Panel, Door (Biscuit) WPL 4359936 Contact Us For Availability
10
Door Assembly (Stainless) WPL 4359839 Contact Us For Availability
10
Door Assembly (White) WPL 4359840 Contact Us For Availability
10
Door Assembly (Black) WPL 4359841 Contact Us For Availability
10
Door Assembly (Biscuit) WPL 4359933 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
12
Cap, Fuse WPL 4358659 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
15
Duct, Air WPL 8171808 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8184814 Contact Us For Availability
18
Guide, Sensor WPL 8183515 Contact Us For Availability
18
Cushion (Not Serviced) WPL ARI80644A8 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
21
Screw WPL 4358381 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
× ![]()
