Model Whirlpool KCMS135SBL6 – Common Parts & Diagrams

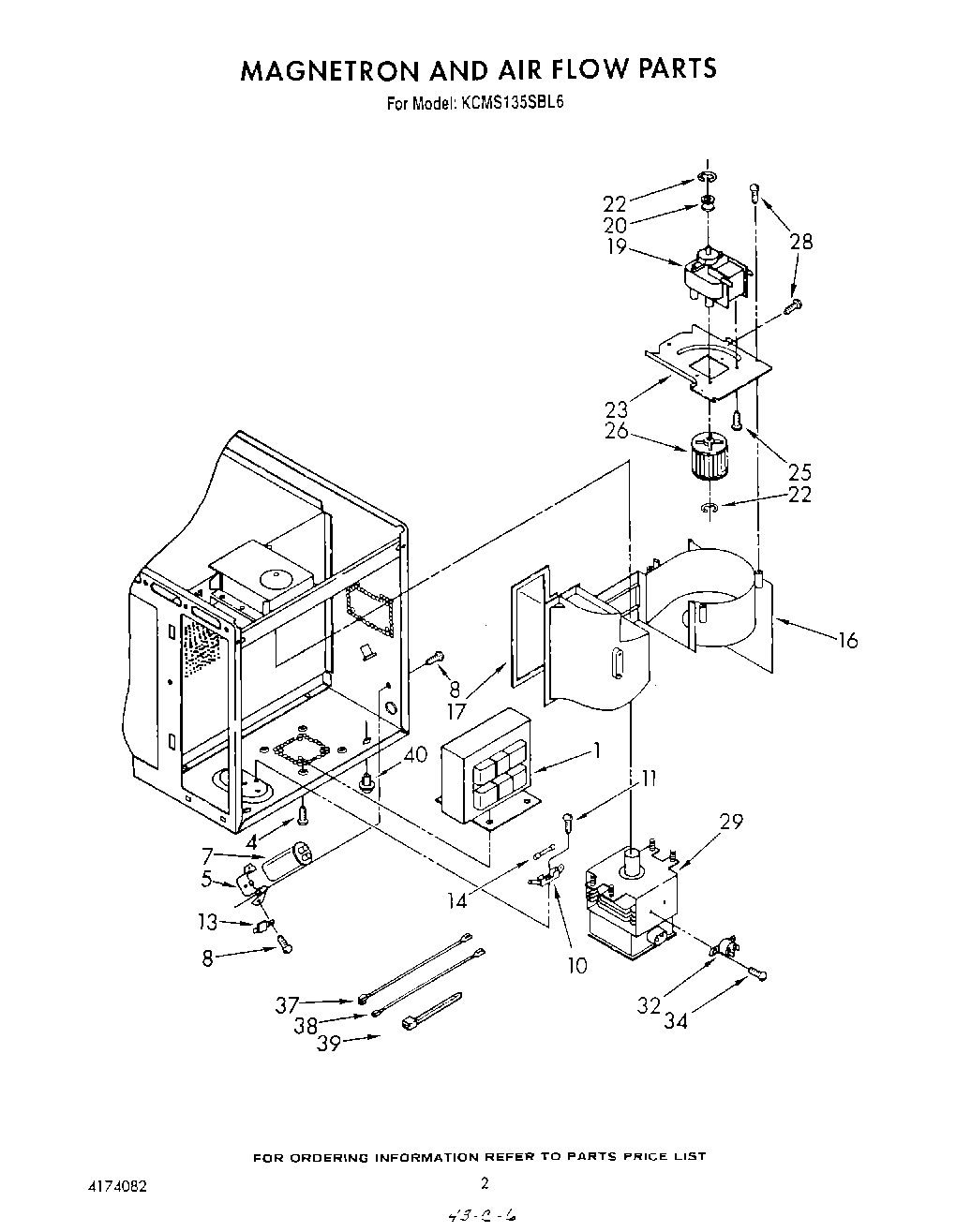

02 - MAGNETRON AND AIR FLOW , LIT/OPTIONAL

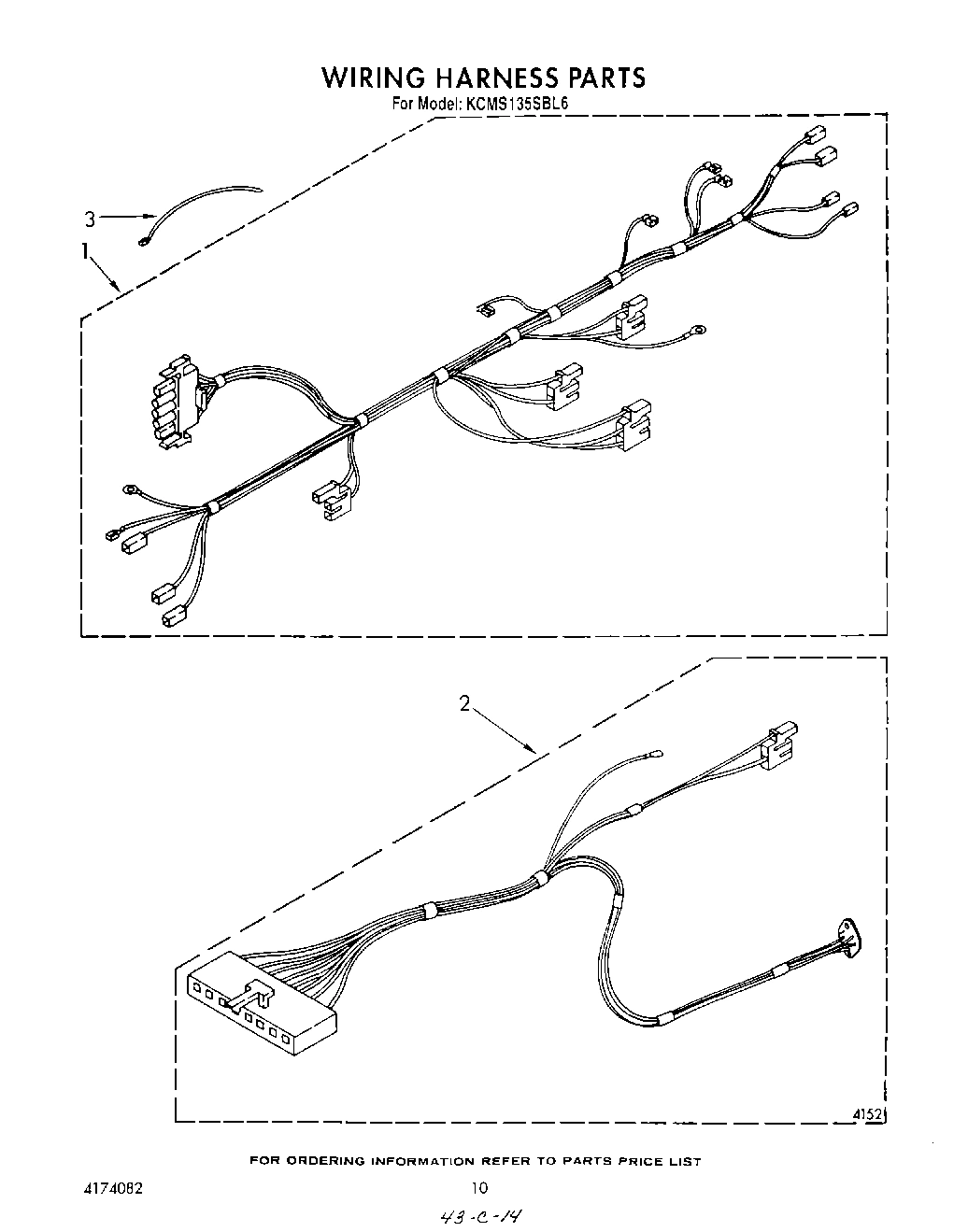

06 - WIRING HARNESS

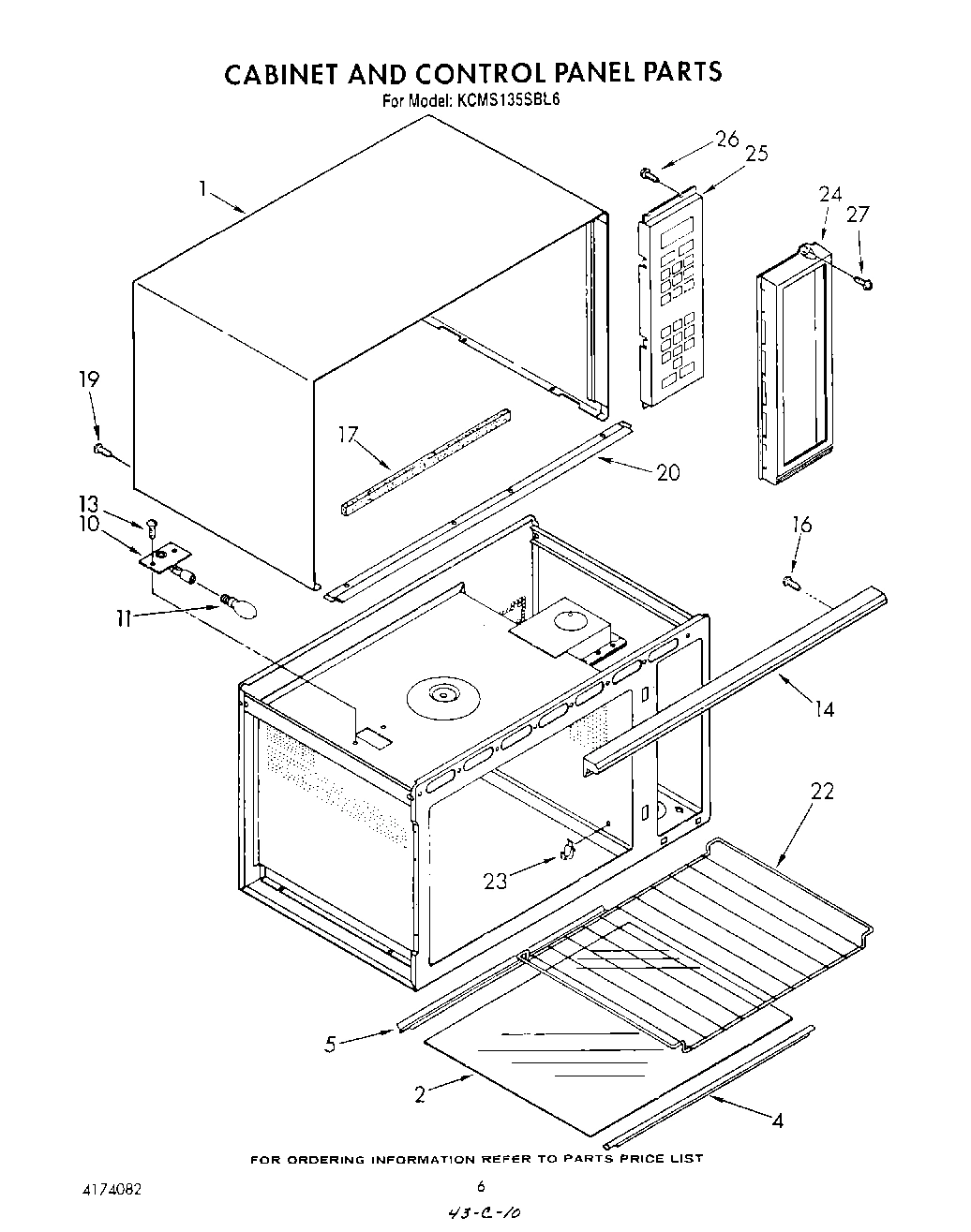

04 - CABINET AND CONTROL PANEL

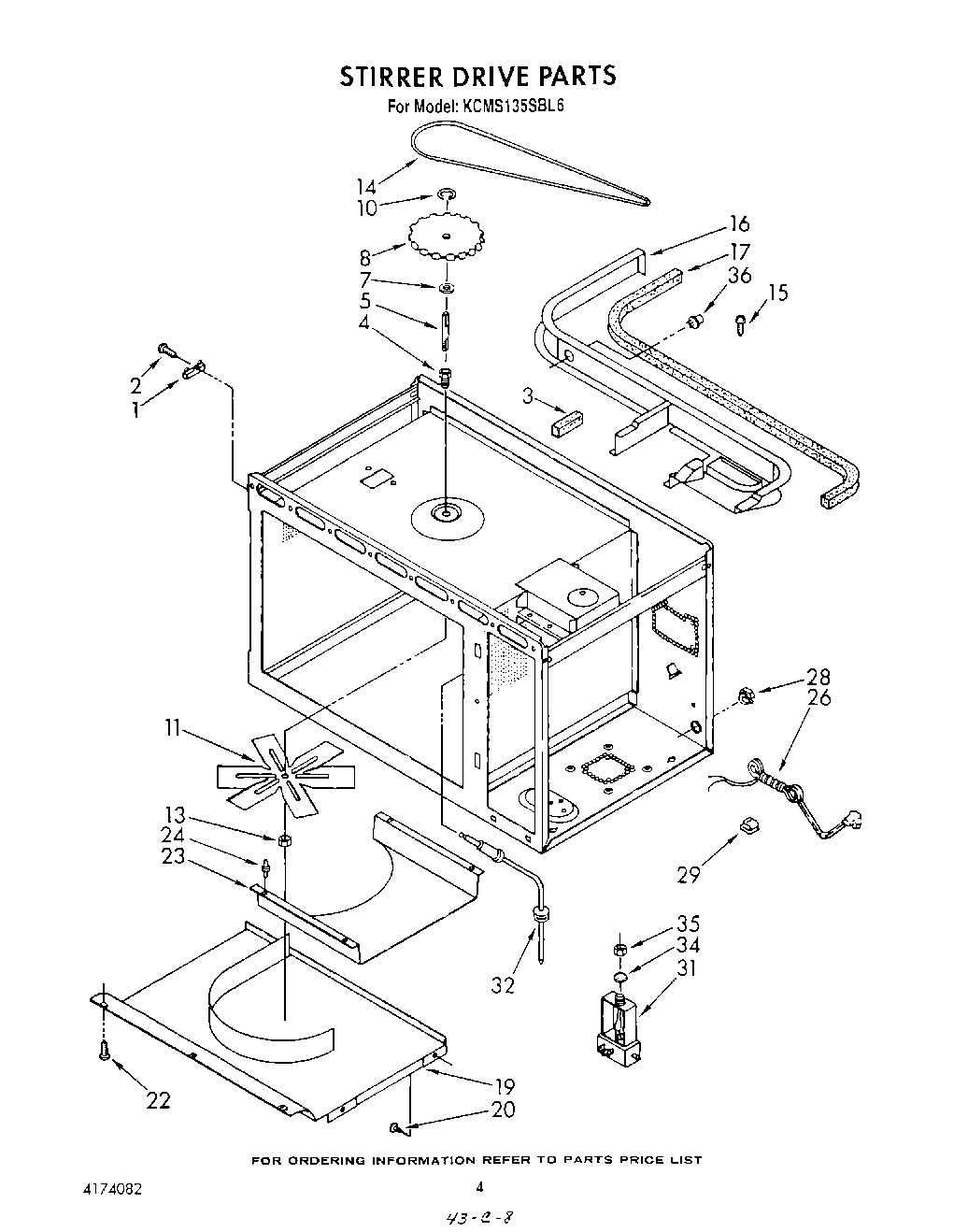

03 - STIRRER DRIVE

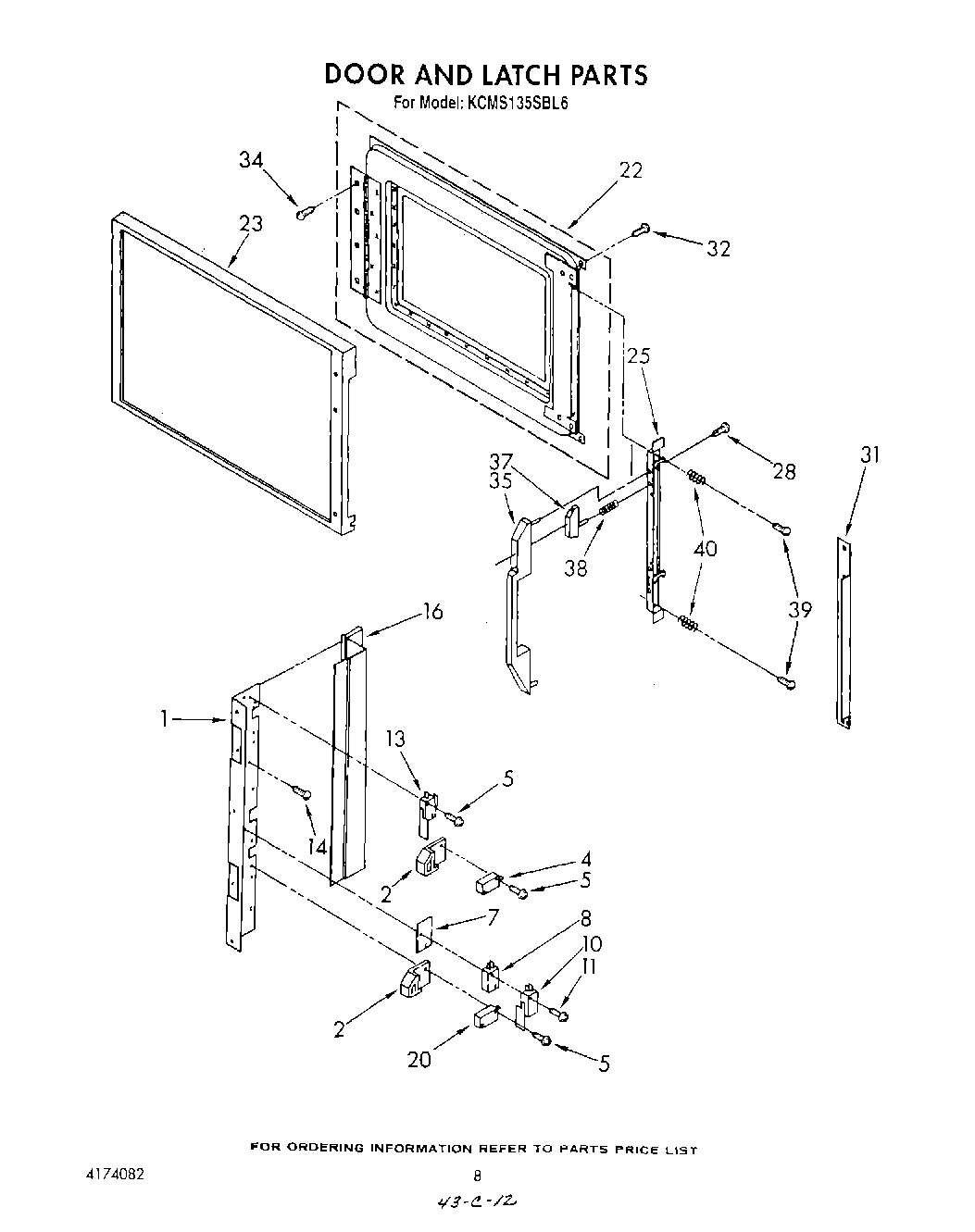

05 - DOOR AND LATCH
Common parts from model Whirlpool KCMS135SBL6
label, guide WPL LIT3147571 Contact Us For Availability
label, guide WPL LIT3147577 Contact Us For Availability
repair parts list WPL LIT4174082 Contact Us For Availability
1
Transformer WPL 3147853 Contact Us For Availability
1
Harness, Wiring Main WPL 3147072 Contact Us For Availability
1
Wrapper, Cabinet WPL 3147035 Contact Us For Availability
1
Thermal Fuse WPL 313855 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
2
Harness, Wiring Control WPL 3147164 Contact Us For Availability
2
Shelf, Cavity WPL 313639 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
3
Seal, Foam WPL 313751 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
4
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
4
Bushing, Stirrer WPL 312023 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
5
Shaft, Stirrer WPL 312026 Contact Us For Availability
7
capacitor (alt.) WPL 312631 Contact Us For Availability
7
Capacitor WPL 661004 Contact Us For Availability
7
Washer, Stirrer WPL 312025 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
8
Pulley, WPL 311923 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
10
Fuse Holder WPL 313846 Contact Us For Availability
10
``E`` Ring WPL 311999 Contact Us For Availability
10
socket, assembly WPL 330514 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
11
Screw WPL 313806 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
13
Rectifier, High Voltage WPL 313830 Contact Us For Availability
13
screw (4) WPL 312717 Contact Us For Availability
13
Switch, Electronic WPL 313120 Contact Us For Availability
14
Fuse (15 Amp) WPL 661172 Contact Us For Availability
14
Grille, Air WPL 3149315 Contact Us For Availability
14
screw WPL 309080 Contact Us For Availability
15
Fastener WPL 310423 Contact Us For Availability
16
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
16
screw (3) WPL 3150025 Contact Us For Availability
16
Baffle, Air WPL 3147217 Contact Us For Availability
16
Fastener WPL 313740 Contact Us For Availability
16
shield WPL 311360 Contact Us For Availability
17
Seal, Air Duct WPL 313752 Contact Us For Availability
17
Seal, Foam WPL 313753 Contact Us For Availability
17
Seal, Foam WPL 313750 Contact Us For Availability
19
Cover, Stirrer WPL 313563 Contact Us For Availability
20
Pulley, Motor WPL 311922 Contact Us For Availability
20
Trim, Wrapper Lower WPL 3147034 Contact Us For Availability
22
rack, wire WPL 313663 Contact Us For Availability
22
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
22
Door, Inner WPL 3171012 Contact Us For Availability
23
Bracket, Motor WPL 313601 Contact Us For Availability
23
Plate, Tunning WPL 313735 Contact Us For Availability
23
Frame, Door WPL 3172227 Contact Us For Availability
24
frame, control panel WPL 3150202 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
microcomputer WPL 3148253 Contact Us For Availability
25
Latch, Complete WPL 329066 Contact Us For Availability
26
Wheel, Blower WPL 3147223 Contact Us For Availability
26
Power, Cord WPL 661160 Contact Us For Availability
28
Strain Relief, Bushing WPL 311954 Contact Us For Availability
29
Magnetron WPL 660595 Contact Us For Availability
29
screw (2) WPL 312713 Contact Us For Availability
29
Clip, Wire (2) WPL 311311 Contact Us For Availability
31
Jack, Probe WPL 661209 Contact Us For Availability
31
End Cap WPL 3148297 Contact Us For Availability
32
Thermal Protector WPL 661165 Contact Us For Availability
32
Screw WPL 313679 Contact Us For Availability
32
Probe, Temperature WPL 313527 Contact Us For Availability
34
screw (2) WPL 346893 Contact Us For Availability
34
Screw (2) WPL 312782 Contact Us For Availability
34
Washer WPL 313105 Contact Us For Availability
35
Nut WPL 313104 Contact Us For Availability
35
Handle, Door WPL 314169 Contact Us For Availability
36
screw (2) WPL 313818 Contact Us For Availability
36
Sensor, Gas WPL 3147060 Contact Us For Availability
37
Jumper, High Voltage Gray 8-11/16`` WPL 313673 Contact Us For Availability
38
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
38
screw WPL 313823 Contact Us For Availability
38
Spring, Compression WPL 310197 Contact Us For Availability
39
screw WPL 313820 Contact Us For Availability
40
Foot, Base (4) WPL 3147276 Contact Us For Availability
40
Spring, Torsion WPL 311352 Contact Us For Availability
× ![]()
