Model Whirlpool KCMS135SAL0 – Common Parts & Diagrams
02 - MAGNETRON AND AIR FLOW
04 - CABINET

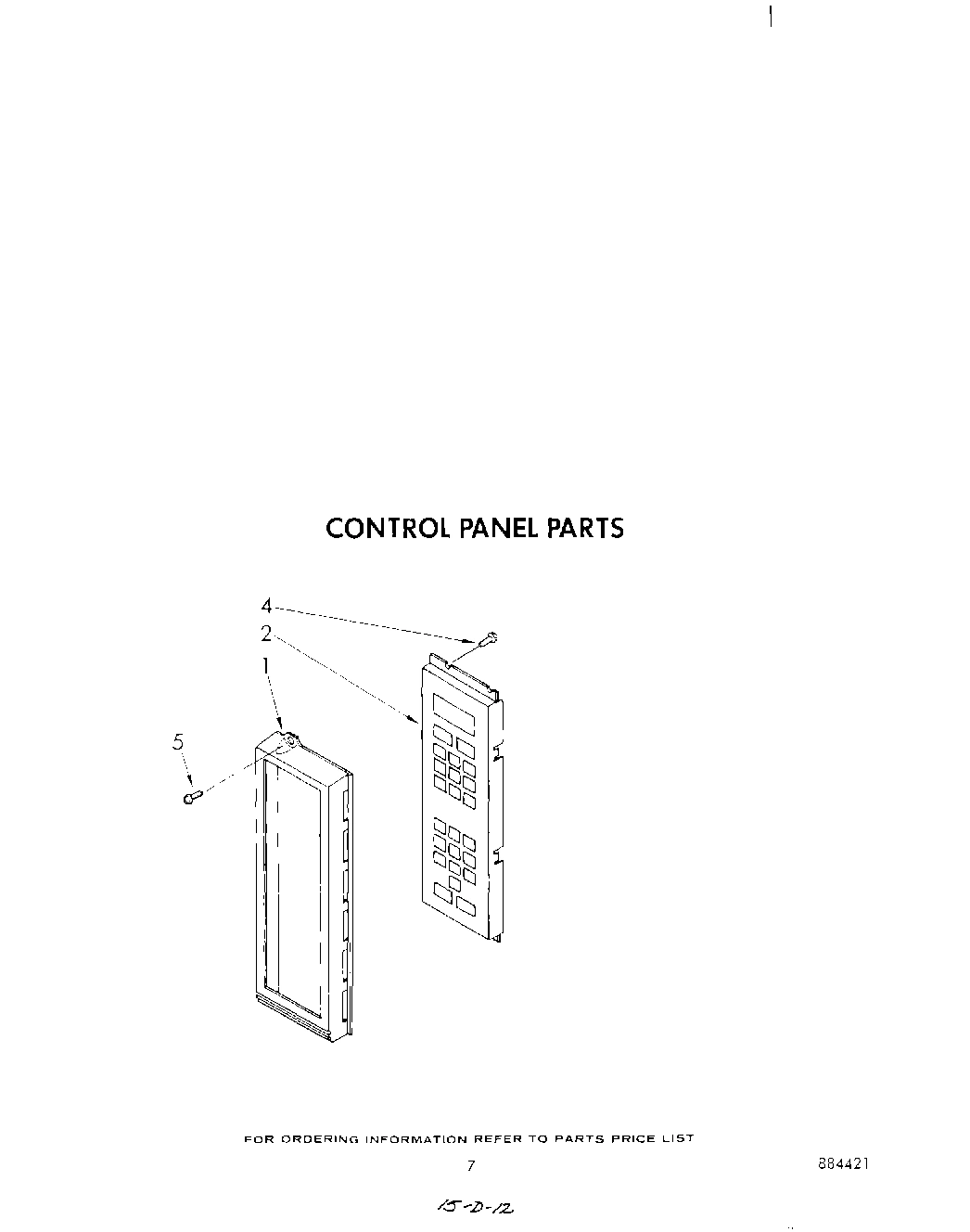

05 - CONTROL PANEL

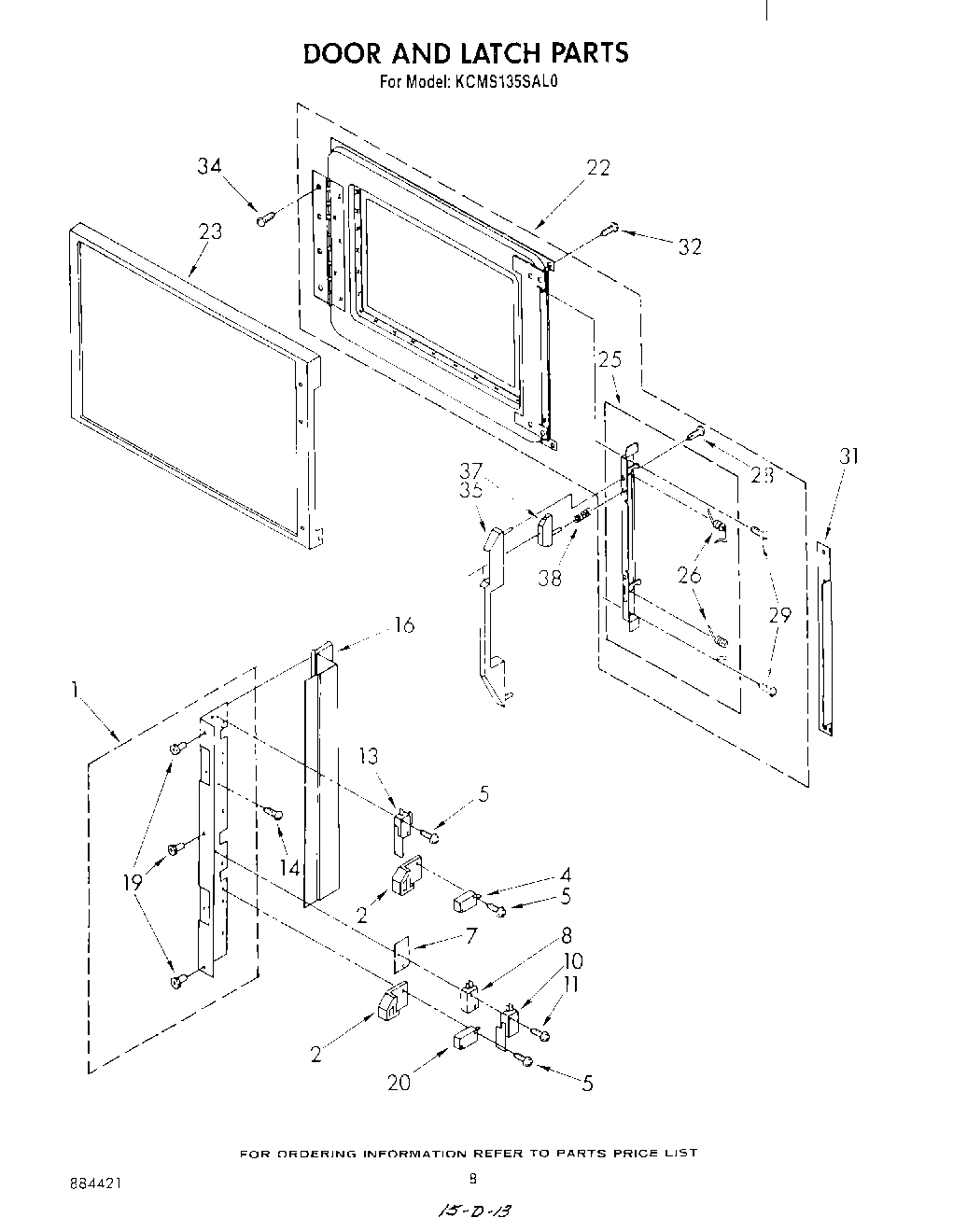

06 - DOOR AND LATCH , LITERATURE AND OPTIONAL

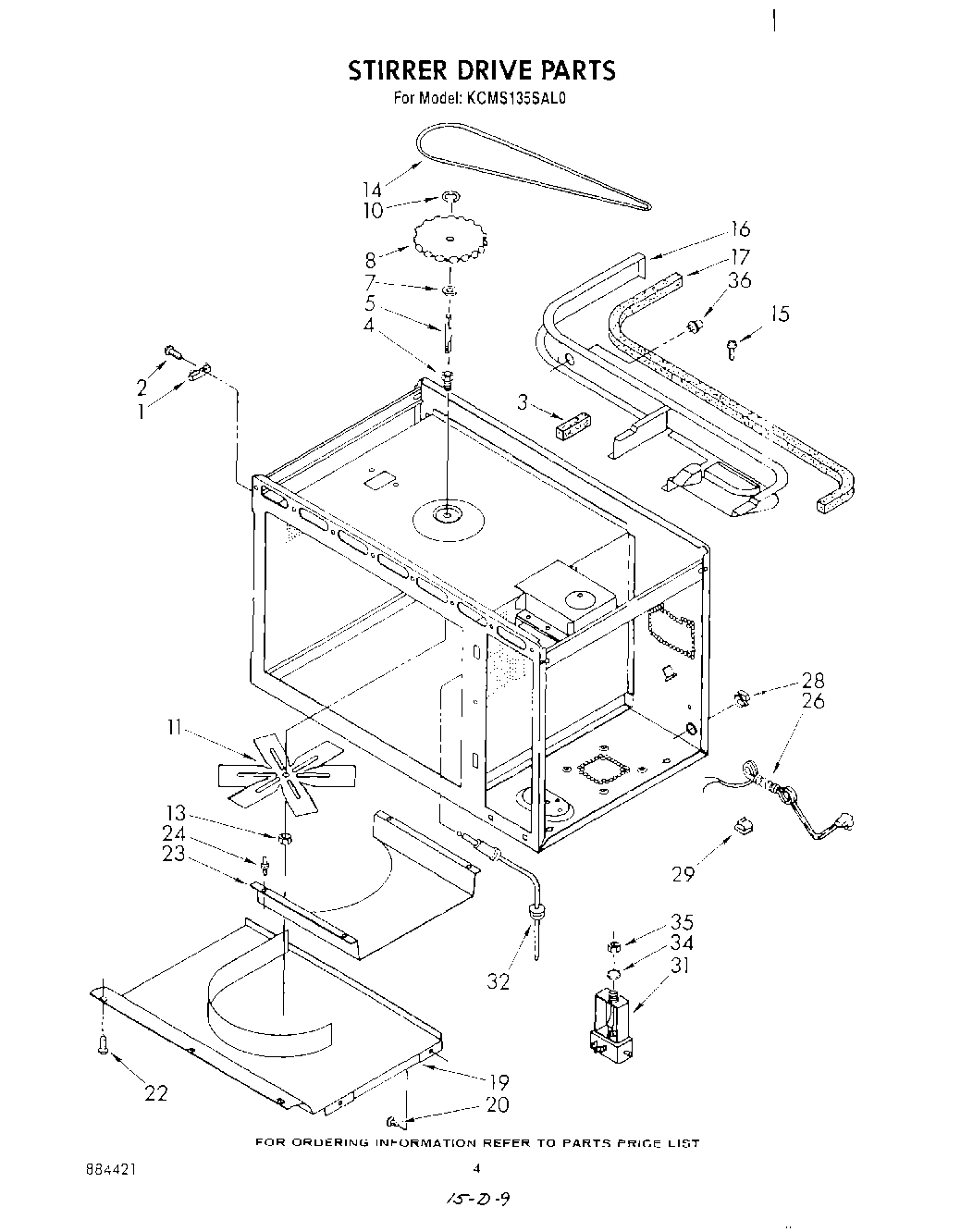

03 - STIRRER DRIVE
Common parts from model Whirlpool KCMS135SAL0
WPL LIT3147005 WPL LIT3147005 Contact Us For Availability
WPL LIT3147213 WPL LIT3147213 Contact Us For Availability
WPL LIT3147308 WPL LIT3147308 Contact Us For Availability
WPL LIT884421 WPL LIT884421 Contact Us For Availability
1
Cabinet WPL 3149334 Contact Us For Availability
1
Frame, Control Panel WPL 3149340 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Thermal Fuse WPL 313855 Contact Us For Availability
2
Shelf, Cavity (Install W/Silastic NO. 482338) WPL 313639 Contact Us For Availability
2
Screw 8-32 x 3/8 (3) WPL 312713 Contact Us For Availability
2
Microcomputer WPL 3148263 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
4
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
4
Bushing, Stirrer WPL 312023 Contact Us For Availability
5
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
5
Harness, Wiring (Connector (6)) WPL 308664 Contact Us For Availability
5
Harness, Wiring (Housing) WPL 308665 Contact Us For Availability
5
Screw 8-32 X 1/2 WPL 313679 Contact Us For Availability
5
Harness, Wiring (Control Panel) WPL 3147164 Contact Us For Availability
5
Harness, Wiring (Socket) WPL 3147218 Contact Us For Availability
5
Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability
5
Shaft, Stirrer WPL 312026 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
7
Washer, Stirrer WPL 312025 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313075 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313123 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
8
Pulley, WPL 311923 Contact Us For Availability
10
Fuse Holder WPL 313846 Contact Us For Availability
10
``E`` Ring WPL 311999 Contact Us For Availability
10
Socket, Complete WPL 330514 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313076 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313124 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
11
Screw 10-32 WPL 313806 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
13
Rectifier, High Voltage WPL 313830 Contact Us For Availability
13
Switch, Electronic WPL 313120 Contact Us For Availability
14
Fuse (15 Amp) WPL 661172 Contact Us For Availability
14
Fuse (15 Amp) (Alt.) WPL 313887 Contact Us For Availability
14
Grille, Air WPL 3149312 Contact Us For Availability
14
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
15
Fastener WPL 310423 Contact Us For Availability
16
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
16
Screw (3) WPL 3149445 Contact Us For Availability
16
shield WPL 311360 Contact Us For Availability
16
Baffle, Air WPL 3147217 Contact Us For Availability
17
Seal, Air Duct WPL 313752 Contact Us For Availability
17
Seal, Foam WPL 313753 Contact Us For Availability
17
Seal, Foam WPL 313750 Contact Us For Availability
19
Motor WPL 313641 Contact Us For Availability
19
Rivet, Pop (6) WPL 311928 Contact Us For Availability
19
Cover, Stirrer WPL 313563 Contact Us For Availability
20
Pulley, Motor WPL 311922 Contact Us For Availability
20
Trim, Lower WPL 3149335 Contact Us For Availability
20
Fastener, Cover (4) WPL 313740 Contact Us For Availability
22
rack, wire WPL 313663 Contact Us For Availability
22
Door, Inner WPL 3171805 Contact Us For Availability
22
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
23
Bracket, Motor WPL 313601 Contact Us For Availability
23
Frame, Door WPL 3171817 Contact Us For Availability
23
Plate, Tunning (Includes Illus. No. 24) WPL 313735 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
Latch, Complete WPL 329066 Contact Us For Availability
26
Wheel, Blower WPL 3147223 Contact Us For Availability
26
Spring, Torsion (2) WPL 311352 Contact Us For Availability
26
Power, Cord (Alt.) WPL 313392 Contact Us For Availability
26
Power, Cord (Alt.) WPL 313393 Contact Us For Availability
26
Power, Cord WPL 661160 Contact Us For Availability
28
screw, 11-16 x 1/2 (7) WPL 346893 Contact Us For Availability
28
Strain Relief, Bushing WPL 311954 Contact Us For Availability
29
Magnetron (Alt.) WPL 311992 Contact Us For Availability
29
Magnetron (Alt.) WPL 311993 Contact Us For Availability
29
Magnetron (Alt.) WPL 313034 Contact Us For Availability
29
Magnetron WPL 660595 Contact Us For Availability
29
Screw (2) WPL 313820 Contact Us For Availability
29
Clip, Wire (2) WPL 311311 Contact Us For Availability
31
End Cap WPL 3148299 Contact Us For Availability
31
Jack, Probe WPL 661209 Contact Us For Availability
32
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
32
Thermal Protector WPL 661165 Contact Us For Availability
32
Screw 8-32 (4) WPL 313823 Contact Us For Availability
32
Probe, Tempature WPL 313527 Contact Us For Availability
34
Screw (2) WPL 312782 Contact Us For Availability
34
Washer WPL 313105 Contact Us For Availability
35
Handle, Door WPL 3149338 Contact Us For Availability
35
Nut WPL 313104 Contact Us For Availability
36
screw (2) WPL 313818 Contact Us For Availability
36
Sensor, Gas WPL 3147060 Contact Us For Availability
37
Jumper, High Voltage Gray 8-11/16`` WPL 313673 Contact Us For Availability
37
Button, Door Handle WPL 3149339 Contact Us For Availability
38
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
38
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
38
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
38
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
38
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
38
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
38
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
38
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
38
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
38
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
38
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
38
WPL 310197 WPL 310197 Contact Us For Availability
38
WPL 591014 WPL 591014 Contact Us For Availability
38
WPL 830881 WPL 830881 Contact Us For Availability
38
WPL 832899 WPL 832899 Contact Us For Availability
38
WPL 832985 WPL 832985 Contact Us For Availability
38
WPL 832987 WPL 832987 Contact Us For Availability
38
WPL 832989 WPL 832989 Contact Us For Availability
38
WPL 832991 WPL 832991 Contact Us For Availability
38
WPL 832993 WPL 832993 Contact Us For Availability
40
Harness, Wiring (Connector (6)) WPL 310223 Contact Us For Availability
40
Harness, Wiring (Housing) WPL 311575 Contact Us For Availability
40
Harness, Wiring (Main, Electronic) WPL 3147072 Contact Us For Availability
40
Foot, Base (4) WPL 3147276 Contact Us For Availability
× ![]()
