Model Whirlpool KCMS135S0 – Common Parts & Diagrams
02 - MAGNETRON AND AIR FLOW
03 - CABINET AND STIRRER

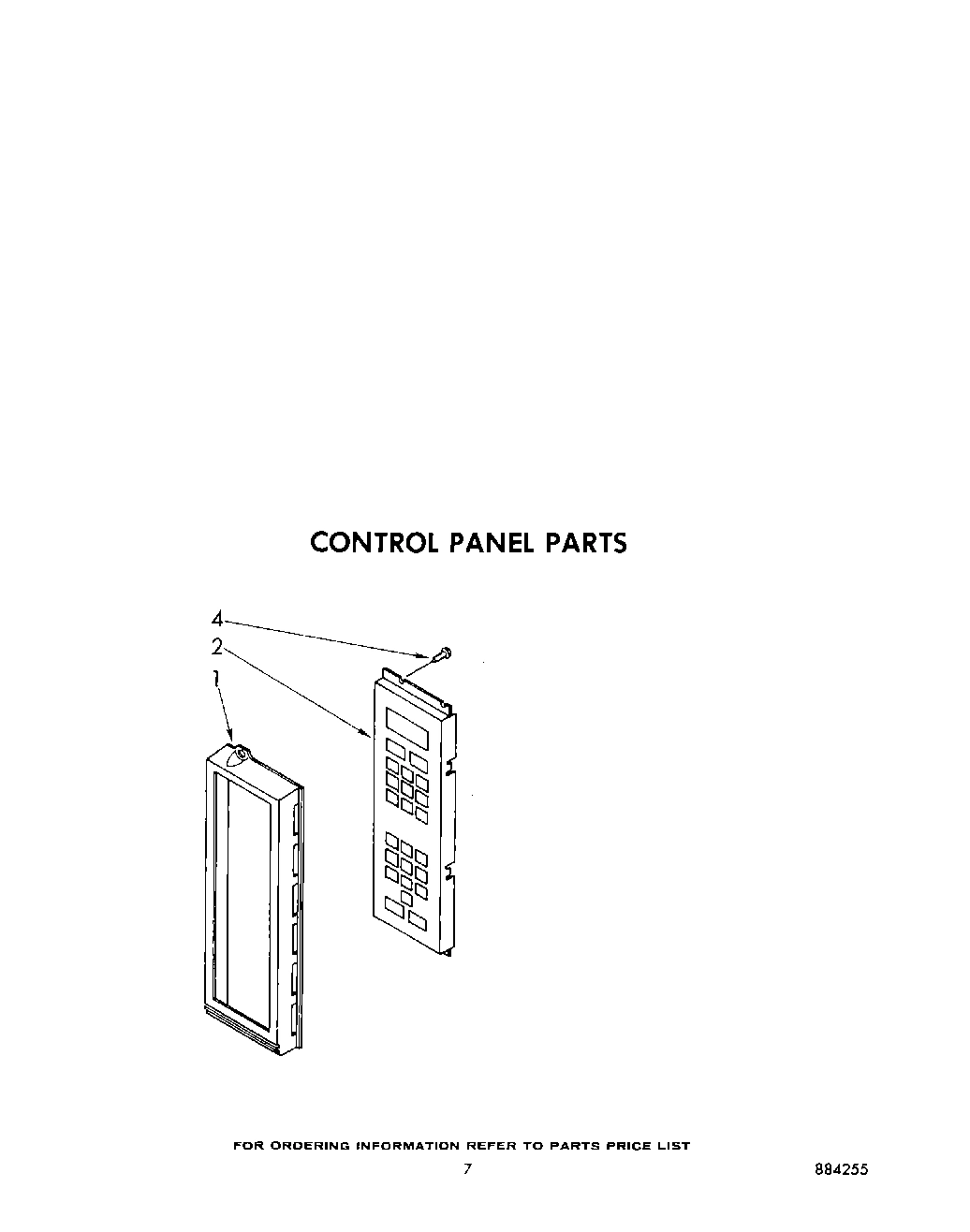

05 - CONTROL PANEL

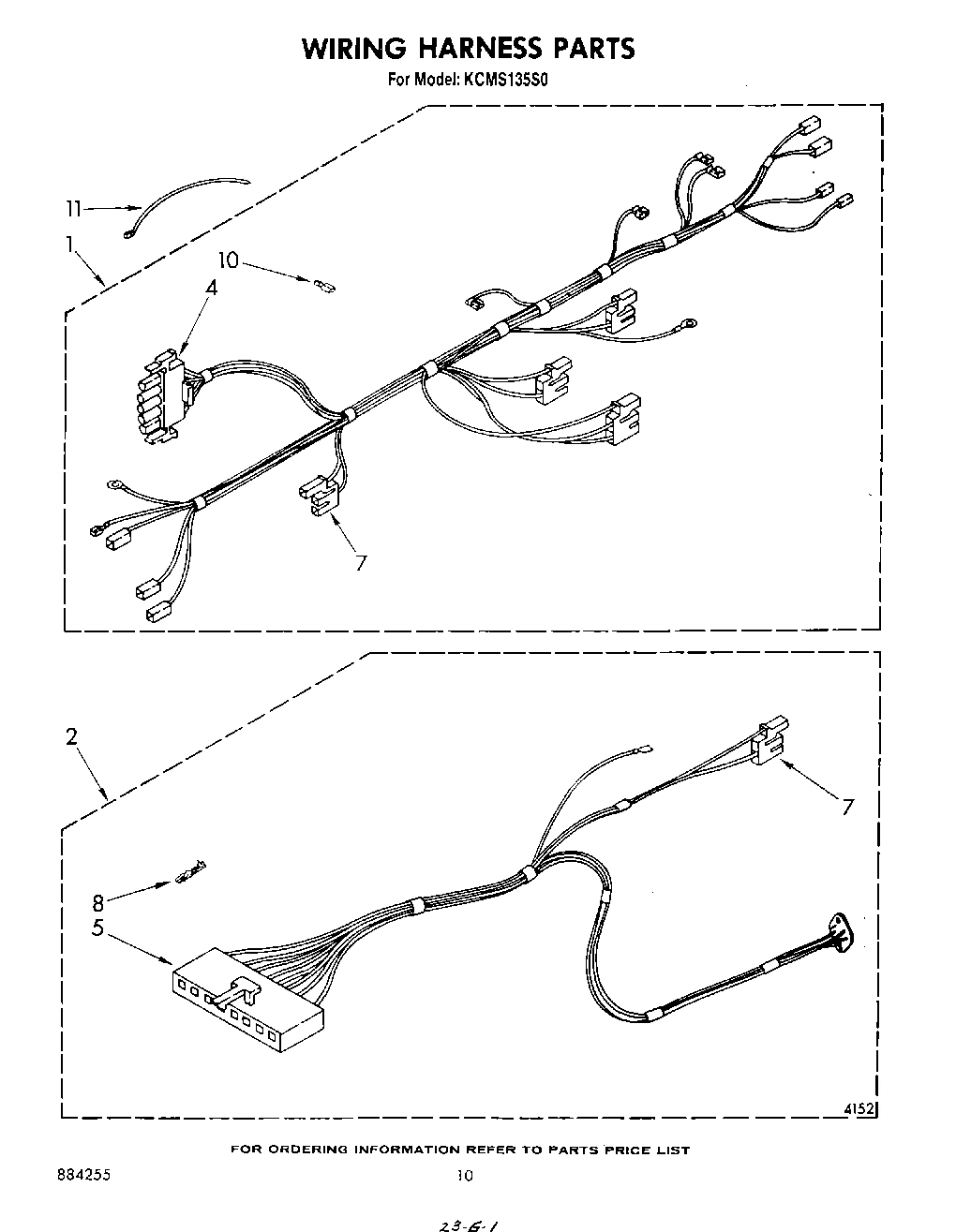

07 - WIRING HARNESS , LITERATURE AND OPTIONAL

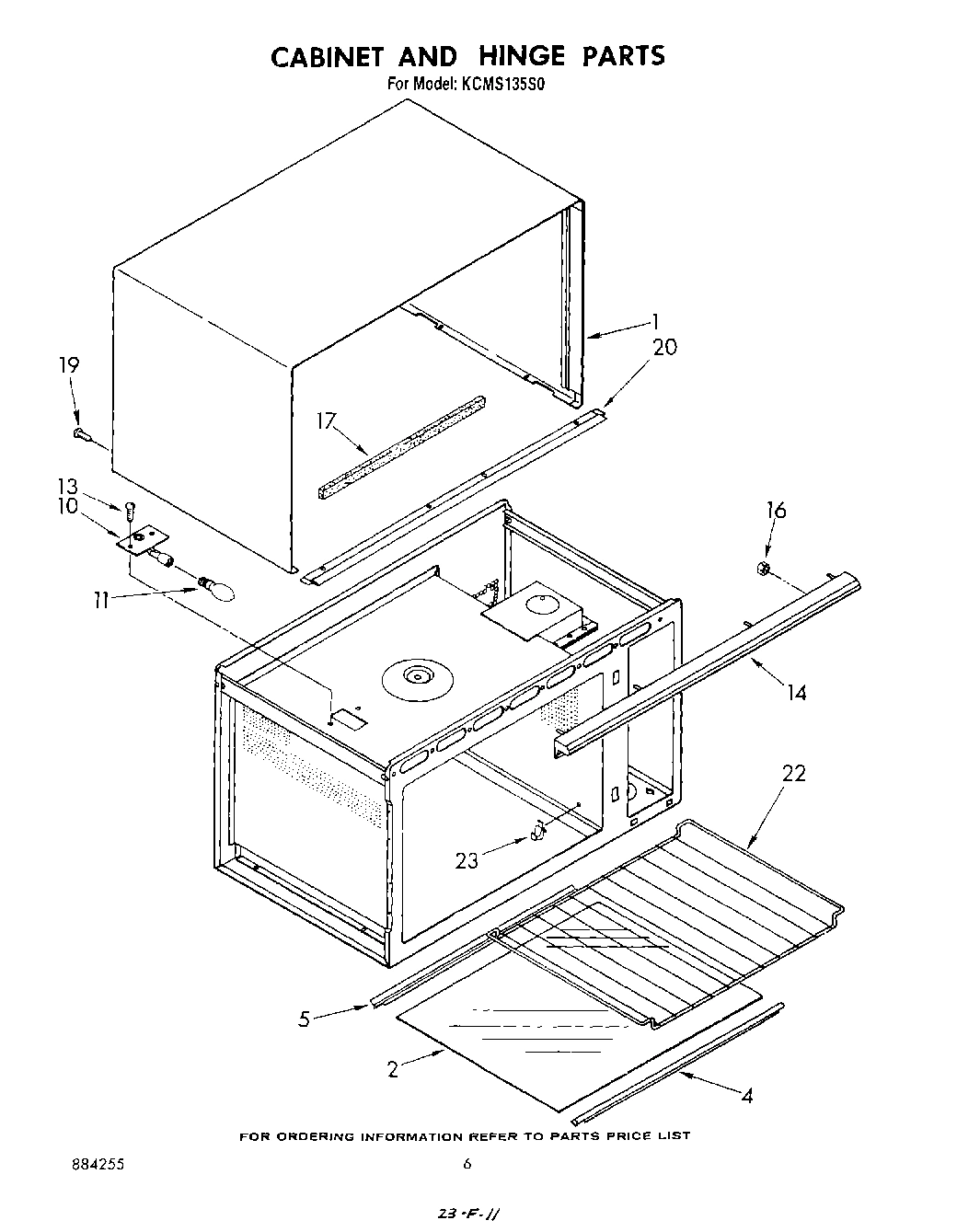

04 - CABINET AND HINGE

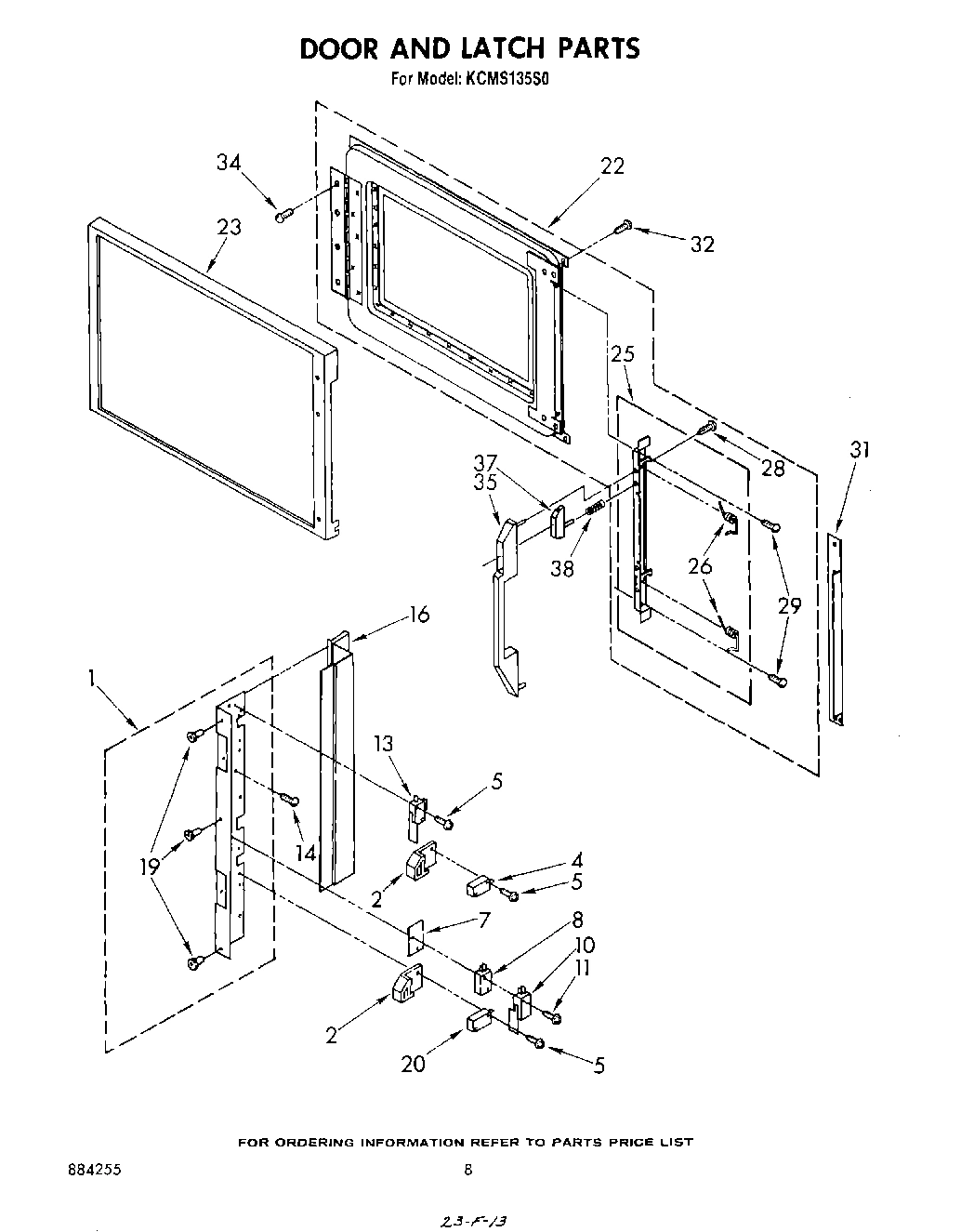

06 - DOOR AND LATCH
Common parts from model Whirlpool KCMS135S0
Cookbook WPL LIT3147005 Contact Us For Availability
Tech Sheet WPL LIT3147213 Contact Us For Availability
Guide, Use & Care WPL LIT3147308 Contact Us For Availability
List, Repair Parts WPL LIT884255 Contact Us For Availability
1
Thermal Fuse WPL 313855 Contact Us For Availability
1
Frame, Control Panel WPL 3147117 Contact Us For Availability
1
Harness, Wiring Main WPL 3147072 Contact Us For Availability
1
Wrapper, Cabinet WPL 3147035 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
2
Microcomputer WPL 3147097 Contact Us For Availability
2
Harness, Wiring Control WPL 3147164 Contact Us For Availability
2
Shelf, Cavity (Install W/Silastic NO. 482338) WPL 313639 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
4
Bushing, Stirrer WPL 312023 Contact Us For Availability
4
Screw (6) WPL 313818 Contact Us For Availability
4
Block, Disconnect WPL 311575 Contact Us For Availability
4
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
5
Shaft, Stirrer WPL 312026 Contact Us For Availability
5
Housing, Connector WPL 308665 Contact Us For Availability
5
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
5
Screw 4-40x3/4 (8) WPL 312717 Contact Us For Availability
7
Washer, Stirrer WPL 312025 Contact Us For Availability
7
Insulator Pad, Straight WPL 310241 Contact Us For Availability
7
Insulator WPL 313126 Contact Us For Availability
8
Pulley, WPL 311923 Contact Us For Availability
8
Receptacle WPL 312795 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313075 Contact Us For Availability
8
Switch, Monitor/ Oven Light (Alt.) WPL 313123 Contact Us For Availability
8
Switch, Monitor/ Oven light WPL 661144 Contact Us For Availability
10
Fuse Holder WPL 313846 Contact Us For Availability
10
``E`` Ring WPL 311999 Contact Us For Availability
10
Socket, Complete WPL 330514 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313076 Contact Us For Availability
10
Switch, Monitor/ Oven Light (Alt.) WPL 313124 Contact Us For Availability
10
Switch, Monitor/ Oven Light WPL 661145 Contact Us For Availability
11
Screw 10-32 WPL 313806 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
11
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
11
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
11
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
11
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
11
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
11
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
11
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
11
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
11
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
11
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
11
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
11
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
11
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
11
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
11
Bi-Level Cooking Rack WPL 832985 Contact Us For Availability
11
Built-in Kits (30``) WPL 832987 Contact Us For Availability
11
24`` Built-In Kit WPL 832989 Contact Us For Availability
11
27``built-in Kit WPL 832991 Contact Us For Availability
11
Wall Mount Kit WPL 832993 Contact Us For Availability
11
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
13
Rectifer, High Voltage (Alt.) WPL 313831 Contact Us For Availability
13
Rectifer, High Voltage WPL 661171 Contact Us For Availability
13
Screw, 8-32 x 3/8 (2) WPL 312713 Contact Us For Availability
13
Switch, Electronic WPL 313120 Contact Us For Availability
14
Fuse (15 Amp) WPL 661172 Contact Us For Availability
14
Fuse (15 Amp) (Alt.) WPL 313887 Contact Us For Availability
14
Grille, Air WPL 314310 Contact Us For Availability
14
Screw 8-32 X 3/8 WPL 309080 Contact Us For Availability
16
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
16
Baffle, Air WPL 3147217 Contact Us For Availability
16
Nut (3) WPL 3147378 Contact Us For Availability
16
shield WPL 311360 Contact Us For Availability
17
Seal, Air Duct WPL 313752 Contact Us For Availability
17
Seal, Foam WPL 313751 Contact Us For Availability
17
Seal, Foam WPL 313753 Contact Us For Availability
19
Motor WPL 313641 Contact Us For Availability
19
Cover, Stirrer WPL 313563 Contact Us For Availability
19
Rivet, Pop (6) WPL 311928 Contact Us For Availability
20
Pulley, Motor WPL 311922 Contact Us For Availability
20
Fastener, Cover (4) WPL 313740 Contact Us For Availability
20
Trim, Wrapper Lower WPL 3147034 Contact Us For Availability
22
screw, 8-32 x 1/2 (3) WPL 313816 Contact Us For Availability
22
rack, wire WPL 313663 Contact Us For Availability
22
Door, Inner WPL 3171012 Contact Us For Availability
23
Bracket, Motor WPL 313601 Contact Us For Availability
23
Plate, Tunning (Includes Illus. No. 24) WPL 313735 Contact Us For Availability
23
Frame, Door WPL 330557 Contact Us For Availability
24
Support (4) WPL 313739 Contact Us For Availability
25
Latch, Complete WPL 329066 Contact Us For Availability
26
Wheel, Blower WPL 3147223 Contact Us For Availability
26
Power, Cord (Alt.) WPL 313392 Contact Us For Availability
26
Power, Cord (Alt.) WPL 313393 Contact Us For Availability
26
Power, Cord WPL 661160 Contact Us For Availability
26
Spring, Torsion (2) WPL 311352 Contact Us For Availability
28
screw, 11-16 x 1/2 (7) WPL 346893 Contact Us For Availability
28
Strain Relief, Bushing WPL 311954 Contact Us For Availability
29
Magnetron (Alt.) WPL 311992 Contact Us For Availability
29
Magnetron (Alt.) WPL 311993 Contact Us For Availability
29
Magnetron (Alt.) WPL 313034 Contact Us For Availability
29
Magnetron WPL 660595 Contact Us For Availability
29
Clip, Wire (2) WPL 311311 Contact Us For Availability
29
Screw (2) WPL 313820 Contact Us For Availability
31
Flange Nut (4) WPL 310300 Contact Us For Availability
31
Jack, Probe WPL 3147071 Contact Us For Availability
31
End Cap WPL 3147521 Contact Us For Availability
32
Thermal Protector (Alt.) WPL 312800 Contact Us For Availability
32
Thermal Protector WPL 661165 Contact Us For Availability
32
Probe, Tempature (Alt.) WPL 313044 Contact Us For Availability
32
Probe, Tempature (Alt.) WPL 313527 Contact Us For Availability
32
Probe, Tempature WPL 661164 Contact Us For Availability
32
Screw 8-32 (4) WPL 313823 Contact Us For Availability
34
Screw (2) WPL 312782 Contact Us For Availability
34
Washer WPL 313105 Contact Us For Availability
35
Nut WPL 313104 Contact Us For Availability
35
Handle, Door WPL 314169 Contact Us For Availability
36
Jumper, High Voltage Black 3-15/16`` WPL 312793 Contact Us For Availability
36
Screw (2) WPL 313819 Contact Us For Availability
36
Sensor, Gas WPL 3147060 Contact Us For Availability
37
Jumper, High Voltage Gray 8-11/16`` WPL 313673 Contact Us For Availability
38
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
38
Spring, Compression WPL 310197 Contact Us For Availability
40
Foot, Base (4) WPL 3147276 Contact Us For Availability
× ![]()
