Model Whirlpool KCMS135HSS0 – Common Parts & Diagrams

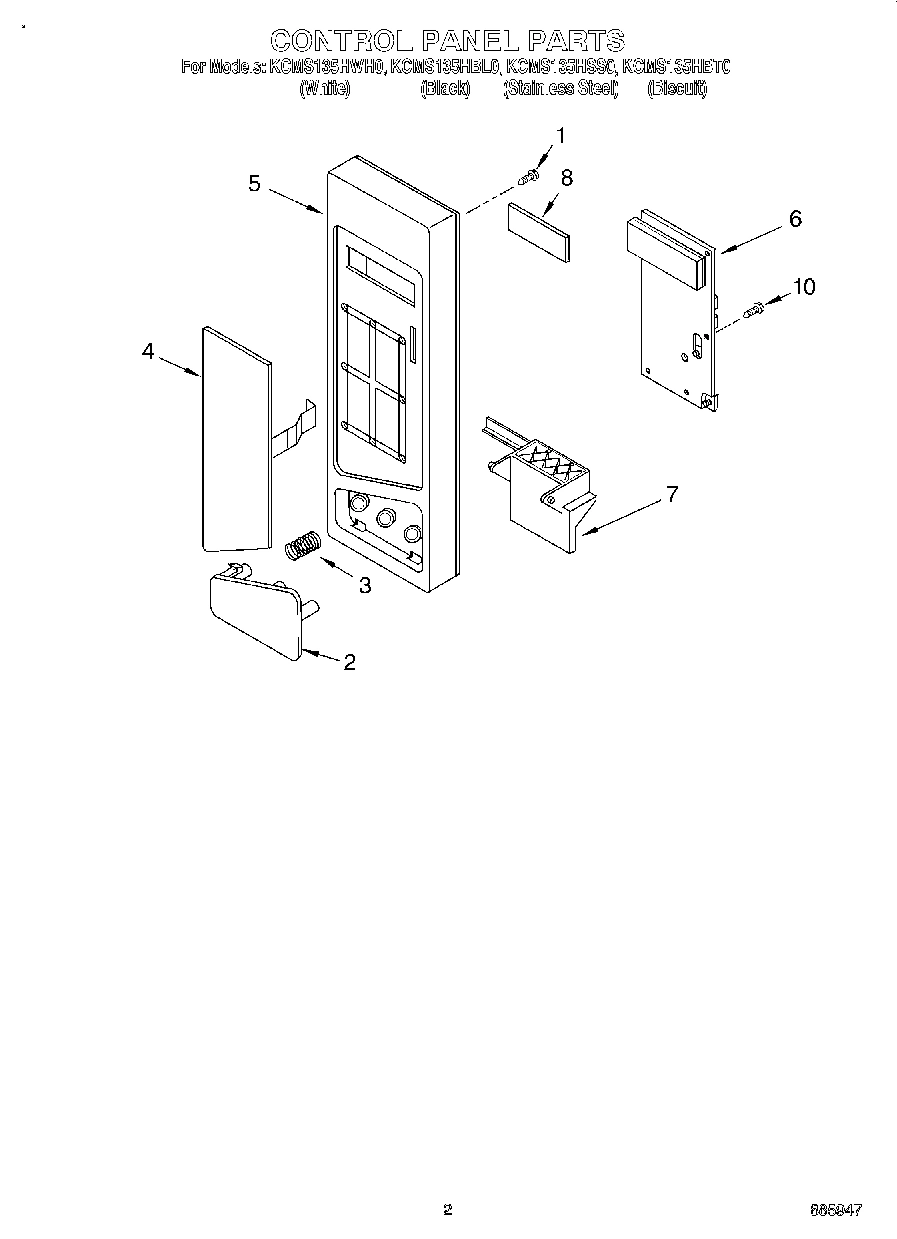

02 - CONTROL PANEL

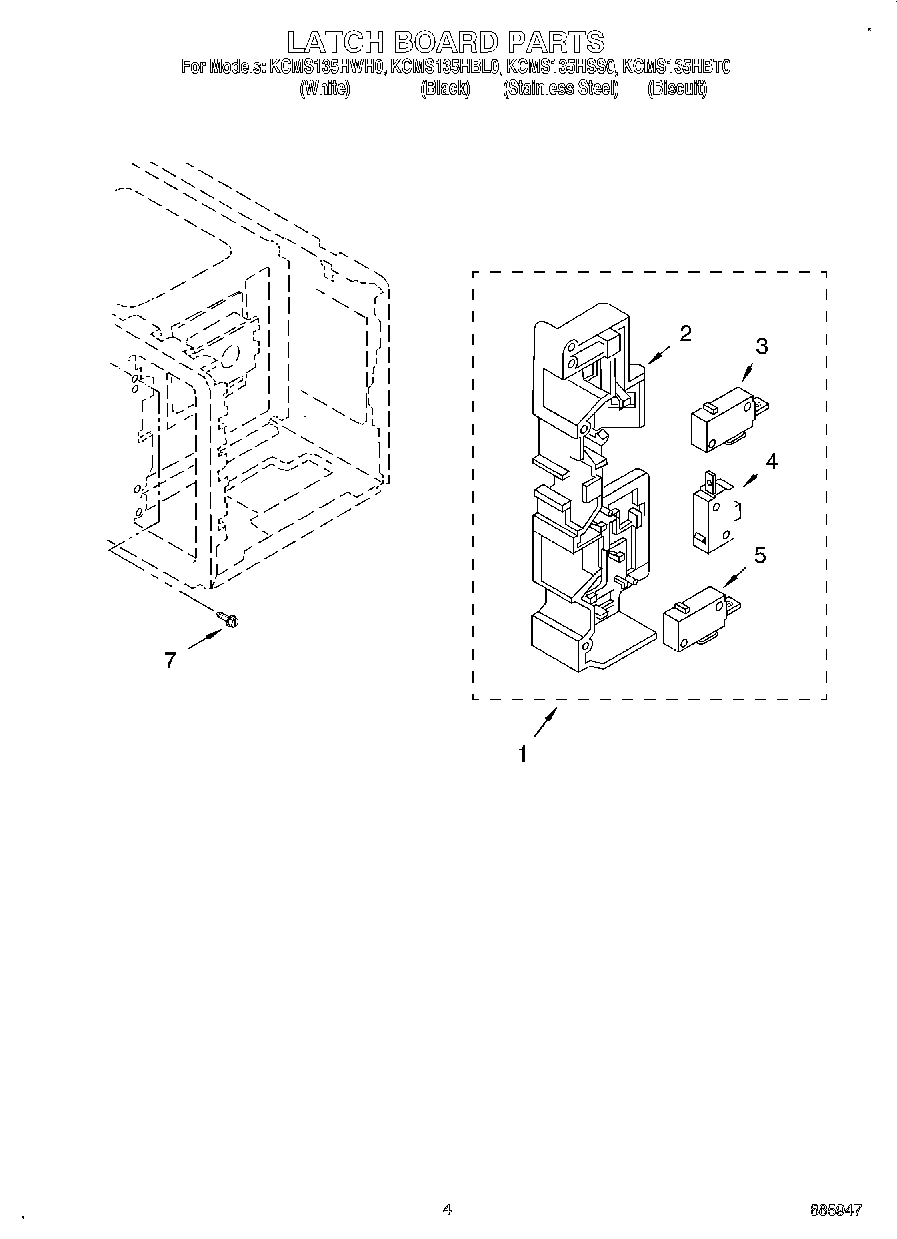

04 - LATCH BOARD

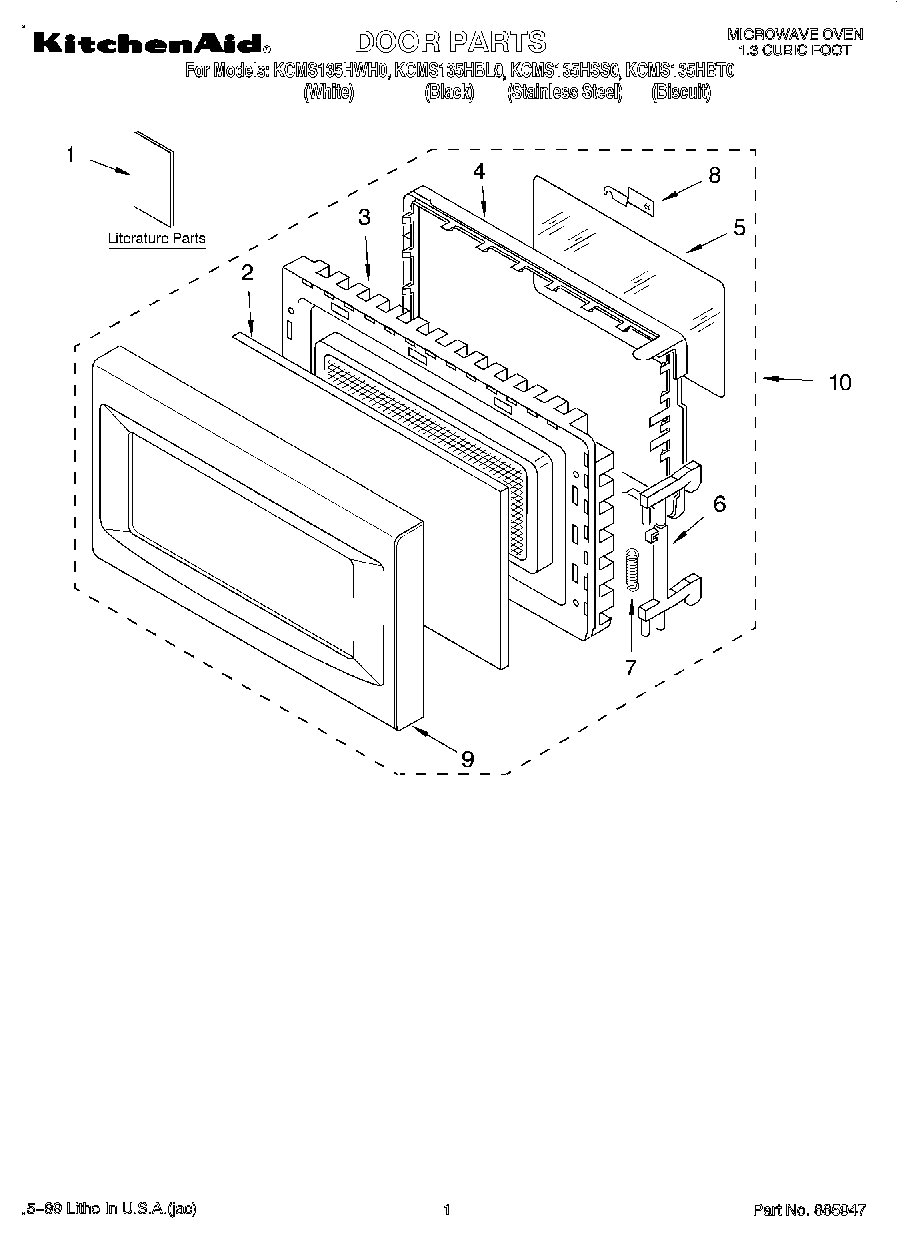

01 - DOOR, LITERATURE

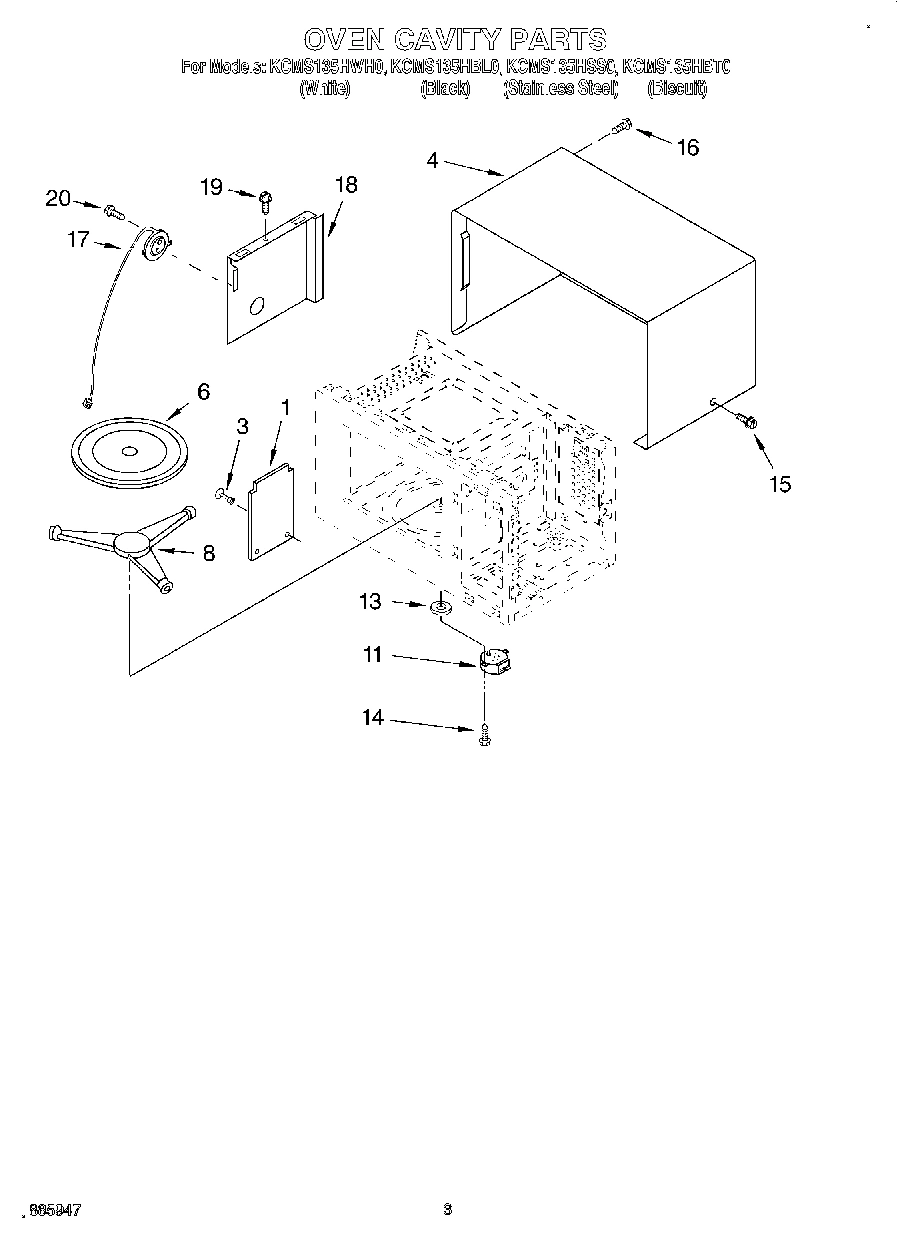

03 - OVEN CAVITY

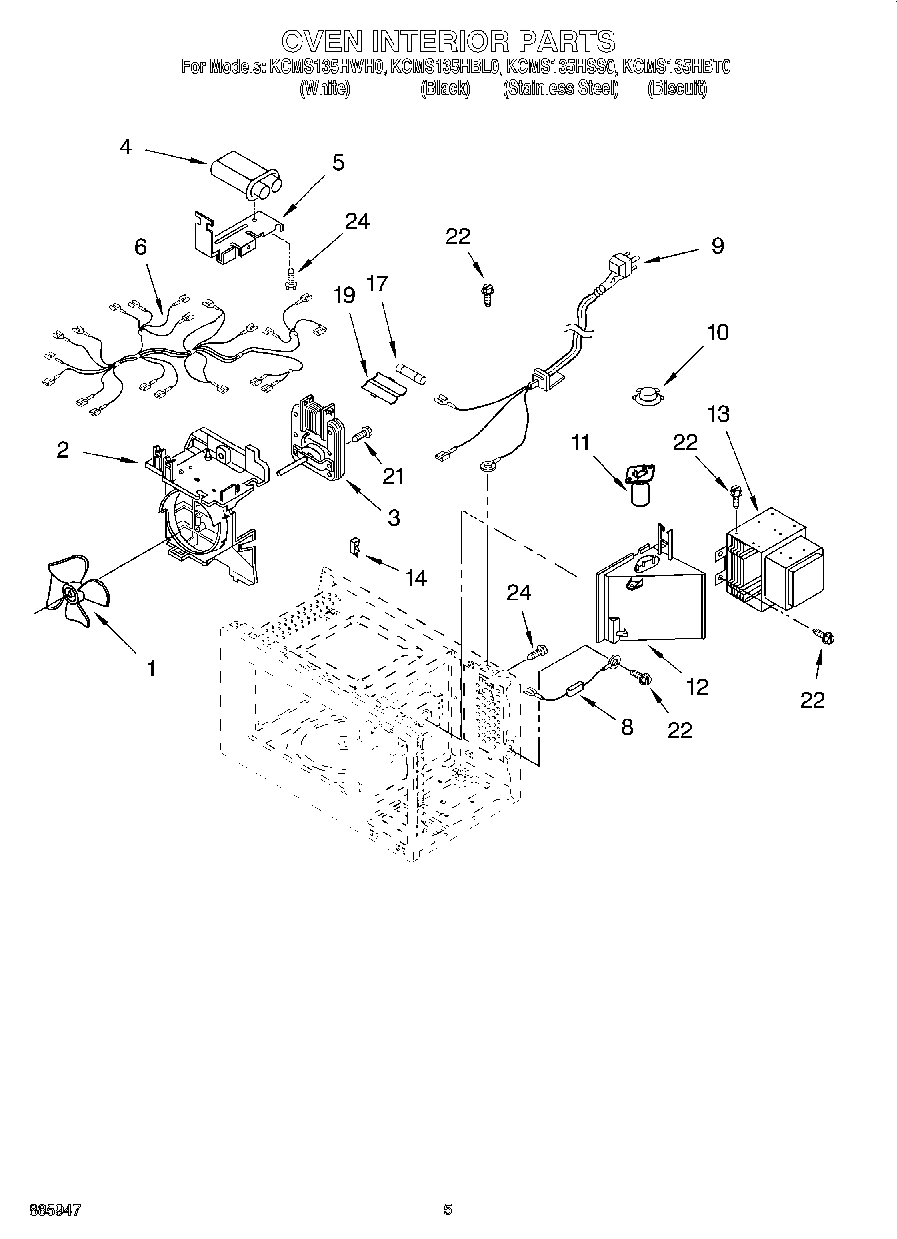

05 - OVEN INTERIOR

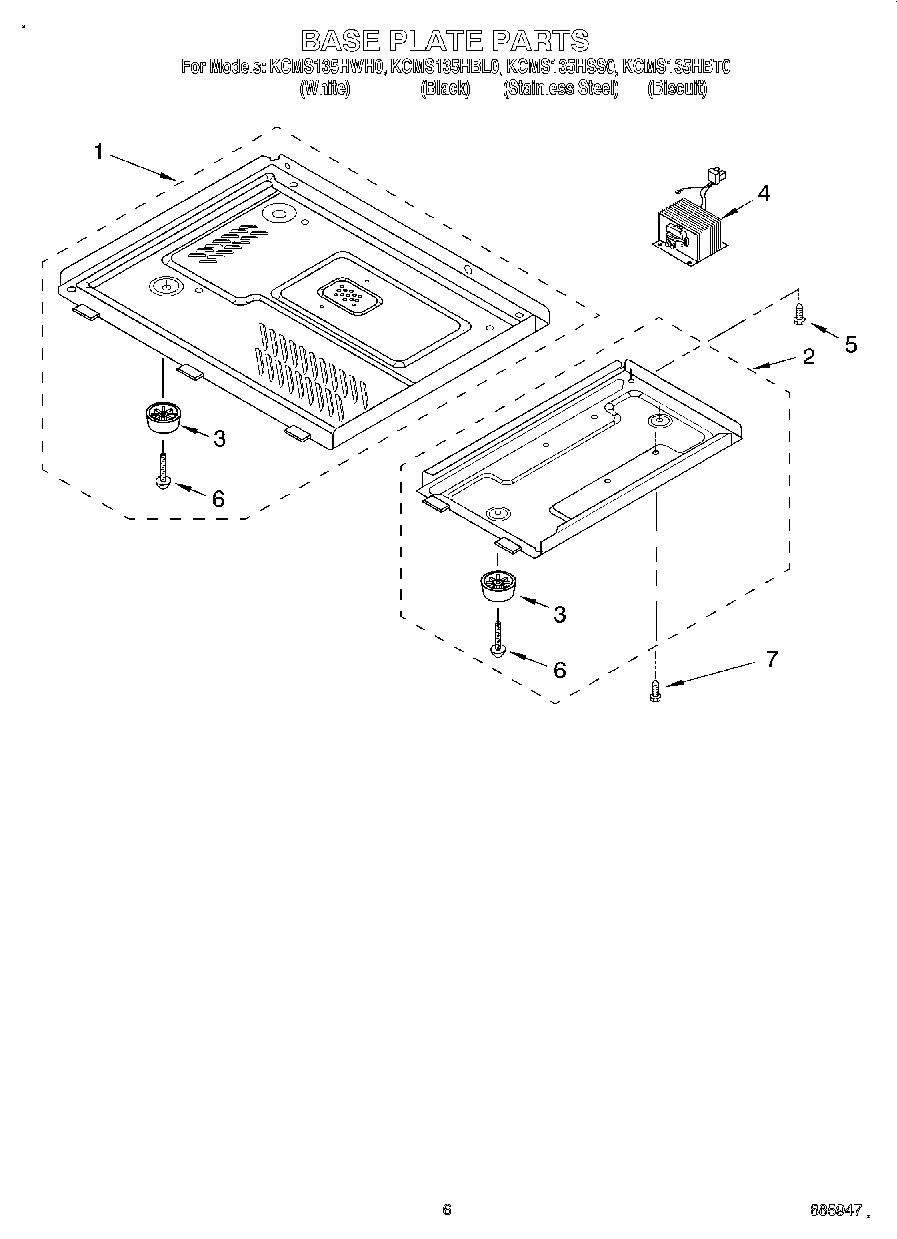

06 - BASE PLATE
Common parts from model Whirlpool KCMS135HSS0
1
Canopy WPL 4359777 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI80639A7 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT4359632 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4359999 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8171822 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8171975 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8171977 Contact Us For Availability
1
Base Plate (L) WPL 8172002 Contact Us For Availability
2
Release Button (Stainless) WPL 8172029 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Base Plate (R) WPL 8172001 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Door Frame Assy (Black) WPL 4359761 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8172024 Contact Us For Availability
3
Door Frame Assembly (Biscuit) WPL 8172025 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 4359938 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Outer Case (White) WPL 4359779 Contact Us For Availability
4
Outer Case (Black) WPL 4359804 Contact Us For Availability
4
Outer Case (Stainless Steel) WPL 4359853 Contact Us For Availability
4
Outer Case (Biscuit) WPL 4359941 Contact Us For Availability
4
Capacitor, H.V. WPL 4359115 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
5
Control Panel (Stainless) WPL 8172031 Contact Us For Availability
5
Control Panel (White) WPL 4359850 Contact Us For Availability
5
Control Panel (Black) WPL 4359851 Contact Us For Availability
5
Control Panel (Biscuit) WPL 4359939 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
6
P.C.B. Sub Assy WPL 8172032 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
Leadwire Assembly WPL 8171999 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Screw WPL 4358721 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Support, Turntable WPL 4359884 Contact Us For Availability
9
Panel, Door (White) WPL 4359843 Contact Us For Availability
9
Panel, Door (Black) WPL 4359844 Contact Us For Availability
9
Panel, Door (Biscuit) WPL 4359936 Contact Us For Availability
9
Panel, Door (Stainless) WPL 8172026 Contact Us For Availability
9
Power Cord WPL 8171900 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (Stainless Steel) WPL 4359839 Contact Us For Availability
10
Door Assembly (White) WPL 4359840 Contact Us For Availability
10
Door Assembly (Black) WPL 4359841 Contact Us For Availability
10
Door Assembly (Biscuit) WPL 4359933 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
11
Motor, Turntable WPL 4359885 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Duct, Air WPL 8171998 Contact Us For Availability
13
Seal, Water WPL 8171805 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw (White) WPL 8171876 Contact Us For Availability
15
Screw (Black) WPL 8171877 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor WPL 4359892 Contact Us For Availability
18
Sensor Duct WPL 8171997 Contact Us For Availability
19
Holder, Fuse WPL 4358659 Contact Us For Availability
20
Screw WPL 4358450 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
