Model Whirlpool KCMS135GSS0 – Common Parts & Diagrams
01 - DOOR
04 - LATCH BOARD

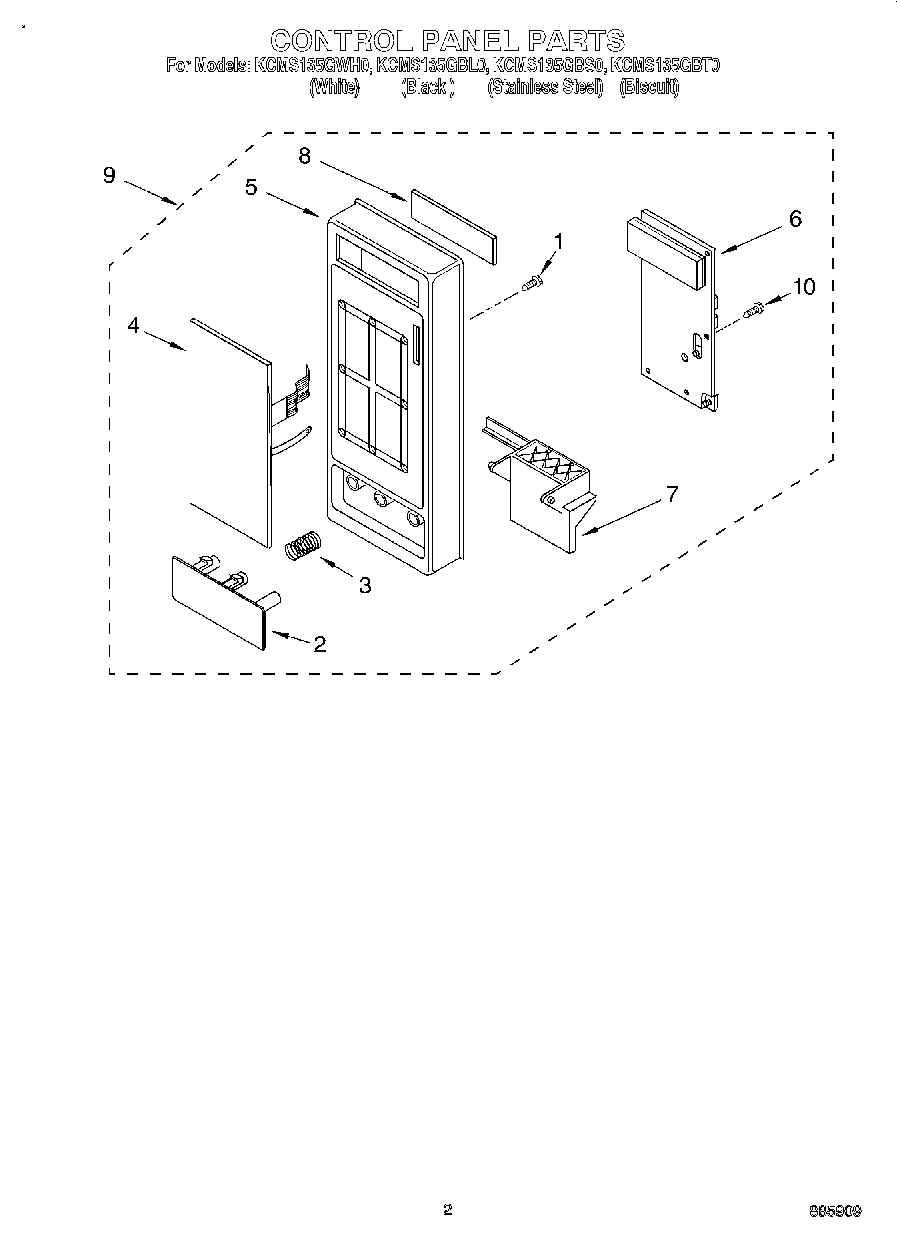

02 - CONTROL PANEL

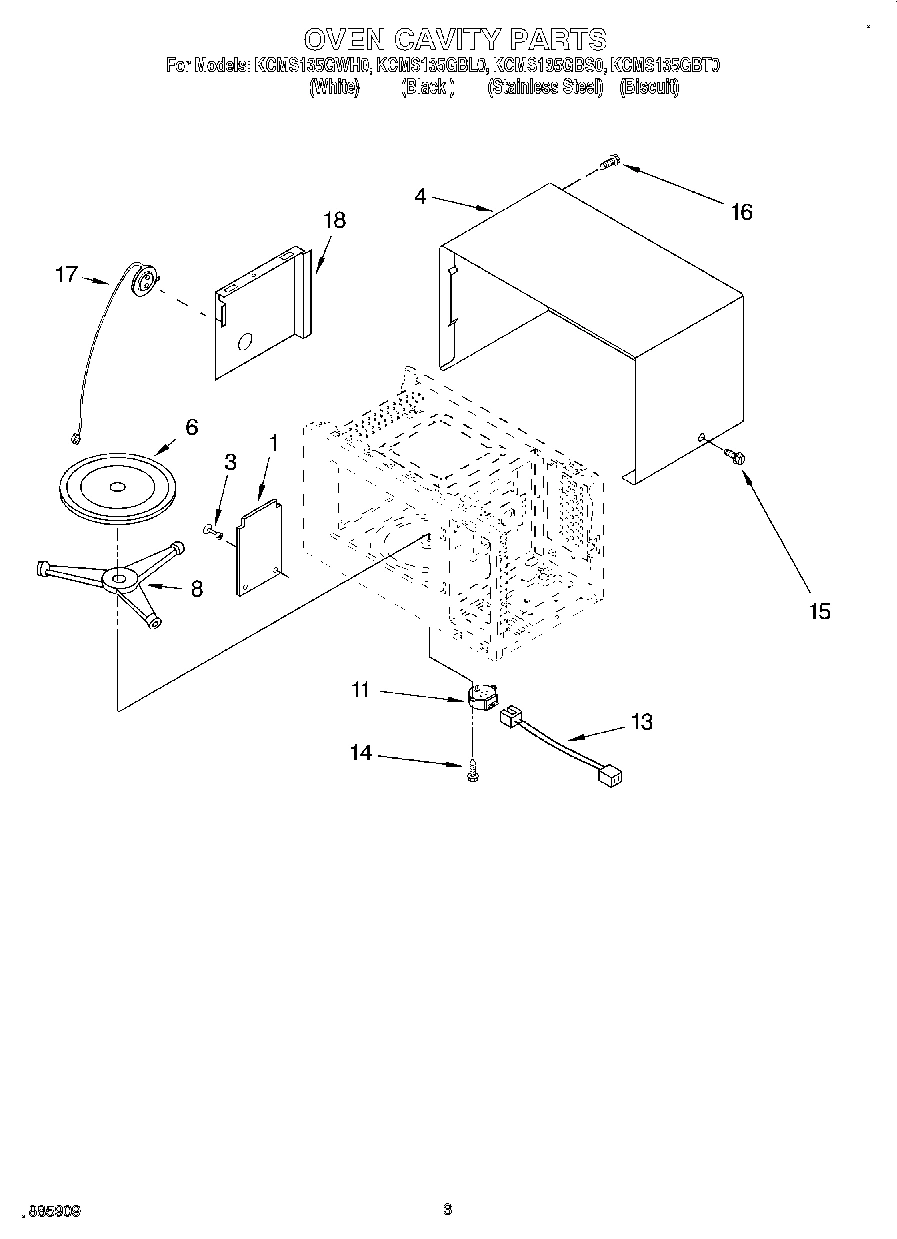

03 - OVEN CAVITY

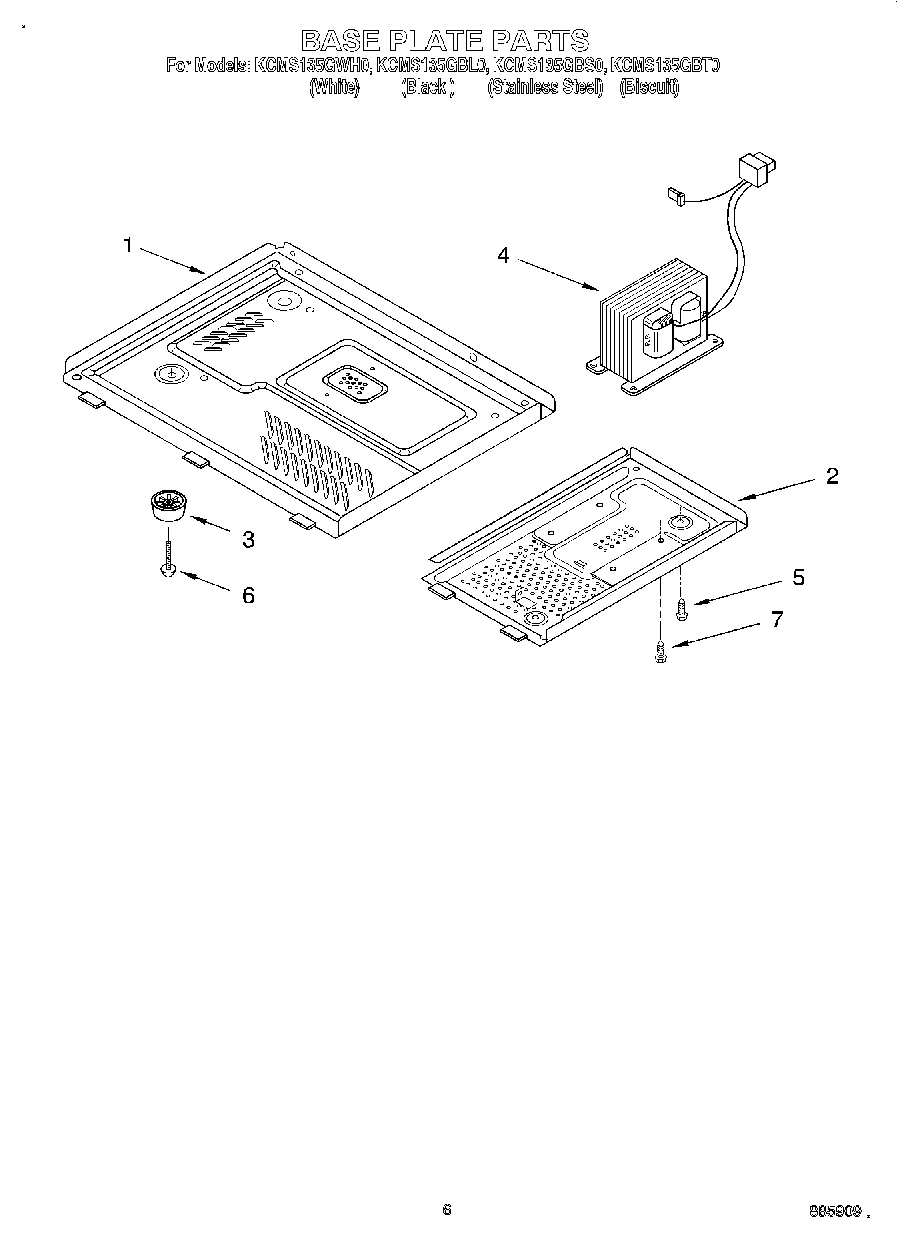

06 - BASE PLATE

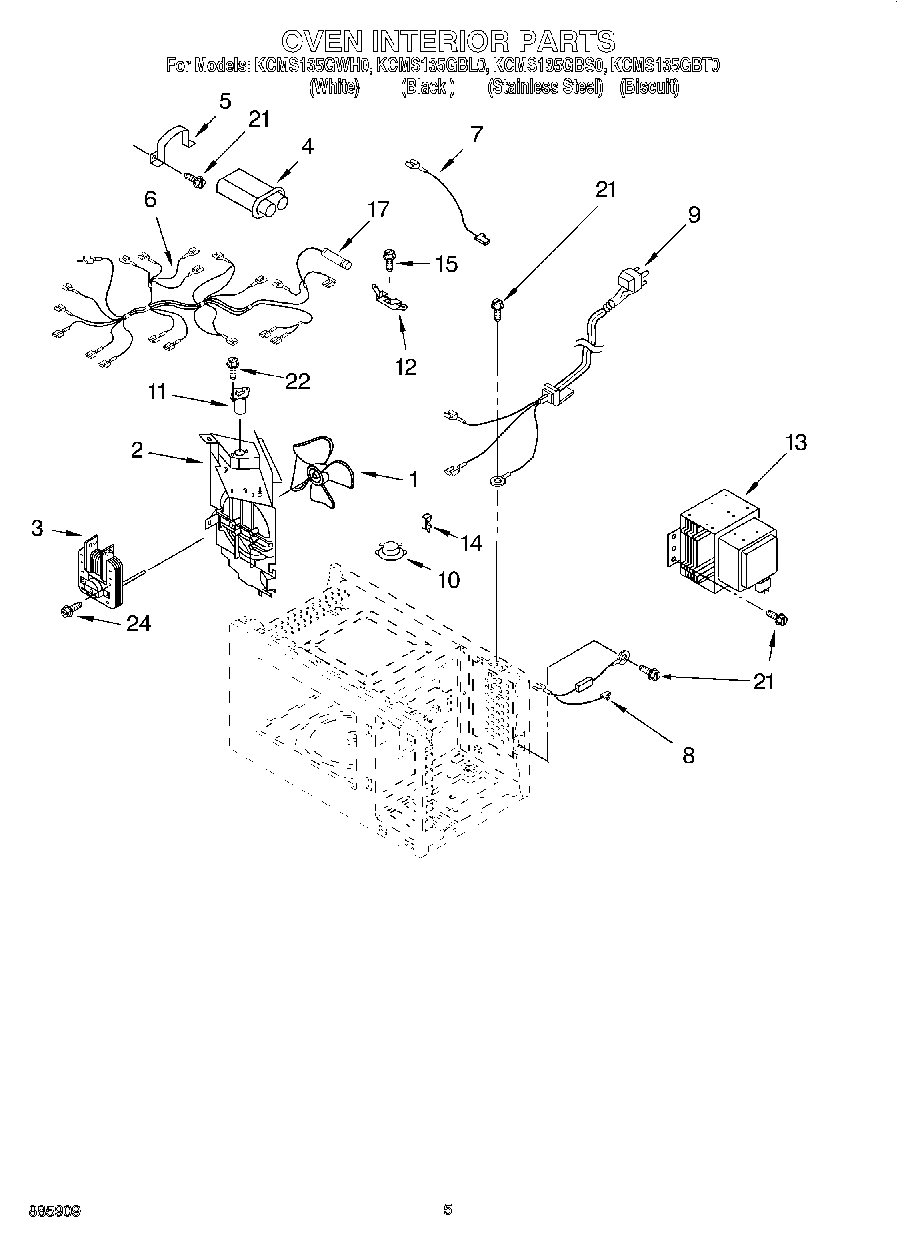

05 - OVEN INTERIOR, LITERATURE
Common parts from model Whirlpool KCMS135GSS0
Use & Care Guide WPL LIT4359627 Contact Us For Availability
Cook Guide Label WPL LIT4359632 Contact Us For Availability
Tech Sheet Installation/Instructions Trim Kit WPL LIT4359672 Contact Us For Availability
30`` WPL LIT4359691 Contact Us For Availability
27`` WPL LIT4359692 Contact Us For Availability
24`` WPL LIT4359693 Contact Us For Availability
1
Canopy WPL 4359777 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI80635A6 Contact Us For Availability
1
Base Plate (L) WPL 4359798 Contact Us For Availability
1
Propeller WPL 4358379 Contact Us For Availability
2
Front Screen (Biscuit) WPL 4359934 Contact Us For Availability
2
Release Button (White) WPL 4359845 Contact Us For Availability
2
Release Button (Black) WPL 4359846 Contact Us For Availability
2
Release Button (Biscuit FOR SS USE No.9) WPL 4359937 Contact Us For Availability
2
Base Plate (R) WPL 4359805 Contact Us For Availability
2
Guide, Suction WPL 4359786 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4359760 Contact Us For Availability
3
Door Frame Assy (Black) WPL 4359761 Contact Us For Availability
3
Door Frame Assy (Biscuit FOR SS USE No.1) WPL 4359935 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Motor, Fan WPL 4359787 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Key Membrane (White) WPL 4359847 Contact Us For Availability
4
Key Membrane (Black) WPL 4359848 Contact Us For Availability
4
Key Membrane (Stainless Steel) WPL 4359849 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 4359938 Contact Us For Availability
4
Outer Case (White) WPL 4359779 Contact Us For Availability
4
Outer Case (Black) WPL 4359852 Contact Us For Availability
4
Outer Case (Stainless Steel) WPL 4359853 Contact Us For Availability
4
Outer Case (Biscuit) WPL 4359941 Contact Us For Availability
4
Transformer WPL 4359796 Contact Us For Availability
4
H.V. Capacitor WPL 4359221 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
Control Panel (White) WPL 4359850 Contact Us For Availability
5
Control Panel (Black) WPL 4359851 Contact Us For Availability
5
Control Panel (Biscuit FOR SS USE No.9) WPL 4359939 Contact Us For Availability
5
H.V.C Bracket WPL 4359797 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
P.C.B. Sub Assy (Black) WPL 4359745 Contact Us For Availability
6
P.C.B. Sub Assy (Biscuit) WPL 4359940 Contact Us For Availability
6
Leadwire Assembly WPL 4359790 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
Screw WPL 4358721 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4359501 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
8
Support, Turntable WPL 4359782 Contact Us For Availability
9
Panel, Door (White) WPL 4359843 Contact Us For Availability
9
Panel, Door (Black) WPL 4359844 Contact Us For Availability
9
Panel, Door (Biscuit FOR SS USE No.1) WPL 4359936 Contact Us For Availability
9
Controller Assy. (Stainless Steel) WPL 4359854 Contact Us For Availability
9
Power Cord WPL 4359793 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Turntable WPL 4359499 Contact Us For Availability
12
Holder, Fuse WPL 4359789 Contact Us For Availability
13
Lead Wire Assy WPL 4359784 Contact Us For Availability
13
Magnetron WPL 4359119 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw (Black & SS Models) WPL 4358829 Contact Us For Availability
15
Screw WPL 4358451 Contact Us For Availability
17
Sensor WPL 4359568 Contact Us For Availability
18
Sensor Duct WPL 4359806 Contact Us For Availability
22
Screw WPL 4358381 Contact Us For Availability
× ![]()
