Model Whirlpool KCMS125EBS0 – Common Parts & Diagrams

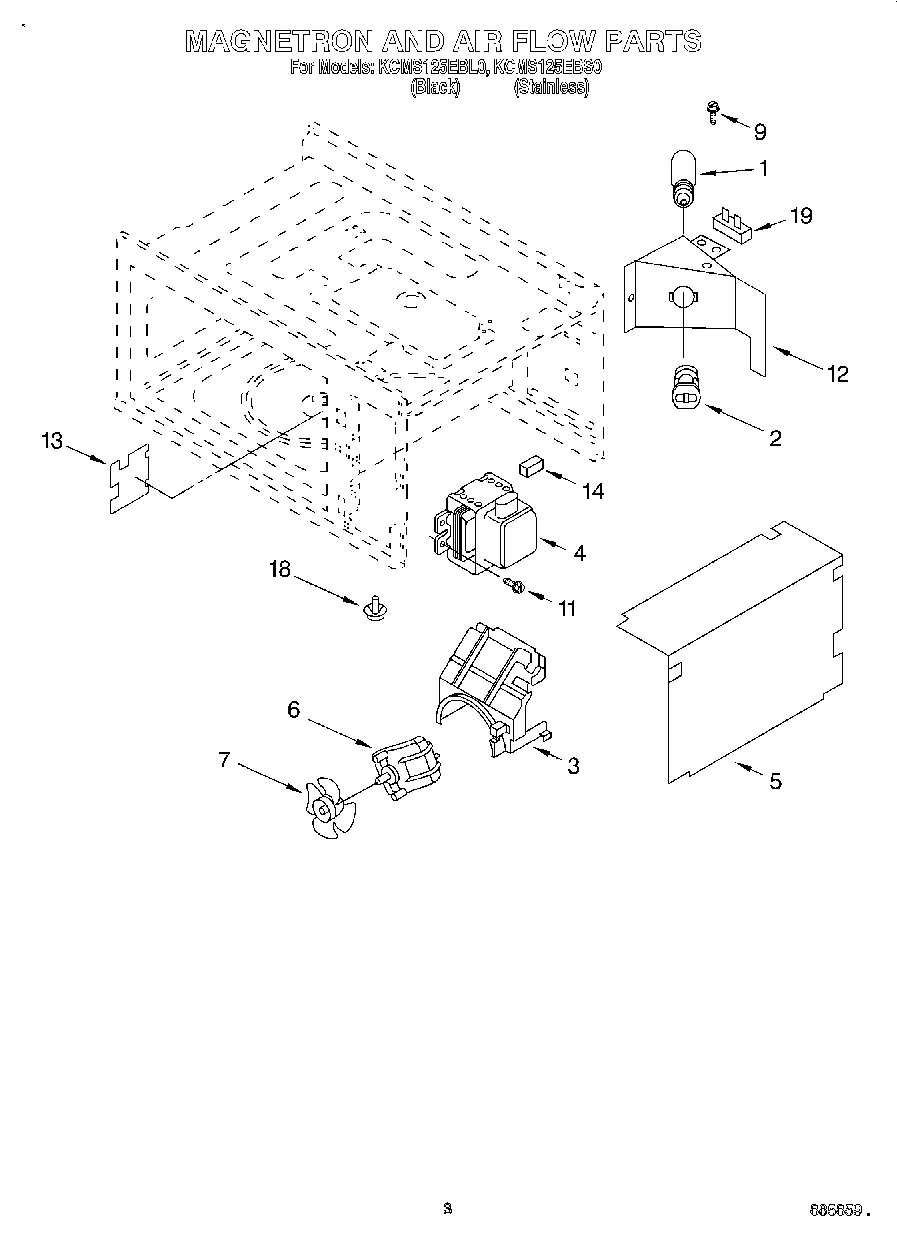

02 - MAGNETRON AND AIR FLOW

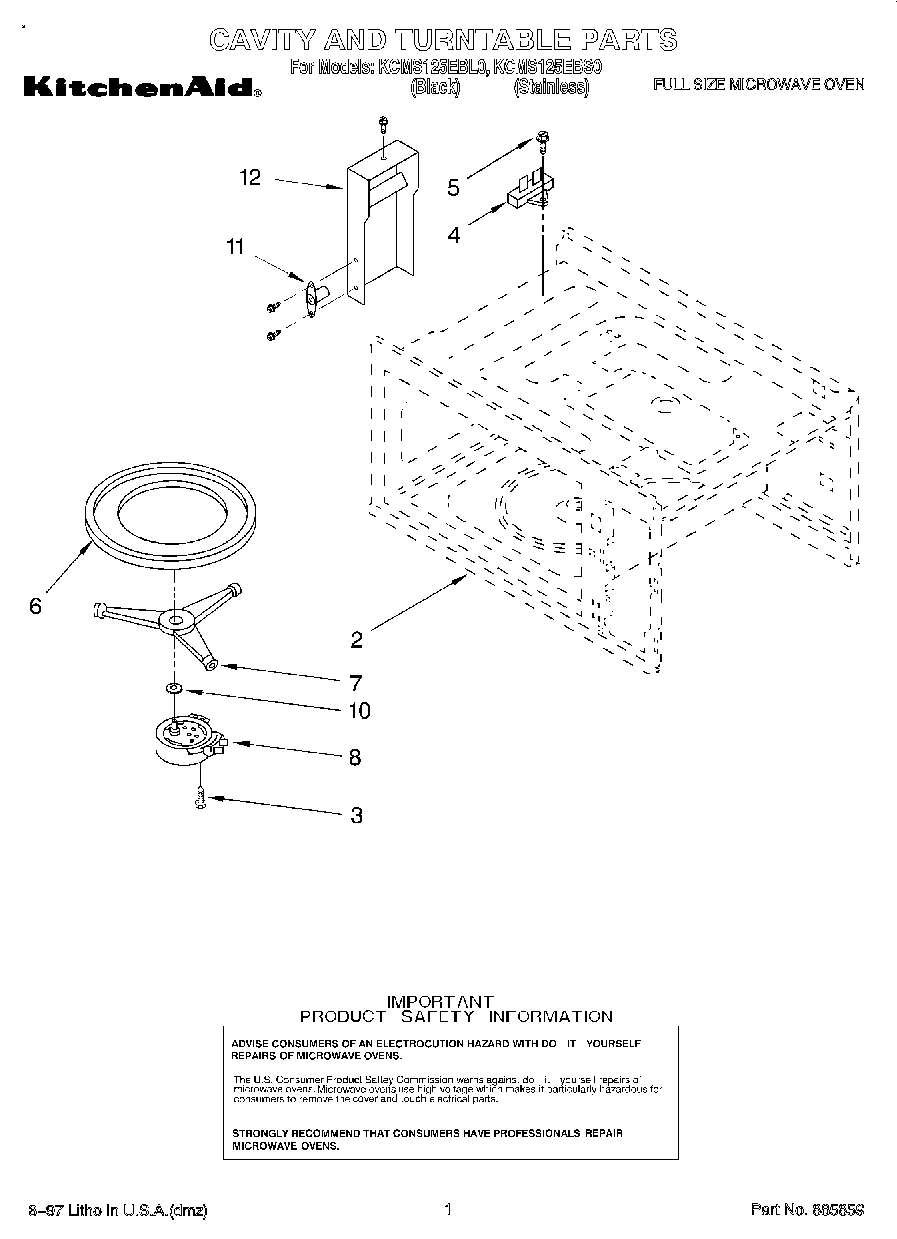

01 - CAVITY AND TURNTABLE, LIT/OPTIONAL

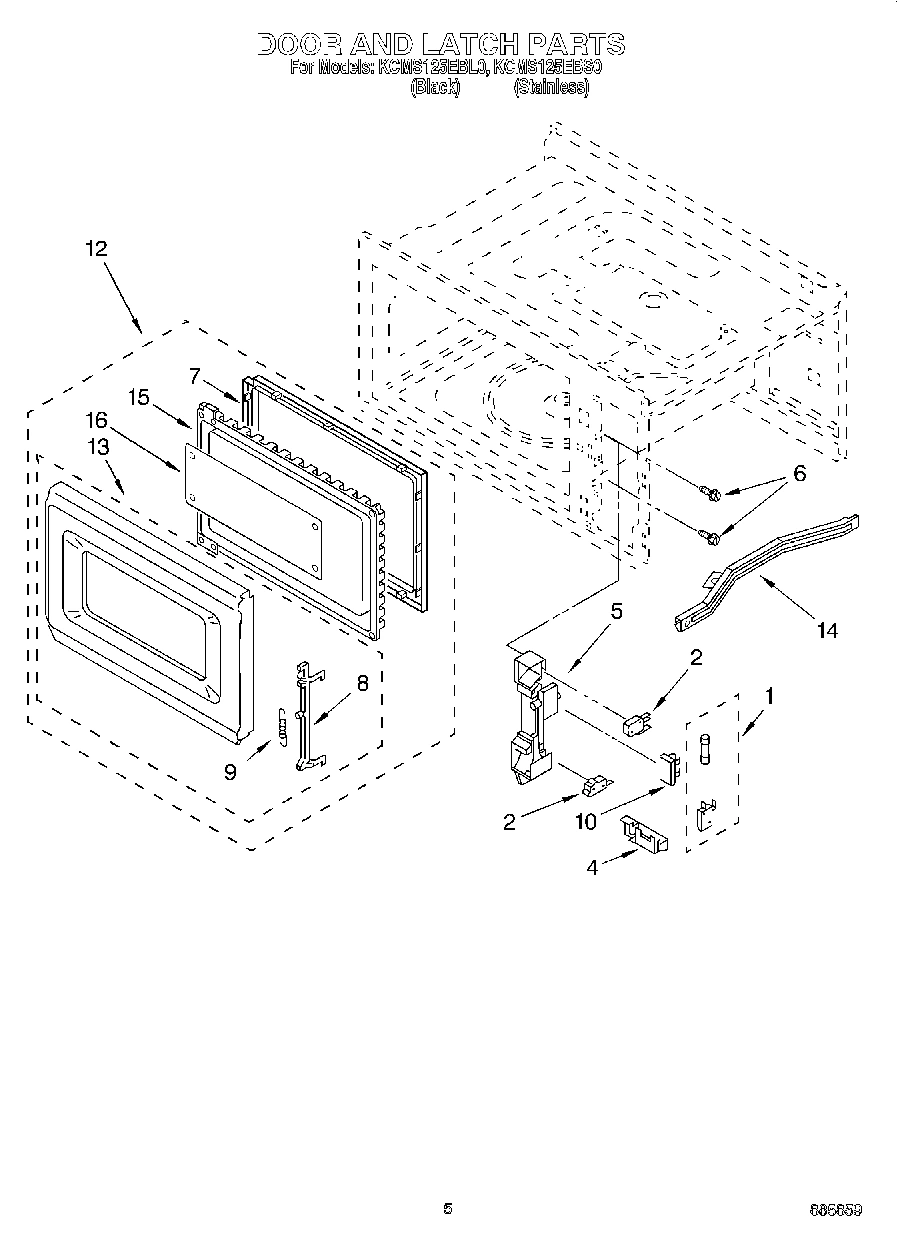

04 - DOOR AND LATCH

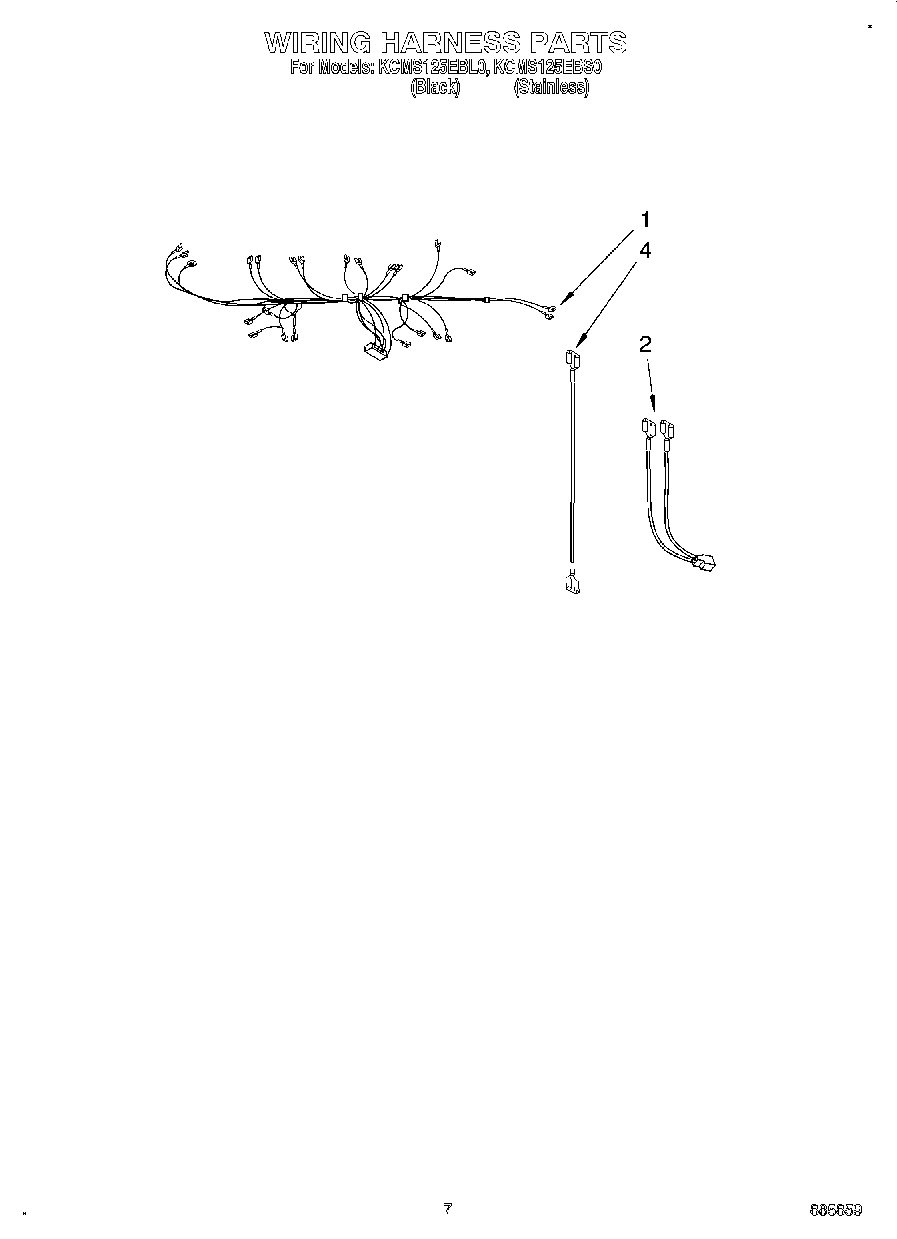

06 - WIRING HARNESS

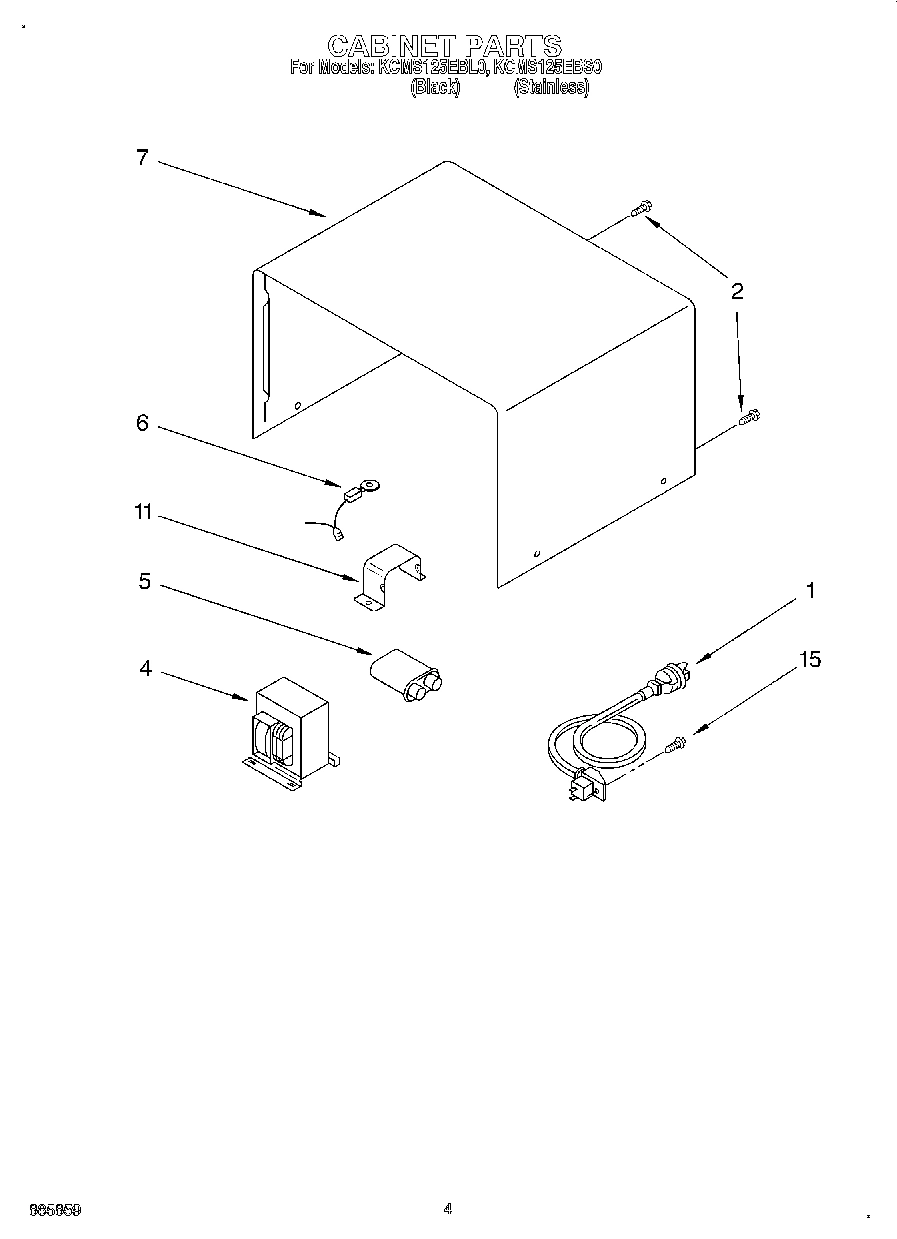

03 - CABINET

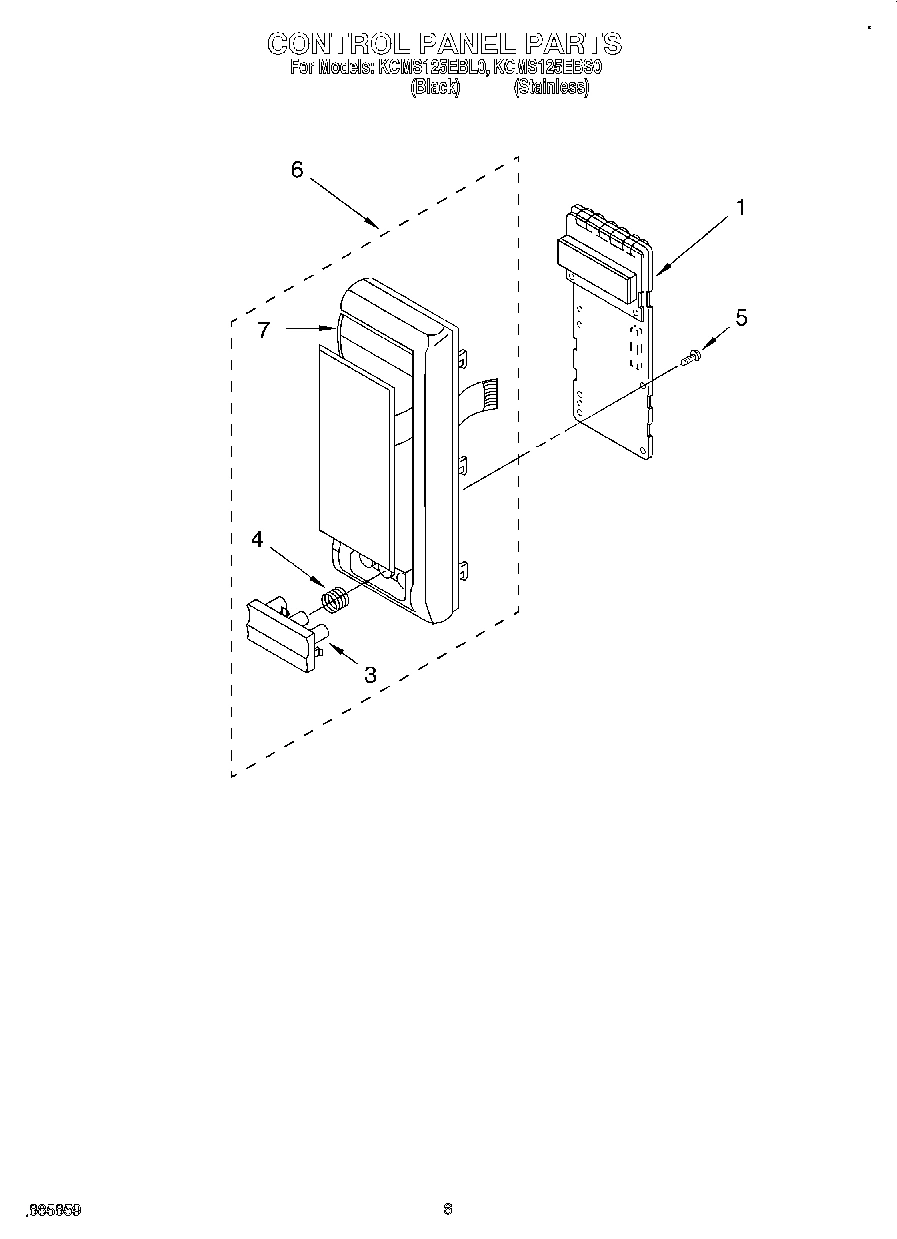

05 - CONTROL PANEL
Common parts from model Whirlpool KCMS125EBS0
24`` Built-In Kit (Black) WPL 4386631 Contact Us For Availability
24`` Built-In Kit (Stainless) WPL 4386632 Contact Us For Availability
27`` Built-In Kit (Black) WPL 4386634 Contact Us For Availability
27`` Built-In Kit (Stainless) WPL 4386635 Contact Us For Availability
30`` Built-In Kit (Black) WPL 4386637 Contact Us For Availability
30`` Built-In Kit (Stainless) WPL 4386638 Contact Us For Availability
Use & Care Guide WPL LIT4313774 Contact Us For Availability
Installation, instr. WPL LIT4313775 Contact Us For Availability
Tech Sheet WPL LIT4313776 Contact Us For Availability
1
Harness, Main WPL 4313193 Contact Us For Availability
1
Power Cord WPL 4357406 Contact Us For Availability
1
Microcomputer WPL 4313174 Contact Us For Availability
2
Cavity, Oven (Not a Serviceable Part) WPL ARI80617A2 Contact Us For Availability
2
Harness, Thermal Protection WPL 4313194 Contact Us For Availability
2
Screw WPL 4313665 Contact Us For Availability
3
Push Button WPL 4313198 Contact Us For Availability
4
Fuse, Temp WPL 4313106 Contact Us For Availability
4
Latch Lever WPL 4313191 Contact Us For Availability
4
H.V. Wire Transformer To Capacitor WPL 4313110 Contact Us For Availability
4
Transformer WPL 4313109 Contact Us For Availability
4
Screw WPL 4357320 Contact Us For Availability
5
Screw, 3 x 8 mm WPL 4174826 Contact Us For Availability
5
Latch Hook WPL 4313116 Contact Us For Availability
5
Capacitor WPL 4313100 Contact Us For Availability
5
Screw WPL 4313632 Contact Us For Availability
6
Rectifier WPL 4313101 Contact Us For Availability
6
Motor, Fan WPL 4313192 Contact Us For Availability
6
Screw WPL 4365500 Contact Us For Availability
6
Control Panel (Stainless) WPL 4313197 Contact Us For Availability
6
Control Panel (Black) WPL 4313201 Contact Us For Availability
7
Blade, Fan WPL 4313120 Contact Us For Availability
7
Support, Turntable WPL 4313196 Contact Us For Availability
7
Choke Cover WPL 4313136 Contact Us For Availability
7
Outer Cabinet WPL 4313123 Contact Us For Availability
7
Window WPL 4313176 Contact Us For Availability
8
Motor, Turntable WPL 4313108 Contact Us For Availability
8
Latch, Door WPL 4313137 Contact Us For Availability
9
Screw WPL 4357322 Contact Us For Availability
9
Spring, Latch WPL 4174992 Contact Us For Availability
10
Gasket, Turntable WPL 4313125 Contact Us For Availability
10
Holder, Fuse WPL 4313104 Contact Us For Availability
11
Screw WPL 4174757 Contact Us For Availability
11
Sensor WPL 4313171 Contact Us For Availability
11
Bracket, Capacitor WPL 4313114 Contact Us For Availability
12
Duct, Magnetron WPL 4313119 Contact Us For Availability
12
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
12
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
12
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
12
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
12
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
12
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
12
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
12
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
12
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
12
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
12
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
12
Duct, Sensor WPL 4313173 Contact Us For Availability
12
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
12
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
12
Door, Complete (Stainless) WPL 4313199 Contact Us For Availability
12
Door, Complete (Black) WPL 4313202 Contact Us For Availability
13
Cover, Wave Guide WPL 4313122 Contact Us For Availability
13
Frame, Door (Stainless) WPL 4313200 Contact Us For Availability
13
Frame, Door (Black) WPL 4313203 Contact Us For Availability
14
Cushion WPL 4365615 Contact Us For Availability
14
Support WPL 4313195 Contact Us For Availability
15
Panel, Door WPL 4313135 Contact Us For Availability
15
Screw WPL 4312922 Contact Us For Availability
16
Screen, Door WPL 4313138 Contact Us For Availability
18
Foot WPL 4365606 Contact Us For Availability
× ![]()
