Model Whirlpool KCMS122YSB0 – Common Parts & Diagrams
02 - WIRING HARNESS
03 - MAGNETRON AND AIR FLOW

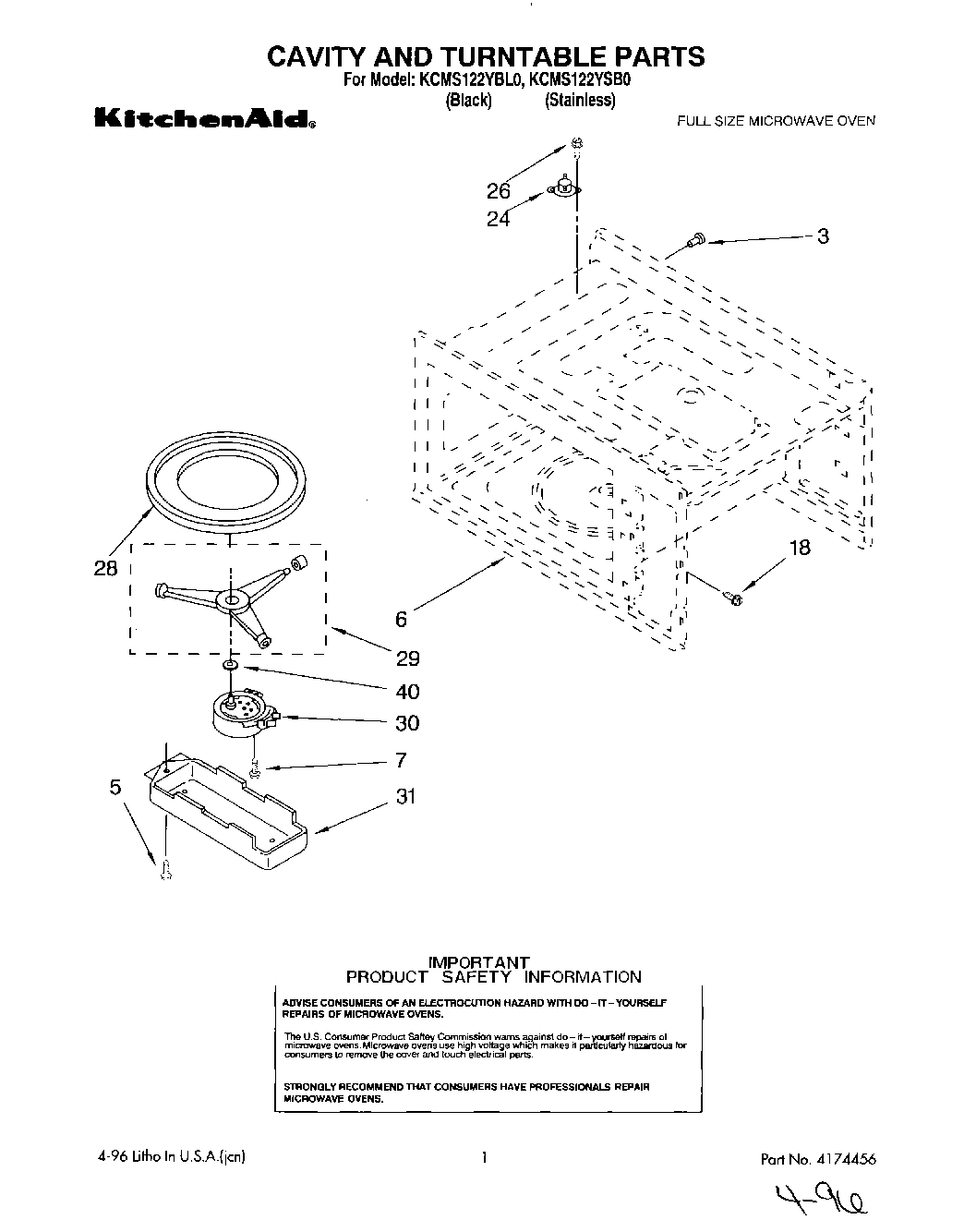

01 - CAVITY AND TURNTABLE

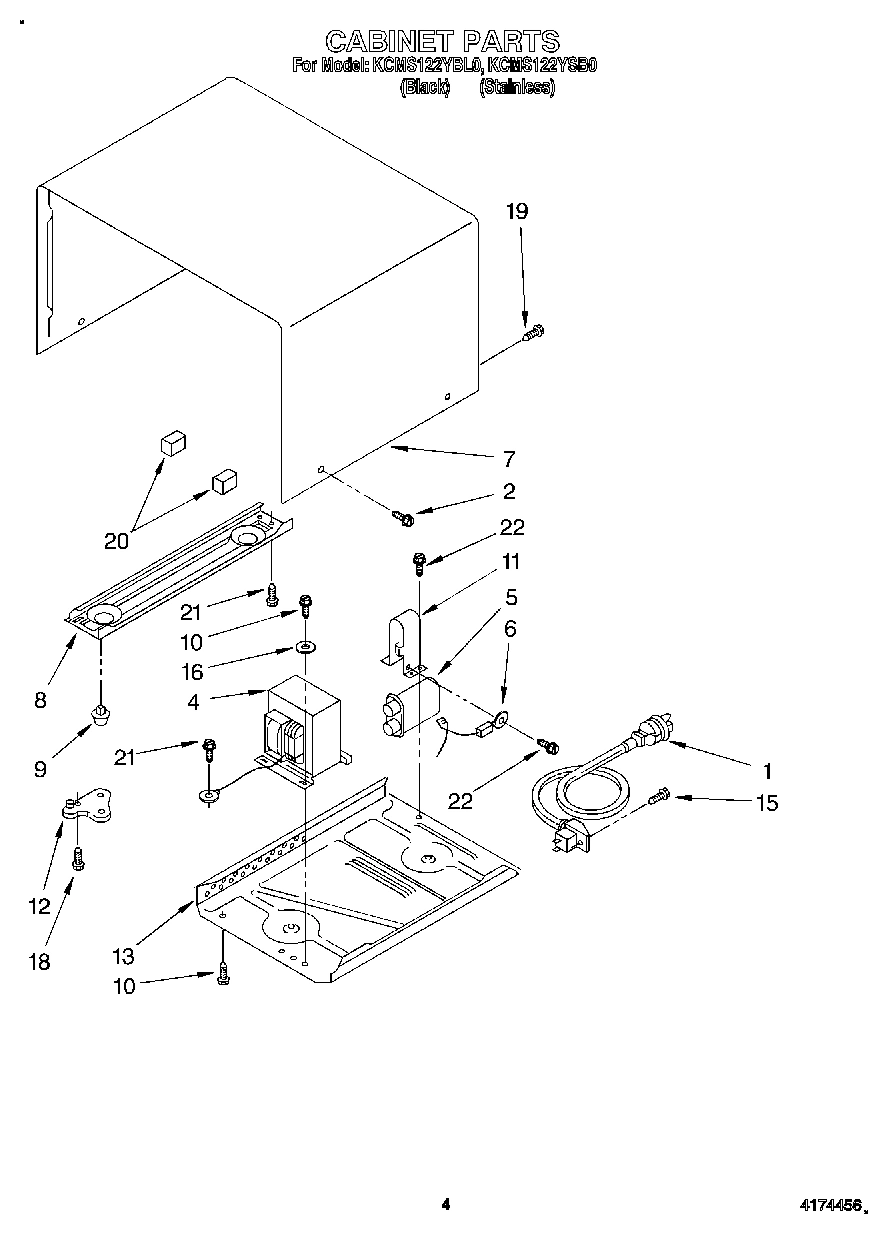

04 - CABINET

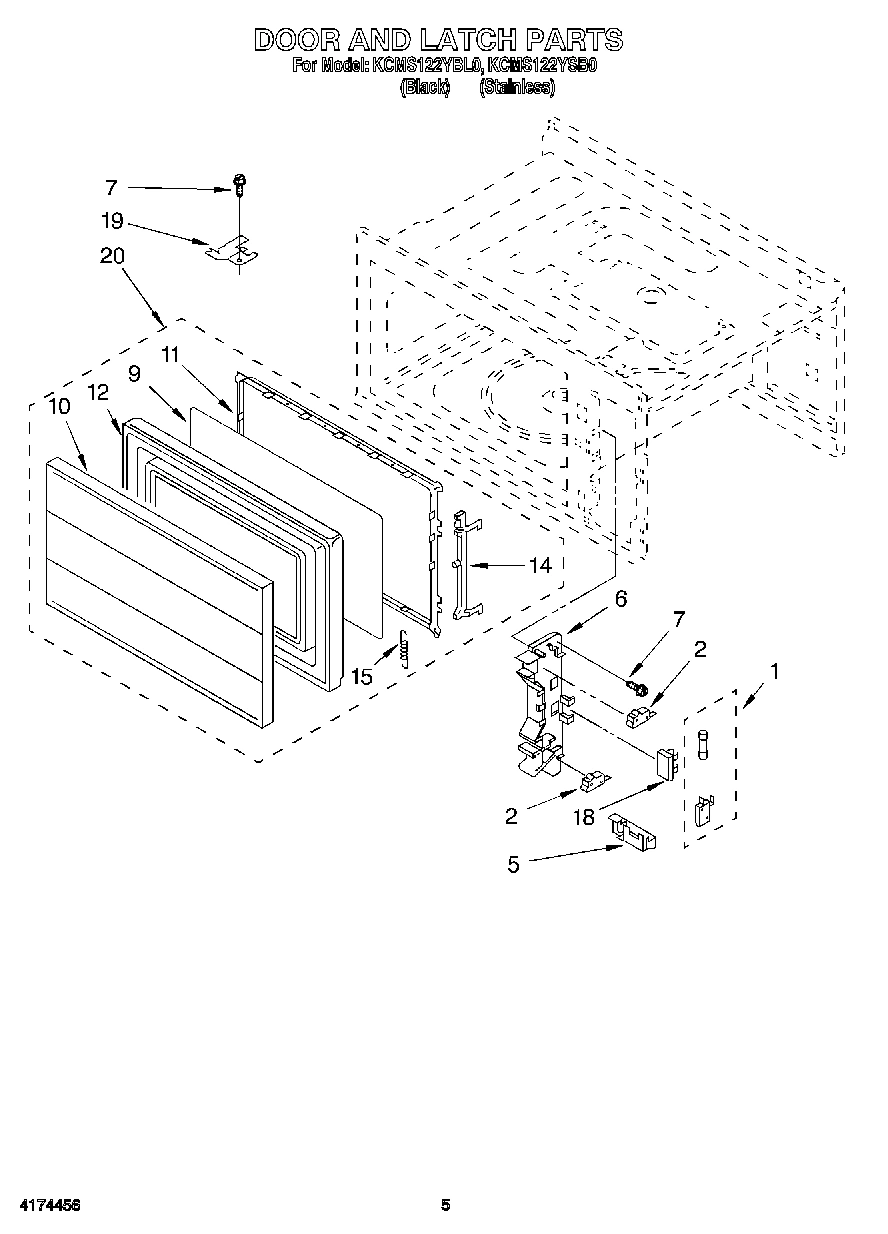

05 - DOOR AND LATCH

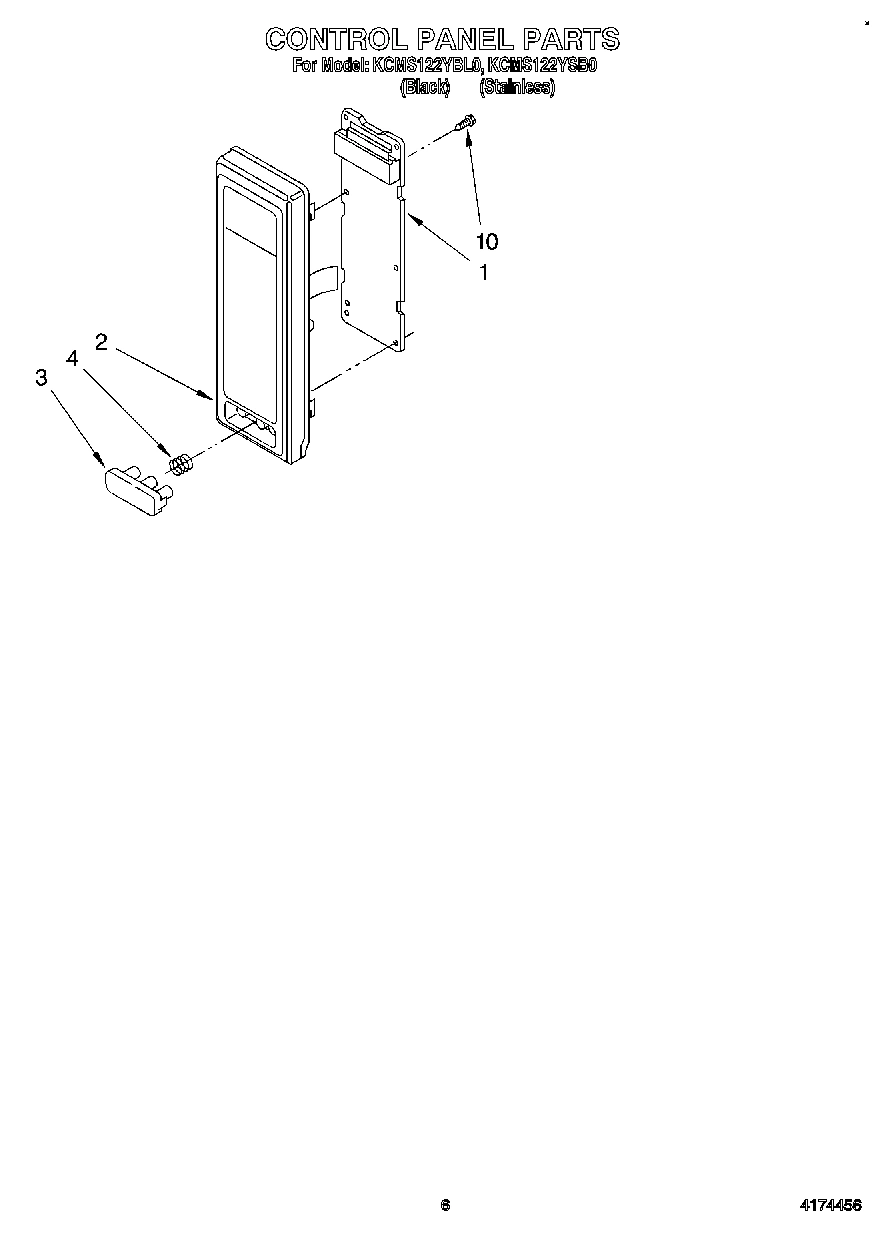

06 - CONTROL PANEL, LIT/OPTIONAL
Common parts from model Whirlpool KCMS122YSB0
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
Manual, Operation WPL LIT4357907 Contact Us For Availability
Quick Set Guide WPL LIT4357909 Contact Us For Availability
Tech Sheet WPL LIT4357911 Contact Us For Availability
Defrost Label WPL LIT4357918 Contact Us For Availability
Cook Book WPL LIT4357919 Contact Us For Availability
1
Lamp, Oven WPL 4313082 Contact Us For Availability
1
Power Cord WPL 4313617 Contact Us For Availability
1
Switch and Fuse Assy. WPL 4313083 Contact Us For Availability
1
Microcomputer WPL 4357388 Contact Us For Availability
2
Socket, Lamp WPL 4313607 Contact Us For Availability
2
Screw (Black Model) WPL 4174821 Contact Us For Availability
2
Screw (Stainless Model) WPL 4313669 Contact Us For Availability
2
Control Panel (Black Model) WPL 4313094 Contact Us For Availability
2
Control Panel (Stainless Model) WPL 4313095 Contact Us For Availability
3
Duct, Fan WPL 4357346 Contact Us For Availability
3
Spacer WPL 4313691 Contact Us For Availability
3
Push Button (Black Model) WPL 4313088 Contact Us For Availability
3
Push Button (Stainless Model) WPL 4313096 Contact Us For Availability
4
Magnetron WPL 4365503 Contact Us For Availability
4
Transformer WPL 4313615 Contact Us For Availability
5
Thermostat, Magnetron WPL 4313613 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
5
Latch Lever WPL 4313624 Contact Us For Availability
6
Motor, Fan WPL 4313672 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI80610A8 Contact Us For Availability
6
Rectifier WPL 4313671 Contact Us For Availability
6
Latch Hook WPL 4313620 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
7
Screw, 3 x 8 mm WPL 4174757 Contact Us For Availability
7
Outer Cabinet (Stainless Model) WPL 4357348 Contact Us For Availability
7
Outer Cabinet (Black Model) WPL 4365583 Contact Us For Availability
8
Cushion, Fan Duct WPL 4174824 Contact Us For Availability
8
Base Plate, Left Side WPL 4357345 Contact Us For Availability
9
Screw WPL 4313701 Contact Us For Availability
9
Foot (4) WPL 4313684 Contact Us For Availability
9
Seal, Door (Not a Serviceable Part) WPL ARI80611A1 Contact Us For Availability
10
Screw, 4 x 16 mm WPL 4357320 Contact Us For Availability
10
Screen, Door (Black) WPL 4313090 Contact Us For Availability
10
Screen, Door (Stainless Model) WPL 4357359 Contact Us For Availability
10
Screw WPL 4313632 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
11
Choke Cover WPL 4313650 Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
12
Frame, Door (Not Serviceable) WPL ARI80612A4 Contact Us For Availability
13
Base Plate, Right Side WPL 4313621 Contact Us For Availability
14
Latch, Door WPL 4313652 Contact Us For Availability
15
Screw WPL 4313666 Contact Us For Availability
15
Spring, Latch WPL 4174992 Contact Us For Availability
16
Washer WPL 4365501 Contact Us For Availability
18
Screw WPL 4313664 Contact Us For Availability
18
Holder, Fuse WPL 4174899 Contact Us For Availability
19
Screw WPL 4313665 Contact Us For Availability
19
Hinge, Upper WPL 4313086 Contact Us For Availability
20
Shield, Wire (2) WPL 4313644 Contact Us For Availability
20
Door, Complete (Black Model) WPL 4313089 Contact Us For Availability
20
Door, Complete (Stainless) WPL 4357356 Contact Us For Availability
21
Screw WPL 4365500 Contact Us For Availability
21
Screw WPL 4313661 Contact Us For Availability
22
Screw WPL 4174811 Contact Us For Availability
23
Duct, Magnetron WPL 4313633 Contact Us For Availability
24
Cover, Wave Guide WPL 4313635 Contact Us For Availability
24
Thermostat, Oven WPL 4313674 Contact Us For Availability
25
Shield, Magnetron WPL 4313643 Contact Us For Availability
26
Screw, 3 x 8 mm WPL 4174826 Contact Us For Availability
29
Support, Turntable WPL 4313639 Contact Us For Availability
30
Motor, Turntable WPL 4357340 Contact Us For Availability
31
Cover, Motor WPL 4313028 Contact Us For Availability
40
Gasket, Turntable WPL 4313642 Contact Us For Availability
× ![]()
