Model Whirlpool KCM223OB0 COFFEE MAKER 14 CUP - GLASS CARAFE AND 12 CUP - TH – Common Parts & Diagrams

Common parts from model Whirlpool KCM223OB0 COFFEE MAKER 14 CUP - GLASS CARAFE AND 12 CUP - TH

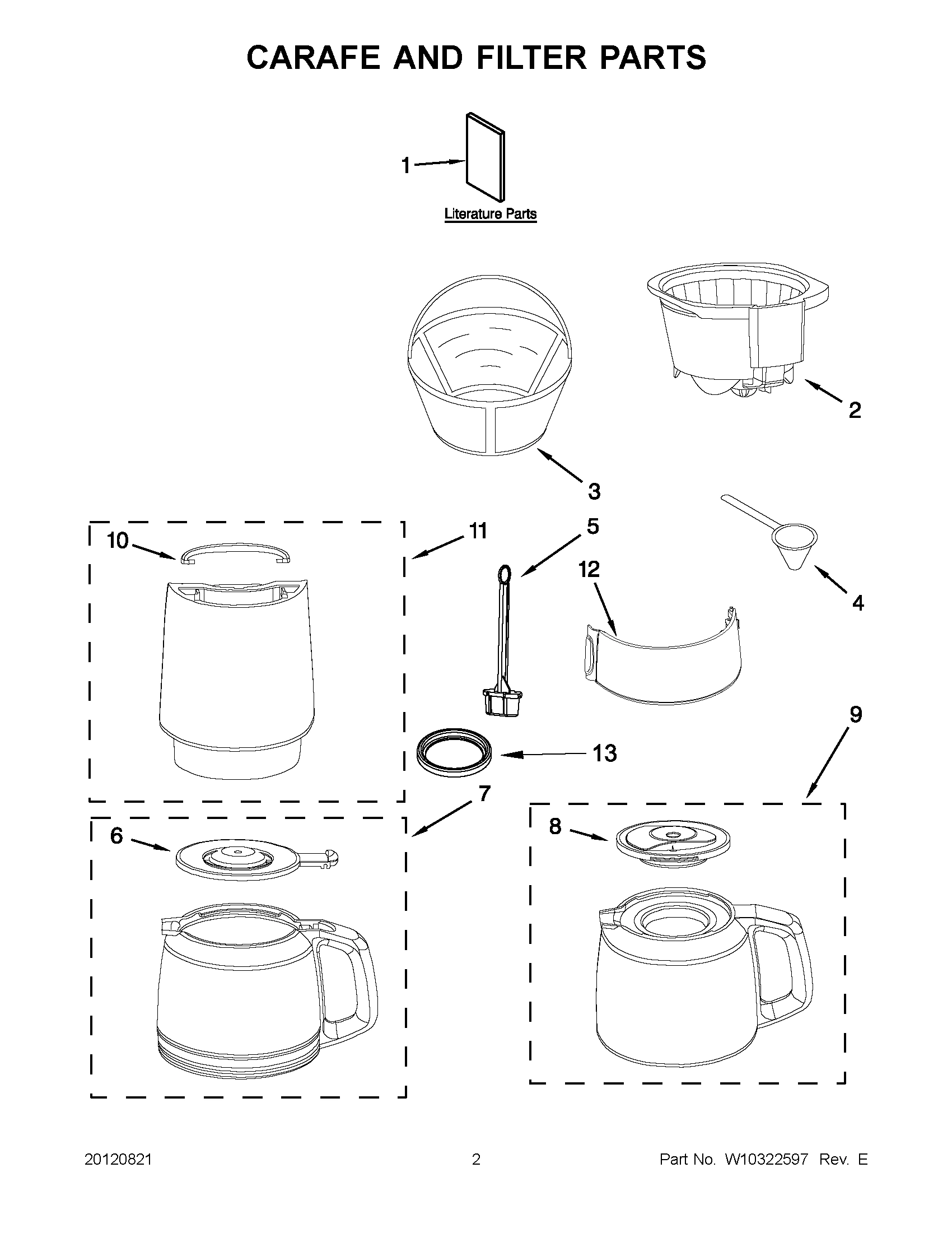

01 - CARAFE AND FILTER PARTS

Print

• This Diagram
• All Diagrams

1

GUIDE, USE AND CARE WPL W10321647 Contact Us For Availability

View on Model

2

BASKET, BREW WPL W10322625 Contact Us For Availability

View on Model

3

FILTER, GOLDTONE WPL W10322626 Contact Us For Availability

View on Model

4

SCOOP, COFFEE WPL W10322628 Contact Us For Availability

View on Model

5

FILTER, WATER ASSEMBLY WPL W10322629 Contact Us For Availability

View on Model

6

LID, GLASS CARAFE (BLACK) WPL W10322631 Contact Us For Availability

View on Model

7

WPW10505658 Whirlpool Carafe Backorder WPL WPW10505658 View Details $72.18

View on Model

8

LID, THERMAL (BLACK) WPL W10322633 Contact Us For Availability

View on Model

9

WPW10505659 Whirlpool Carafe Backorder WPL WPW10505659 View Details $86.64

View on Model

10

HANDLE, TANK WPL W10322635 Contact Us For Availability

View on Model

11

TANK, WATER ASSY (14 CUP) WPL W10322636 Contact Us For Availability

View on Model

11

TANK, WATER ASSY (12 CUP) WPL W10322638 Contact Us For Availability

View on Model

12

DOOR, BASKET (WITH LOGO) WPL W10367063 Contact Us For Availability

View on Model

12

DOOR, BASKET (WITHOUT LOGO) WPL W10367064 Contact Us For Availability

View on Model

13

SEAL WPL W10531600 Contact Us For Availability

View on Model

×
