Model Whirlpool KCGS350ESS05 COOKTOP, GAS – Common Parts & Diagrams

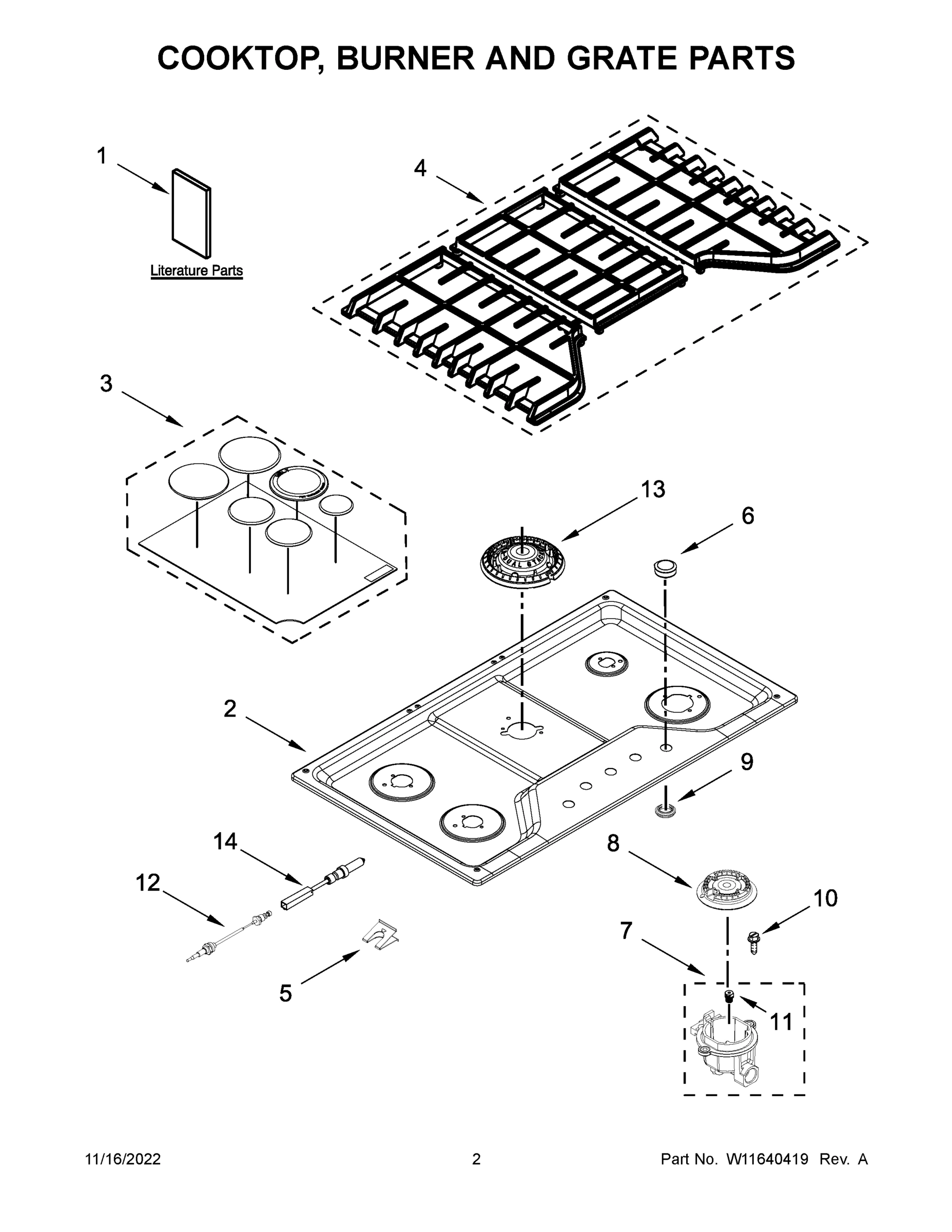

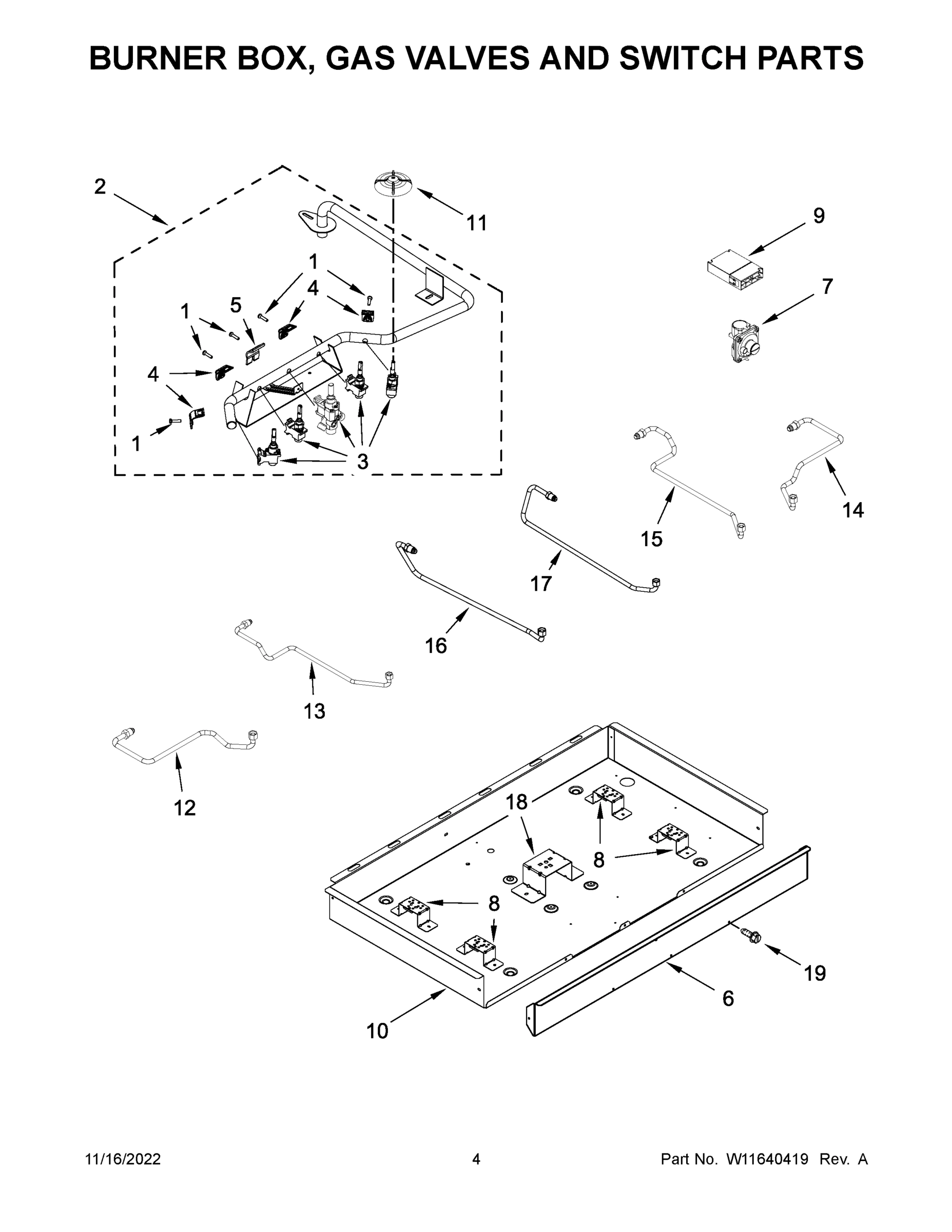

Common parts from model Whirlpool KCGS350ESS05 COOKTOP, GAS

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

2

W10594395 Whirlpool Manifold Assembly Backorder WPL W10594395 View Details $185.73

View on Model

2

W10597067 Whirlpool Cooktop Assembly Backorder WPL W10597067 View Details $185.66

View on Model

3

W11677628 Whirlpool Microwave Gas Valve Backorder WPL W11677628 View Details $72.49

View on Model

3A

W11256503 Whirlpool Gas Valve Assembly Backorder WPL W11256503 View Details $100.31

View on Model

3B

W10859922 Whirlpool Gas Valve Backorder WPL W10859922 View Details $28.37

View on Model

3C

W11712403 Whirlpool Gas Valve Backorder WPL W11712403 View Details $36.25

View on Model

3D

W11246817 Whirlpool Burner Valve In Stock WPL W11246817 View Details $89.09

View on Model

5

8286863 Whirlpool Oven Clip Backorder WPL 8286863 View Details $26.21

View on Model

6

WPW10545849 Whirlpool Knob In Stock WPL WPW10545849 View Details $53.18

View on Model

7

W10597166 Whirlpool Orifice Holder Backorder WPL W10597166 View Details $25.27

View on Model

7

W11087445 Whirlpool Pressure Regulator In Stock WPL W11087445 View Details $117.28

View on Model

7B

W10594399 Whirlpool Orifice Holder Backorder WPL W10594399 View Details $13.89

View on Model

7C

W10611441 Whirlpool Orifice Holder Backorder WPL W10611441 View Details $35.28

View on Model

8

W10594429 Whirlpool Mounting Bracket Backorder WPL W10594429 View Details $8.38

View on Model

8

WP8286814 Whirlpool Burner Head In Stock WPL WP8286814 View Details $50.40

View on Model

8A

WP8286813 Whirlpool Burner Head In Stock WPL WP8286813 View Details $50.40

View on Model

9

WPW10475149 Whirlpool Spark Module In Stock WPL WPW10475149 View Details $118.16

View on Model

11

W10652710 Whirlpool Orifice Spud Backorder WPL W10652710 View Details $9.92

View on Model

11D

W10652706 Whirlpool Spud Orifice Backorder WPL W10652706 View Details $36.80

View on Model

13

W10811599 Whirlpool Burner Head In Stock WPL W10811599 View Details $81.16

View on Model

14

W10852959 Whirlpool Surface Igniter Backorder WPL W10852959 View Details $27.69

View on Model

16

W10566296 Whirlpool Gas Tubing Backorder WPL W10566296 View Details $27.34

View on Model

17

W10566297 Whirlpool Gas Tubing Backorder WPL W10566297 View Details $68.31

View on Model

NI

W10392003 Whirlpool Power Cord Backorder WPL W10392003 View Details $55.59

View on Model

NI

W10676661 Whirlpool Cooktop Spud Orifice Backorder WPL W10676661 View Details $15.36

View on Model

NI

W10685483 Whirlpool Range Griddle In Stock WPL W10685483 View Details $44.45

View on Model

NI

W11561436 Whirlpool Ignition Switch and Harne In Stock WPL W11561436 View Details $21.91

View on Model

NI

W11637584 Whirlpool Wire Harness Backorder WPL W11637584 View Details $11.79

View on Model

NI

WP3400015 Whirlpool Screw Backorder WPL WP3400015 View Details $2.51

View on Model

NI

ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEAN WPL W11042467 Contact Us For Availability

View on Model

NI

BRACKET, TIE DOWN WPL 3801F93551 Contact Us For Availability

View on Model

NI

SCREW (USED FOR TIE DOWN BRACKET) WPL 7101P06260 Contact Us For Availability

View on Model

NI

TAPE, FOAM WPL 8270P18860 Contact Us For Availability

View on Model

NI

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
