Model Whirlpool KCGG536PBL01 COOKTOP, GAS – Common Parts & Diagrams
COOKTOP, BURNER AND GRATE PARTS
BURNER BOX, GAS VALVES AND SWITCH PARTS

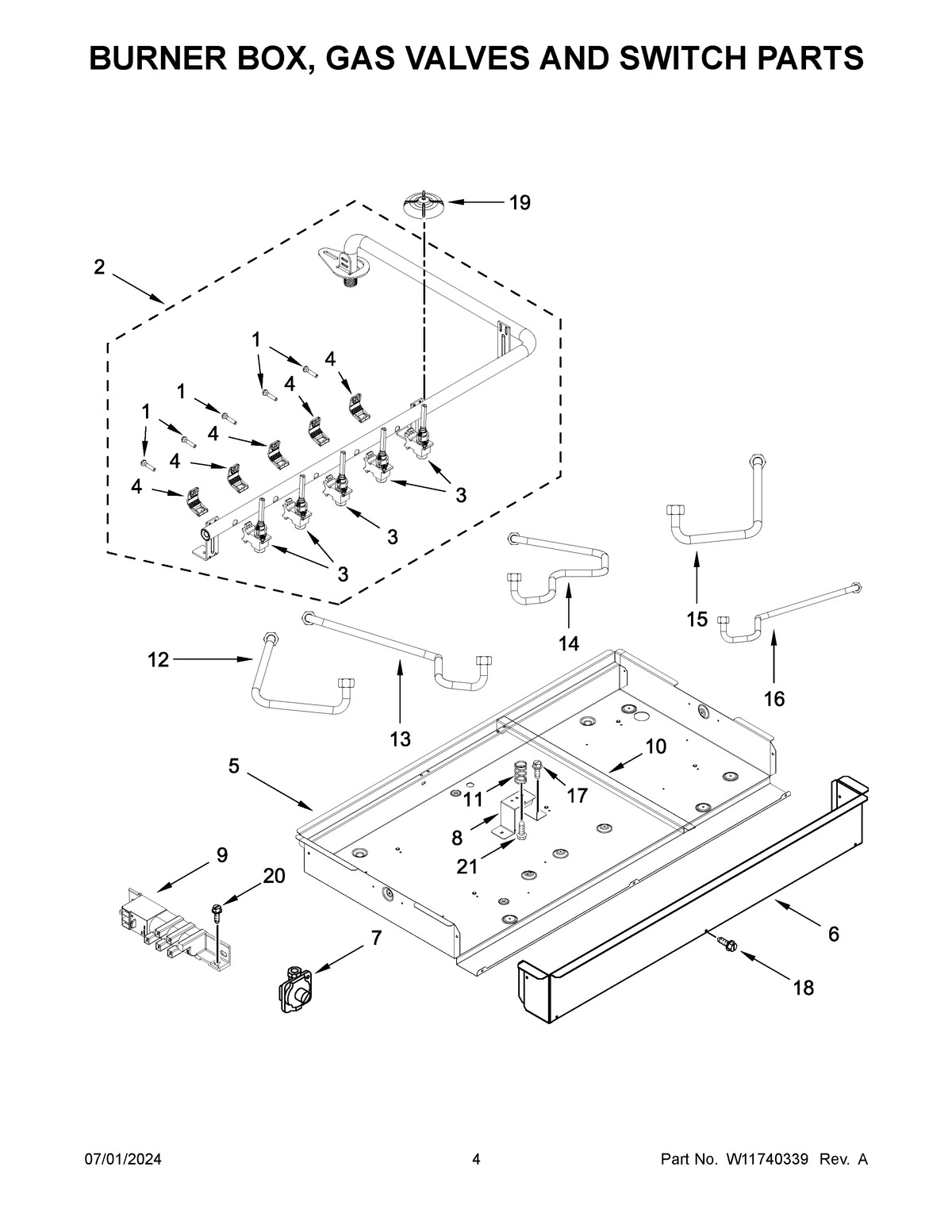

03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
Common parts from model Whirlpool KCGG536PBL01 COOKTOP, GAS
(Left Front, Left Rear) WPL ARI130620F5738F97FA53E648D69A4CE80B Contact Us For Availability
(Right Front, Center) WPL ARI9CA4BFAE91A940FBF233DBE12DD115EE Contact Us For Availability
(Right Rear) WPL ARI283693F3486669333C7F1EE938CD8A5B Contact Us For Availability
Holder, Orifice (18K) WPL W11567144 Contact Us For Availability
(Center) WPL ARI7A67B14AEA62F6D2A04BCF7D52CA12EE Contact Us For Availability
Holder, Orifice (15K) WPL W11567152 Contact Us For Availability
(Right Front) WPL ARIA12C7E5D311C54B1AACBC1820DF34957 Contact Us For Availability
Holder, Orifice (5K) WPL W11567151 Contact Us For Availability
Wiring, Electrode (636MM) WPL W11642338 Contact Us For Availability
Orifice WPL W11610057 Contact Us For Availability
Orifice WPL W11567153 Contact Us For Availability
Orifice WPL W11364991 Contact Us For Availability
Bezel, Burner WPL W11564388 Contact Us For Availability
(Center and Right Front) WPL ARI366F739729E30F8F054E7BD9138DF341 Contact Us For Availability
Bezel, Burner WPL W11564389 Contact Us For Availability
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability
Harness, Switch WPL W11632717 Contact Us For Availability
Bracket, Tie Down WPL 3801F93551 Contact Us For Availability
Screw WPL 7101P06260 Contact Us For Availability
(Used For Tie Down Bracket) WPL ARI3770015A4B07CA67C806D98841D12734 Contact Us For Availability
(Left Front) WPL ARI76BF577D359F4F7B6AC1C45BB9FB0006 Contact Us For Availability
(Left Rear) WPL ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 Contact Us For Availability
OPTIONAL ACCESSORY PART (NOT INCLUDED) WPL ARIF2E7B6BD22672B9DC44FA7CEA7C6567E Contact Us For Availability
1
Literature Parts WPL ARI4741983F61CAC445F12C0C1FD1B613C1 Contact Us For Availability
2
Glass Cooktop Assembly (Black) WPL W11566374 Contact Us For Availability
2
MANIFOLD ASSEMBLY WPL W11576648 Contact Us For Availability
3
Burner Cap Kit, Black (Includes Five Caps) WPL W11567154 Contact Us For Availability
4
Grate, Side (Includes 1 Grate) WPL W11573789 Contact Us For Availability
5
Grate, Center WPL W11604889 Contact Us For Availability
5
Box, Burner (Not Serviced) WPL ARIDBAA9548A1EB15B27ADE369B6B57A1AD Contact Us For Availability
5
BOX, BURNER (NOT SERVICED) WPL ARI55514D8BCAB29AE100450EFDED77D6CF Contact Us For Availability
6
Knob, Cooktop (Stainless) WPL W11566347 Contact Us For Availability
6
PANEL, FRONT WPL W11596125 Contact Us For Availability
7
Grommet WPL W11641507 Contact Us For Availability
8
Flame Spreader WPL W11352194 Contact Us For Availability
8
BRACKET, ORIFICE HOLDER WPL W11721348 Contact Us For Availability
9
Holder, Orifice (9.1K) WPL W11567148 Contact Us For Availability
10
RAIL, COOKTOP REINFORCEMENT WPL W11566318 Contact Us For Availability
11
Orifice WPL W11631338 Contact Us For Availability
11
SPRING, ORIFICE HOLDER WPL W10736113 Contact Us For Availability
12
Foot Pad, Grate (Outer) WPL W10598131 Contact Us For Availability
12
TUBING, GAS BURNER (LEFT FRONT) WPL W11592380 Contact Us For Availability
13
Foot Pad, Grate (Inner) WPL W11684734 Contact Us For Availability
13
TUBING, GAS BURNER (LEFT REAR) WPL W11592384 Contact Us For Availability
14
Bezel, Burner WPL W11564390 Contact Us For Availability
14
TUBING, GAS BURNER (CENTER) WPL W11592377 Contact Us For Availability
15
TUBING, GAS BURNER (RIGHT FRONT) WPL W11592373 Contact Us For Availability
16
TUBING, GAS BURNER (RIGHT REAR) WPL W11592382 Contact Us For Availability
20
SCREW WPL 7101P42660 Contact Us For Availability
21
SCREW WPL W11691929 Contact Us For Availability
× ![]()
