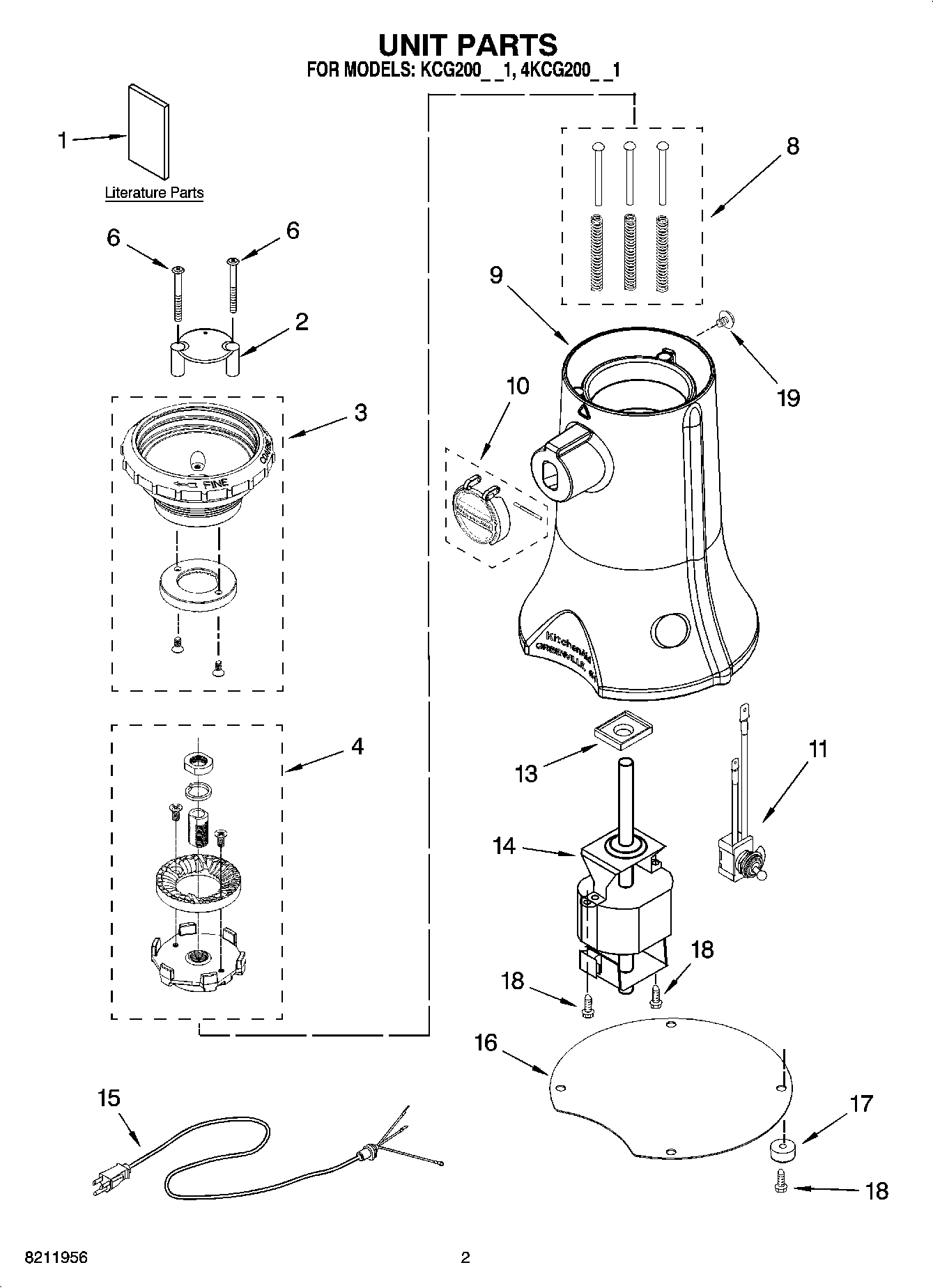

Model Whirlpool KCG200OB1 COFFEE MILL – Common Parts & Diagrams

1
Repair Parts List
Repair Parts List WPL 8211956 Contact Us For Availability
View on Model
1
US
US WPL 9707030 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL ARI80582A3 Contact Us For Availability
View on Model
1
Lid
Lid WPL 9707003 Contact Us For Availability
View on Model
2
Guard, Finger
Guard, Finger WPL 9708807 Contact Us For Availability
View on Model
2
Jar
Jar WPL 9707004 Contact Us For Availability
View on Model
3
Support, Jar Asm
Support, Jar Asm WPL 9707037 Contact Us For Availability
View on Model
3
Gasket, Jar
Gasket, Jar WPL 9707014 Contact Us For Availability
View on Model
4
Support & Burr Assembly
Support & Burr Assembly WPL 9707092 Contact Us For Availability
View on Model
5
Glass, Measuring
Glass, Measuring WPL 9707006 Contact Us For Availability
View on Model
6
Screw, Finger Grd
Screw, Finger Grd WPL 9707095 Contact Us For Availability
View on Model
6

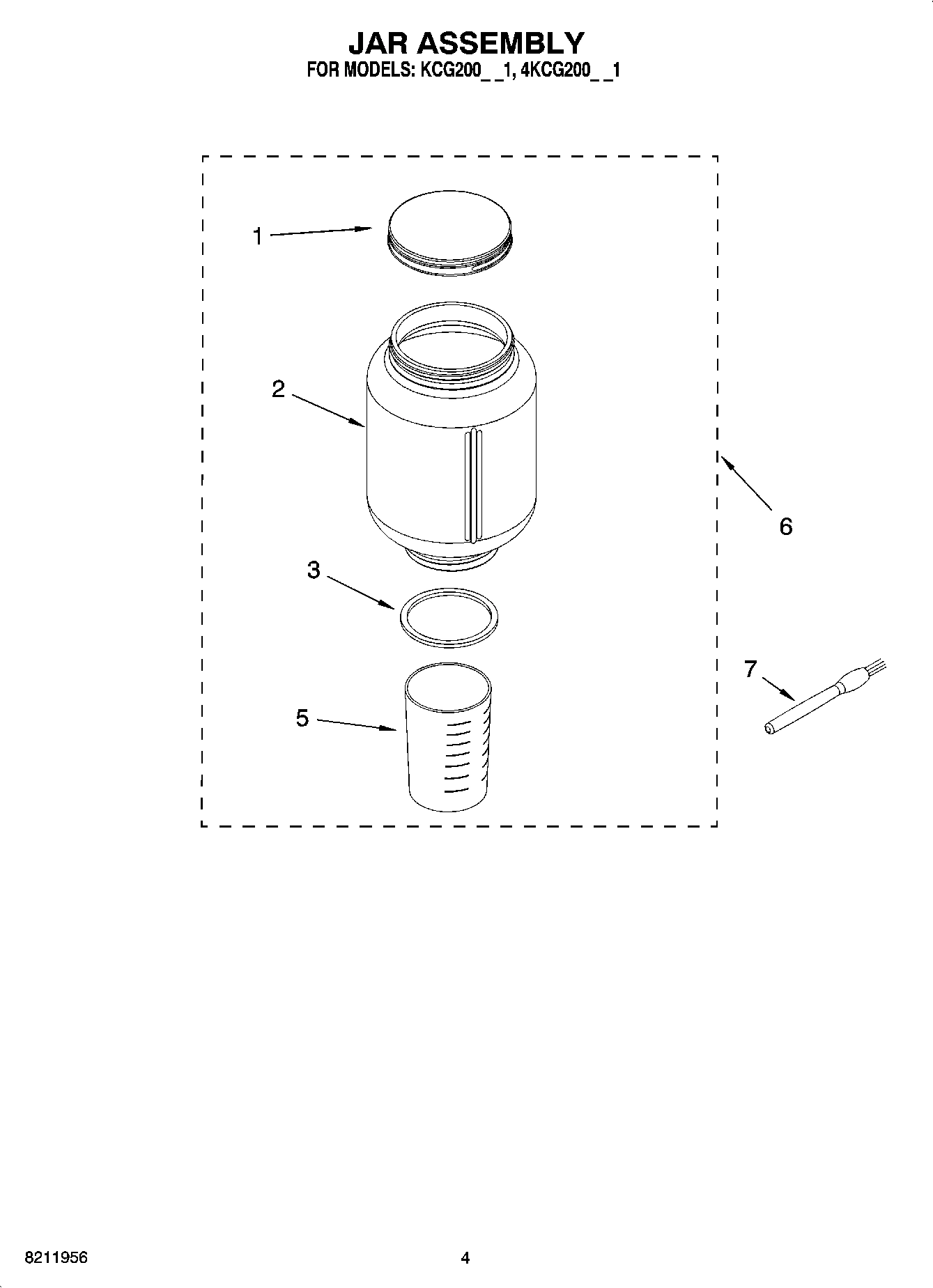

Jar Assembly Complete
Jar Assembly Complete WPL 9707038 Contact Us For Availability
View on Model
7
Brush, Cleaning
Brush, Cleaning WPL 9708809 Contact Us For Availability
View on Model
8
Plunger Spring Asm
Plunger Spring Asm WPL 9707018 Contact Us For Availability
View on Model
9
Housing, Motor (White)
Housing, Motor (White) WPL 9707008 Contact Us For Availability
View on Model
9
Housing, Motor (Cobalt Blue)
Housing, Motor (Cobalt Blue) WPL 9707009 Contact Us For Availability
View on Model
9
Housing, Motor (Empire Red)
Housing, Motor (Empire Red) WPL 9707010 Contact Us For Availability
View on Model
9
Housing, Motor (Onyx Black)
Housing, Motor (Onyx Black) WPL 9707011 Contact Us For Availability
View on Model
9
Housing, Motor (Metallic Chrome)
Housing, Motor (Metallic Chrome) WPL 9707040 Contact Us For Availability
View on Model
9
Housing, Motor (Tangerine)
Housing, Motor (Tangerine) WPL 9708164 Contact Us For Availability
View on Model
9
Housing, Motor (Pink)
Housing, Motor (Pink) WPL 9708165 Contact Us For Availability
View on Model
9
Housing, Motor (Blue Willow)
Housing, Motor (Blue Willow) WPL 9709844 Contact Us For Availability
View on Model
9
Housing, Motor (Gloss Cinnamon)
Housing, Motor (Gloss Cinnamon) WPL 9709845 Contact Us For Availability
View on Model
10
Door, Hub
Door, Hub WPL 9707019 Contact Us For Availability
View on Model
11
Switch, Toggle
Switch, Toggle WPL 9707052 Contact Us For Availability
View on Model
13
Gasket, Motor
Gasket, Motor WPL 9707023 Contact Us For Availability
View on Model
14
Motor
Motor WPL 9707012 Contact Us For Availability
View on Model
15
Cord, Power (White)
Cord, Power (White) WPL 9707025 Contact Us For Availability
View on Model
15
Cord, Power (Black)
Cord, Power (Black) WPL 9707034 Contact Us For Availability
View on Model
16
Plate, Bottom
Plate, Bottom WPL 9707049 Contact Us For Availability
View on Model
17
Foot, Rubber
Foot, Rubber WPL 9707022 Contact Us For Availability
View on Model
19
Screw, Locking
Screw, Locking WPL 9707096 Contact Us For Availability
View on Model
