Model Whirlpool KCG0702ER0 SMALL APPLIANCE, COFFEE GRINDER – Common Parts & Diagrams

Common parts from model Whirlpool KCG0702ER0 SMALL APPLIANCE, COFFEE GRINDER

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

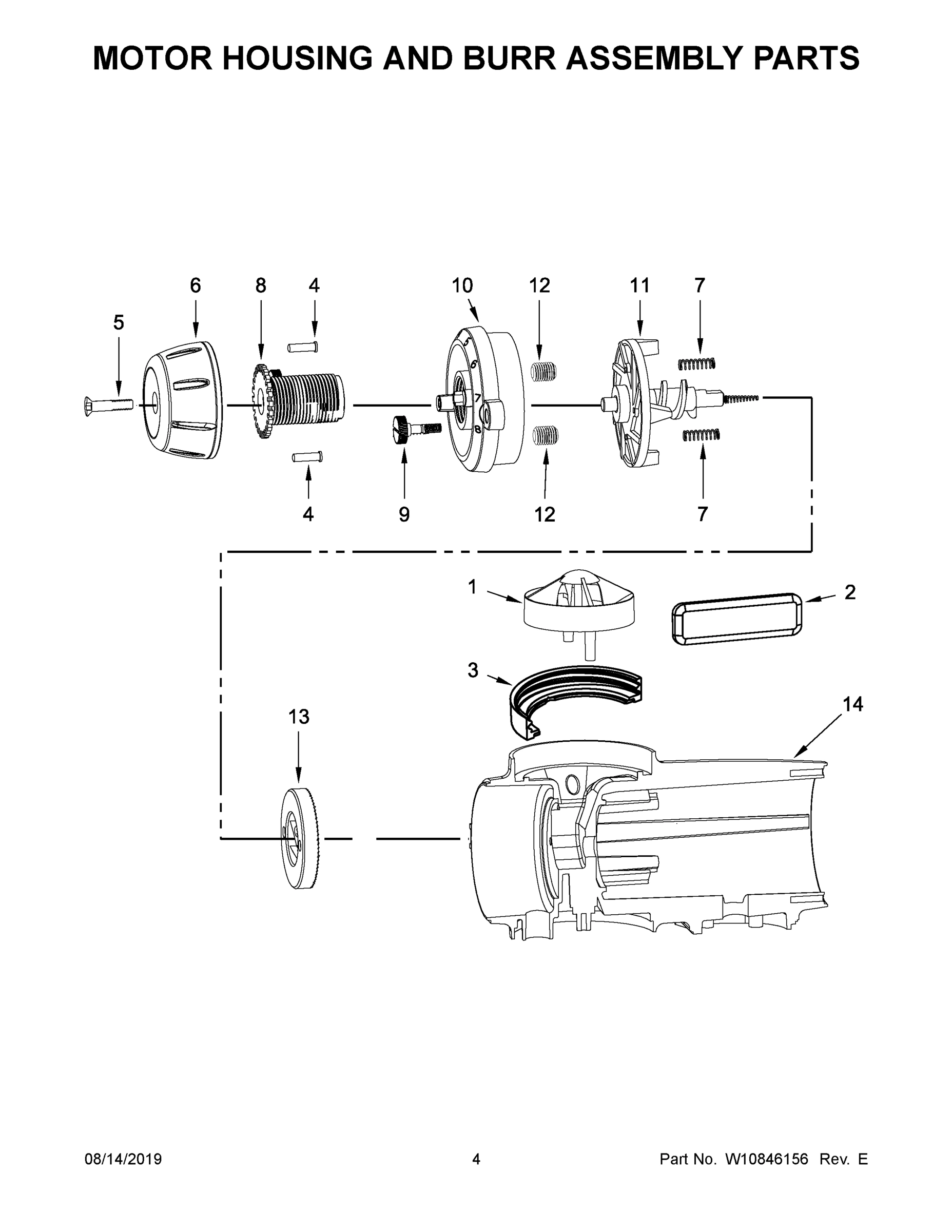

1

GUARD, FINGER WPL 4176695 Contact Us For Availability

View on Model

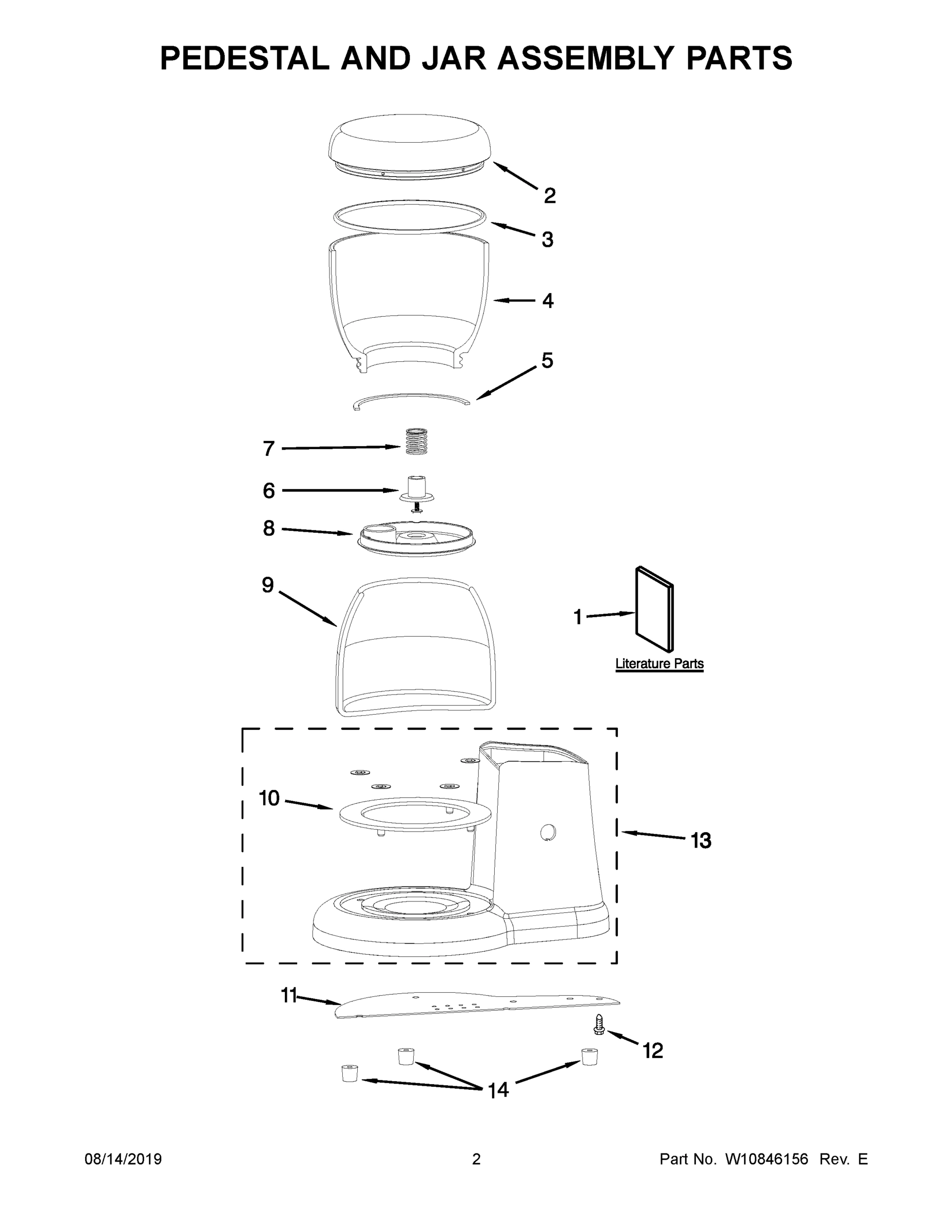

1

USE & CARE GUIDE WPL W10779357 Contact Us For Availability

View on Model

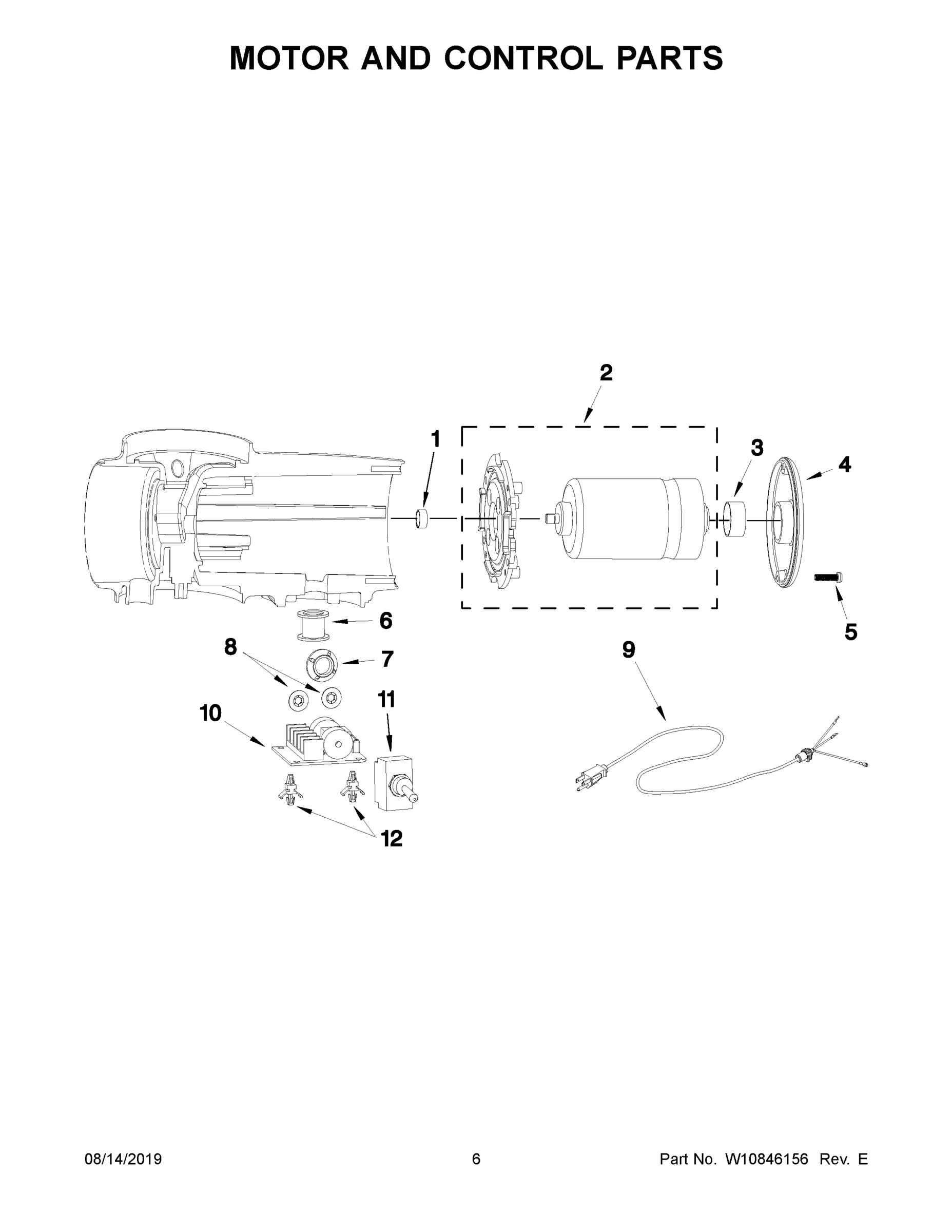

1

BUSHING, COPPER WPL 4176707 Contact Us For Availability

View on Model

2

W10845881 Whirlpool Motor Assembly Backorder WPL W10845881 View Details $130.21

View on Model

2

W11399438 Whirlpool Lid Backorder WPL W11399438 View Details $14.07

View on Model

3

4176731 Whirlpool Seal Backorder WPL 4176731 View Details $21.39

View on Model

3

INSERT, THREAD LOCK WPL W10223450 Contact Us For Availability

View on Model

3

SEAL, VIBRATION WPL 4176726 Contact Us For Availability

View on Model

4

W10845885 Whirlpool Cap Backorder WPL W10845885 View Details $39.58

View on Model

4

JAR, BEAN (INCLUDES ITEM 5) WPL W10845861 Contact Us For Availability

View on Model

4A

CAP, MOTOR (EMPIRE RED) WPL 8212321 Contact Us For Availability

View on Model

4B

CAP, MOTOR (ONYX BLACK) WPL W10217609 Contact Us For Availability

View on Model

5

4176729 Whirlpool Seal Assembly Backorder WPL 4176729 View Details $19.27

View on Model

5

SCREW, MOTOR CAP WPL 4176755 Contact Us For Availability

View on Model

6

NOZZLE, HOLDER WPL 4176723 Contact Us For Availability

View on Model

6

TUBE, HOUSING WPL 4176734 Contact Us For Availability

View on Model

7

SPRING, DETENT WPL 8212394 Contact Us For Availability

View on Model

7

SPRING, HOUSING WPL 4176715 Contact Us For Availability

View on Model

7

NUT, SWITCH WPL 4176710 Contact Us For Availability

View on Model

8

4176713 Whirlpool Washer Backorder WPL 4176713 View Details $20.40

View on Model

8

4176721 Whirlpool Cover Backorder WPL 4176721 View Details $19.75

View on Model

8

SCREW, ADJUSTMENT (INCLUDES BUSHING) WPL W10845873 Contact Us For Availability

View on Model

9

4176705 Whirlpool Screw Backorder WPL 4176705 View Details $35.94

View on Model

9

W11391593 Whirlpool Power Cord Backorder WPL W11391593 View Details $40.26

View on Model

9

JAR, COFFEE GROUND WPL 4176728 Contact Us For Availability

View on Model

10

4176722 Whirlpool Ring Assembly Backorder WPL 4176722 View Details $22.16

View on Model

10

BEZEL, GEARBOX WPL 4176697 Contact Us For Availability

View on Model

10

CONTROL BOARD WPL W10845889 Contact Us For Availability

View on Model

11

4176758 Whirlpool Switch Backorder WPL 4176758 View Details $41.65

View on Model

11

AUGER ASSEMBLY WPL 4176694 Contact Us For Availability

View on Model

11

COVER, BASEPLATE WPL 4176703 Contact Us For Availability

View on Model

12

SCREW, SOCKET WPL 4176712 Contact Us For Availability

View on Model

12

SCREW WPL W10845864 Contact Us For Availability

View on Model

12

SPACER WPL 4176724 Contact Us For Availability

View on Model

13

W11109860 Whirlpool Burr Assembly Backorder WPL W11109860 View Details $22.23

View on Model

13

BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (CONTO WPL W10845871 Contact Us For Availability

View on Model

13A

BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (EMPIR WPL W10845866 Contact Us For Availability

View on Model

13B

BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (ONYX WPL W10845867 Contact Us For Availability

View on Model

14

HOUSING, MOTOR (CONTOUR SILVER) WPL W10845877 Contact Us For Availability

View on Model

14

FOOT, BASE WPL W10845865 Contact Us For Availability

View on Model

14A

HOUSING, MOTOR (EMPIRE RED) WPL W10845874 Contact Us For Availability

View on Model

14B

HOUSING, MOTOR (ONYX BLACK) WPL W10845875 Contact Us For Availability

View on Model

NI

BRUSH, CLEANING WPL 4176763 Contact Us For Availability

View on Model

NI

SCOOP, COFFEE WPL 4176764 Contact Us For Availability

View on Model

NI

OPTIONAL PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
