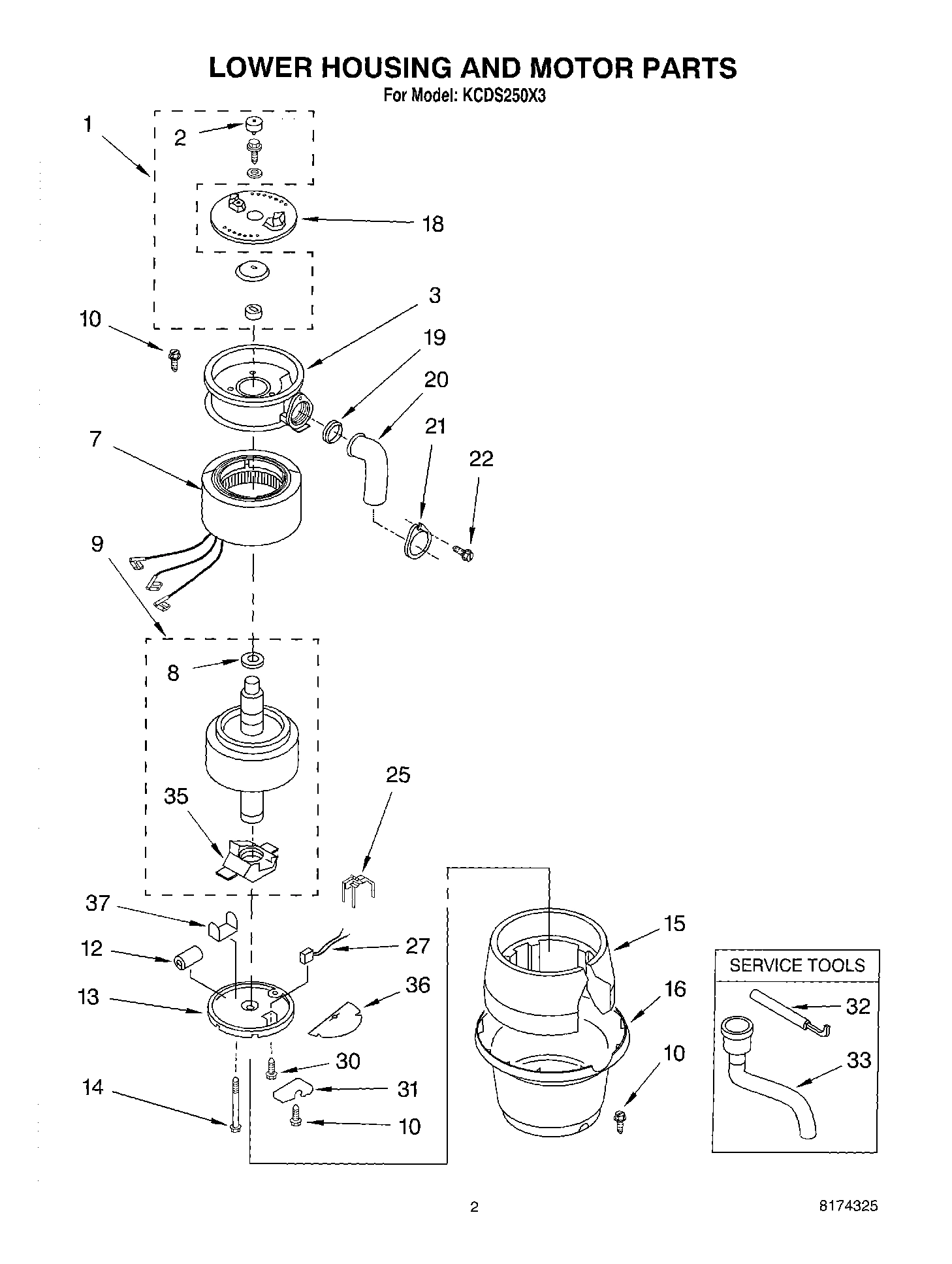

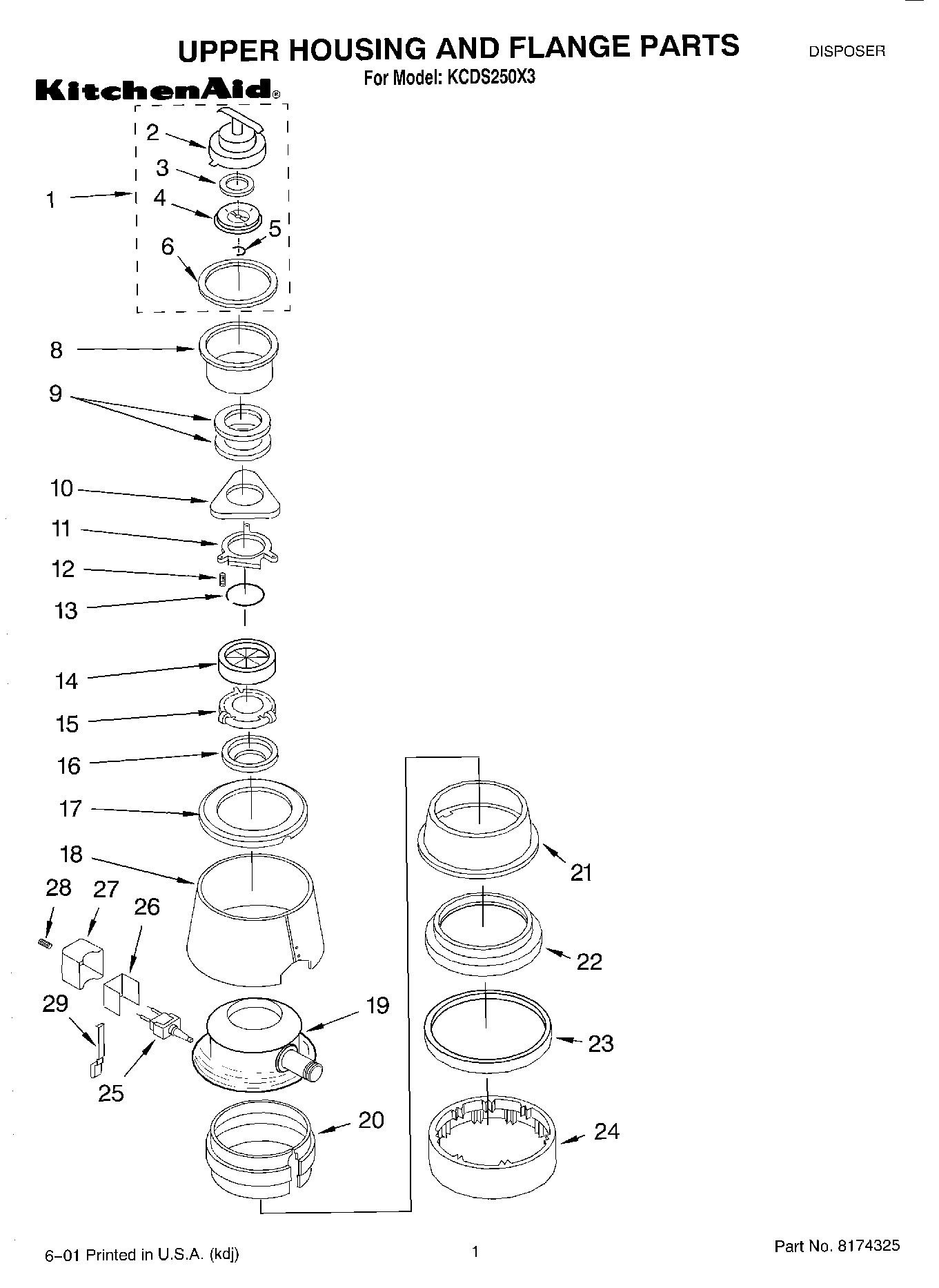

Model Whirlpool KCDS250X3 DISPOSER – Common Parts & Diagrams

Instructions, Installation (English)
Instructions, Installation (English) WPL LIT4211562 Contact Us For Availability
View on Model
Guide, Use And Care
Guide, Use And Care WPL LIT4211563 Contact Us For Availability
View on Model
Instruction Assy
Instruction Assy WPL LIT8174320 Contact Us For Availability
View on Model
2
Handle, Stopper
Handle, Stopper WPL 4211354 Contact Us For Availability
View on Model
4
Stopper, Body
Stopper, Body WPL 4211356 Contact Us For Availability
View on Model
5
Ring, Retaining
Ring, Retaining WPL 4211357 Contact Us For Availability
View on Model
6
Gasket, Stopper (Outer)
Gasket, Stopper (Outer) WPL 4211333 Contact Us For Availability
View on Model
12
Capacitor
Capacitor WPL 4211385 Contact Us For Availability
View on Model
13
End Frame, Assembly (Lower)
End Frame, Assembly (Lower) WPL 4211635 Contact Us For Availability
View on Model
14
Bolt, Thru (2)
Bolt, Thru (2) WPL 4211348 Contact Us For Availability
View on Model
15
Insulation, Bottom
Insulation, Bottom WPL 4211393 Contact Us For Availability
View on Model
15
Flange, Body
Flange, Body WPL 4211308 Contact Us For Availability
View on Model
16
Trim, Shell Assembly
Trim, Shell Assembly WPL 8174319 Contact Us For Availability
View on Model
16
Gasket, Body
Gasket, Body WPL 4211359 Contact Us For Availability
View on Model
17
Shell Assembly, Trim (Top)
Shell Assembly, Trim (Top) WPL 4211360 Contact Us For Availability
View on Model
18
Shredder Assembly, Rotating
Shredder Assembly, Rotating WPL 4211631 Contact Us For Availability
View on Model
18
Band, Trim Assembly
Band, Trim Assembly WPL 4211361 Contact Us For Availability
View on Model
19
Gasket, Tailpipe
Gasket, Tailpipe WPL 4211344 Contact Us For Availability
View on Model
19
Container, Body Assembly (Includes Sound Insu
Container, Body Assembly (Includes Sound Insu WPL 8174318 Contact Us For Availability
View on Model
20
Insulation, Top
Insulation, Top WPL 4211363 Contact Us For Availability
View on Model
21
Flange, Tailpipe
Flange, Tailpipe WPL 4211345 Contact Us For Availability
View on Model
21
Body, Lower
Body, Lower WPL 4211364 Contact Us For Availability
View on Model
22
Gasket, Shredder
Gasket, Shredder WPL 4211365 Contact Us For Availability
View on Model
23
Insulation, Sound
Insulation, Sound WPL 4211366 Contact Us For Availability
View on Model
24
Shredder, Stationary
Shredder, Stationary WPL 4211630 Contact Us For Availability
View on Model
25
Switch Assembly, Start & Reverse
Switch Assembly, Start & Reverse WPL 4211633 Contact Us For Availability
View on Model
27
Overload, Protector
Overload, Protector WPL 8174298 Contact Us For Availability
View on Model
30
Screw, Ground
Screw, Ground WPL 4211330 Contact Us For Availability
View on Model
31
Cover, Terminal
Cover, Terminal WPL 4211611 Contact Us For Availability
View on Model
36
Shield, Wire
Shield, Wire WPL 4211326 Contact Us For Availability
View on Model
37
Clip, Capacitor
Clip, Capacitor WPL 8174299 Contact Us For Availability
View on Model
