Model Whirlpool KCDS100T1 DISPOSER – Common Parts & Diagrams

Common parts from model Whirlpool KCDS100T1 DISPOSER

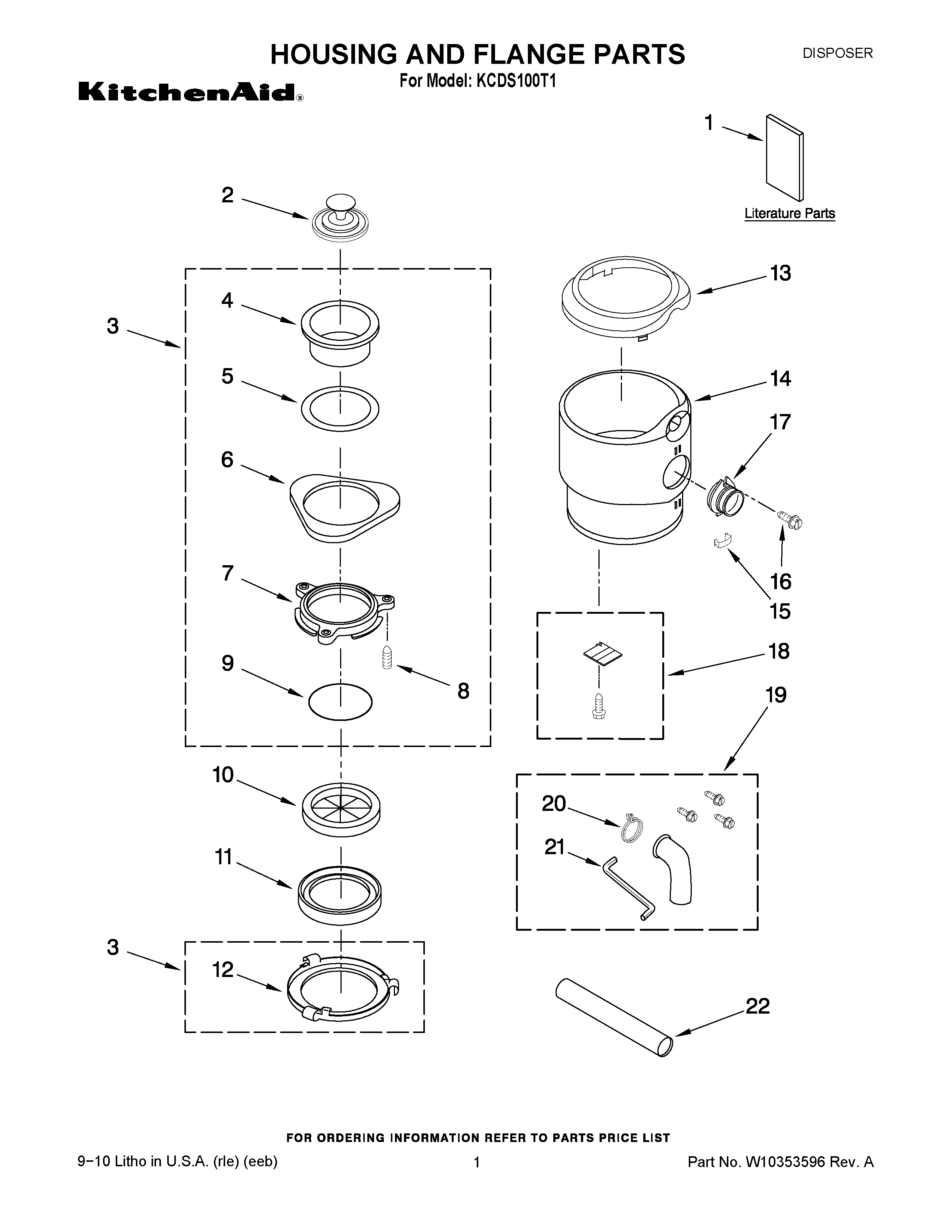

01 - HOUSING AND FLANGE PARTS

Print

• This Diagram
• All Diagrams

3

W10179031A Whirlpool Disposer Flange Kit Backorder WPL W10179031A View Details $42.09

View on Model

4

Flange, Sink WPL W10171101 Contact Us For Availability

View on Model

5

4211606 Whirlpool Disposer Seal Backorder WPL 4211606 View Details $10.76

View on Model

6

Flange, Backup WPL W10171102 Contact Us For Availability

View on Model

7

4211304 Whirlpool Flange Disposer Backorder WPL 4211304 View Details $48.31

View on Model

8

SCREW, BACKUP WPL W10352985 Contact Us For Availability

View on Model

9

4211306 Whirlpool Disposer Ring Backorder WPL 4211306 View Details $5.71

View on Model

10

W11087190 Whirlpool Garbage Disposal Splash G In Stock WPL W11087190 View Details $5.20

View on Model

11

Gasket, Mounting WPL W10171105 Contact Us For Availability

View on Model

12

Flange, Body WPL 4211308 Contact Us For Availability

View on Model

13

Trim, Shell (Cap) WPL W10171483 Contact Us For Availability

View on Model

14

W10171489 Whirlpool Shell Assembly Backorder WPL W10171489 View Details $100.38

View on Model

15

Clip WPL 8174342 Contact Us For Availability

View on Model

16

Screw WPL W10171108 Contact Us For Availability

View on Model

17

W10352995 Whirlpool Disposer Coupler Backorder WPL W10352995 View Details $30.80

View on Model

18

Cover, Terminal WPL 8174315 Contact Us For Availability

View on Model

19

W10352987 Whirlpool Disposer Installation Kit Backorder WPL W10352987 View Details $39.62

View on Model

20

W11622908 Whirlpool Dishwasher Clamp In Stock WPL W11622908 View Details $10.76

View on Model

21

WP8174310 Whirlpool Disposer Wrench Backorder WPL WP8174310 View Details $9.57

View on Model

22

Tube, Discharge WPL W10171112 Contact Us For Availability

View on Model

×
