Model Whirlpool KCDC250S0 DISPOSER – Common Parts & Diagrams

Common parts from model Whirlpool KCDC250S0 DISPOSER

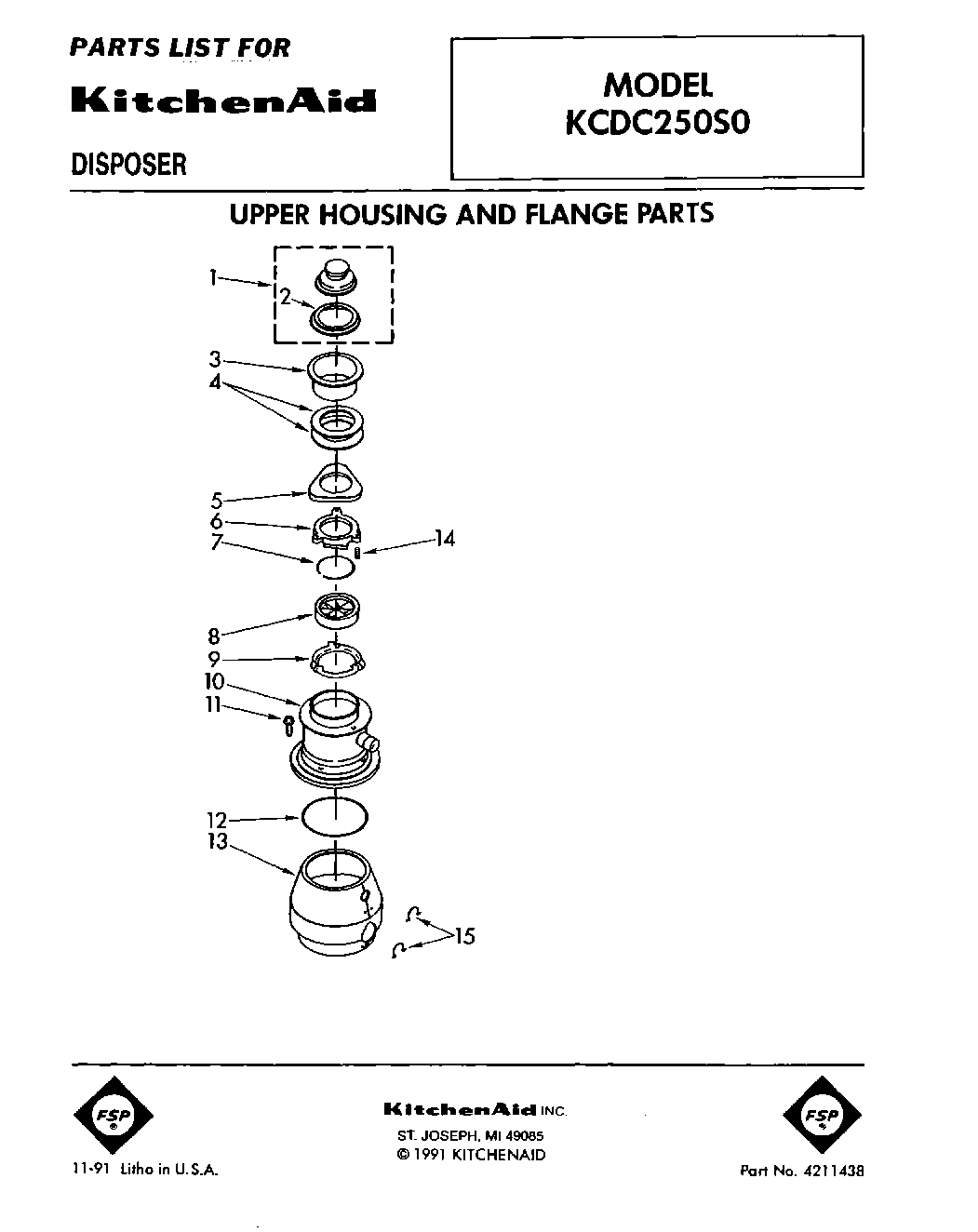

01 - SECTION

Print

• This Diagram
• All Diagrams

Instructions, Installation WPL LIT4171069 Contact Us For Availability

View on Model

Repair Parts List WPL LIT4211438 Contact Us For Availability

View on Model

Guide, Use and Care WPL LIT4211550 Contact Us For Availability

View on Model

1

4211578 Whirlpool Disposer Sleeve Backorder WPL 4211578 View Details $37.92

View on Model

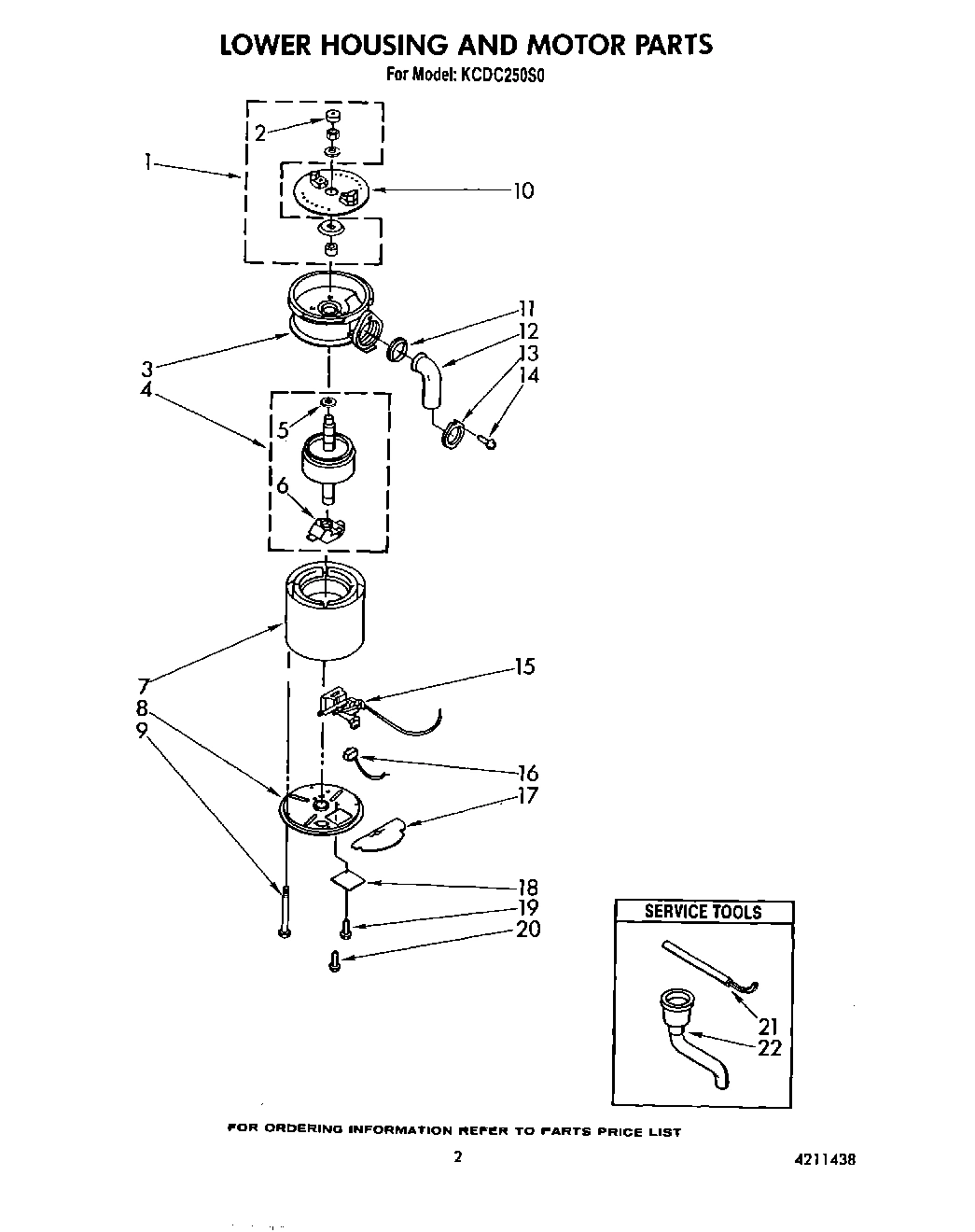

2

Gasket, Stopper WPL 4211333 Contact Us For Availability

View on Model

3

End Bell Assembly (Upper) WPL 4211343 Contact Us For Availability

View on Model

4

WP4211302 Whirlpool Disposer Seal In Stock WPL WP4211302 View Details $2.51

View on Model

4

Rotor & Shaft Assembly WPL 4211347 Contact Us For Availability

View on Model

5

4211321 Whirlpool Washer Backorder WPL 4211321 View Details $4.98

View on Model

6

4211322 Whirlpool Disposer Actuator Backorder WPL 4211322 View Details $33.29

View on Model

7

4211306 Whirlpool Disposer Ring Backorder WPL 4211306 View Details $5.71

View on Model

7

Stator Assembly WPL 4211323 Contact Us For Availability

View on Model

8

WP4211334 Whirlpool Disposer Gasket In Stock WPL WP4211334 View Details $12.28

View on Model

8

End Frame Assembly (Lower) WPL 4211377 Contact Us For Availability

View on Model

9

Flange, Body WPL 4211308 Contact Us For Availability

View on Model

9

Bolt, Thru (4) WPL 4211348 Contact Us For Availability

View on Model

10

Container, Body Assembly WPL 4211336 Contact Us For Availability

View on Model

10

Shredder Assembly, Rotating WPL 4211342 Contact Us For Availability

View on Model

11

Screw (3) WPL 4211335 Contact Us For Availability

View on Model

11

Gasket, Tailpipe WPL 4211344 Contact Us For Availability

View on Model

12

4211317 Whirlpool Disposer Tail Pipe Backorder WPL 4211317 View Details $26.21

View on Model

12

O-Ring WPL 4211337 Contact Us For Availability

View on Model

13

Flange, Tailpipe WPL 4211345 Contact Us For Availability

View on Model

13

Trim Shell Assembly (Includes Illus. No. 15) WPL 4211338 Contact Us For Availability

View on Model

14

4211305 Whirlpool Disposer Screw Backorder WPL 4211305 View Details $9.59

View on Model

14

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 View Details $8.82

View on Model

15

8174312 Whirlpool Disposer Switch Backorder WPL 8174312 View Details $120.42

View on Model

15

Clip, Trim Shell (2) WPL 4211339 Contact Us For Availability

View on Model

16

Protector, Overload WPL 4211325 Contact Us For Availability

View on Model

17

Shield, Wire WPL 4211326 Contact Us For Availability

View on Model

18

Cover, Terminal WPL 4211328 Contact Us For Availability

View on Model

19

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 View Details $2.51

View on Model

20

Screw, Ground WPL 4211330 Contact Us For Availability

View on Model

21

WP8174310 Whirlpool Disposer Wrench Backorder WPL WP8174310 View Details $9.57

View on Model

22

4211396 Whirlpool Disposer Adapter Backorder WPL 4211396 View Details $163.51

View on Model

×
