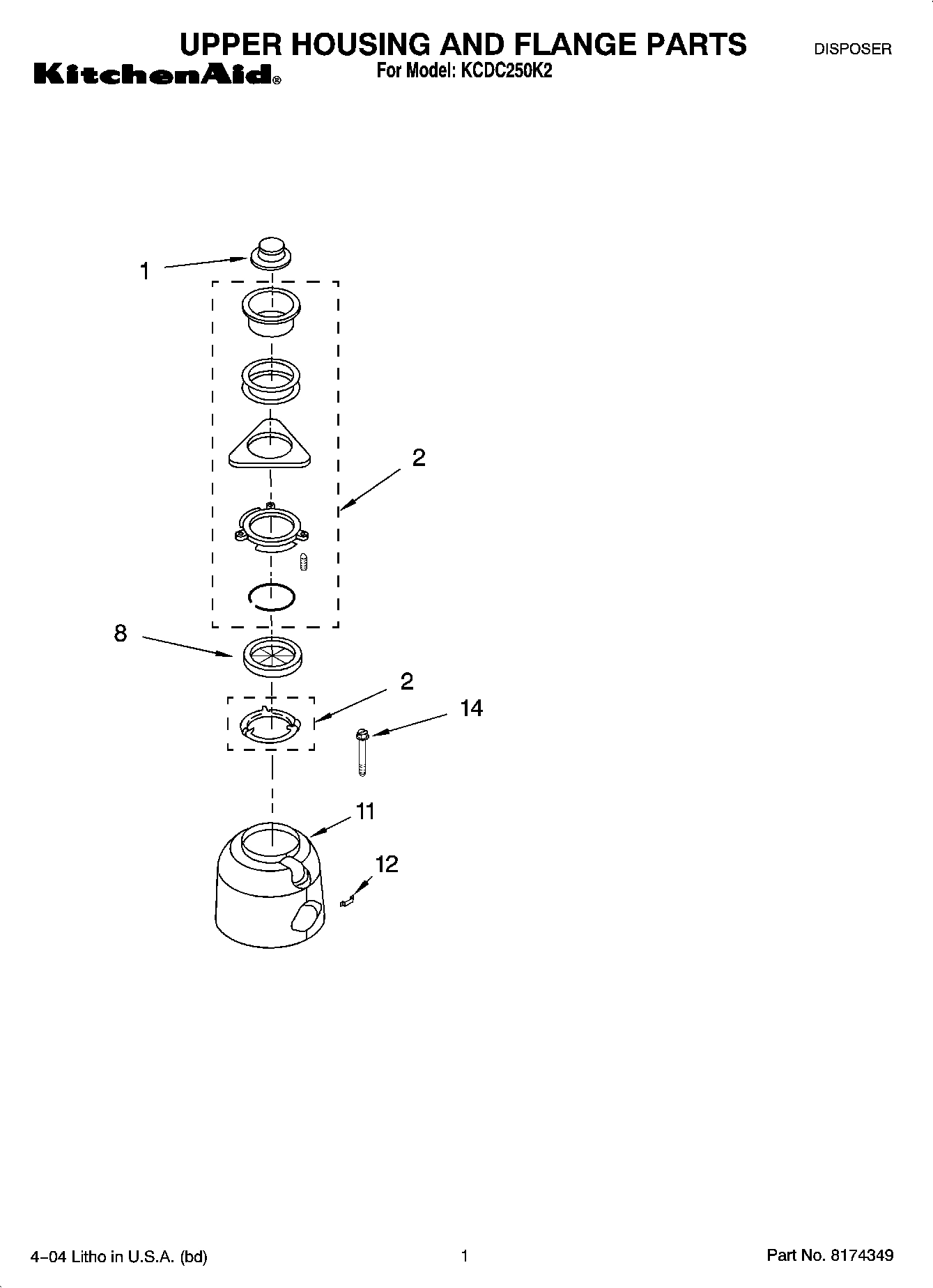

Model Whirlpool KCDC250K2 DISPOSER – Common Parts & Diagrams

1
Stopper Assembly
Stopper Assembly WPL 4211300 Contact Us For Availability
View on Model
2
Mounting Assembly
Mounting Assembly WPL 8174306 Contact Us For Availability
View on Model
7
Stator Assembly
Stator Assembly WPL 8174333 Contact Us For Availability
View on Model
8
Gasket, Mounting
Gasket, Mounting WPL 4211615 Contact Us For Availability
View on Model
8
Switch Assembly, Start
Switch Assembly, Start WPL 8174312 Contact Us For Availability
View on Model
9
Protector, Overload
Protector, Overload WPL 882726 Contact Us For Availability
View on Model
10
End Frame Assembly, Lower (Includes Ground Sc
End Frame Assembly, Lower (Includes Ground Sc WPL 8174345 Contact Us For Availability
View on Model
11
Trim Shell
Trim Shell WPL 8174346 Contact Us For Availability
View on Model
12
Clip
Clip WPL 8174342 Contact Us For Availability
View on Model
14
Bolt, Thru
Bolt, Thru WPL 8174343 Contact Us For Availability
View on Model
14
Guide, Use & Care
Guide, Use & Care WPL 8174350 Contact Us For Availability
View on Model
14
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI80567A7 Contact Us For Availability
View on Model
16
Shield, Wire
Shield, Wire WPL 4211326 Contact Us For Availability
View on Model
17
Cover, Terminal
Cover, Terminal WPL 8174315 Contact Us For Availability
View on Model
