Model Whirlpool KCDC150X0 DISPOSER – Common Parts & Diagrams

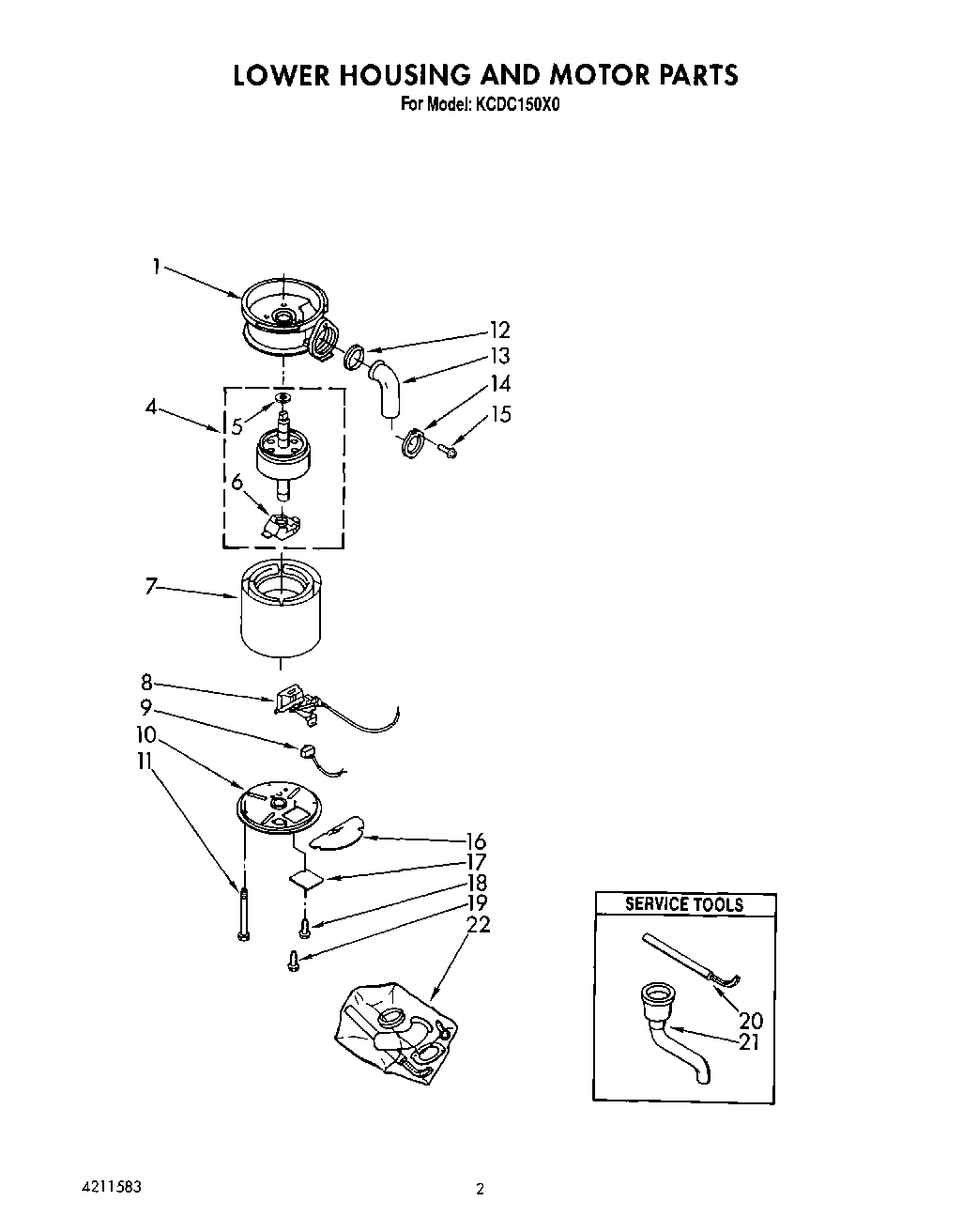

02 - SECTION

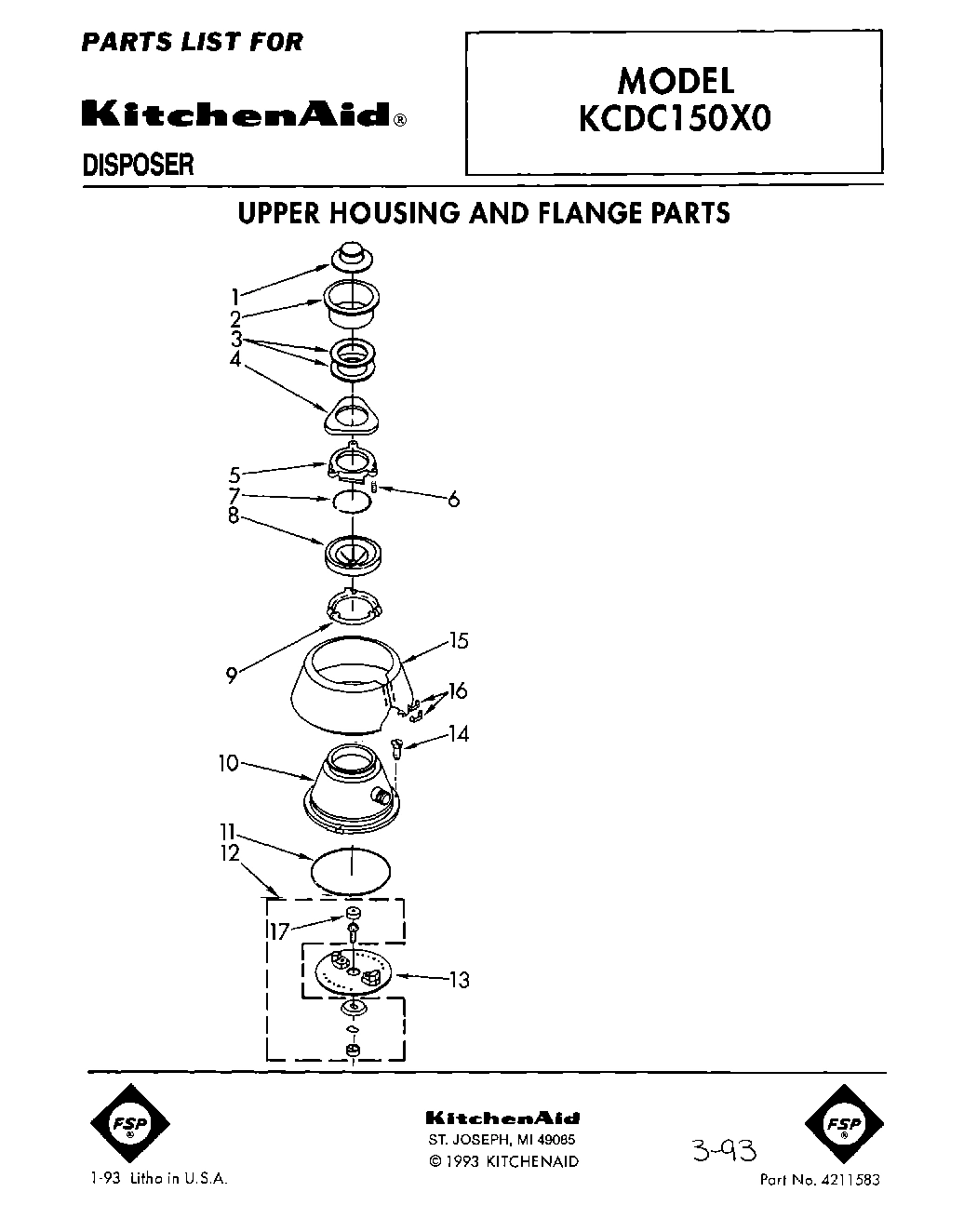

01 - SECTION
Common parts from model Whirlpool KCDC150X0 DISPOSER
Repair Parts Lis WPL LIT4211583 Contact Us For Availability
1
Stopper Assembly WPL 4211300 Contact Us For Availability
1
End Bell Assembly, Upper WPL 4211492 Contact Us For Availability
2
Flange, Strainer WPL 4211301 Contact Us For Availability
4
Rotor & Shaft Assembly WPL 4211582 Contact Us For Availability
4
Flange, Backup WPL 4211303 Contact Us For Availability
5
Washer WPL 4211321 Contact Us For Availability
5
Flange, Mounting WPL 4211304 Contact Us For Availability
6
Actuator Assembly, Centrifugal WPL 4211322 Contact Us For Availability
6
Screw, Backup (3) WPL 4211305 Contact Us For Availability
7
Stator Assembly WPL 4211323 Contact Us For Availability
7
Ring, Retaining WPL 4211306 Contact Us For Availability
9
Flange, Body WPL 4211308 Contact Us For Availability
10
End Frame Assembly, Lower WPL 4211515 Contact Us For Availability
10
Container, Body Assembly WPL 4211581 Contact Us For Availability
11
Bolt, Thru (4) WPL 4211348 Contact Us For Availability
11
O-Ring WPL 4211310 Contact Us For Availability
12
Gasket, Tailpipe WPL 4211344 Contact Us For Availability
12
Kit, Sleeve And Seal (Includes Bolt, Slinger WPL 4211578 Contact Us For Availability
13
Tailpipe WPL 4211317 Contact Us For Availability
13
Shredder Assembly, Rotating WPL 4211342 Contact Us For Availability
14
Flange, Tailpipe WPL 4211345 Contact Us For Availability
14
Bolt, Thru (4) WPL 4211335 Contact Us For Availability
15
Shell, Trim WPL 4211547 Contact Us For Availability
16
Shield, Wire WPL 4211326 Contact Us For Availability
16
Clip, Trim Shell WPL 4211339 Contact Us For Availability
17
Cover, Terminal WPL 4211328 Contact Us For Availability
19
Screw, Ground WPL 4211330 Contact Us For Availability
21
Adapter, Sink Assembly WPL 4211396 Contact Us For Availability
22
Kit, Installation (Includes Nos. 12, 13, 14, WPL 4211565 Contact Us For Availability
× ![]()
