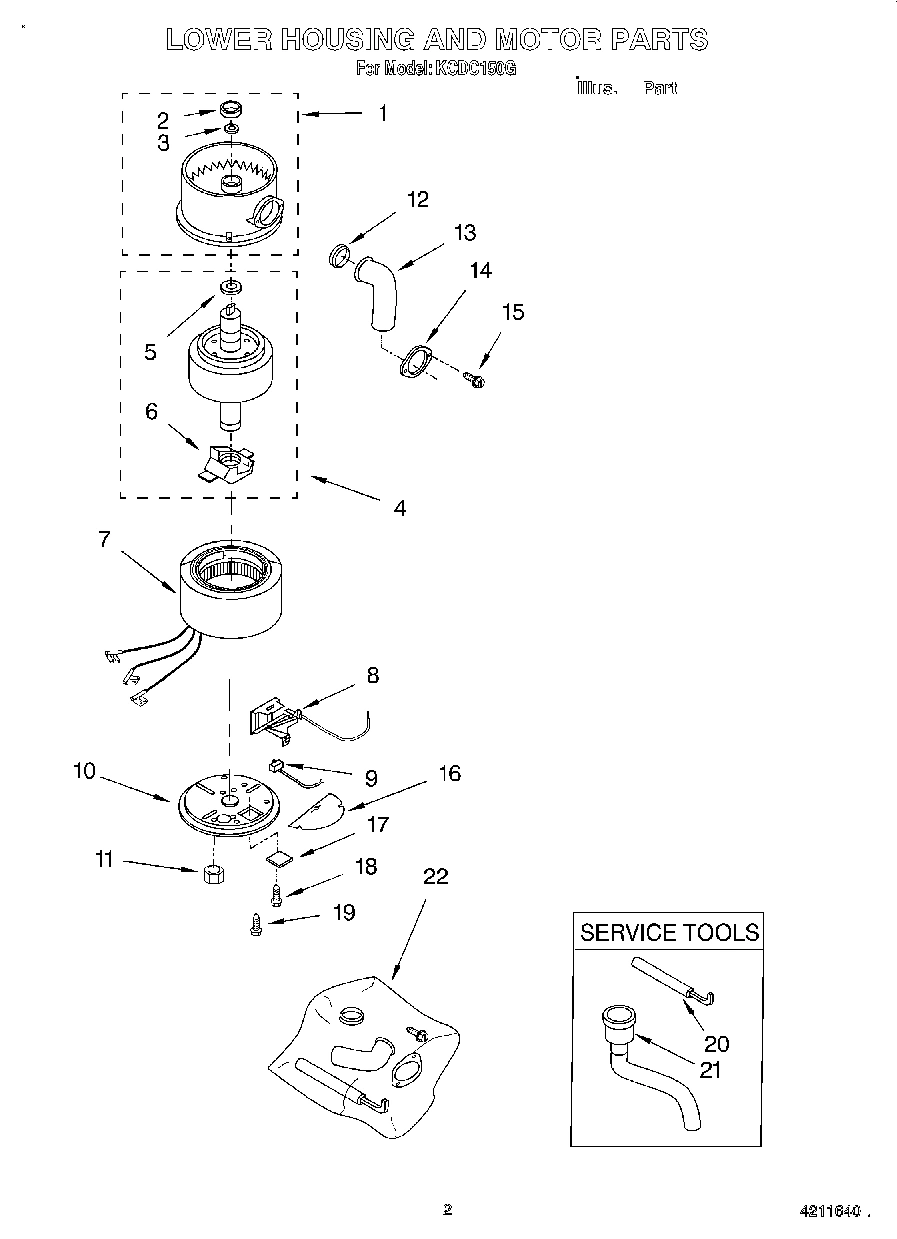

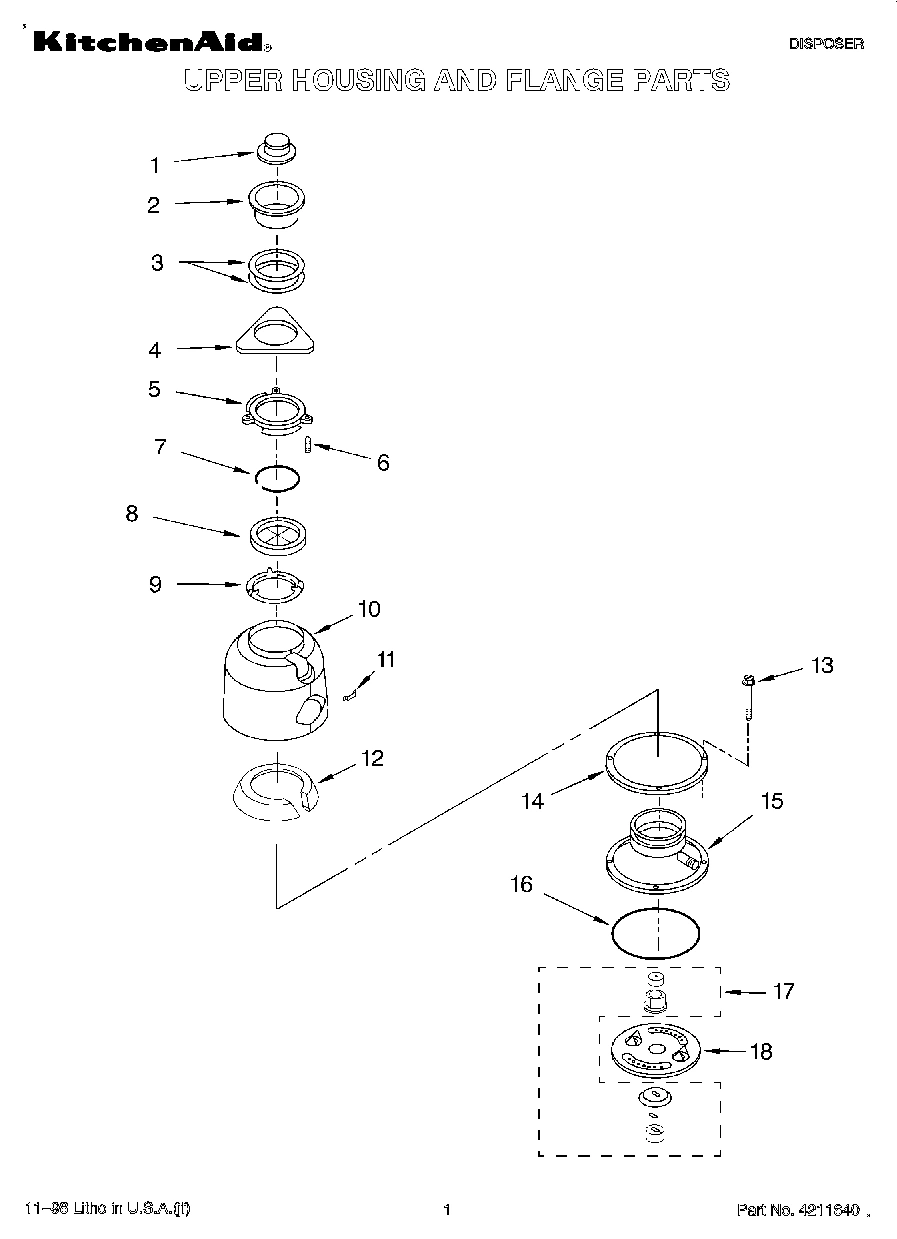

Model Whirlpool KCDC150G DISPOSER – Common Parts & Diagrams

Guide, Use and Care
Guide, Use and Care WPL LIT4211550 Contact Us For Availability
View on Model
Repair Parts List
Repair Parts List WPL LIT4211640 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT4211652 Contact Us For Availability
View on Model
1
Stopper Assembly
Stopper Assembly WPL 4211300 Contact Us For Availability
View on Model
1
End Bell Assembly, Upper
End Bell Assembly, Upper WPL 4211313 Contact Us For Availability
View on Model
2
Seal, Water & Oil
Seal, Water & Oil WPL 4211314 Contact Us For Availability
View on Model
3
Washer, Thrust
Washer, Thrust WPL 4211315 Contact Us For Availability
View on Model
4
Rotor & Shaft Assembly
Rotor & Shaft Assembly WPL 4211651 Contact Us For Availability
View on Model
5
Washer
Washer WPL 4211321 Contact Us For Availability
View on Model
6
Screw, Backup (3)
Screw, Backup (3) WPL 4211305 Contact Us For Availability
View on Model
6
Actuator Assembly, Centrifugal
Actuator Assembly, Centrifugal WPL 4211322 Contact Us For Availability
View on Model
7
Ring, Retaining
Ring, Retaining WPL 4211306 Contact Us For Availability
View on Model
7
Stator Assembly
Stator Assembly WPL 4211650 Contact Us For Availability
View on Model
8
Gasket, Mounting
Gasket, Mounting WPL 4211615 Contact Us For Availability
View on Model
9
Flange, Body
Flange, Body WPL 4211308 Contact Us For Availability
View on Model
10
Container, Body Assembly
Container, Body Assembly WPL 4211648 Contact Us For Availability
View on Model
11
Clip, Trim Band
Clip, Trim Band WPL 4211339 Contact Us For Availability
View on Model
11
Bolt, Thru (4)
Bolt, Thru (4) WPL 4211348 Contact Us For Availability
View on Model
12
Gasket, Tailpipe
Gasket, Tailpipe WPL 4211316 Contact Us For Availability
View on Model
12
Insulation
Insulation WPL 4211649 Contact Us For Availability
View on Model
13
Bolt, thru
Bolt, thru WPL 4211645 Contact Us For Availability
View on Model
13
Tailpipe
Tailpipe WPL 4211317 Contact Us For Availability
View on Model
14
Ring, Clamping
Ring, Clamping WPL 4211513 Contact Us For Availability
View on Model
14
Flange, Tailpipe
Flange, Tailpipe WPL 4211318 Contact Us For Availability
View on Model
15
Body, Container, (Incl. 14)
Body, Container, (Incl. 14) WPL 4211646 Contact Us For Availability
View on Model
15
Screw, Tailpipe
Screw, Tailpipe WPL 4211319 Contact Us For Availability
View on Model
16
O-Ring
O-Ring WPL 4211310 Contact Us For Availability
View on Model
16
Shield, Wire
Shield, Wire WPL 4211326 Contact Us For Availability
View on Model
17
Kit, Sleeve & Seal (Incl. Nut, Flange, Slinge
Kit, Sleeve & Seal (Incl. Nut, Flange, Slinge WPL 4211578 Contact Us For Availability
View on Model
17
Cover, Terminal
Cover, Terminal WPL 4211611 Contact Us For Availability
View on Model
18
Shredder Assembly, Rotating
Shredder Assembly, Rotating WPL 4211618 Contact Us For Availability
View on Model
19
Screw, Ground
Screw, Ground WPL 4211330 Contact Us For Availability
View on Model
21
Adapter, Sink Assembly
Adapter, Sink Assembly WPL 4211396 Contact Us For Availability
View on Model
22
Kit, Installation (Includes Nos. 12, 13, 14,
Kit, Installation (Includes Nos. 12, 13, 14, WPL 4211565 Contact Us For Availability
View on Model
