Model Whirlpool KCDB250G1 DISPOSER – Common Parts & Diagrams

Common parts from model Whirlpool KCDB250G1 DISPOSER

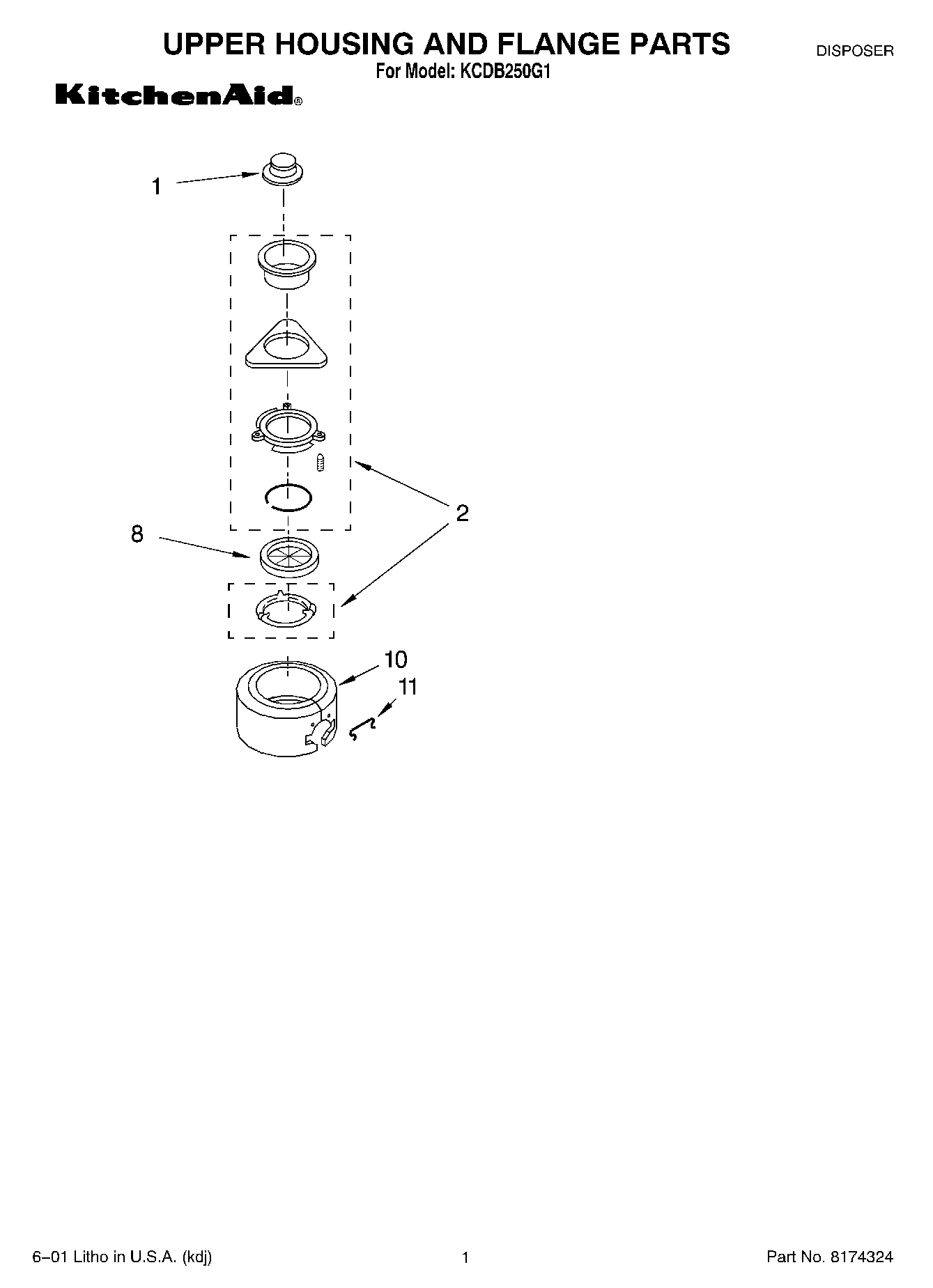

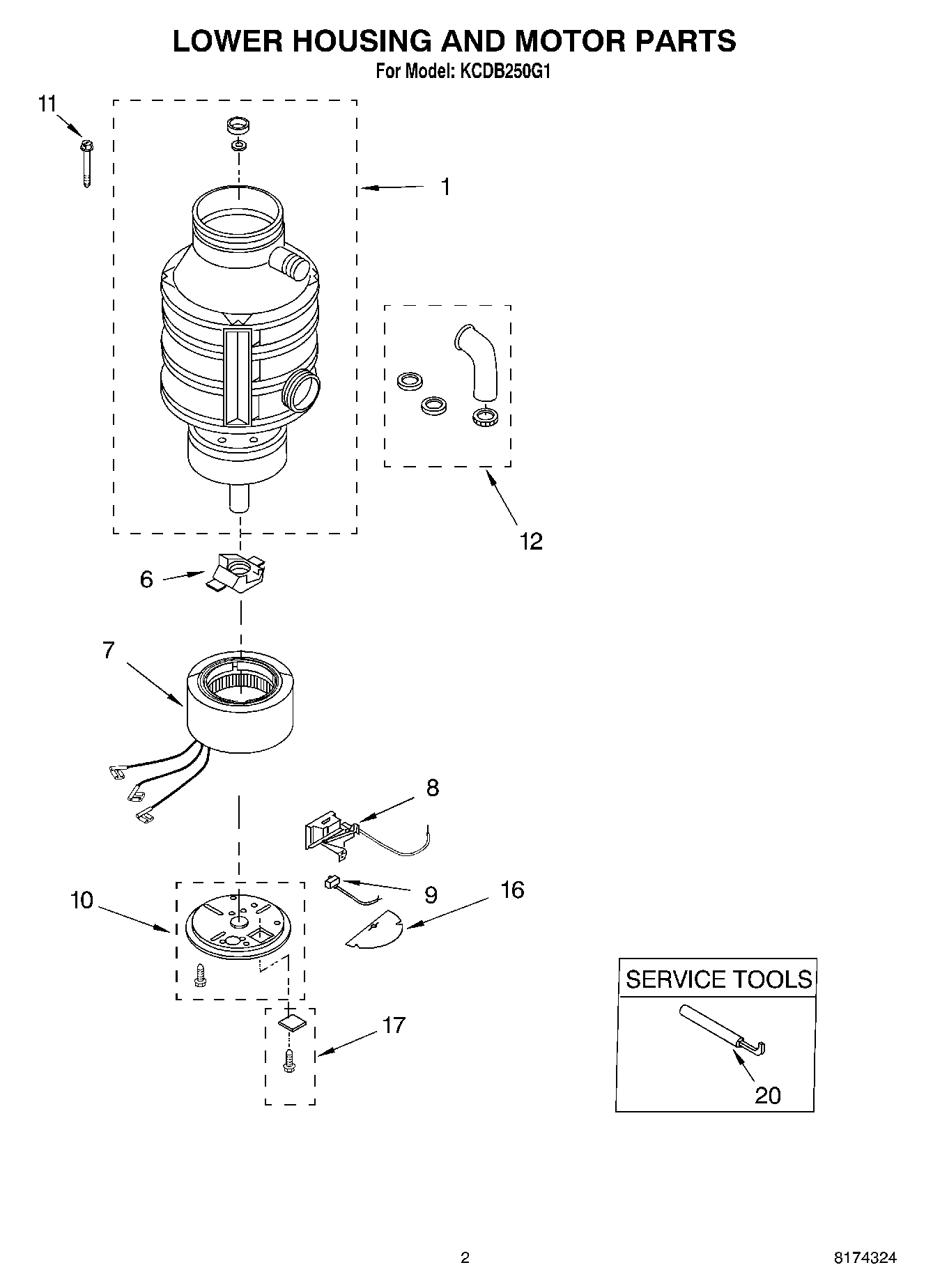

02 - SECTION

Print

• This Diagram
• All Diagrams

1

4211300 Whirlpool Disposer Stopper Backorder WPL 4211300 View Details $10.07

View on Model

1

Enclosure Assembly (Not Serviceable) WPL ARI80559A1 Contact Us For Availability

View on Model

2

Mounting Assembly WPL 8174306 Contact Us For Availability

View on Model

6

4211322 Whirlpool Disposer Actuator Backorder WPL 4211322 View Details $34.95

View on Model

7

8174316 Whirlpool Disposer Stator Backorder WPL 8174316 View Details $195.92

View on Model

8

4211615 Whirlpool Disposer Gasket Backorder WPL 4211615 View Details $11.47

View on Model

8

8174312 Whirlpool Disposer Switch Backorder WPL 8174312 View Details $126.43

View on Model

9

882726 Whirlpool Disposer Overload Protector Backorder WPL 882726 View Details $78.57

View on Model

10

8174345 Whirlpool Frame Backorder WPL 8174345 View Details $87.26

View on Model

10

Trim, Shell Asm. WPL 8174307 Contact Us For Availability

View on Model

11

Bolt, thru WPL 4211645 Contact Us For Availability

View on Model

11

Clip, Trim shell WPL 8174308 Contact Us For Availability

View on Model

12

Kit, Installation WPL 8174317 Contact Us For Availability

View on Model

16

4211351 Whirlpool Shield Backorder WPL 4211351 View Details $5.87

View on Model

17

Cover, Terminal Assembly WPL 8174315 Contact Us For Availability

View on Model

20

WP8174310 Whirlpool Disposer Wrench In Stock WPL WP8174310 View Details $9.57

View on Model

×
