Model Whirlpool KCC1500 TRASH COMPACTOR – Common Parts & Diagrams
04 - CONTAINER
06 - SECTION

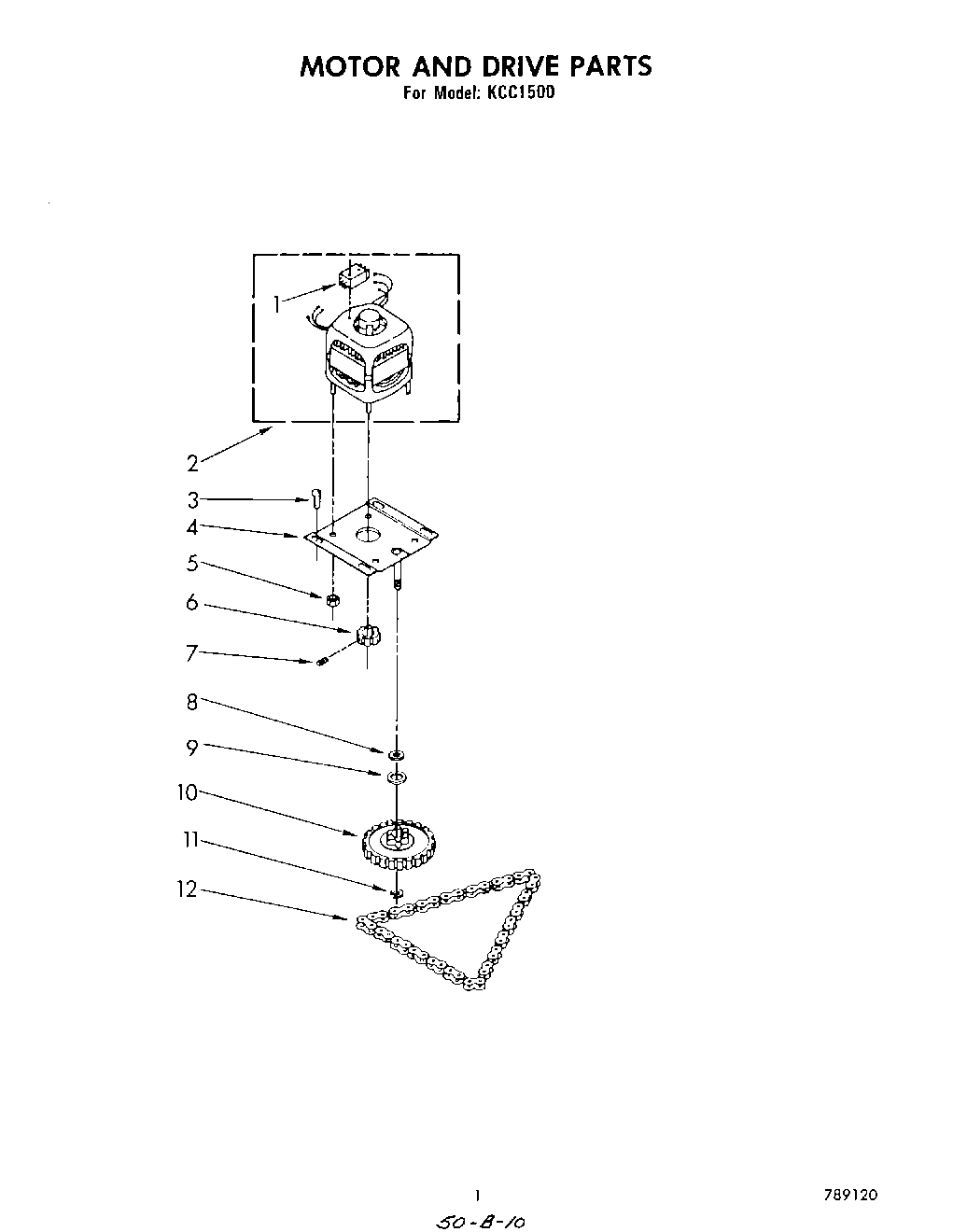

02 - FRAME

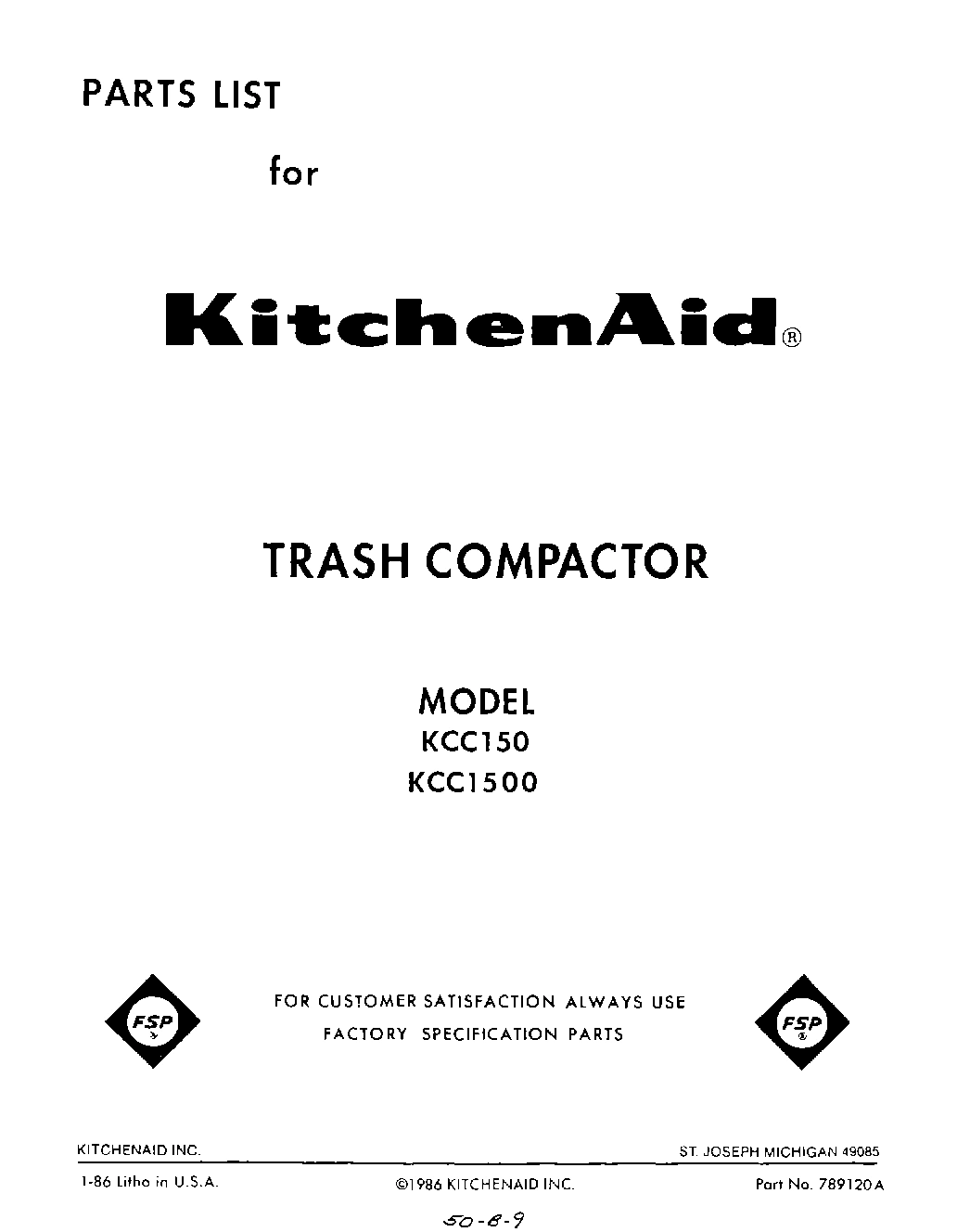

01 - MOTOR AND DRIVE , LIT/OPTIONAL

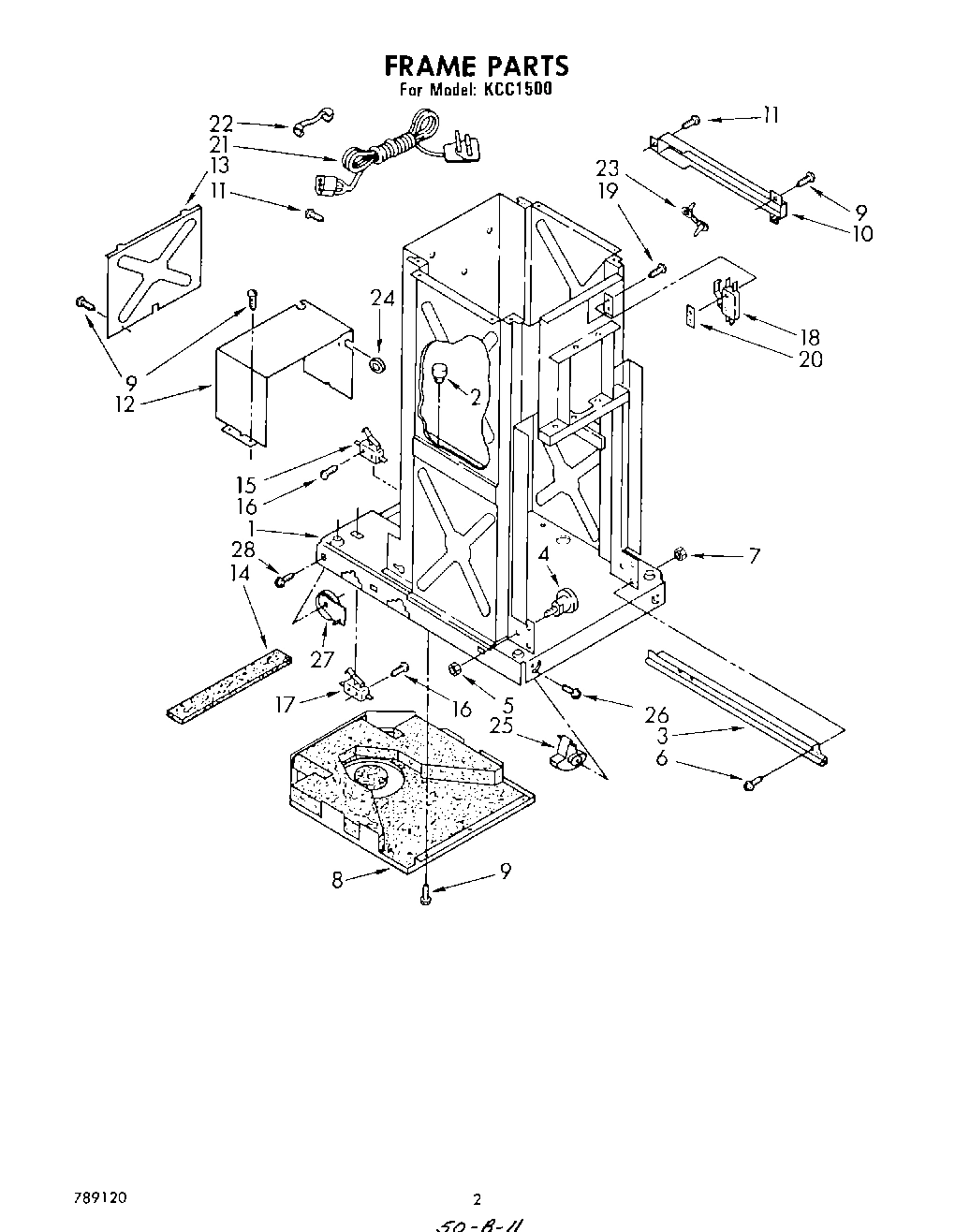

03 - POWERSCREW AND RAM

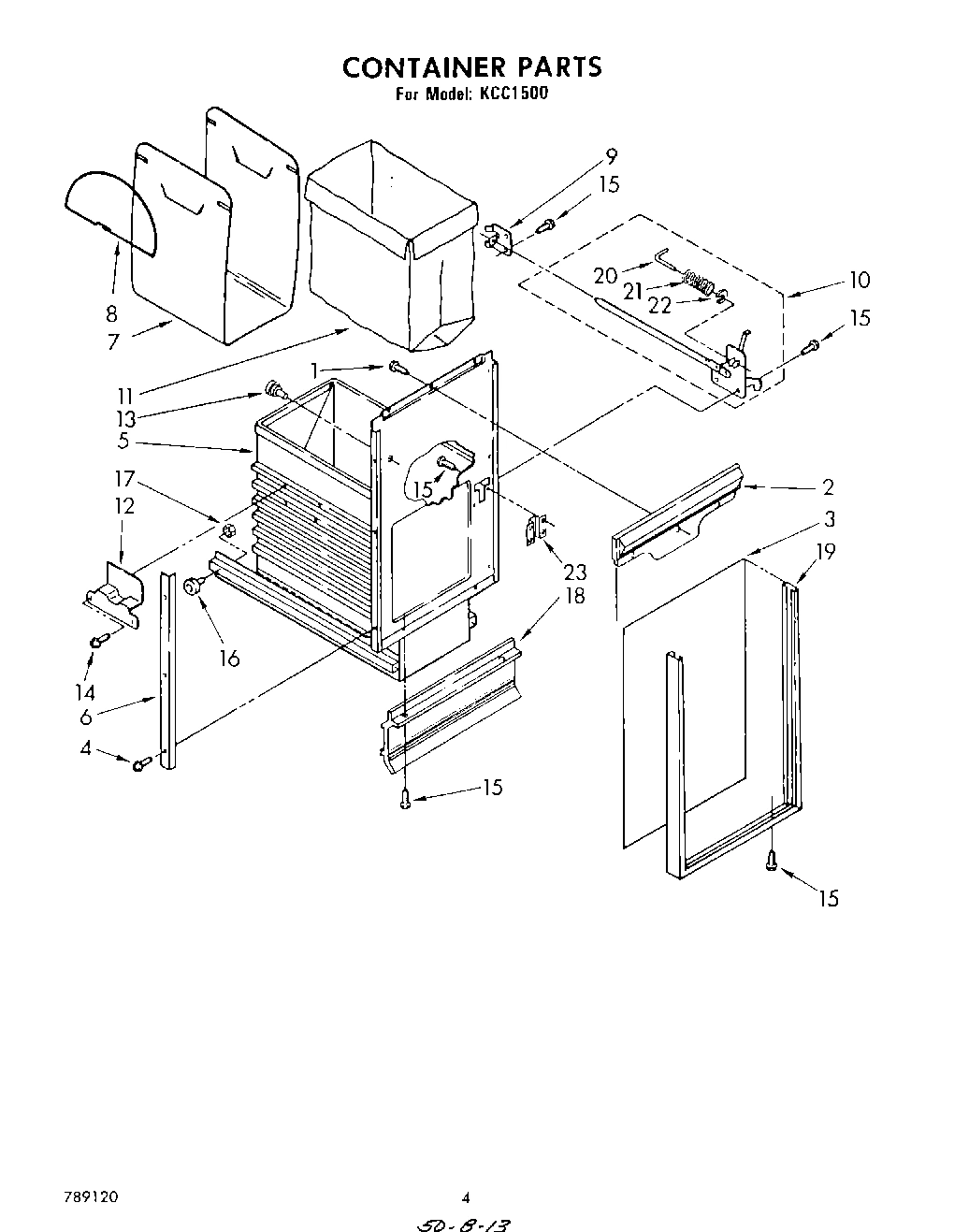

05 - CONTAINER
Common parts from model Whirlpool KCC1500 TRASH COMPACTOR
1
Switch Assembly (Use W/777709 Motor) WPL 777711 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI80485A2 Contact Us For Availability
2
Bumper (4) WPL 775643 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
3
Panel, Container (White & Black) WPL 777941 Contact Us For Availability
3
Panel, Container (Toast & Platinum) WPL 780280 Contact Us For Availability
4
Screw, 6-20 x 3/8 WPL 776191 Contact Us For Availability
5
Container Assembly WPL 675296 Contact Us For Availability
6
Plate, Trim WPL 608051 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
11
Bag, Refuse WPL 776781 Contact Us For Availability
12
Cam, Actuator WPL 776523 Contact Us For Availability
12
Diagram, Wiring WPL 777820 Contact Us For Availability
12
Instructions, Installation WPL 780273 Contact Us For Availability
12
Instructions, Installation WPL 780274 Contact Us For Availability
12
Manual, Owner`s WPL 780275 Contact Us For Availability
12
Questionnaire WPL 780278 Contact Us For Availability
12
Diagram, Wiring WPL 780302 Contact Us For Availability
12
List, Repair Parts WPL 789120 Contact Us For Availability
12
Cover, Motor WPL 608567 Contact Us For Availability
13
Light, Indicator WPL 780181 Contact Us For Availability
13
Plate, Motor Cover WPL 608009 Contact Us For Availability
13
Bumper, Container (2) WPL 775785 Contact Us For Availability
14
Lens, Indicator WPL 780182 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
15
Coffee WPL 261886 Contact Us For Availability
15
Avocado WPL 261888 Contact Us For Availability
15
Harvest Gold WPL 261890 Contact Us For Availability
15
Toast WPL 285365 Contact Us For Availability
15
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
15
Compartment, Air Flow WPL 608533 Contact Us For Availability
15
Primer (Tan) WPL 675167 Contact Us For Availability
15
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
15
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
15
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
15
Stanford Brown WPL 978726 Contact Us For Availability
15
Switch, Drawer Safety WPL 775803 Contact Us For Availability
16
Screw, 6-32 x 7/8 WPL 777460 Contact Us For Availability
17
Switch, Drawer Tilt WPL 775804 Contact Us For Availability
18
Toe Plate WPL 777329 Contact Us For Availability
19
Trim, Container (Front) WPL 777345 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Cord, Power WPL 778603 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
leveler (2) WPL 780082 Contact Us For Availability
26
Screw & Washer Assembly (2) WPL 780125 Contact Us For Availability
27
Wheel Assembly, R.H. WPL 780139 Contact Us For Availability
× ![]()
