Model Whirlpool KBZU122VSS00 BUILT-IN SIDE BURNER – Common Parts & Diagrams

Common parts from model Whirlpool KBZU122VSS00 BUILT-IN SIDE BURNER

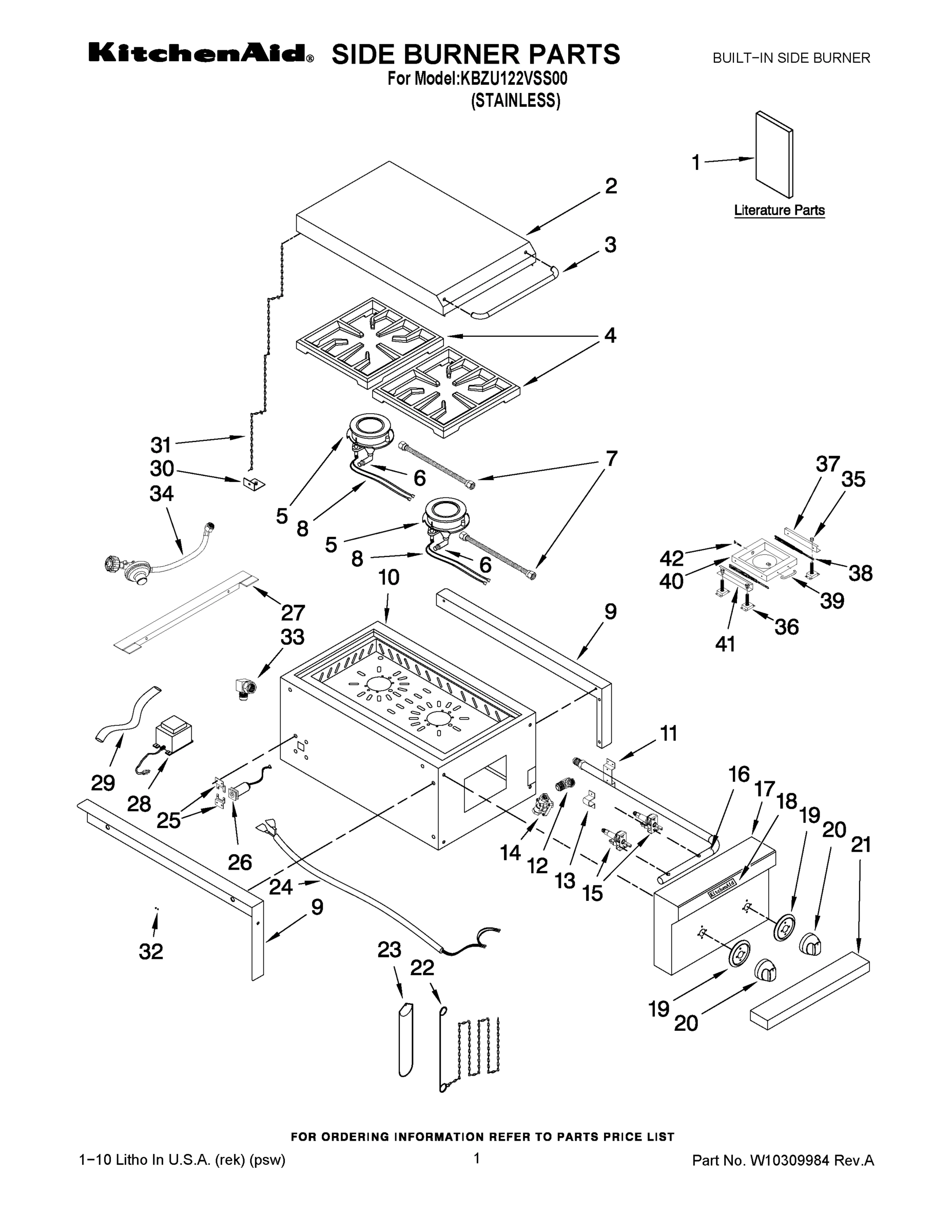

01 - SIDE BURNER PARTS

Print

• This Diagram
• All Diagrams

4

Grate, Burner WPL W10137737 Contact Us For Availability

View on Model

5

BURNER WPL W10244942 Contact Us For Availability

View on Model

6

ORIFICE, BURNER ELBOW WPL W10244342 Contact Us For Availability

View on Model

7

Tubing (Front) WPL W10137744 Contact Us For Availability

View on Model

7

Tubing (Rear) WPL W10141192 Contact Us For Availability

View on Model

8

W10247025 Whirlpool Oven Surface Igniter Backorder WPL W10247025 View Details $103.73

View on Model

8

Ignitor, Surface (Front) WPL W10140269 Contact Us For Availability

View on Model

9

Flange (Right) WPL W10140253 Contact Us For Availability

View on Model

9

Flange (Left) WPL W10141182 Contact Us For Availability

View on Model

10

BOX-BURNER WPL W10311544 Contact Us For Availability

View on Model

11

Base, Manifold WPL W10128749 Contact Us For Availability

View on Model

12

CONNECTOR, NG WPL W10285878 Contact Us For Availability

View on Model

13

Fitting, Manifold WPL W10128747 Contact Us For Availability

View on Model

14

WPW10132702 Whirlpool Regulator Backorder WPL WPW10132702 View Details $118.55

View on Model

15

WPW10128764 Whirlpool Oven Main Valve Backorder WPL WPW10128764 View Details $181.28

View on Model

16

MANIFOLD WPL W10140749 Contact Us For Availability

View on Model

17

Panel, Control WPL W10140750 Contact Us For Availability

View on Model

18

Nameplate WPL W10128751 Contact Us For Availability

View on Model

19

Bezel, Knob WPL W10140753 Contact Us For Availability

View on Model

20

KNOB WPL W10141176 Contact Us For Availability

View on Model

21

Panel, Front WPL W10141180 Contact Us For Availability

View on Model

22

Rod, Lighting WPL W10141181 Contact Us For Availability

View on Model

23

Bag, Ltg rod WPL W10128703 Contact Us For Availability

View on Model

24

Harness, Wire WPL W10141183 Contact Us For Availability

View on Model

25

BRACKET, TRNSFRMR WPL W10285873 Contact Us For Availability

View on Model

26

OUTLET, TRNSFRMR WPL W10133869 Contact Us For Availability

View on Model

27

FLANGE, BACK WPL W10311546 Contact Us For Availability

View on Model

28

W10247117 Whirlpool Oven Transformer Backorder WPL W10247117 View Details $171.31

View on Model

29

Tube, Drain WPL W10141185 Contact Us For Availability

View on Model

30

Stator, Chain WPL W10137088 Contact Us For Availability

View on Model

31

CHAIN WPL W10137089 Contact Us For Availability

View on Model

32

ORIFICE, KIT WPL W10311545 Contact Us For Availability

View on Model

33

CONNECTOR, LP WPL W10285670 Contact Us For Availability

View on Model

34

REGULATOR (LP) WPL W10247100 Contact Us For Availability

View on Model

35

NUT, TRAY WPL W10247139 Contact Us For Availability

View on Model

36

BRACKET, BOLT WPL W10247138 Contact Us For Availability

View on Model

37

BRACKET, RIGHT WPL W10247137 Contact Us For Availability

View on Model

38

SLIDE, TANK TRAY WPL W10247141 Contact Us For Availability

View on Model

39

HANDLE, TRAY WPL W10247140 Contact Us For Availability

View on Model

40

TRAY, TANK WPL W10285883 Contact Us For Availability

View on Model

41

BRACKET, LEFT WPL W10247142 Contact Us For Availability

View on Model

42

BOLT, TANK WPL W10247135 Contact Us For Availability

View on Model

×
