Model Whirlpool KBWG11NCSS00 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams

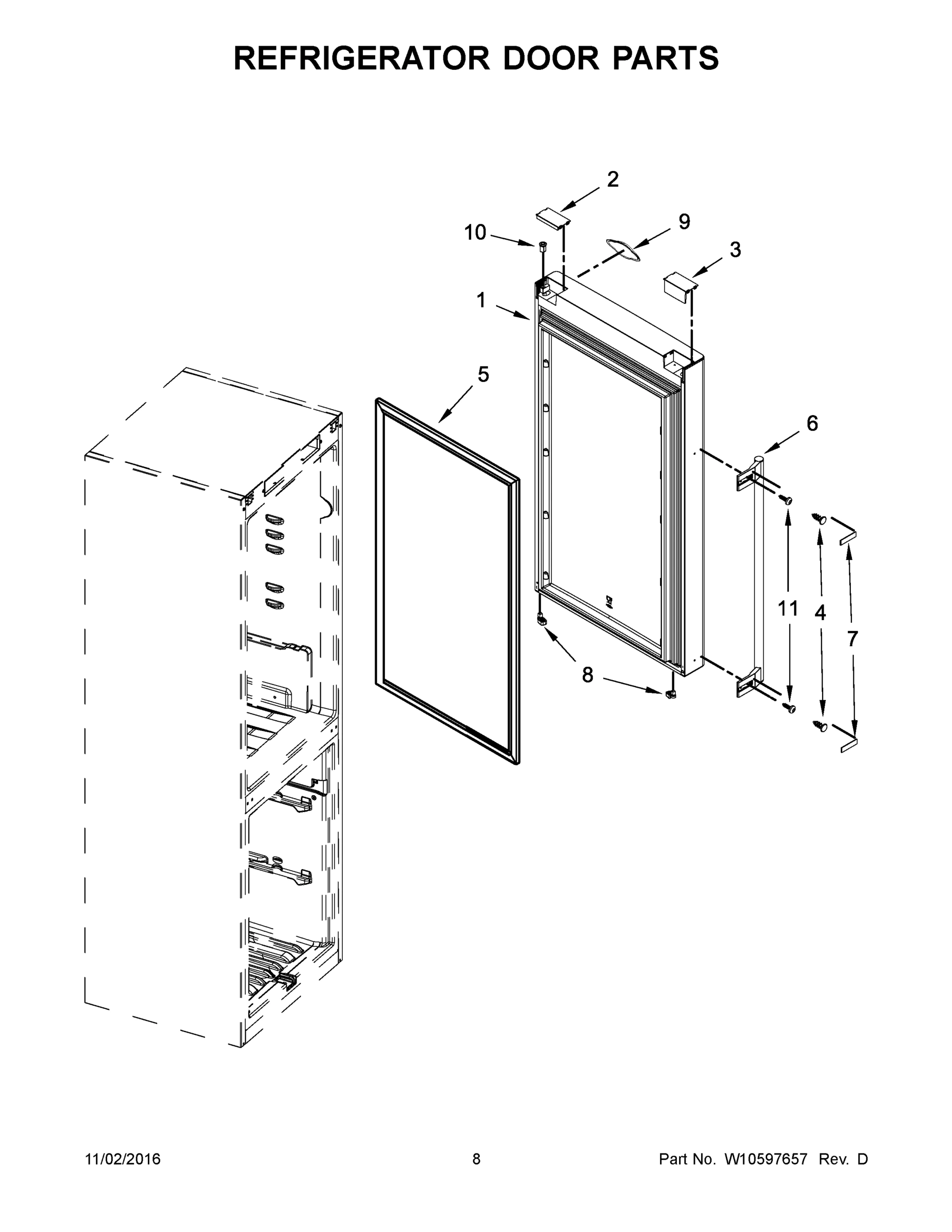

05 - REFRIGERATOR DOOR PARTS

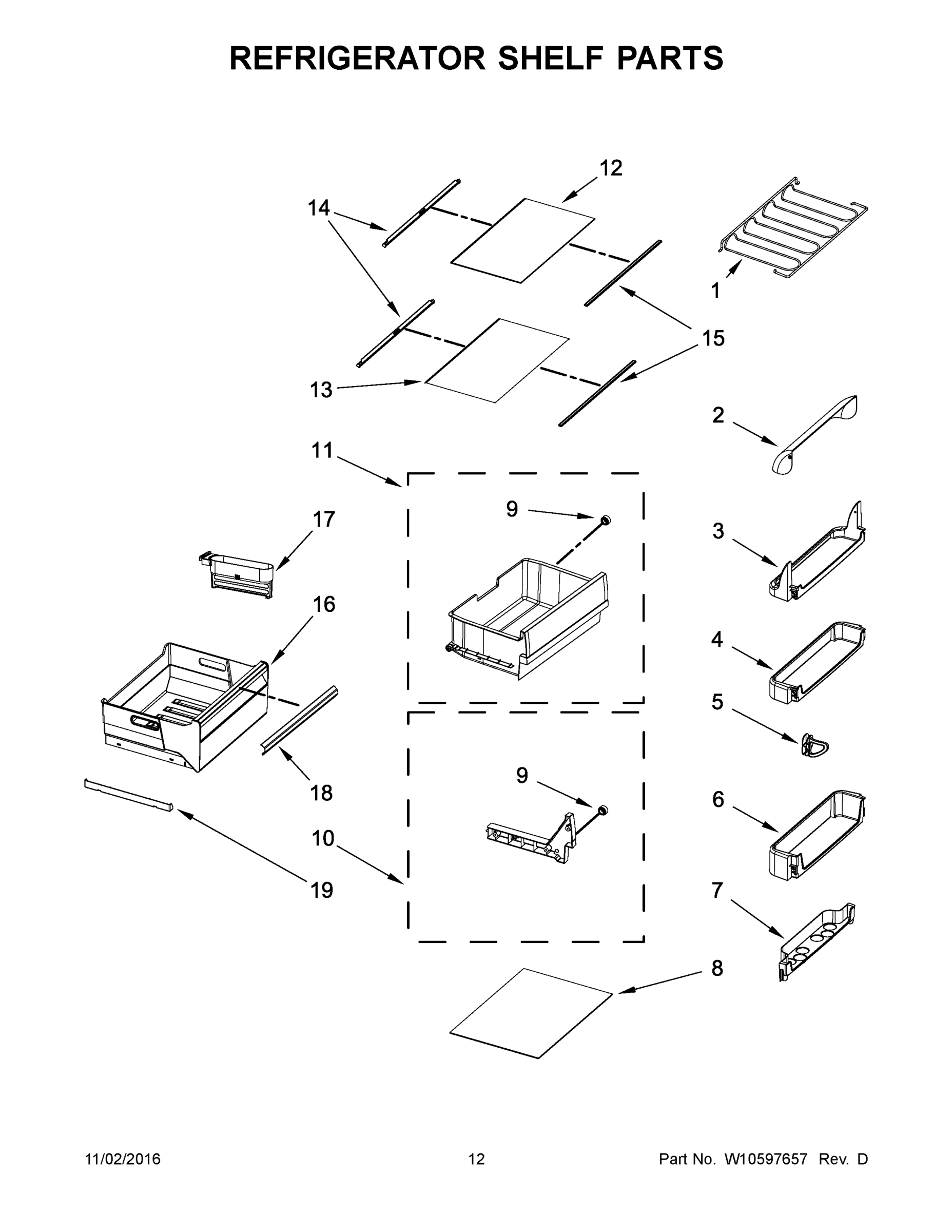

07 - REFRIGERATOR SHELF PARTS

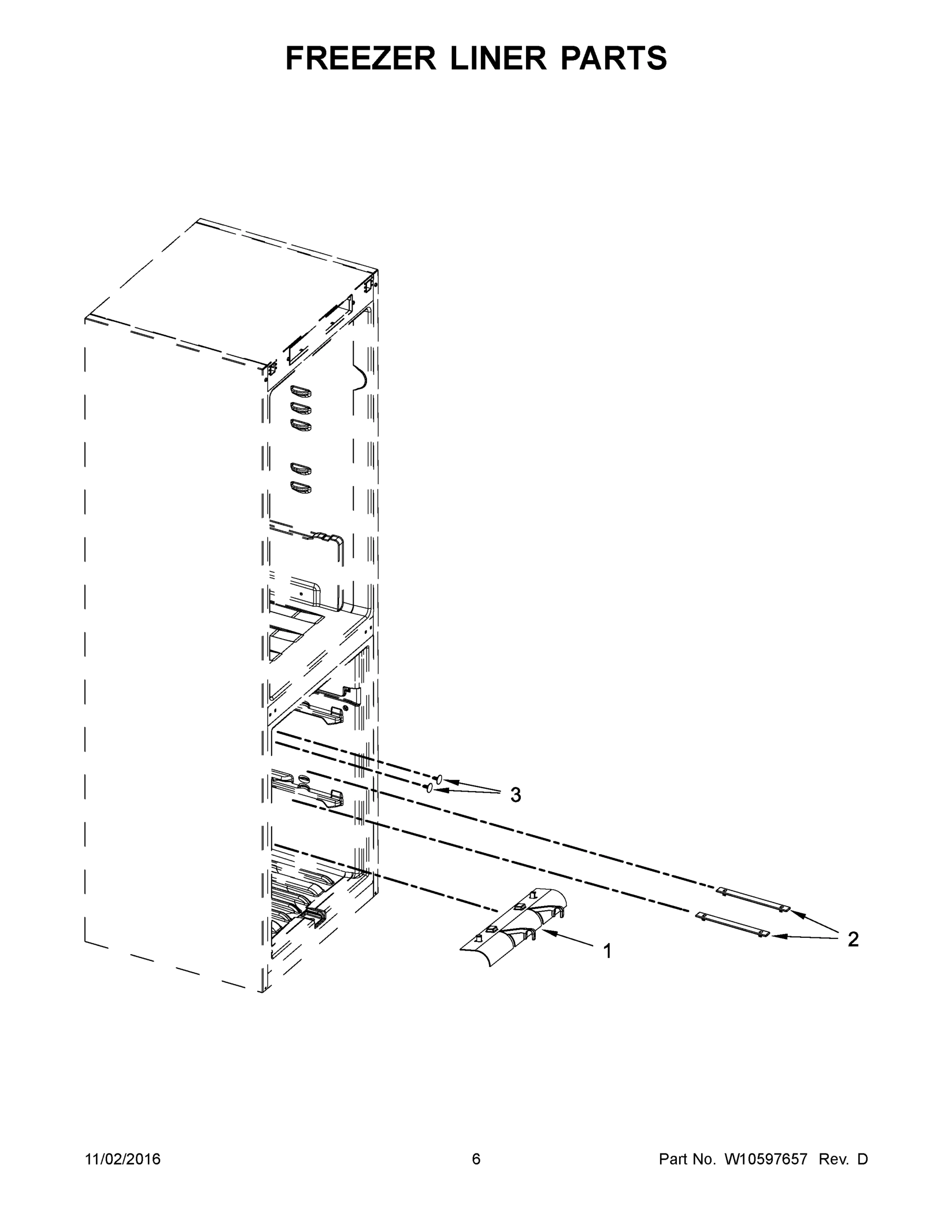

04 - FREEZER LINER PARTS

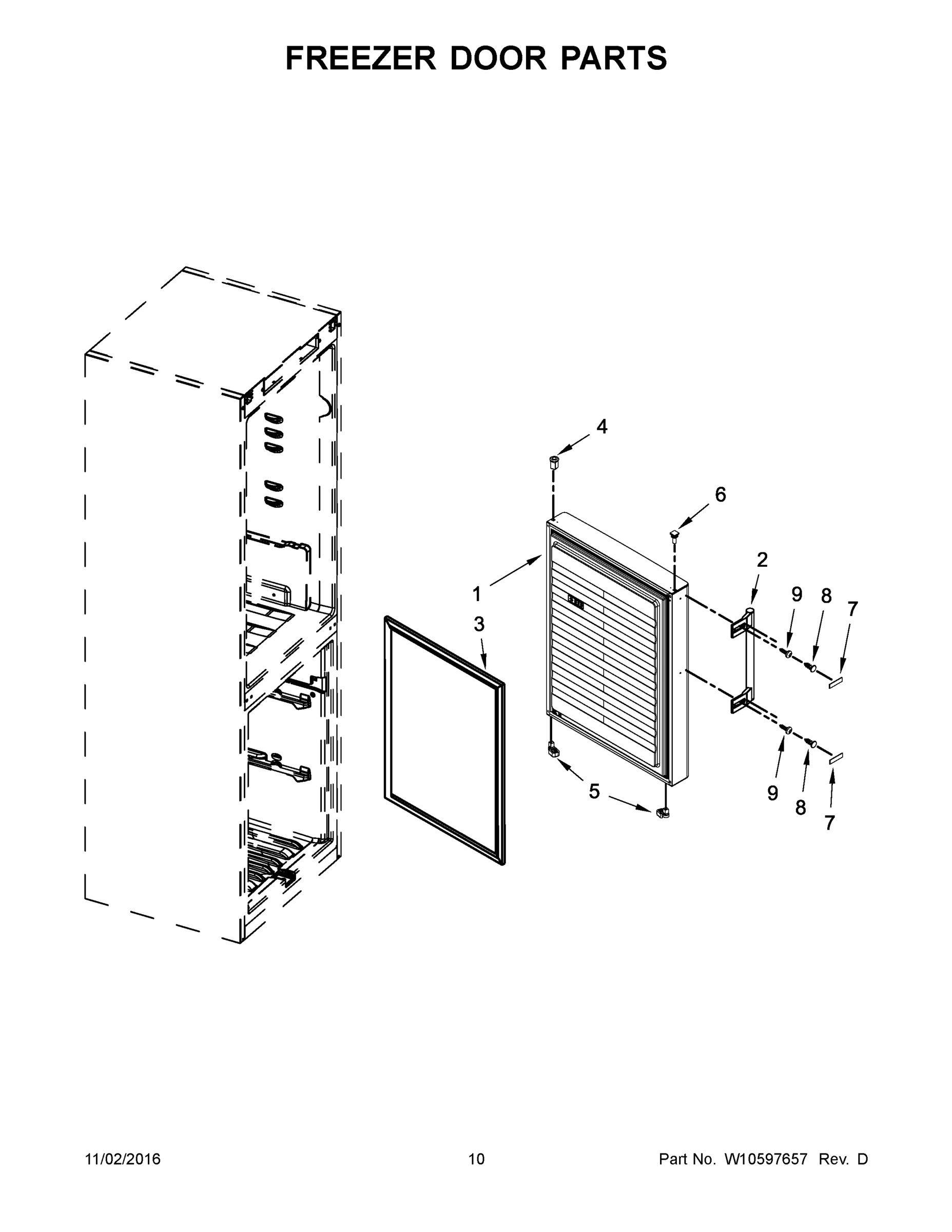

06 - FREEZER DOOR PARTS

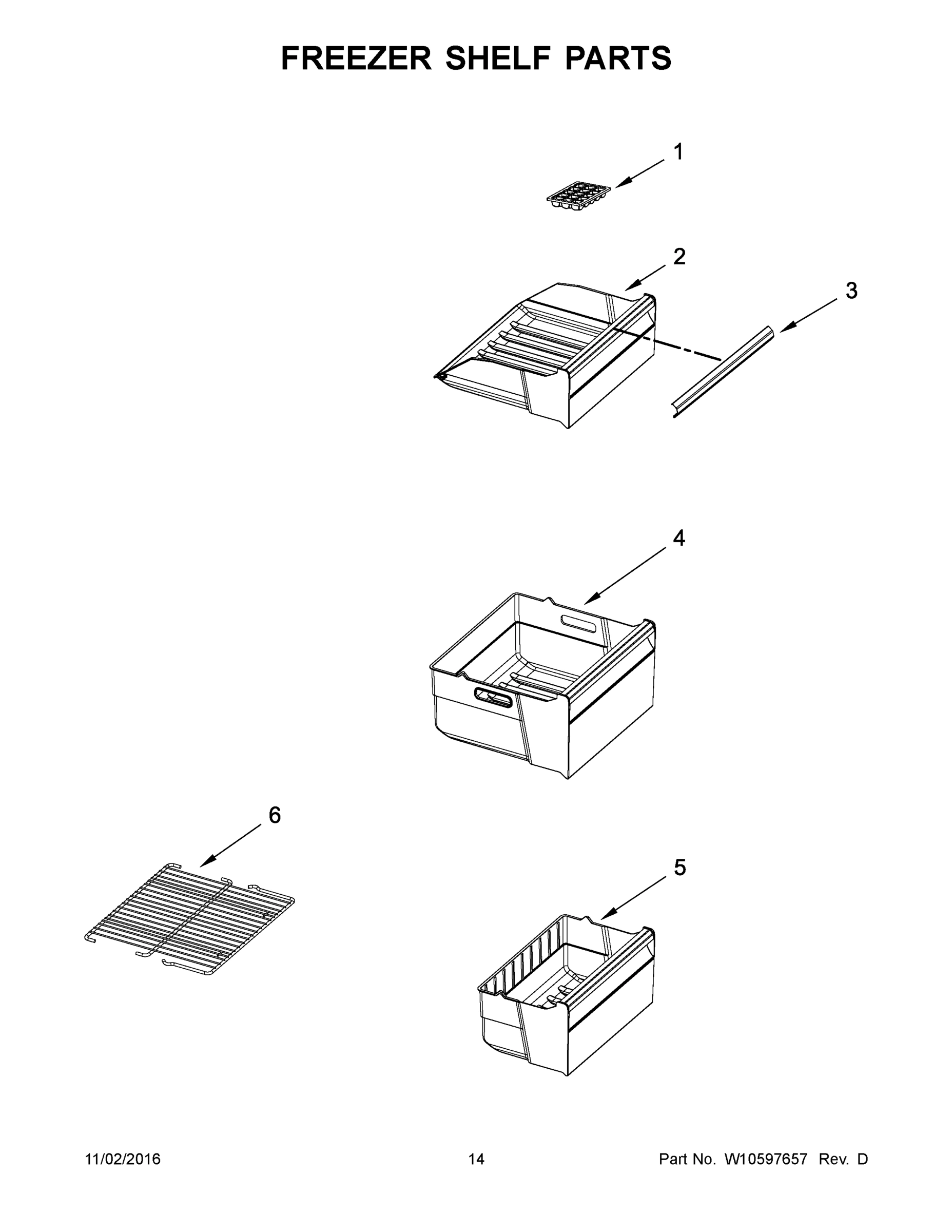

08 - FREEZER SHELF PARTS

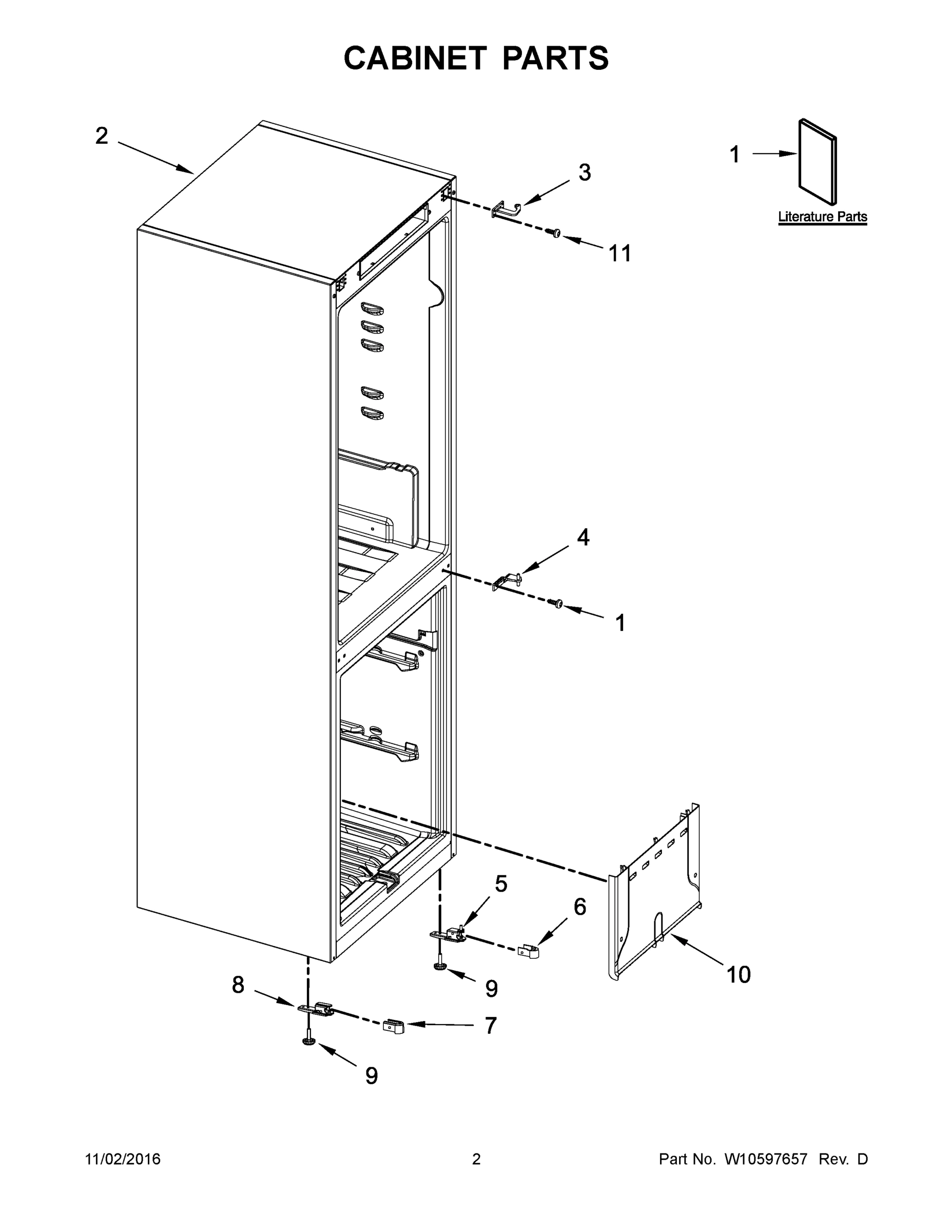

02 - CABINET PARTS

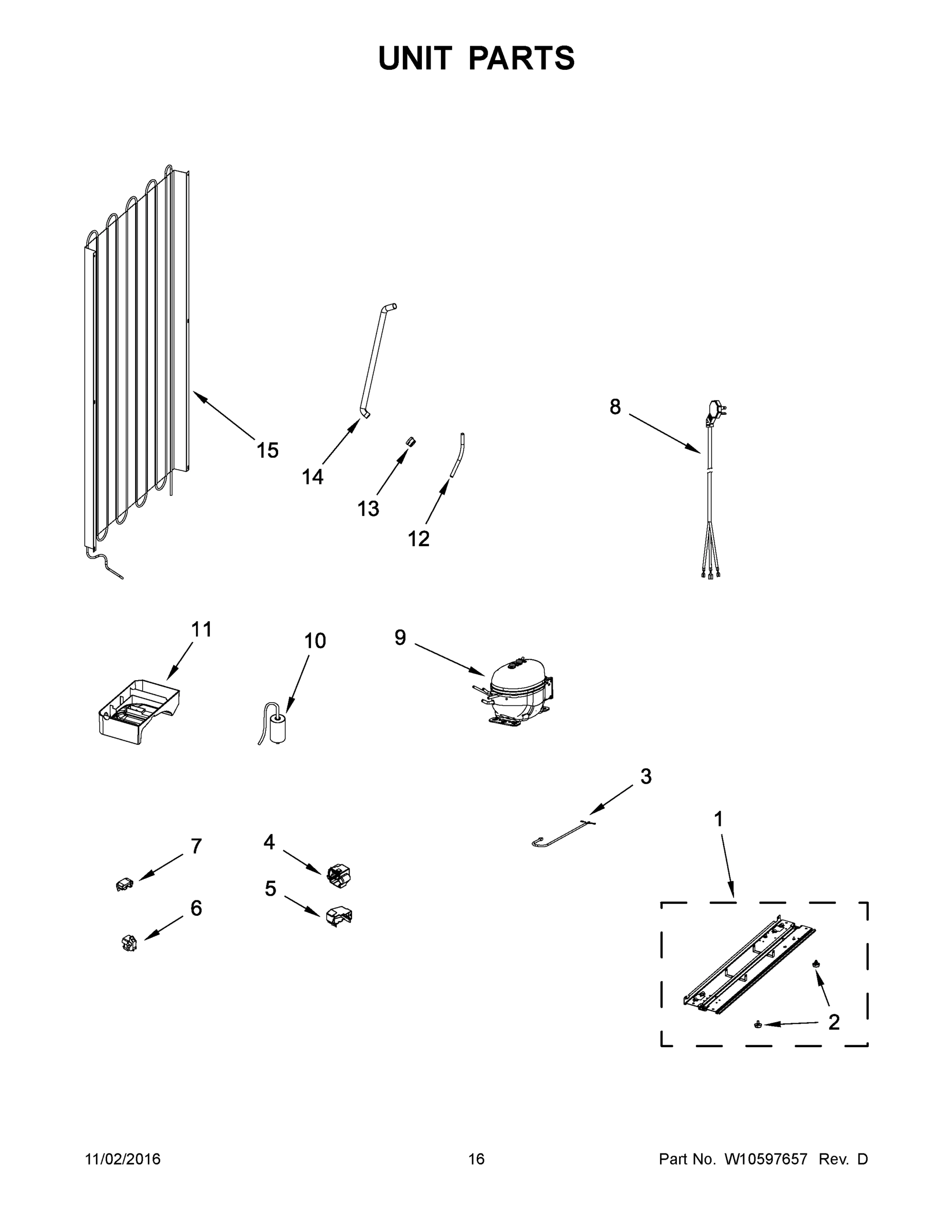

09 - UNIT PARTS

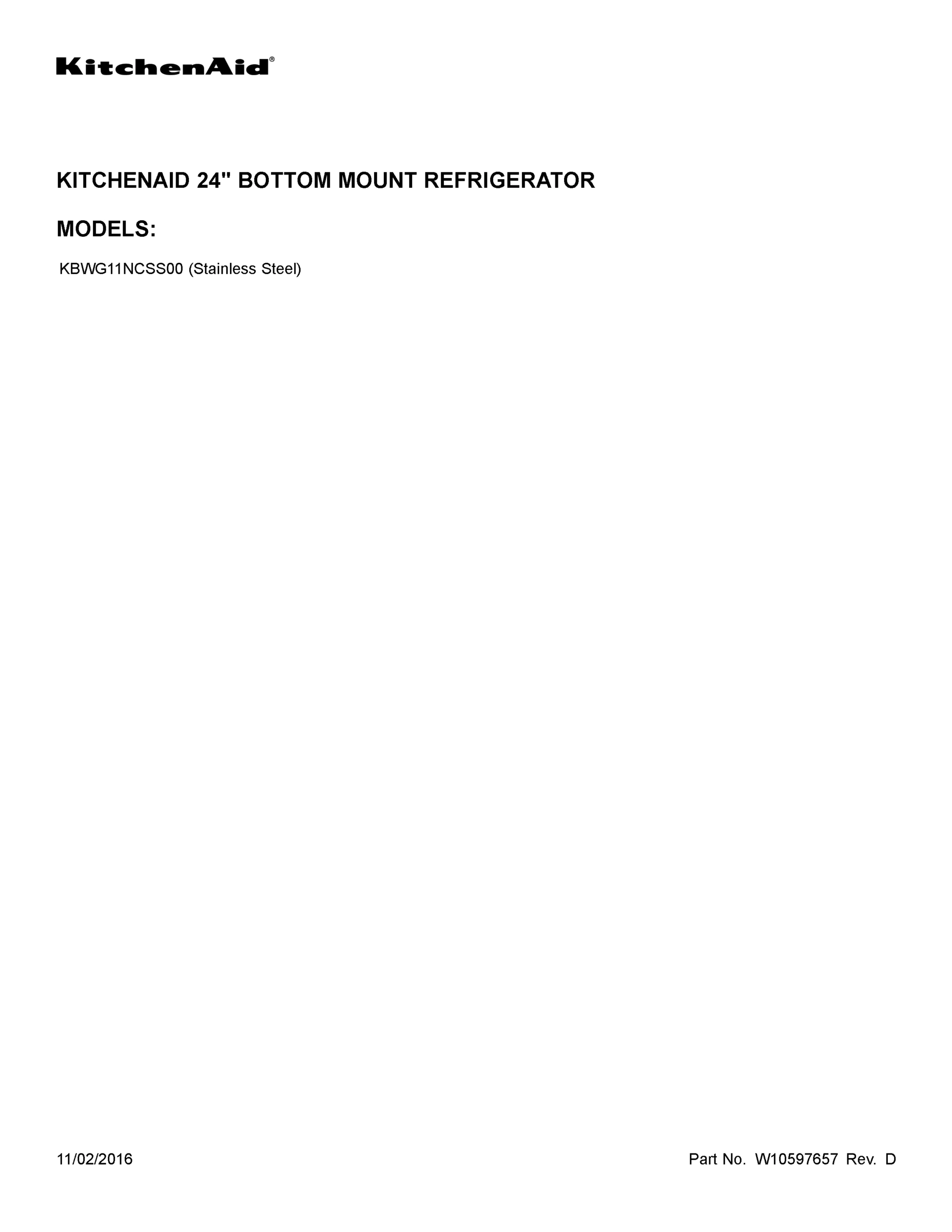

01 - COVER SHEET

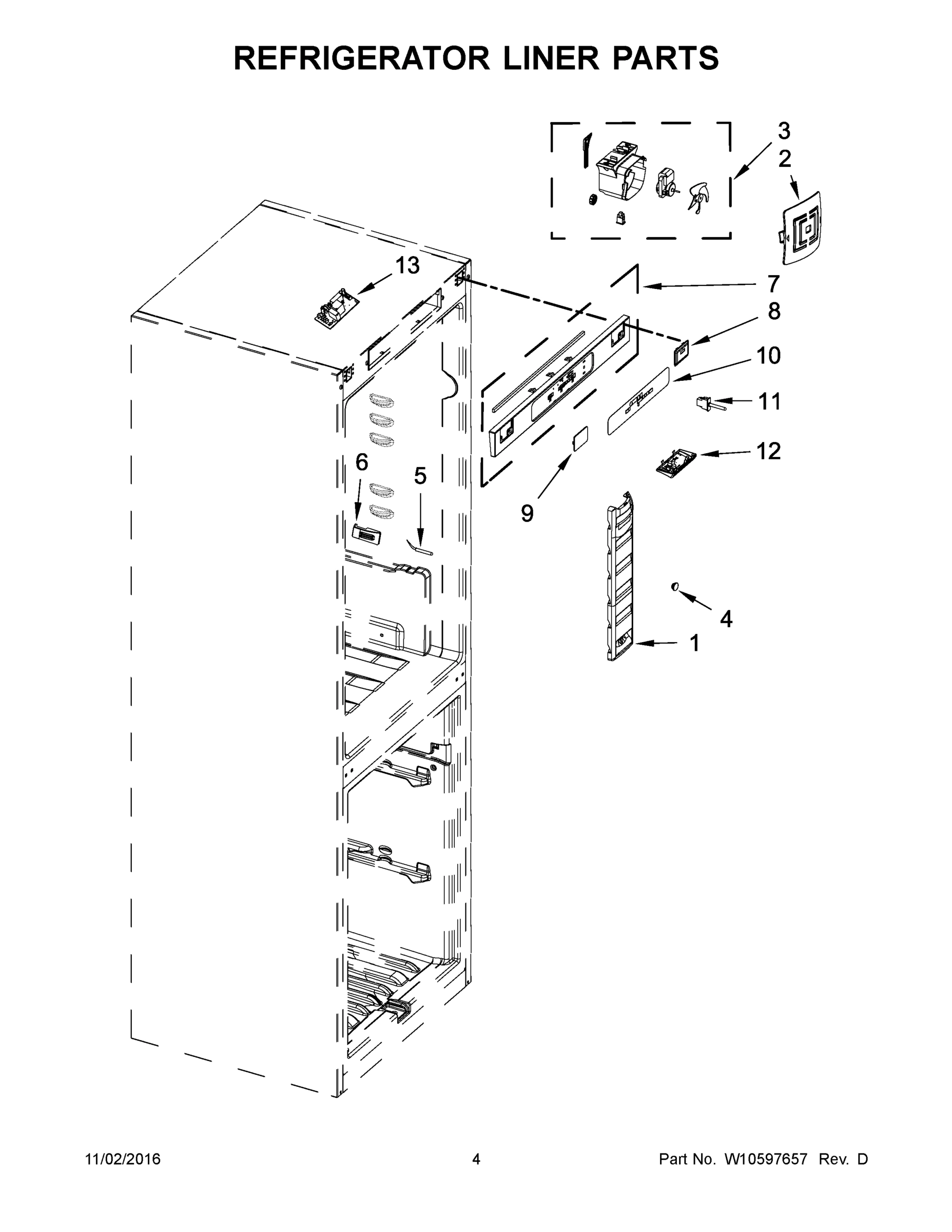

03 - REFRIGERATOR LINER PARTS
Common parts from model Whirlpool KBWG11NCSS00 REFRIGERATOR, BOTTOM MOUNT
1
BOTTLE RACK WPL W10508083 Contact Us For Availability
1
AIR LEAD, FREEZER WPL W10585799 Contact Us For Availability
1
DOOR, FREEZER (STAINLESS) WPL W10531287 Contact Us For Availability
1
ICE TRAY WPL W10363341 Contact Us For Availability
1
WIRING DIAGRAM WPL W10538673 Contact Us For Availability
1
CROSSBAR, COMPRESSOR WPL W10515903 Contact Us For Availability
1
AIR TOWER WPL W10506658 Contact Us For Availability
2
LID, DAIRY COMPARTMENT WPL W10585766 Contact Us For Availability
2
RAIL, EVAPORATOR WPL W10585757 Contact Us For Availability
2
HANDLE, DOOR (UNIVERSAL SILVER) WPL W10439414 Contact Us For Availability
2
TOP FREEZER BASKET WPL W10585772 Contact Us For Availability
2
COVER, FAN WPL W10506654 Contact Us For Availability
3
DOOR HINGE PLUG, LONG WPL W10476949 Contact Us For Availability
3
DAIRY COMPARTMENT WPL W10585762 Contact Us For Availability
3
PLUG WPL W10585782 Contact Us For Availability
3
GASKET, DOOR WPL W10585768 Contact Us For Availability
3
TRIM, BASKET WPL W10585791 Contact Us For Availability
3
HINGE, UPPER WPL W10585760 Contact Us For Availability
3
WIRE, GROUND WPL W10513341 Contact Us For Availability
3
ASSEMBLY, EVAPORATOR MOTOR WPL W10518444 Contact Us For Availability
4
SLEEVE, HINGE WPL W10585708 Contact Us For Availability
4
DOOR BIN WPL W10585764 Contact Us For Availability
4
MIDDLE FREEZER BASKET WPL W10585778 Contact Us For Availability
4
HINGE, CENTER WPL W10585710 Contact Us For Availability
4
BOARD, TERMINAL WPL W10540525 Contact Us For Availability
4
PLUG, ENDCAP WPL W10435822 Contact Us For Availability
5
GASKET, DOOR WPL W10585767 Contact Us For Availability
5
BOTTLE SEPARATOR WPL W10585769 Contact Us For Availability
5
SERVICE SENSOR (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
5
LOWER FREEZER BASKET WPL W10585774 Contact Us For Availability
5
HINGE, BOTTOM WPL W10372678 Contact Us For Availability
5
COVER, TERMINAL BOARD WPL W10540495 Contact Us For Availability
6
HANDLE, DOOR (UNIVERSAL SILVER) WPL W10439412 Contact Us For Availability
6
BOTTLE BIN WPL W10585765 Contact Us For Availability
6
PLUG, ENDCAP (GREY) WPL W10477057 Contact Us For Availability
6
WIRE SHELF WPL W10520927 Contact Us For Availability
6
HINGE COVER, BOTTOM WPL W10429047 Contact Us For Availability
6
RELAY WPL W10540543 Contact Us For Availability
6
COVER, SENSOR WPL W10506496 Contact Us For Availability
7
COVER, HANDLE SCREW (GREY) WPL W10438420 Contact Us For Availability
7
EGG BIN WPL W10585789 Contact Us For Availability
7
COVER, FOOT SUPPORT WPL W10429057 Contact Us For Availability
7
PROTECTOR, MOTOR WPL W10540536 Contact Us For Availability
7
HOUSING, CONTROL WPL W10529907 Contact Us For Availability
8
PLUG, DOOR HANDLE (GREY) WPL W10529834 Contact Us For Availability
8
CRISPER COVER WPL W10585784 Contact Us For Availability
8
SUPPORT, FOOT WPL W10372681 Contact Us For Availability
8
UPPER HINGE COVER, RIGHT WPL W10585770 Contact Us For Availability
9
SCREW WPL W10675296 Contact Us For Availability
9
ROLLER WPL W10585709 Contact Us For Availability
9
FOOT WPL W10451034 Contact Us For Availability
9
COMPRESSOR WPL W10540349 Contact Us For Availability
9
UPPER HINGE COVER, LEFT WPL W10585761 Contact Us For Availability
10
SLIDE (LEFT HAND) WPL W10506663 Contact Us For Availability
10
COVER, UNIT WPL W10585790 Contact Us For Availability
10
CAPACITOR WPL W10538494 Contact Us For Availability
10
OVERLAY WPL W10521573 Contact Us For Availability
10A
SLIDE (RIGHT HAND) WPL W10506668 Contact Us For Availability
11
CRISPER PAN WPL W10515565 Contact Us For Availability
11
SCREW WPL W10493638 Contact Us For Availability
11
SWITCH, LIGHT WPL W10534330 Contact Us For Availability
12
GLASS SHELF WPL W10585773 Contact Us For Availability
12
ASSEMBLY, LED WPL W10398001 Contact Us For Availability
13
GLASS SHELF WPL W10585780 Contact Us For Availability
13
VALVE, DRAIN WPL W10585788 Contact Us For Availability
13
CONTROL, ELECTRONIC WPL W10544502 Contact Us For Availability
14
TRIM, REAR WPL W10585776 Contact Us For Availability
14
CONDENSATE PIPE WPL W10585797 Contact Us For Availability
15
TRIM, FRONT WPL W10585786 Contact Us For Availability
15
CONDENSER WPL W10515625 Contact Us For Availability
16
CRISPER WPL W10585796 Contact Us For Availability
17
DIVIDER WPL W10585771 Contact Us For Availability
18
TRIM, CRISPER WPL W10585793 Contact Us For Availability
19
RAIL, SIDE (LEFT HAND) WPL W10585794 Contact Us For Availability
19A
RAIL, SIDE (RIGHT HAND) WPL W10585795 Contact Us For Availability
× ![]()
