Model Whirlpool KBSS361TSS00 36`` BUILT-IN GRILL – Common Parts & Diagrams
03 - OPTIONAL PARTS

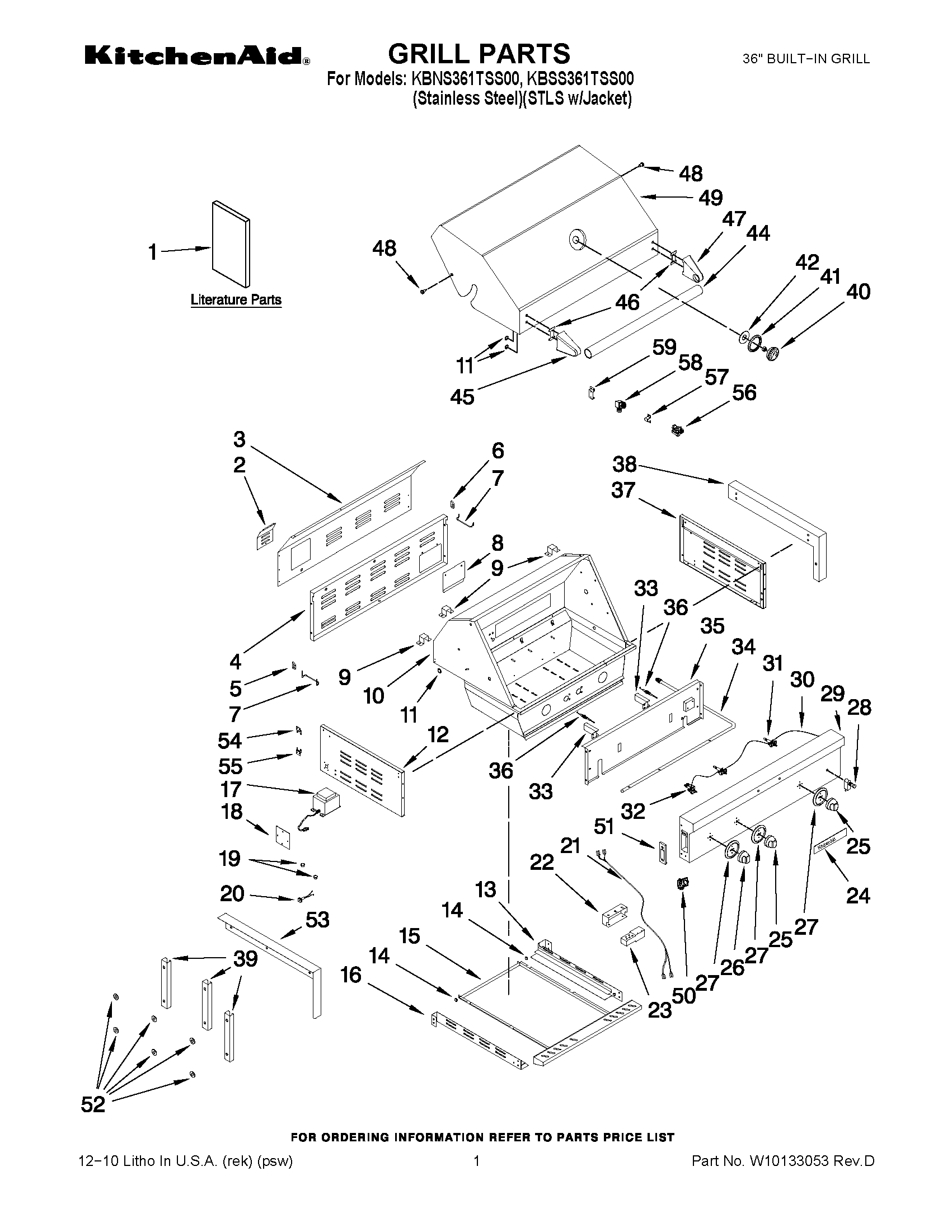

01 - GRILL PARTS

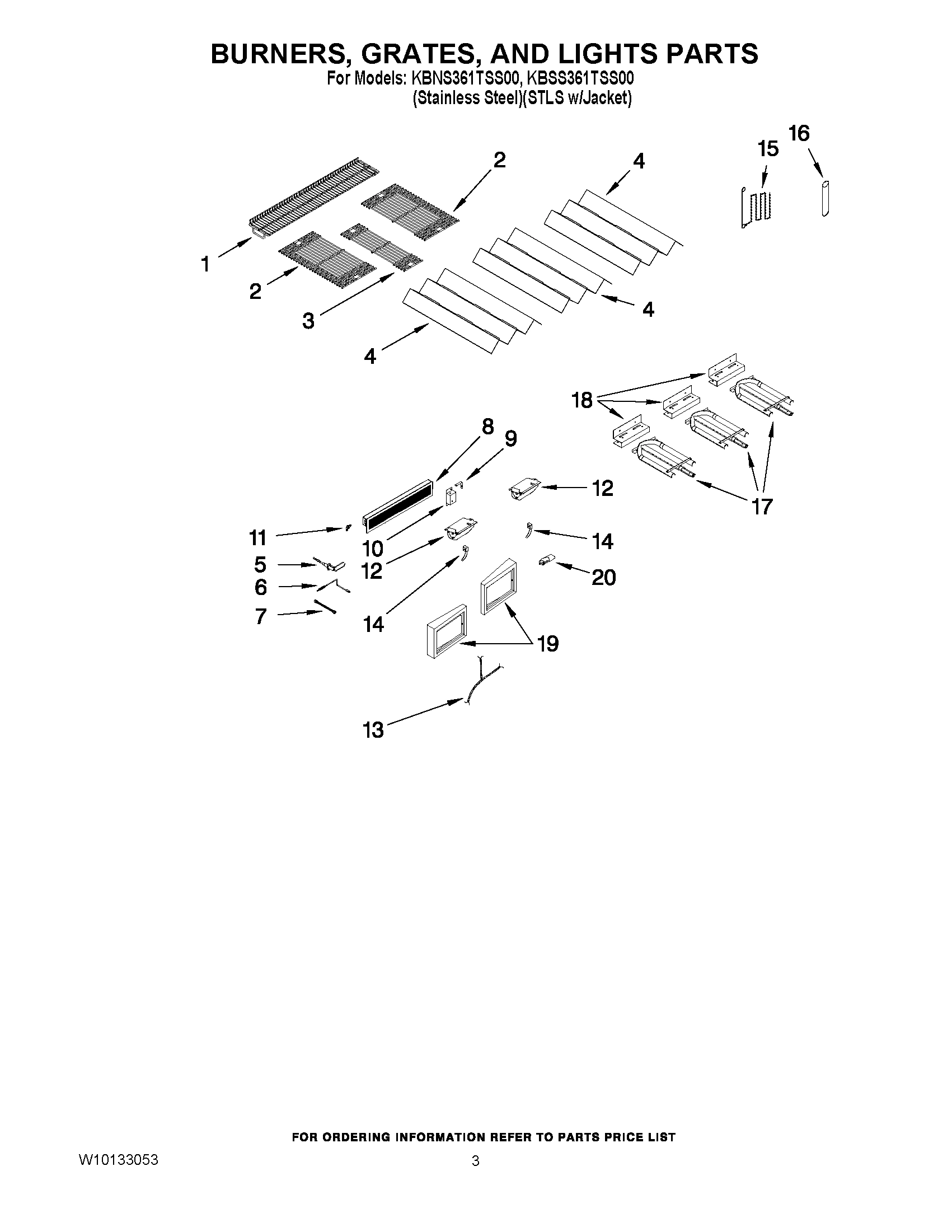

02 - BURNERS, GRATES, AND LIGHTS PARTS
Common parts from model Whirlpool KBSS361TSS00 36`` BUILT-IN GRILL
1
Rack, Warming WPL W10133859 Contact Us For Availability
2
Rack, Large WPL W10133860 Contact Us For Availability
3
Rack, Small WPL W10133862 Contact Us For Availability
4
Plate, Sear WPL W10128618 Contact Us For Availability
5
Electrode, Rear WPL W10128621 Contact Us For Availability
6
Thermocouple, Rear Burner WPL W10128622 Contact Us For Availability
7
Flex Tube, Rear Burner WPL W10128623 Contact Us For Availability
8
Burner, Rear WPL W10133864 Contact Us For Availability
9
Clip, Wire WPL W10128638 Contact Us For Availability
9
Bracket, Rear Thermocouple WPL W10128625 Contact Us For Availability
10
Hood Assy WPL W10133868 Contact Us For Availability
10
Cover, Rear Thermocouple WPL W10128626 Contact Us For Availability
11
Hole Plug WPL W10128640 Contact Us For Availability
11
Orifice, Rear Burner WPL W10128627 Contact Us For Availability
12
Light, Grill WPL W10128628 Contact Us For Availability
12
Panel, Side Left WPL W10132699 Contact Us For Availability
13
Bracket, Grease Tray (Right) WPL W10128644 Contact Us For Availability
13
HARNESS, WIRE LIGHTS WPL W10133866 Contact Us For Availability
14
Roller, Drip Tray WPL W10128655 Contact Us For Availability
14
Socket, Light WPL W10133865 Contact Us For Availability
15
Drip Tray Assy (Includes Rollers) WPL W10133870 Contact Us For Availability
15
Rod, Lighting WPL W10128704 Contact Us For Availability
16
Bracket, Grease Tray (Left) WPL W10128657 Contact Us For Availability
16
Bag, Lighting Rod WPL W10128703 Contact Us For Availability
17
Burner, Main WPL W10128775 Contact Us For Availability
17
TRANSFORMER WPL W10281396 Contact Us For Availability
18
Cover, Wire Terminal WPL W10132690 Contact Us For Availability
18
Bracket, Main Brnr WPL W10128776 Contact Us For Availability
19
BUSHING (PLASTIC (No.SB22)) WPL W10132691 Contact Us For Availability
19
BUSHING (PLASTIC (No.SB19)) WPL W10132692 Contact Us For Availability
19
Light Set WPL W10134808 Contact Us For Availability
20
Outlet, Transformer WPL W10133869 Contact Us For Availability
22
Cover, Igniter WPL W10128664 Contact Us For Availability
23
Igniter WPL W10281246 Contact Us For Availability
24
Nameplate WPL W10128751 Contact Us For Availability
27
Bezel, Knob WPL W10128759 Contact Us For Availability
28
Switch, Light WPL W10128761 Contact Us For Availability
29
Panel, Control WPL W10136433 Contact Us For Availability
30
Harness, Wire Control WPL W10134817 Contact Us For Availability
32
Valve, Rear Brnr WPL W10128766 Contact Us For Availability
33
Igniter, Main Gas WPL W10128767 Contact Us For Availability
34
Manifold WPL W10133871 Contact Us For Availability
35
Baffle, Front WPL W10133873 Contact Us For Availability
36
Electrode (Main Burner) WPL W10133875 Contact Us For Availability
37
Side Panel, Right WPL W10132700 Contact Us For Availability
38
Flange (RT) WPL W10132701 Contact Us For Availability
39
Bracket, Flange WPL W10132697 Contact Us For Availability
40
Thermometer WPL W10128777 Contact Us For Availability
41
Bezel, Thermometer WPL W10128779 Contact Us For Availability
42
INSULATOR, THERMOMETER(SMALL) WPL W10140257 Contact Us For Availability
44
Handle, Hood WPL W10133877 Contact Us For Availability
45
Endcap, Handle (Left) WPL W10128785 Contact Us For Availability
46
Spacer, Handle WPL W10128786 Contact Us For Availability
47
Endcap, Handle (Right) WPL W10128787 Contact Us For Availability
48
Hinge, Lid WPL W10128788 Contact Us For Availability
49
Hood WPL W10133878 Contact Us For Availability
50
Box, Battery WPL W10128715 Contact Us For Availability
51
Cover, Battery Box WPL W10128711 Contact Us For Availability
52
WASHER WPL W10132698 Contact Us For Availability
53
Flange (LF) WPL W10132696 Contact Us For Availability
54
Brkt, Trnsfrmr (Top) WPL W10132694 Contact Us For Availability
55
Brkt, Trnsfrmr (Btm) WPL W10132695 Contact Us For Availability
57
WPL W10128747 WPL W10128747 Contact Us For Availability
58
WPL W10128748 WPL W10128748 Contact Us For Availability
59
WPL W10128749 WPL W10128749 Contact Us For Availability
NI
Conv. Kit (NG-LP) WPL W10118099 Contact Us For Availability
NI
COVER, GRILL WPL 8212705 Contact Us For Availability
NI
CONV.KIT(LP-NG) WPL W10118098 Contact Us For Availability
× ![]()
