Model Whirlpool KBRS22KKBL00 BOTTOM MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER LINER
04 - REFRIGERATOR LINER

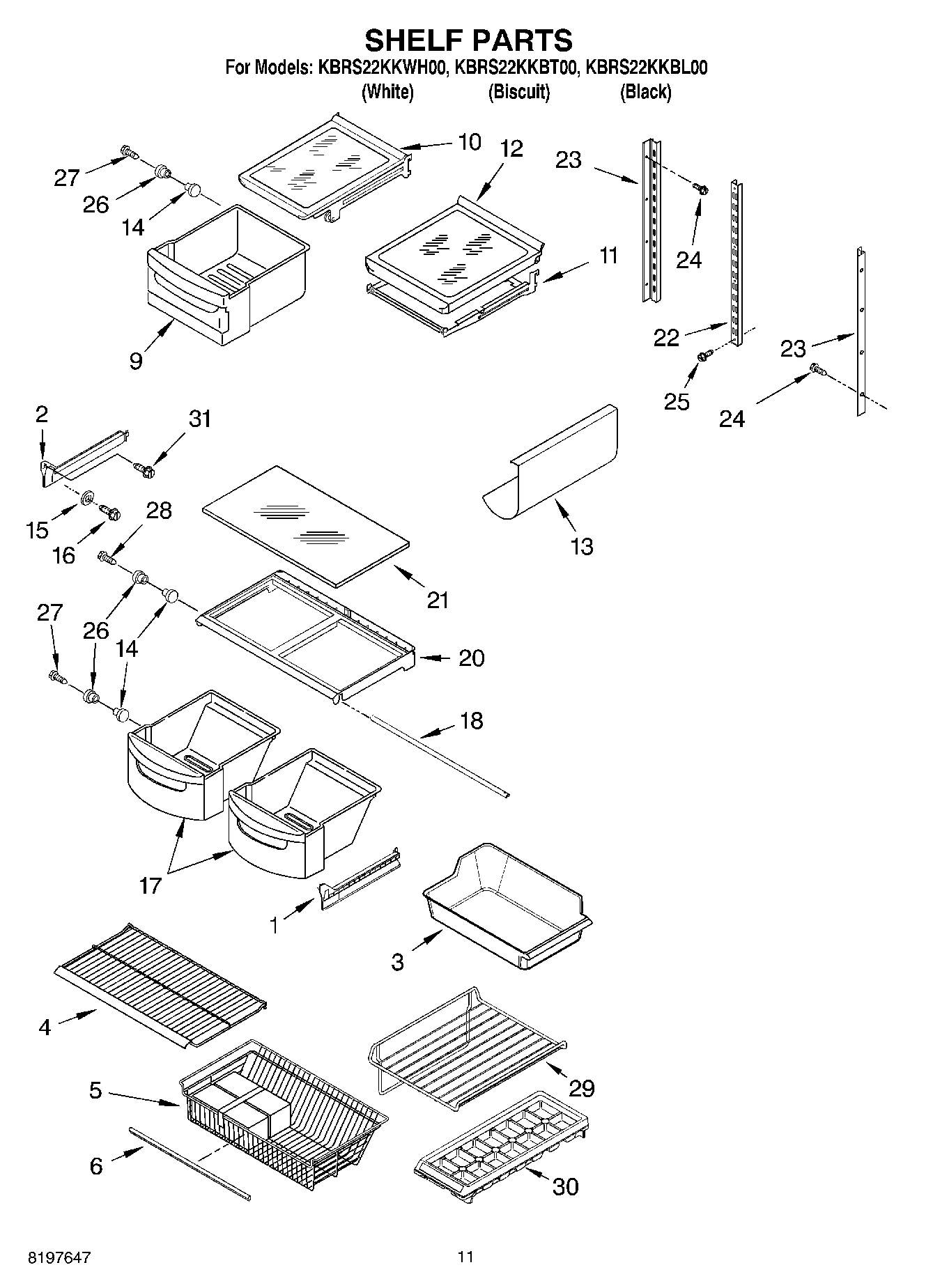

07 - SHELF, OPTIONAL

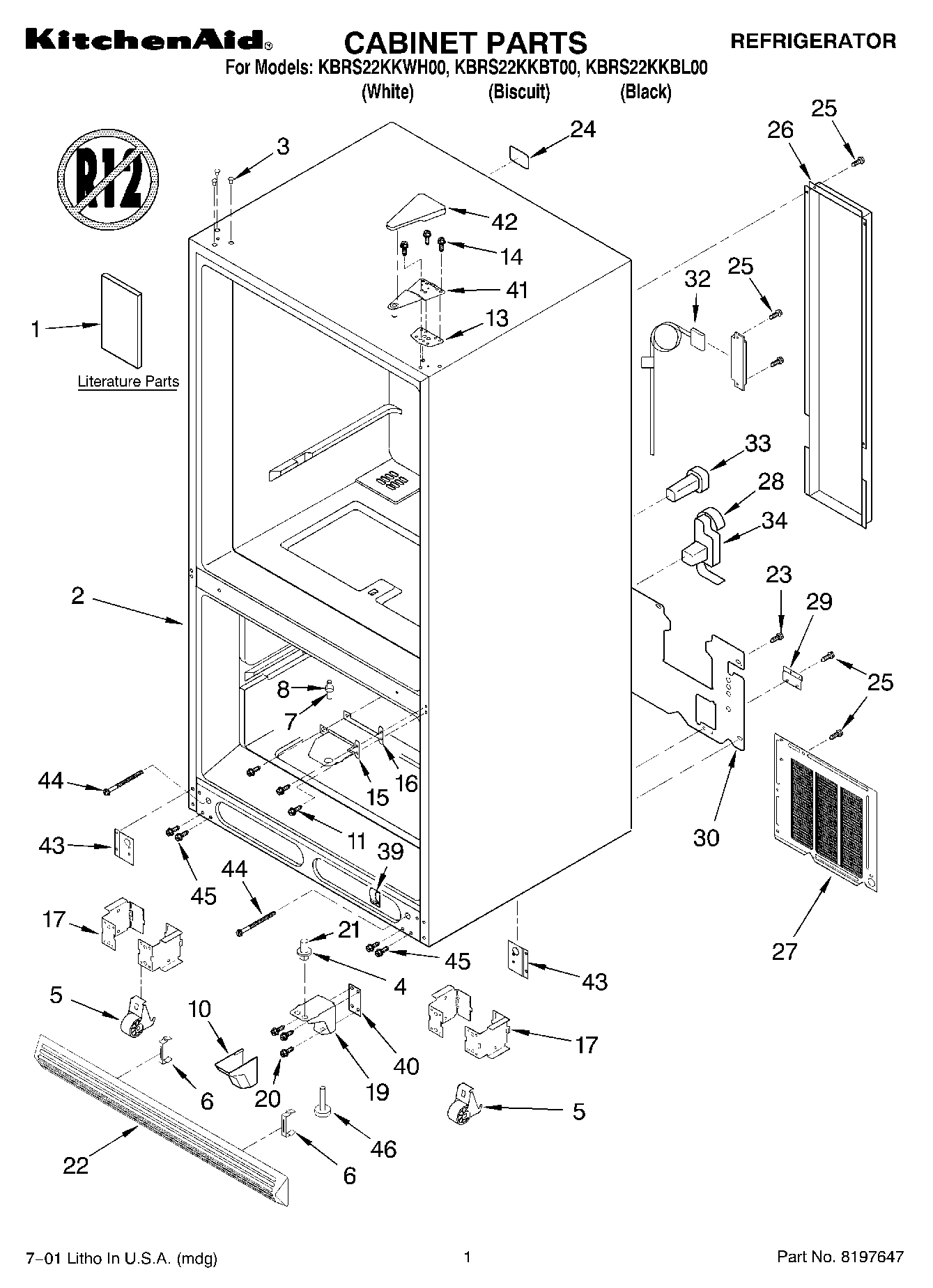

01 - CABINET, LITERATURE

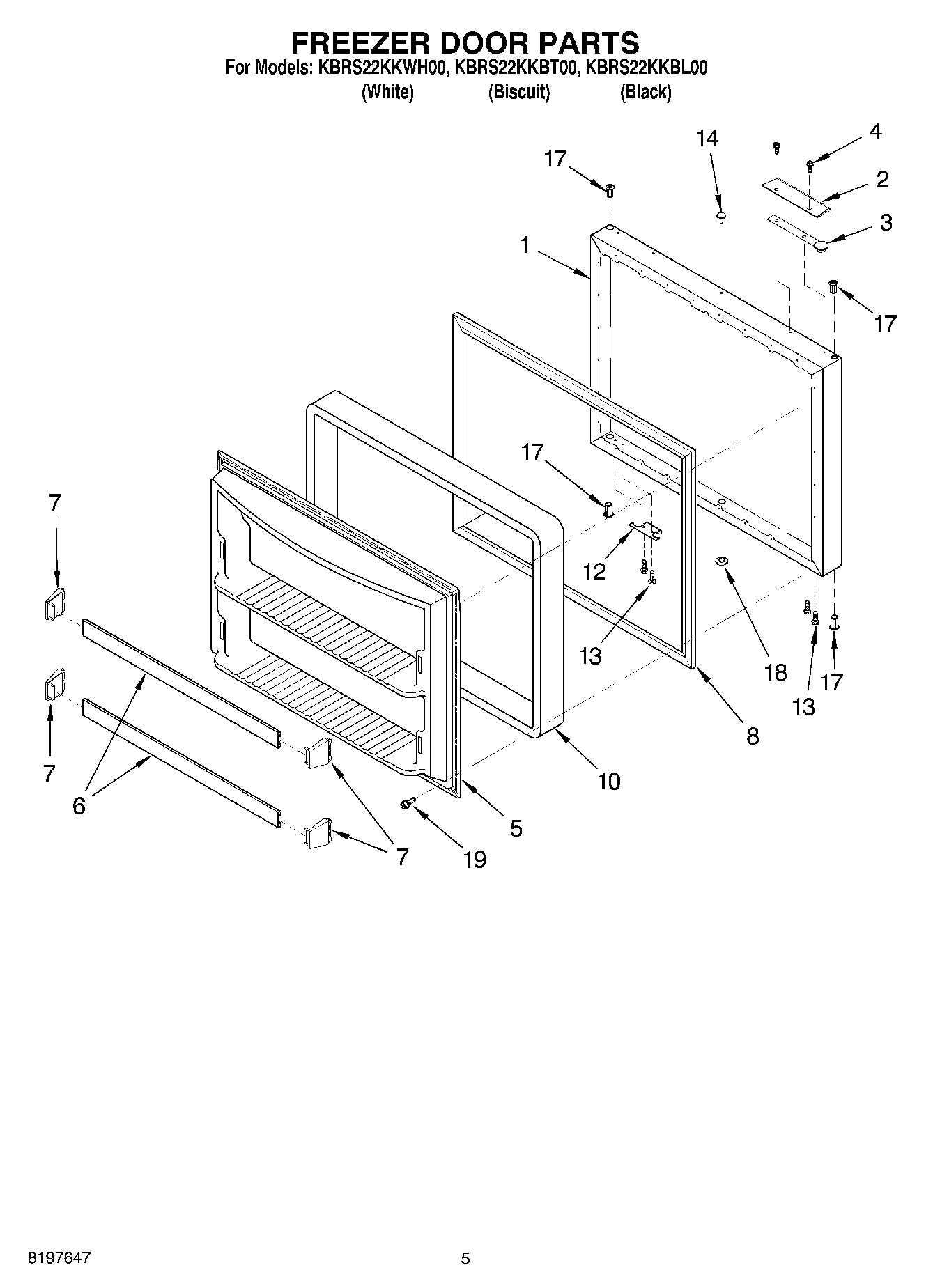

03 - FREEZER DOOR

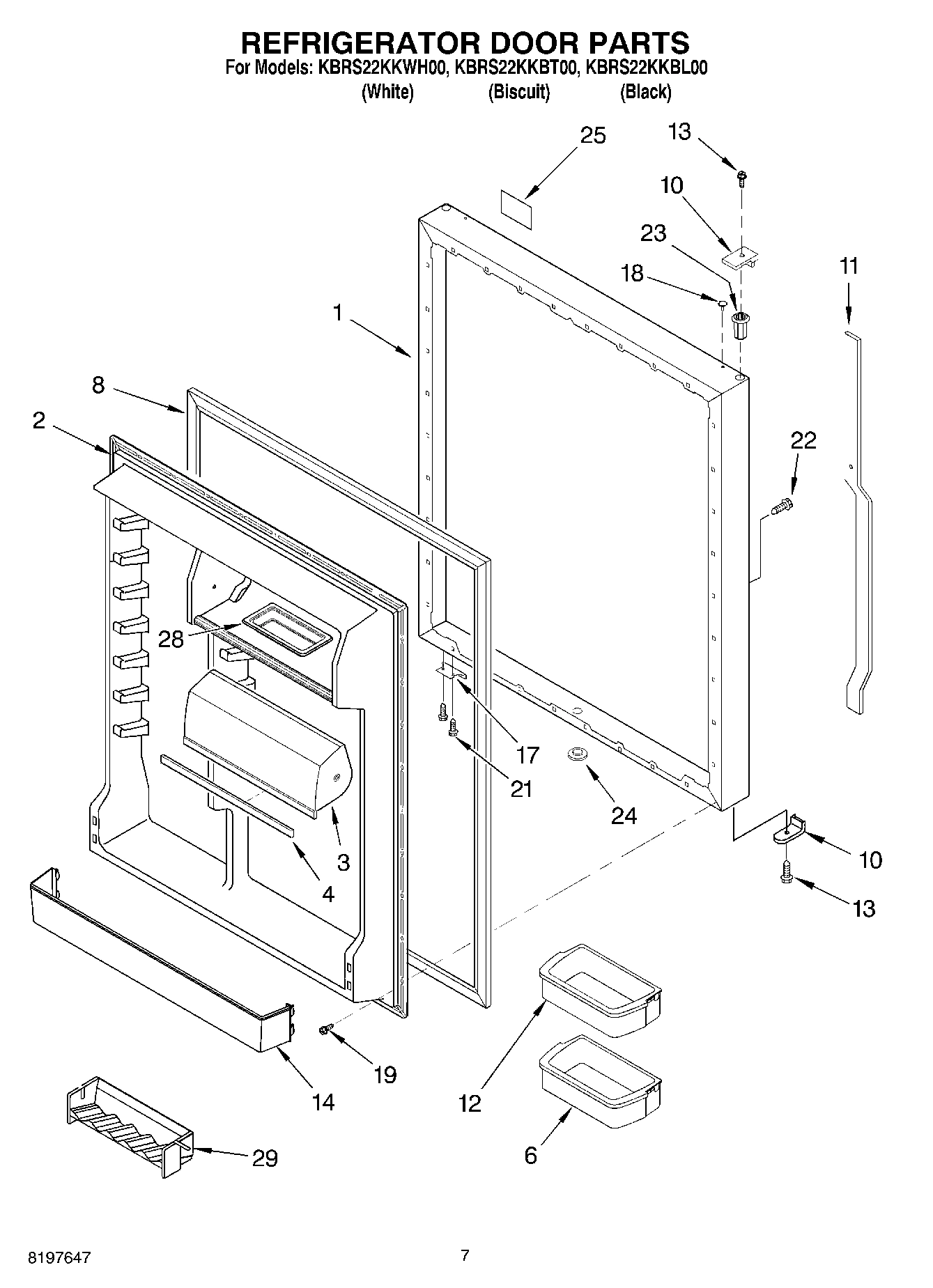

05 - REFRIGERATOR DOOR

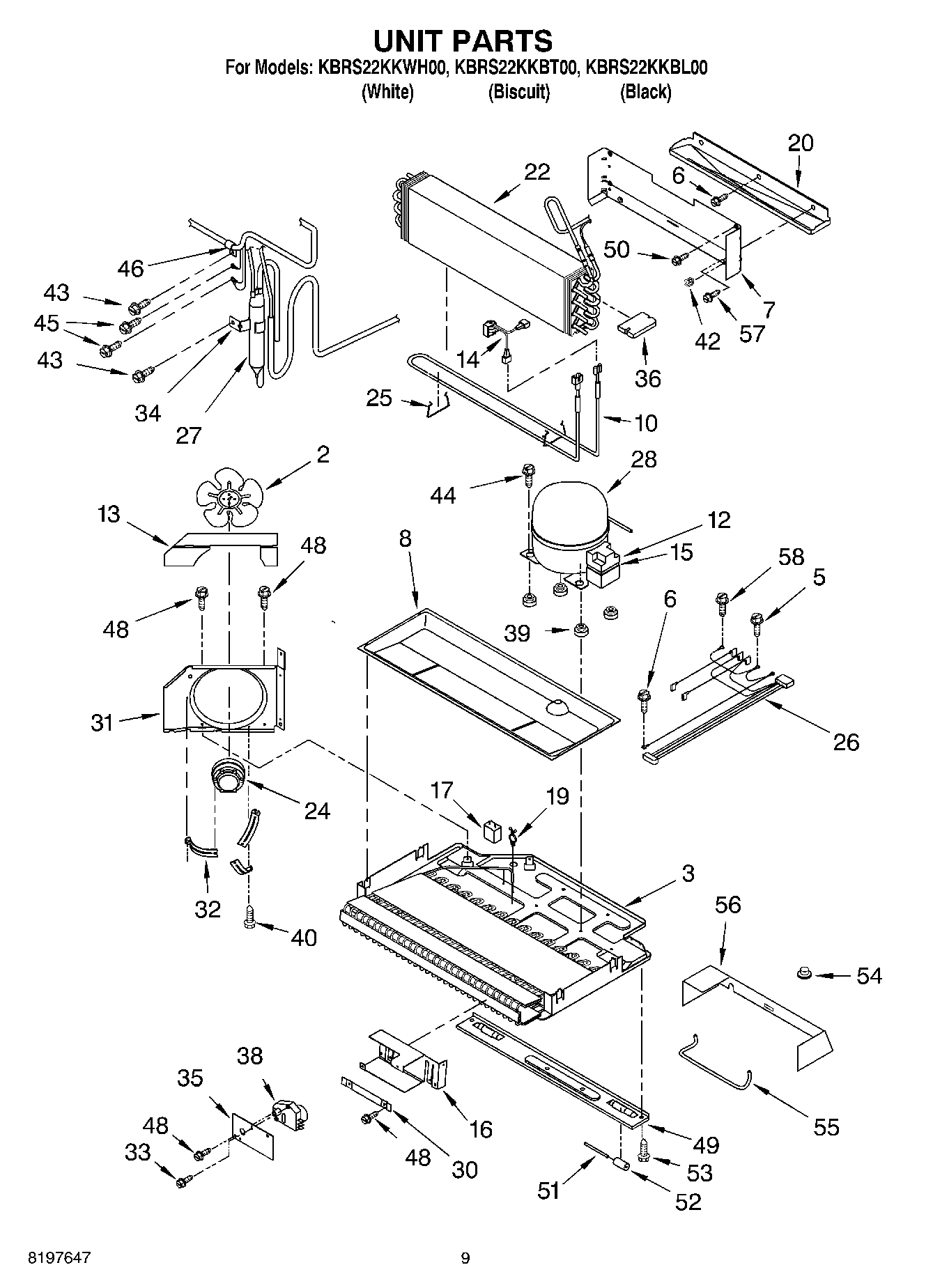

06 - UNIT
Common parts from model Whirlpool KBRS22KKBL00 BOTTOM MOUNT REFRIGERATOR
1
Liner (Not A Serviceable Part) WPL ARI80130A6 Contact Us For Availability
1
Support, Crisper WPL 4344581 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8170452 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8170713 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT8170731 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bla WPL 8170457 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Whi WPL 8170459 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bis WPL 8170496 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 8170491 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 8170492 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 8170493 Contact Us For Availability
2
Housing, Ref. Light WPL 8170381 Contact Us For Availability
2
Support, Crisper WPL 4344580 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI80128A4 Contact Us For Availability
2
Handle (White) WPL 4344596 Contact Us For Availability
2
Handle (Black) WPL 4344598 Contact Us For Availability
2
Handle (Biscuit) WPL 8170511 Contact Us For Availability
2
Interior Panel WPL 4344371 Contact Us For Availability
2
Fan, Blade WPL 4344271 Contact Us For Availability
3
Cover, Light Switch WPL 4343928 Contact Us For Availability
3
Plug, Button (Black) WPL 4344157 Contact Us For Availability
3
Plug, Button (White) WPL 4344159 Contact Us For Availability
3
Plug, Button (Biscuit) WPL 8170484 Contact Us For Availability
3
Door, Compartment WPL 4344369 Contact Us For Availability
3
Condenser & Pan Assembly WPL 8170489 Contact Us For Availability
4
Shelf, Frz. Wire WPL 8170400 Contact Us For Availability
4
Shim (White) WPL 4344200 Contact Us For Availability
4
Shim (Black) WPL 4344201 Contact Us For Availability
4
Screw WPL 8170396 Contact Us For Availability
4
Trim, Comp. Door WPL 4344370 Contact Us For Availability
5
Clip, Ground WPL 4343682 Contact Us For Availability
5
Basket, Freezer WPL 8170310 Contact Us For Availability
5
Roller, Front Assy. WPL 4344291 Contact Us For Availability
5
Interior Panel WPL 4344355 Contact Us For Availability
5
Screw WPL 4344151 Contact Us For Availability
6
Screw WPL 4343860 Contact Us For Availability
6
Washer WPL 8170311 Contact Us For Availability
6
Clip, Grille WPL 4344155 Contact Us For Availability
6
Trim, Shelf WPL 4344582 Contact Us For Availability
6
Shelf Bin (1) WPL 4344532 Contact Us For Availability
7
Heat Shield WPL 4344217 Contact Us For Availability
8
Door Gasket, Magnetic (Black) WPL 8170654 Contact Us For Availability
8
Drain Pan WPL 4344394 Contact Us For Availability
9
Meat Pan WPL 4344307 Contact Us For Availability
10
Washer (4) WPL 4344211 Contact Us For Availability
10
Shelf, Meat Pan WPL 8170406 Contact Us For Availability
10
Hinge Cover, Bottom (Black) WPL 4344202 Contact Us For Availability
10
Hinge Cover, Bottom (White) WPL 4344204 Contact Us For Availability
10
Hinge Cover, Bottom (Biscuit) WPL 8170490 Contact Us For Availability
10
End Cap (White) WPL 4344589 Contact Us For Availability
10
End Cap (Black) WPL 4344591 Contact Us For Availability
10
End Cap (Biscuit) WPL 8170502 Contact Us For Availability
11
Screw (8) WPL 4344167 Contact Us For Availability
11
Frame Assy (2) WPL 4344309 Contact Us For Availability
11
Insert, Handle (Black) WPL 8170498 Contact Us For Availability
11
Insert, Handle (Biscuit) WPL 8170500 Contact Us For Availability
11
Insert, Handle (White) WPL 8170501 Contact Us For Availability
12
Shelf, S/G WPL 4344313 Contact Us For Availability
12
Shelf Bin (3) WPL 4344365 Contact Us For Availability
13
Grommet WPL 4344321 Contact Us For Availability
13
Rack, Wine WPL 4344294 Contact Us For Availability
13
Shim, Hinge Top WPL 8170540 Contact Us For Availability
13
Screw WPL 4344588 Contact Us For Availability
13
Gasket WPL 4344275 Contact Us For Availability
14
Eyelet, Roller WPL 2174478 Contact Us For Availability
14
Trivet, Door WPL 4344373 Contact Us For Availability
15
Control, Damper WPL 8170444 Contact Us For Availability
15
Hinge, Center WPL 4344431 Contact Us For Availability
15
Strap WPL 8170724 Contact Us For Availability
16
Insulation, Damper WPL 8170727 Contact Us For Availability
16
Shim, Center Hinge (Grey) WPL 4344427 Contact Us For Availability
16
Shim, Center Hinge (Black) WPL 8170714 Contact Us For Availability
16
Bracket, Timer WPL 4344278 Contact Us For Availability
17
Shield, Light WPL 8170383 Contact Us For Availability
17
Pan, Crisper WPL 4344366 Contact Us For Availability
17
Housing, Roller WPL 8170506 Contact Us For Availability
18
Socket, Duel WPL 8170384 Contact Us For Availability
19
Hinge Bottom (Black) WPL 8170635 Contact Us For Availability
19
Hinge Bottom (White) WPL 8170636 Contact Us For Availability
19
Screw WPL 4343811 Contact Us For Availability
19
Clip, Wire WPL 4343969 Contact Us For Availability
20
Cover, Pan WPL 4344368 Contact Us For Availability
20
Drain Pan WPL 4344389 Contact Us For Availability
21
Light Lens, Top WPL 8170386 Contact Us For Availability
21
Glass, Crisper Cover WPL 4344367 Contact Us For Availability
22
Ladder, Center WPL 8170721 Contact Us For Availability
22
Grille (Black) WPL 4344152 Contact Us For Availability
22
Grille (White) WPL 4344154 Contact Us For Availability
22
Grille (Biscuit) WPL 4344572 Contact Us For Availability
22
Screw WPL 8170313 Contact Us For Availability
22
Evaporator WPL 8170402 Contact Us For Availability
23
Gasket, Damper WPL 4343681 Contact Us For Availability
23
Ladder, Side WPL 8170730 Contact Us For Availability
23
Screw WPL 4344267 Contact Us For Availability
23
Bushing (Black) WPL 4344361 Contact Us For Availability
23
Bushing (White) WPL 4344362 Contact Us For Availability
24
Plug, Button (White) WPL 4344227 Contact Us For Availability
24
Plug, I/M WPL 4344264 Contact Us For Availability
24
Plug, Button (Black) WPL 4344364 Contact Us For Availability
24
Plug, Button (Biscuit) WPL 8170497 Contact Us For Availability
25
Cover, Control WPL 8170371 Contact Us For Availability
25
Screw WPL 4344324 Contact Us For Availability
25
Screw WPL 4343759 Contact Us For Availability
25
Nameplate (Black) WPL 8170732 Contact Us For Availability
25
Nameplate (Biscuit) WPL 8170733 Contact Us For Availability
25
Nameplate (White) WPL 8170734 Contact Us For Availability
26
Knob, Control WPL 4344180 Contact Us For Availability
26
Roller WPL 2174388 Contact Us For Availability
26
Wire Cover WPL 4344257 Contact Us For Availability
26
Harness, Unit WPL 8170703 Contact Us For Availability
27
Back Cover WPL 8170375 Contact Us For Availability
28
Harness, Control WPL 8170728 Contact Us For Availability
28
Butter Dish WPL 4344296 Contact Us For Availability
29
Plug, Button WPL 4344241 Contact Us For Availability
29
Rack, Ice Tray WPL 8170562 Contact Us For Availability
29
Holder, Beverage WPL 4344374 Contact Us For Availability
30
Cover, Unit WPL 8170377 Contact Us For Availability
30
Washer WPL 4344282 Contact Us For Availability
31
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
31
Torx Key WPL 1117510 Contact Us For Availability
31
Ice Container Assembly WPL 4343700 Contact Us For Availability
31
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
31
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
31
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Shroud WPL 4344554 Contact Us For Availability
32
Screw (4) WPL 8170391 Contact Us For Availability
32
Power Cord WPL 4344263 Contact Us For Availability
32
Bracket, Fan Motor WPL 4344272 Contact Us For Availability
33
Grommet WPL 4344259 Contact Us For Availability
33
Screw WPL 4344395 Contact Us For Availability
34
Duct, Return Air WPL 4344222 Contact Us For Availability
34
PLug WPL 4344260 Contact Us For Availability
34
Clip, Drier WPL 4343763 Contact Us For Availability
35
Cover, Timer WPL 8170451 Contact Us For Availability
36
Block, Evaporator WPL 4344234 Contact Us For Availability
37
Knob, Control WPL 4344214 Contact Us For Availability
38
Screw WPL 4344224 Contact Us For Availability
39
Cover, Frz. Control WPL 8170392 Contact Us For Availability
39
Grommet (4) WPL 4343845 Contact Us For Availability
40
Screw WPL 4343861 Contact Us For Availability
40
Shim, Hinge (White) WPL 8170662 Contact Us For Availability
40
Shim, Hinge (Black) WPL 8170663 Contact Us For Availability
40
Screw WPL 4344562 Contact Us For Availability
41
Hinge Top WPL 8170659 Contact Us For Availability
42
Hinge Cover (Black) WPL 4344195 Contact Us For Availability
42
Hinge Cover (White) WPL 8170379 Contact Us For Availability
42
Hinge Cover (Biscuit) WPL 8170488 Contact Us For Availability
42
Clip, Evaporator WPL 4344219 Contact Us For Availability
43
Bracket, Control WPL 4344578 Contact Us For Availability
43
Plate, Hinge Tap (Right Side) WPL 4344299 Contact Us For Availability
43
Plate, Hinge Tap (Left Side) WPL 4344301 Contact Us For Availability
44
Biscuit WPL 8170380 Contact Us For Availability
44
Screw WPL 4343847 Contact Us For Availability
46
Clamp WPL 4343661 Contact Us For Availability
48
Screw WPL 4343749 Contact Us For Availability
49
Cabinet, Brace WPL 4344297 Contact Us For Availability
51
Axle-Roller WPL 4344289 Contact Us For Availability
52
Roller-Rear WPL 4344288 Contact Us For Availability
53
Screw WPL 4344292 Contact Us For Availability
55
Drain Tube WPL 4344283 Contact Us For Availability
56
Insulation WPL 4344595 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
